GrimmSpeed

GrimmSpeed Front Mount Intercooler Kit w/ Red Piping

2008-2014 Subaru WRX

$1,559.00
Ships for free in the 48 states

SKU: 090229

Only 2 left!
Ships within 24 hours

HIGHLIGHTS:

  • Reduces the intake charge temperature to maximize the performance of your turbo and other modifications
  • Silver core finish
  • Red piping option

Details

GrimmSpeed Front Mount Intercooler Kit w/ Red Piping


INTERCOOLER CORE SPECS:

  • Silver core finish option
  • 27" x 11" x 4" Cross Flow Core
  • Durable bar and plate construction that has a perfect balance of pressure drop and heat rejection
  • Cast aluminum end tanks - Designed for equal flow distribution and minimum pressure drop
  • Steel bolt-on mounting brackets - Robust mounting solution to minimize movement and to maximize adjustability
  • No permanent vehicle modification -  Only two tiny ribs need to be removed from the OEM undertray and a few simple cuts to the splash guard
  • Compatible with the factory or GrimmSpeed Intake with the removal of the factory snorkel
  • Pressure tested, cleaned, sealed, and guaranteed to work prior to delivery
  • No tune required - No change in maximum boost or spool time
  • Welded and inspected by hand in Minneapolis, MN for consistency and optimal quality control
  • Includes pre-applied GrimmSpeed sticker



INTERCOOLER PIPING SPECS:

  • Red powder-coated finish option
  • Thick .090 wall 2.5" diameter 6061 aluminum piping construction
  • Bead rolled and CNC mandrel-bent on a large radius for max flow
  • Lightweight and heat dispersant
  • Precision pipe routing - Retains factory components and avoids unnecessary trimming
  • Retains the factory fog light mounting
  • 5-ply silicone couplers - Custom-molded and reinforced to withstand demanding environments

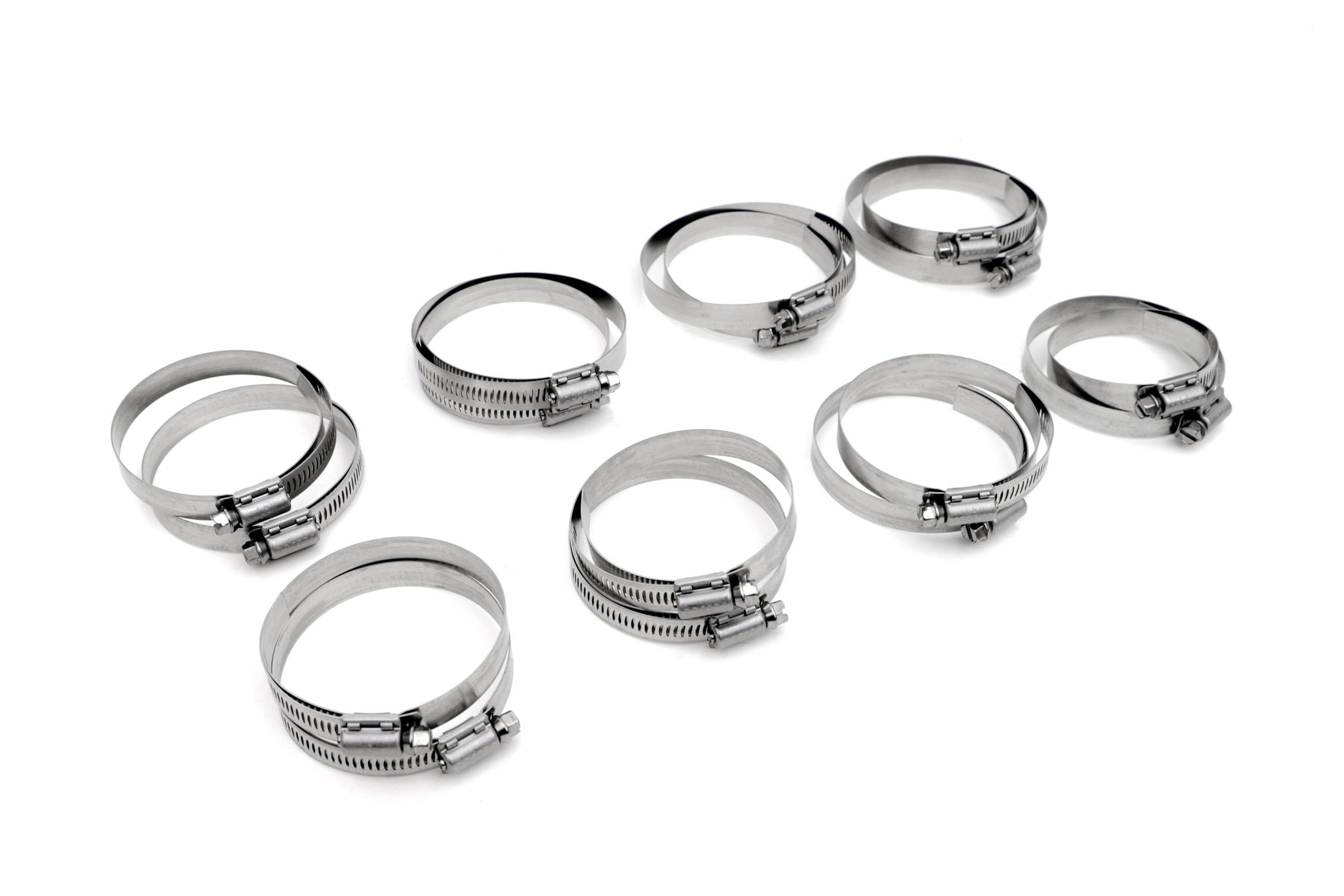

  • Breeze Hi-Torque Liner Clamps - Stainless steel for lasting durability and grip with an integrated liner to prevent damage to the silicone
  • Durable powder-coated finish keeps pipes protected against corrosion while keeping a great look
  • OEM bypass valve location - Eases installation and allows for use of most aftermarket BPVs



NOTE:

  • The bumper bar is NOT included in this kit and is sold separately

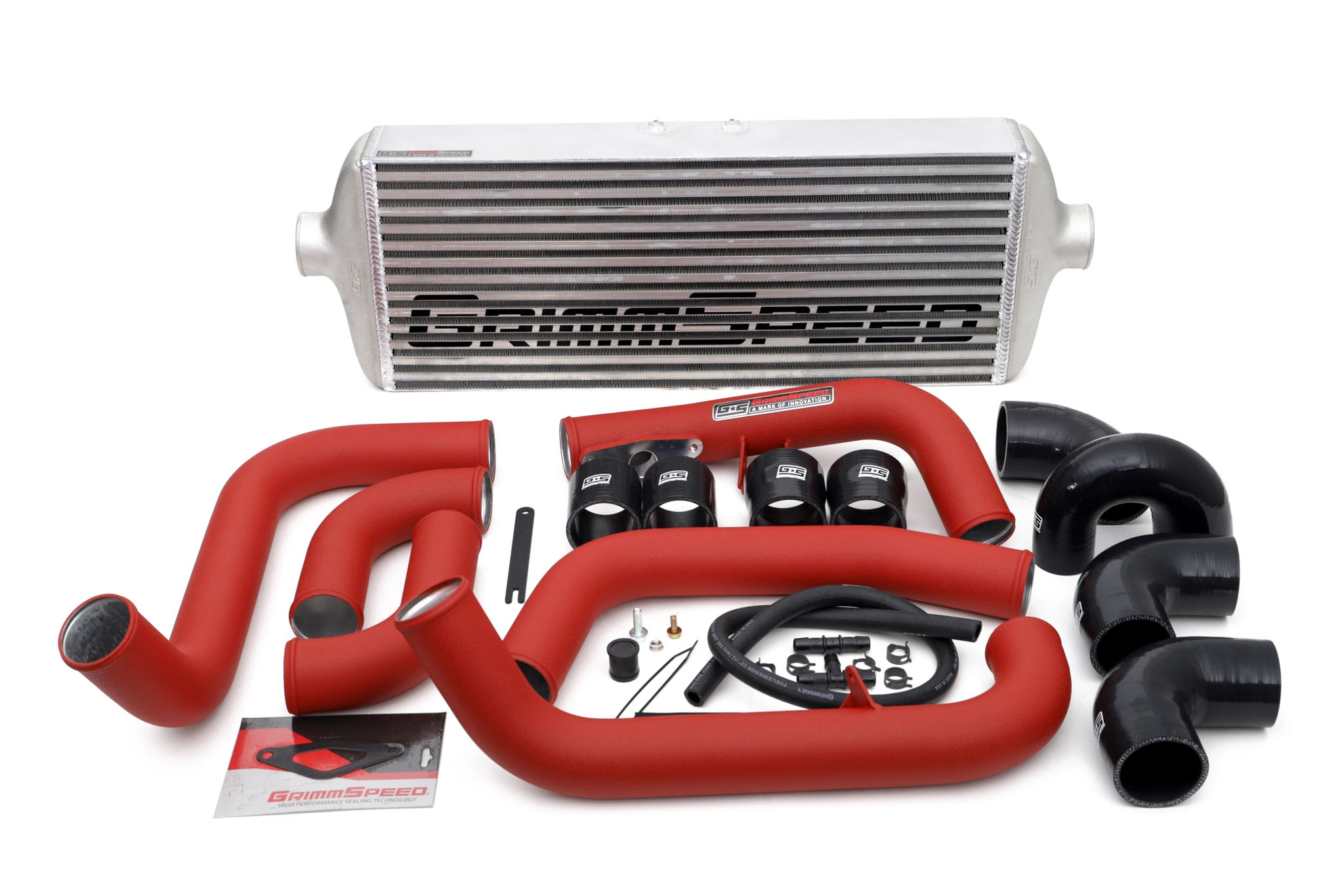

A COMPLETE FRONT MOUNT INTERCOOLER KIT BROUGHT TO YOU BY GRIMMSPEED

If your Subaru has mild bolt-ons, or if you plan on adding significant bolt-ons that will increase the boost and horsepower, at some point you will be limited by the factory top-mount intercooler. From experiencing heat soak, to surpassing the power limits with your modifications, you will have to upgrade to an intercooler with a larger core. GrimmSpeed has engineered a comprehensive front mount intercooler kit that will do a great job lowering those intake charge temperatures which will improve your performance but will also provide the cooling needed to maximize the performance potential of your other modifications. This kit will include the intercooler core, a set of aluminum pipes, silicone hose couplers, as well as clamps, and hardware.
