Tomioka Racing TD06-20G Twin Scroll Turbo Kit - 2002-2007 Subaru WRX/STi

** Attention: All of our turbocharger now comes with billet wastegate actuator. The brass wastegate actuator will be phased out. Picture(s) of turbo or turbo kit(s) with the brass wastegate actuator will be replaced as soon as the new picture(s) become available. If you have any questions, please contact us **

Tomioka Racing Twin Scroll Turbo: Subaru Fan Favorite

The Tomioka Racing Twin Scroll Turbo line is specifically designed for dedicated Subaru enthusiasts. It offers an efficient and cost-effective way to replace or upgrade your existing twin-scroll setup. As twin-scroll turbos become increasingly rare, Tomioka provides a direct bolt-on solution featuring a USDM-length twin-scroll downpipe. These turbos generate more boost power than the standard VF series turbo. With a TD06 housing and twin-scroll configuration, the Tomioka turbo improves spool time compared to the standard TD06, delivering better performance and responsiveness without sacrificing bolt-on convenience.

Turbo Characteristics

Bearing Type:		Journal
Flange Type:		Standard Subaru 5-Bolts
Compressor Wheel	In:	51 mm
	Ex:	58 mm
Turbine Wheel	In:	68 mm
	Ex:	56 mm
Actuator:		1 Bar / 14.7 psi
Turbine Housing:		8 cm2
Max. Power:		500 HP

Applications:

• 2002-2007 WRX
• 2004-2020 STI

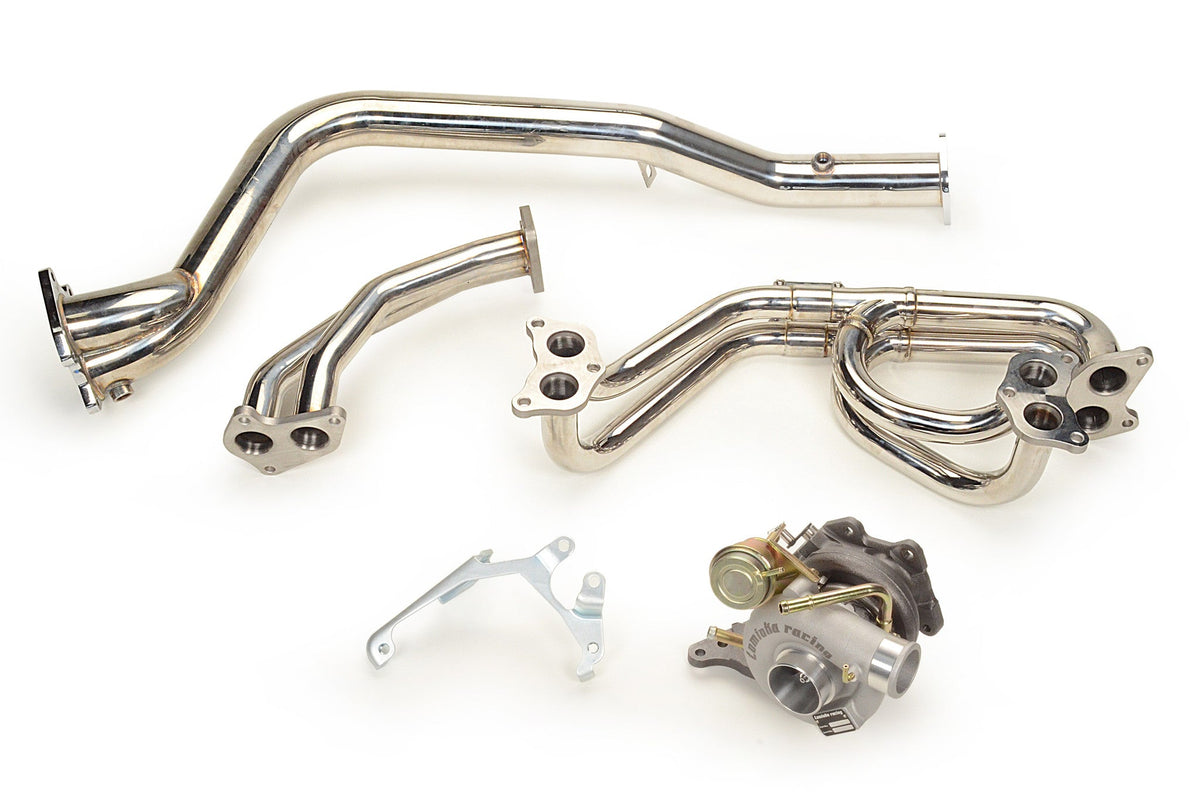

Kit Contents
Twin Scroll Turbo
Twin Scroll Manifold
3-Bolt Uppipe
Twin Scroll USDM Downpipe
Bracket
Hardware kits
