Tomioka Racing TD06-20G Turbo - 2002-2007 Subaru WRX / 2002-2011 STI (Twin Scroll)

** Attention: All of our turbocharger now comes with billet wastegate actuator. The brass wastegate actuator will be phased out. Picture(s) of turbo or turbo kit(s) with the brass wastegate actuator will be replaced as soon as the new picture(s) become available. If you have any questions, please contact us **

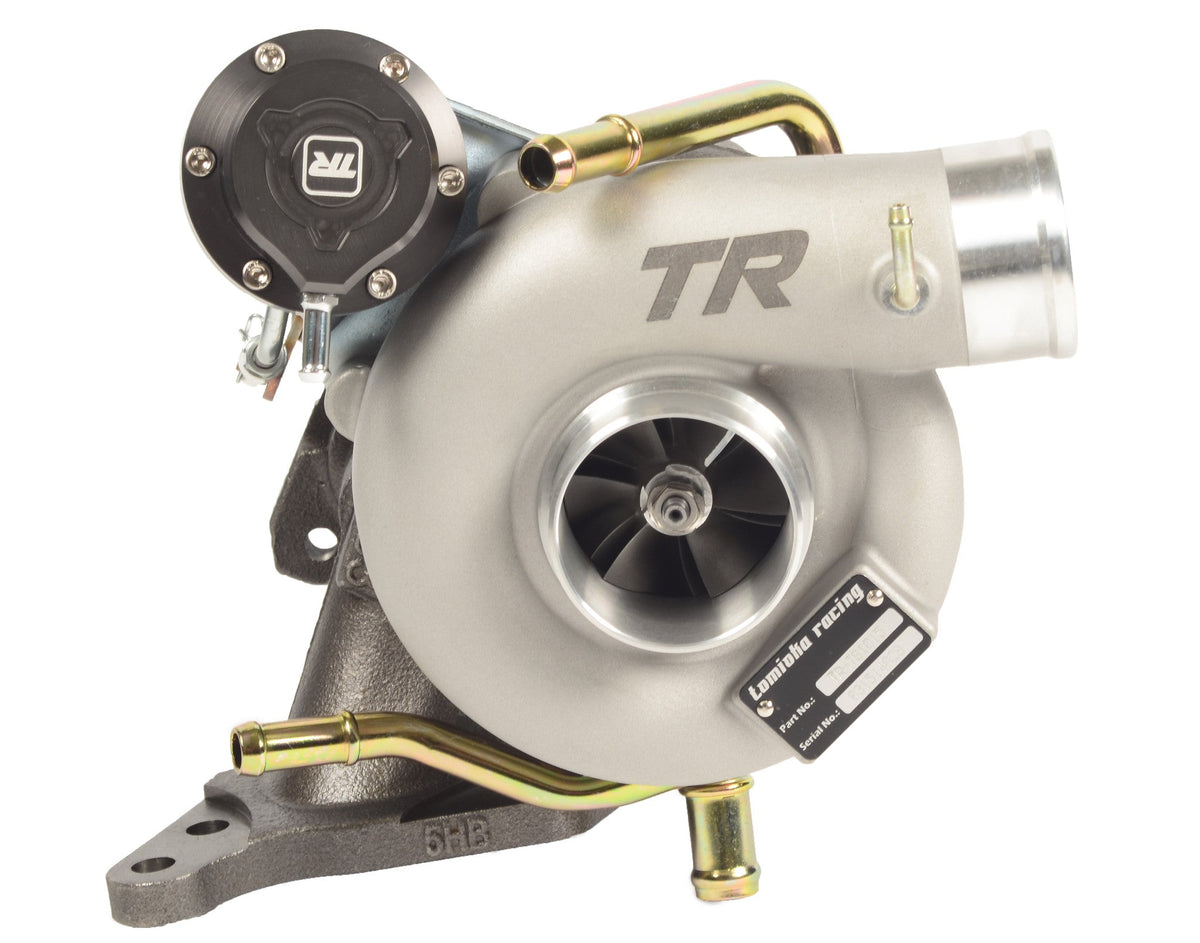

Tomioka Racing TD06-20G Twin Scroll Turbo: Largest Stock Bolt-On

The Tomioka Racing TD06-20G Twin Scroll Turbo is the largest stock replacement bolt-on turbo currently available in their lineup. It is perfect for drivers aiming to achieve maximum horsepower without needing a rotated mount setup, all while maintaining quick spool characteristics.

This turbo is fully bolt-on and capable of supporting up to 450WHP without compromising performance, making it suitable for both track and street applications. It requires a vehicle equipped with a twin-scroll setup to operate properly and includes all necessary components for installation.

* Your vehicle must have twin-scroll set-up in order to run this turbo.

Check out the available video and dyno graph on this turbo.

Turbo Characteristics

Bearing Type:		Journal
Flange Type:		Standard Subaru 5-Bolts
Compressor Wheel	In:	51 mm
	Ex:	58 mm
Turbine Wheel	In:	68 mm
	Ex:	56 mm
Actuator:		1 Bar / 14.7 psi
Turbine Housing:		8 cm2
Max. Power:		500 HP

APPLICATIONS

• 2002-2007 WRX
• 2004-2020 STI



Kit Contents:
Twin scroll Turbocharger
Actuator
Oil & Waer Pipe
Gaskets & Hardware Kits
