TMRTR-TS1017
Tomioka Racing TD05-20G Turbo with Billet Wheel & Actuator - 2008–2014 Subaru GH8 WRX / 2009–2013 SH5/9 Forester / 2005–2009 Legacy GT (w/ Billet Actuator)
$1,450.40
Payin full orin 4 interest-free installmentsof$362.60.
Price Match Guarantee up to 110%
30 Day Satisfaction Guarantee
Rated Excellent & Trusted
Authorized Dealer of
Tomioka RacingCheck compatibility with your vehicle
Manufacturer's Warranty: This part is new and carries a full manufacturer warranty. See manufacturer's website for additional details.
Product Description
TMRTR-TS1017

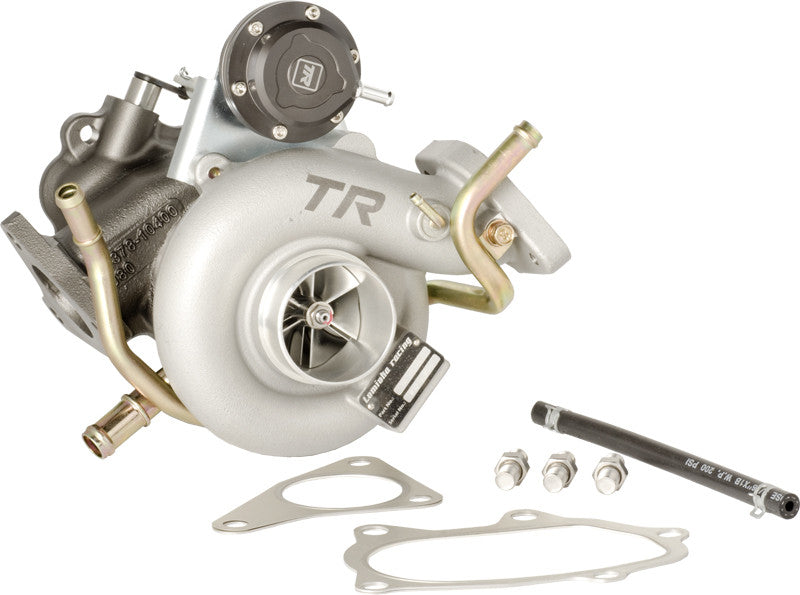

TD05-20G Turbo: Street and Track Excellence
The TD05-20G turbo from Tomioka Racing is built for street and track performance, rated to support up to 450 HP while maintaining street-friendly drivability. It features a new billet compressor wheel that is lighter and stronger than the TR TD05-18G, allowing it to handle higher mid to high-end power without significant turbo lag compared to factory units.
Ready to install right out of the box, this turbo kit includes all necessary fittings, gaskets, and hardware, ensuring a smooth bolt-on upgrade for your Subaru’s performance.
TR has partnered with Motul USA to offer a free 2L can of 300V 5W30 or 5W40 with any purchase of TR turbos! Choose your oil of choice in the options and we will include it in your order!
Turbo Characteristics
| Bearing Type: | Journal | |
| Flange Type: | Standard Subaru 5-Bolts | |
| Compressor Wheel | In: | 52.5Â mm |
| Ex: | 68Â mm | |
|
Turbine Wheel |
In: | 56Â mm |
| Ex: | 49.2 mm | |
| Actuator: | 1.3 Bar / 19 psi | |
| Turbine Housing: | 8cm^2 | |
| Max. Power: | 450 HP | |
Applications:
- 2008-2014 Subaru WRX
- 2008 SH5/9 Forester
- 2005-2008 Legacy GTÂ
Kit Contents
- Turbocharger
- Gaskets
- Actuator
- Oil Pipe
- Water Pipe
- Hardware Kits
- Motul 300V Competition 2L
