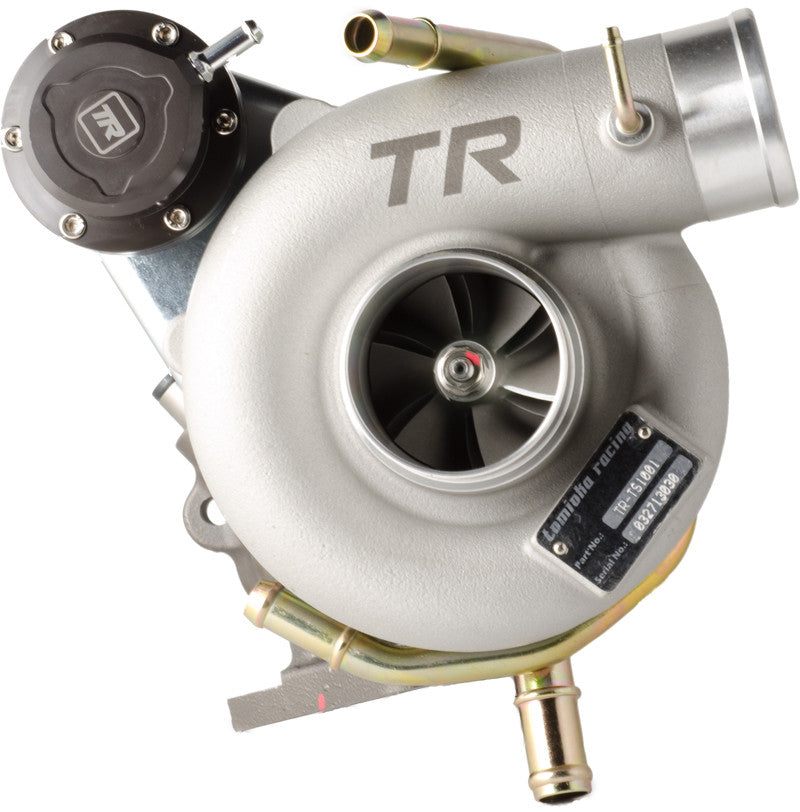

Tomioka Racing TD05-20G Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)

Tomioka Racing TD05-20G Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)

  • TMRTR-TS1001
1 1

Tomioka Racing

Tomioka Racing TD05-20G Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)

Tomioka Racing TD05-20G Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)

$1,298.50 USD
$1,298.50 USD $1,298.50 USD
Sale Sold out
Shipping calculated at checkout.
Ships from manufacturer when available
Have any technical questions? Call or text: +1 (925) 433-6318
Call now
Price Match Guarantee up to 100%
30 Day Satisfaction Guarantee
Free Shipping! On orders over $199
Rated Excellent & Trusted

TR TD05-20G: The Go-To Turbo for Subaru

The TR TD05-20G turbo stands as one of the most popular choices for Subaru enthusiasts seeking performance on both street and track. Capable of producing up to 400WHP while maintaining excellent drivability for daily use, this turbo strikes a perfect balance between power and responsiveness. Featuring larger wheel blades compared to the TD05-18G, it delivers strong mid to high-end horsepower without adding turbo lag over the factory setup.

Ready to install straight out of the box, the TR TD05-20G comes complete with all necessary fittings and gaskets, making it a true bolt-on solution for upgrading your Subaru’s performance.




Turbo Characteristics:

Bearing Type: Journal
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel In: 52.5 mm
Ex: 68 mm

Turbine Wheel

 In: 56 mm
Ex: 49.2 mm
Actuator: 1.3 Bar / 19 psi
Turbine Housing: 8 cm2
Max. Power: 450 HP



APPLICATIONS

  • 2002-2007 WRX
  • 2004-2020 STI


Kit Contents

  • Turbocharger
  • Actuator
  • Oil Pipe
  • Water Pipe
  • Gaskets
  • Hardware kits
