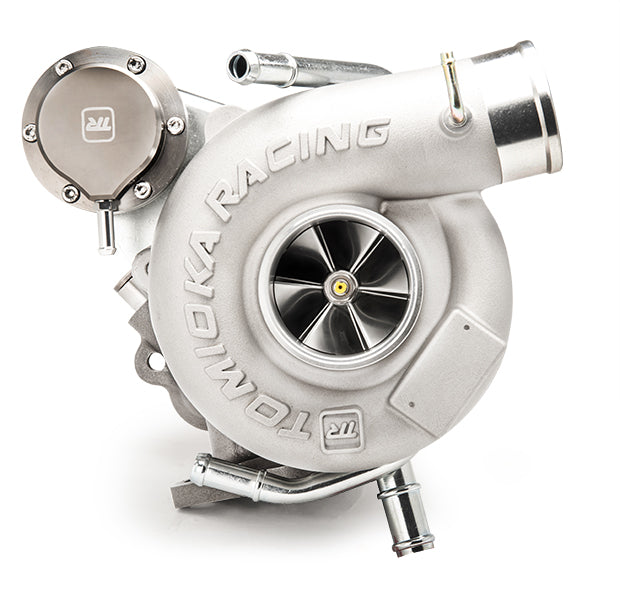

Tomioka Racing TD05-20G Ball Bearing Turbo - 2002-2007 Subaru WRX/ 2004-2018 STI

Faster Spool with Ball Bearing Technology

Say goodbye to slow spool times with the new ball bearing version of the Tomioka Racing TD05-20G turbo for Subaru. Equipped with dual ceramic ball bearings and a billet compressor wheel, this turbo spools nearly as quickly as a factory unit when matched with the proper tune.

Balanced and Improved Airflow

The design balances and enhances airflow through the TD05 frame, providing a more responsive throttle and increased driving excitement for your daily Subaru.

Seamless Bolt-On Fitment

This ball bearing TD05-20G turbo maintains the same direct bolt-on fitment as its predecessor, making installation straightforward without the need for additional modifications. The kit includes the turbocharger, gaskets, hardware, and even a complimentary 2L can of Motul 300V oil for optimal performance.



Turbo Characteristics:

Bearing Type:		Ball Bearing
Flange Type:		Standard Subaru 5-Bolts
Compressor Wheel	In:	52.5 mm
	Ex:	68 mm
Turbine Wheel	In:	56 mm
	Ex:	49.2 mm
Actuator:		1.1 bar / 19 psi (Optional 1.3 bar)
Turbine Housing:		8 cm2
Max. Power:		480 HP

Specifications:

• Dual Ceramic Ball Bearing
• Billet Compressor Wheel
• Fast Spool
• Bolt-On

Kit Contents:

• Turbocharger
• Gasket
• Hardware Kit
• Motul 300V 2L

Applications:

• 2002 - 2007 Subaru WRX
• 2004 - 2018 Subaru STi
