TMRTR-TS1024

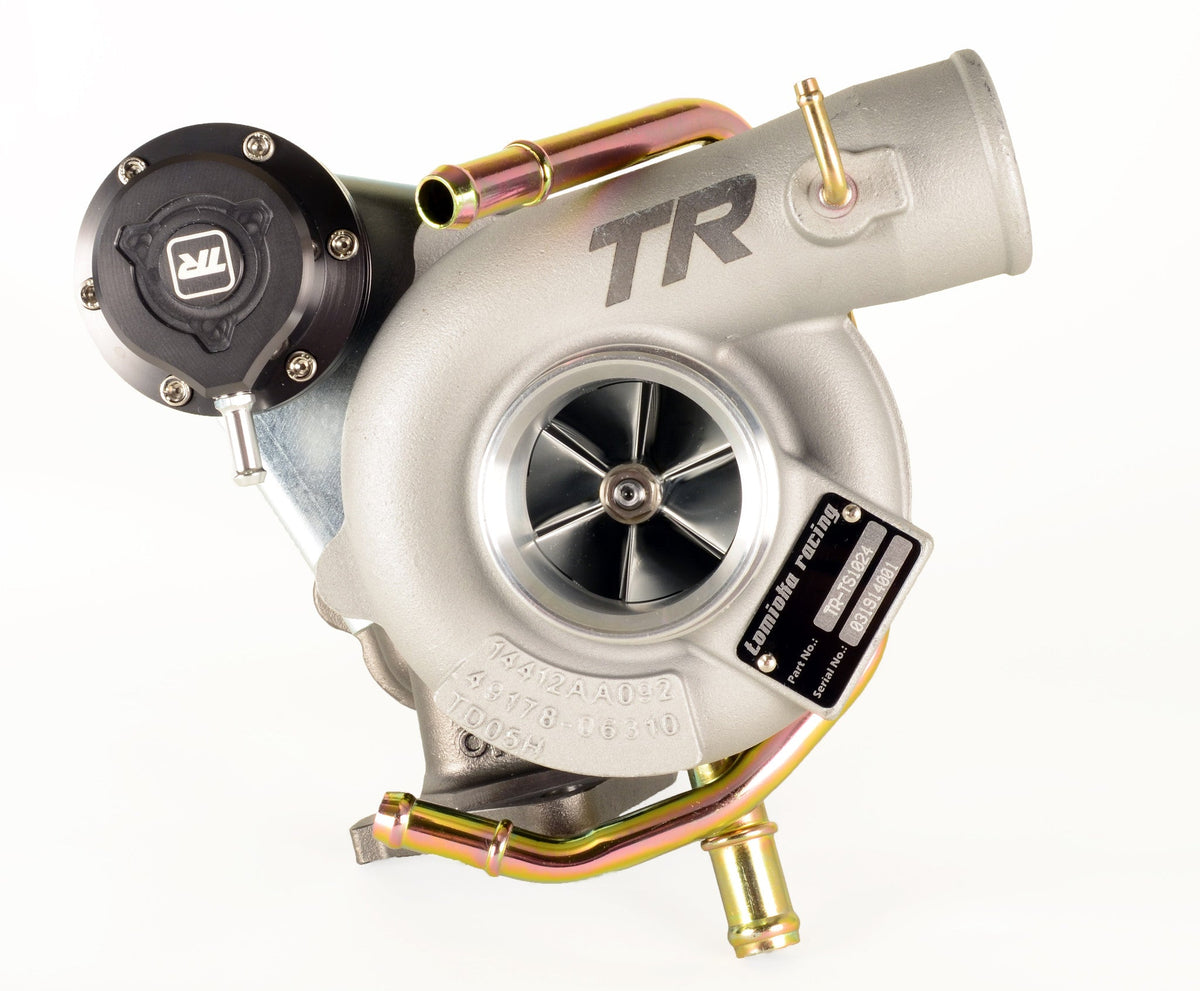

    Tomioka Racing TD05-16G Billet Wheel Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)

    $1,166.20

    Payin full orin 4 interest-free installmentsof$291.55.

    0 In Stock:Average time to ship:30 business days

    Price Match Guarantee up to 110%

    30 Day Satisfaction Guarantee

    Rated Excellent & Trusted

    Authorized Dealer of

    Tomioka Racing

    Check compatibility with your vehicle

    Manufacturer's Warranty: This part is new and carries a full manufacturer warranty. See manufacturer's website for additional details.

    Product Description

    TMRTR-TS1024

    TR TD05-16G Billet Turbo: Enhanced Performance Upgrade

    The popular TD05-16G replacement turbocharger now features a billet compressor wheel, providing a significant performance boost over the factory VF turbo. This billet wheel improves airflow by at least 10% compared to the standard TD05-16G compressor wheel, resulting in increased horsepower capacity.

    Rated for up to 400 HP, this turbo is an ideal all-around upgrade for daily-driven Subarus. The kit comes complete with all fittings, gaskets, and hardware, ready for a straightforward bolt-on installation out of the box. The upgrade offers improved durability and efficiency while maintaining excellent street drivability.

    TR has partnered with Motul USA to offer a free 2L can of 300V 5W30 or 5W40 with any purchase of TR turbos! Choose your oil of choice in the options and we will include it in your order!



    Turbo Characteristics:

    Type: TD05-16G
    Bearing: Journal
    Flange: Standard Subaru 5 Bolt
    Compressor Diameter: Inlet = 48.3 mm | Outlet = 68 mm
    Turbine Diameter: Inlet = 56 mm | Outlet = 49.2 mm
    Turbo Boost: 1.3 bar / 19 PSI
    Maximum Power: 400 HP


    APPLICATIONS

    • 2002-2007 Subaru WRX
    • 2004-2020 Subaru STI

    Kit Contents:

    • Turbocharger
    • Actuator
    • Oil Pipe
    • Water Pipe
    • Gaskets
    • Motul 300V Competition
