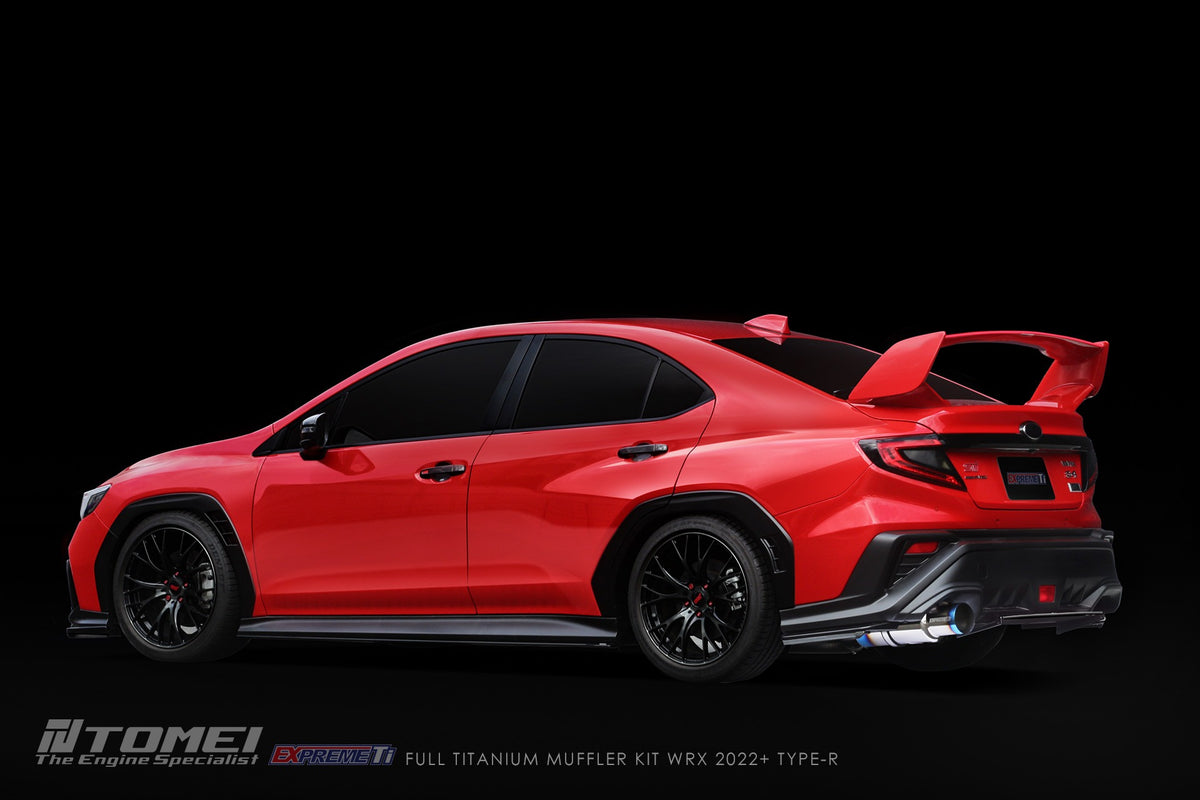

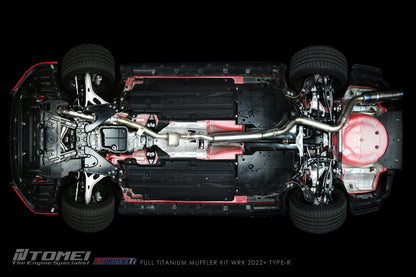

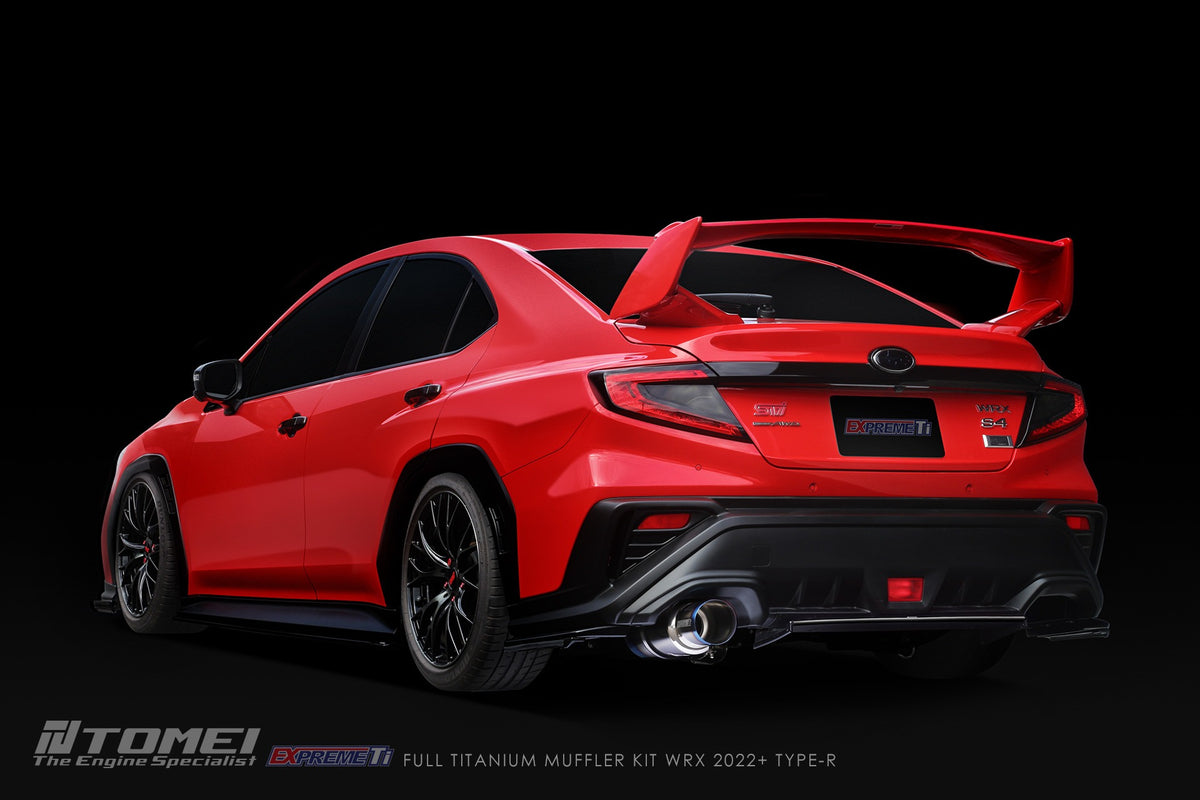

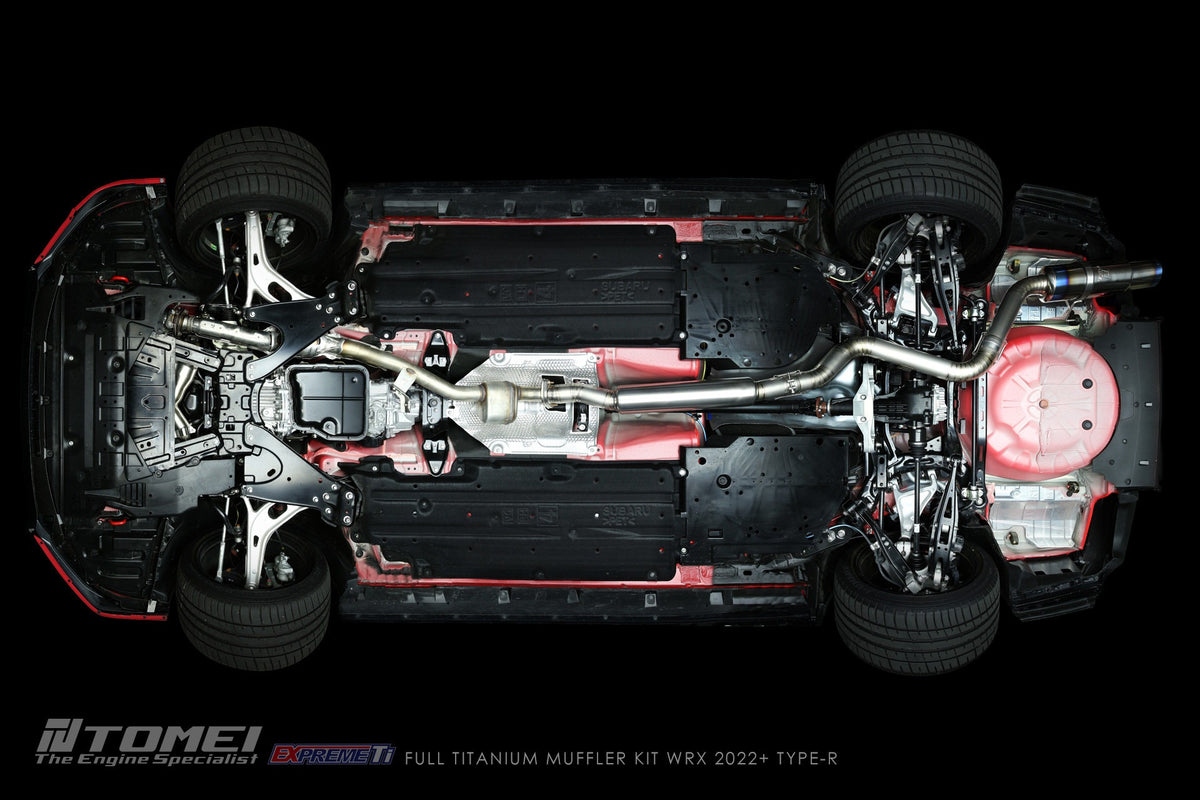

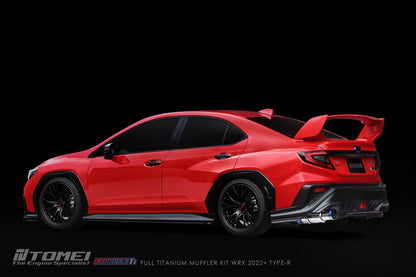

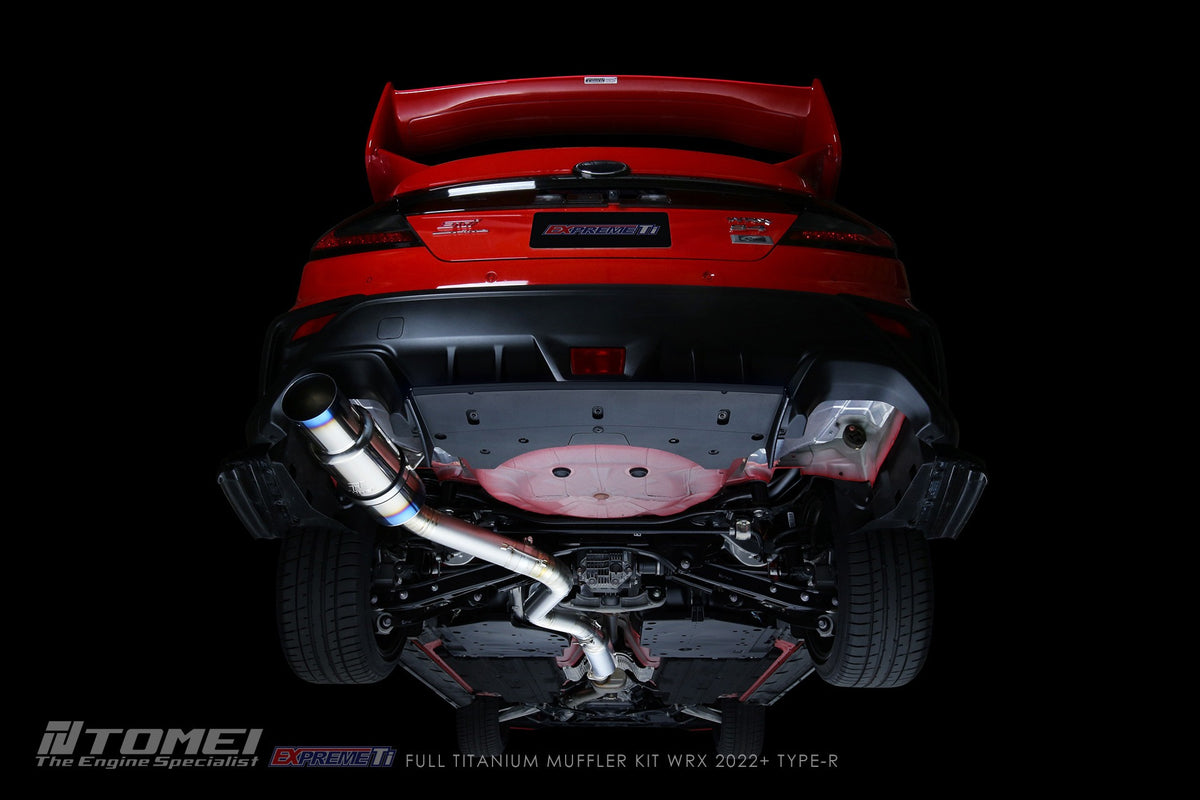

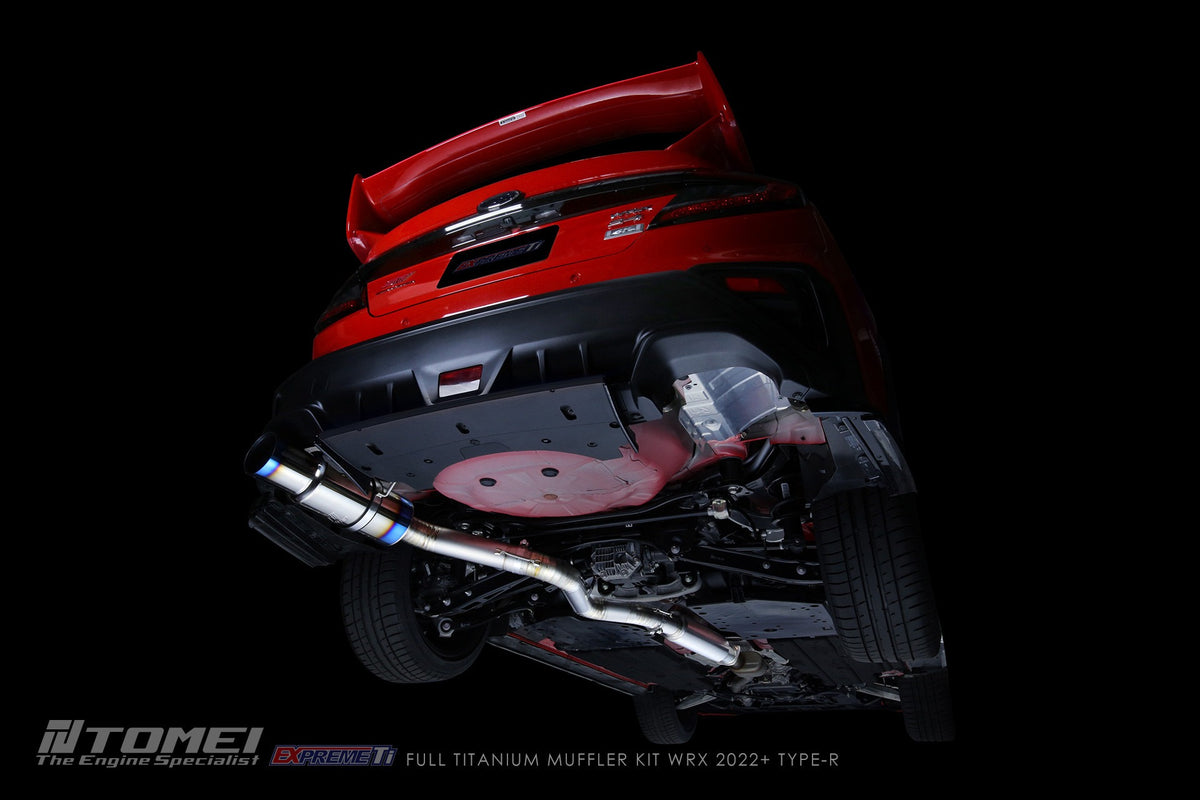

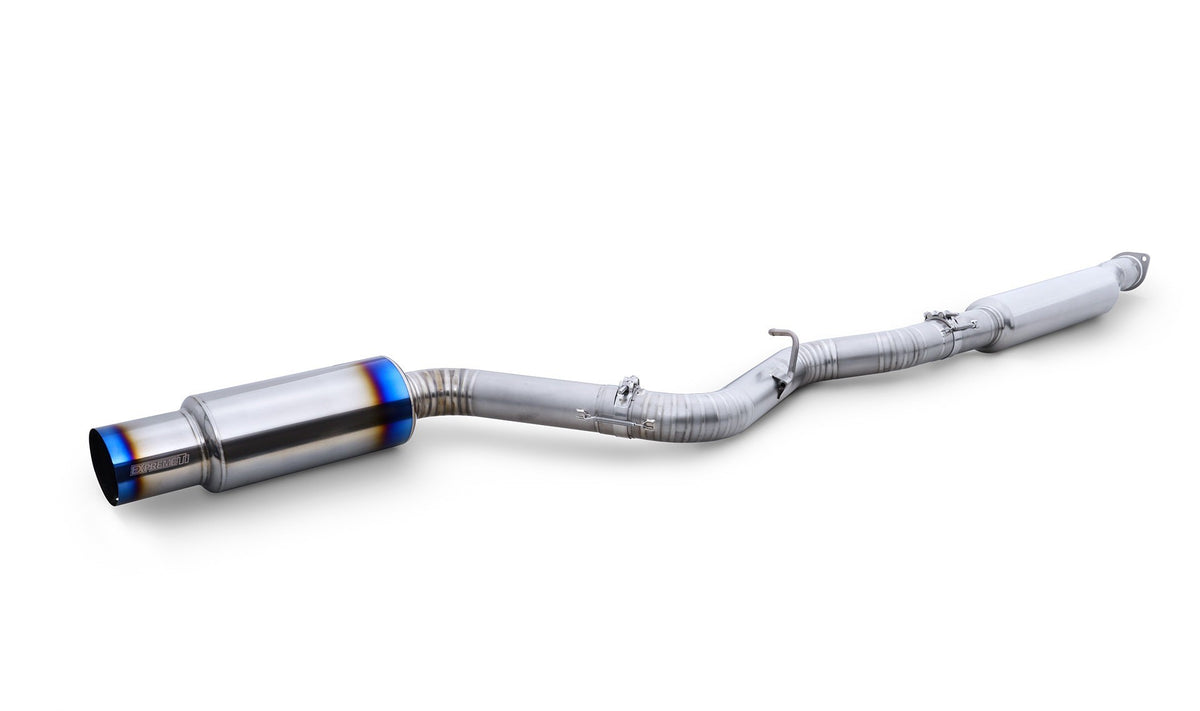

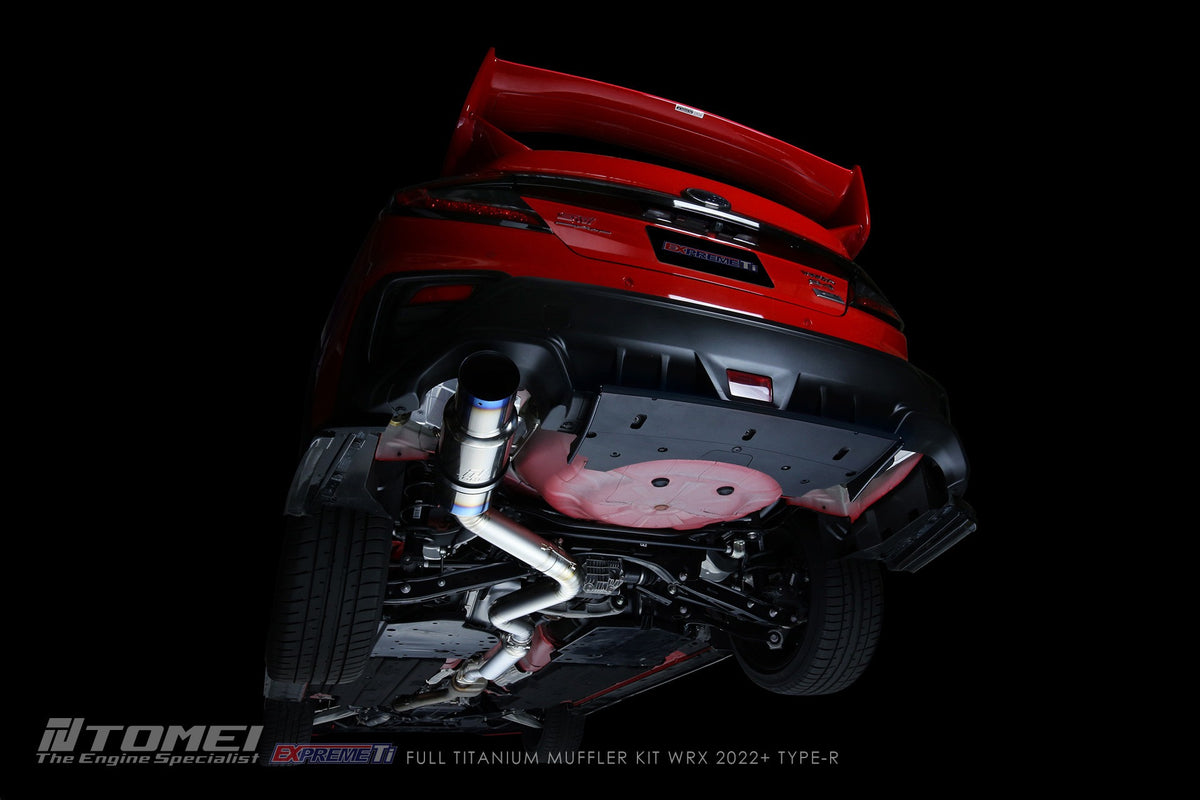

Tomei Full Titanium Muffler Expreme Ti Catback Exhaust System - Type-R - 2022-2024 Subaru WRX

Unleash the Roar: Tomei Full Titanium Muffler Expreme Ti Type-R Catback Exhaust System

Elevate your driving experience with the Tomei Full Titanium Muffler Expreme Ti Type-R Catback Exhaust System, meticulously crafted to deliver unrivaled performance and a distinctive exhaust note. Specifically designed for the 2022-2024 Subaru WRX, this exhaust system is a testament to Tomei's commitment to precision engineering and quality craftsmanship.

Key Features:

• Full titanium construction
• Designed for 2022-2024 Subaru WRX
• Type-R design for a sporty appearance
• Single Exit
• Significant horsepower and torque gains
• Distinctive exhaust tone

Precision Craftsmanship for Subaru Performance Enthusiasts

The Tomei Full Titanium Muffler Expreme Ti Type-R Cat-back Exhaust System is a true masterpiece, constructed entirely from high-quality titanium for optimal strength and reduced weight. This exhaust system not only enhances the overall aesthetic of your vehicle but also ensures a significant boost in horsepower and torque. The Type-R design provides an aggressive appearance, complementing the sporty nature of the Subaru WRX. Experience the perfect blend of form and function as the Tomei exhaust system unleashes the true potential of your WRX's engine, delivering a captivating exhaust tone that resonates with power and performance.

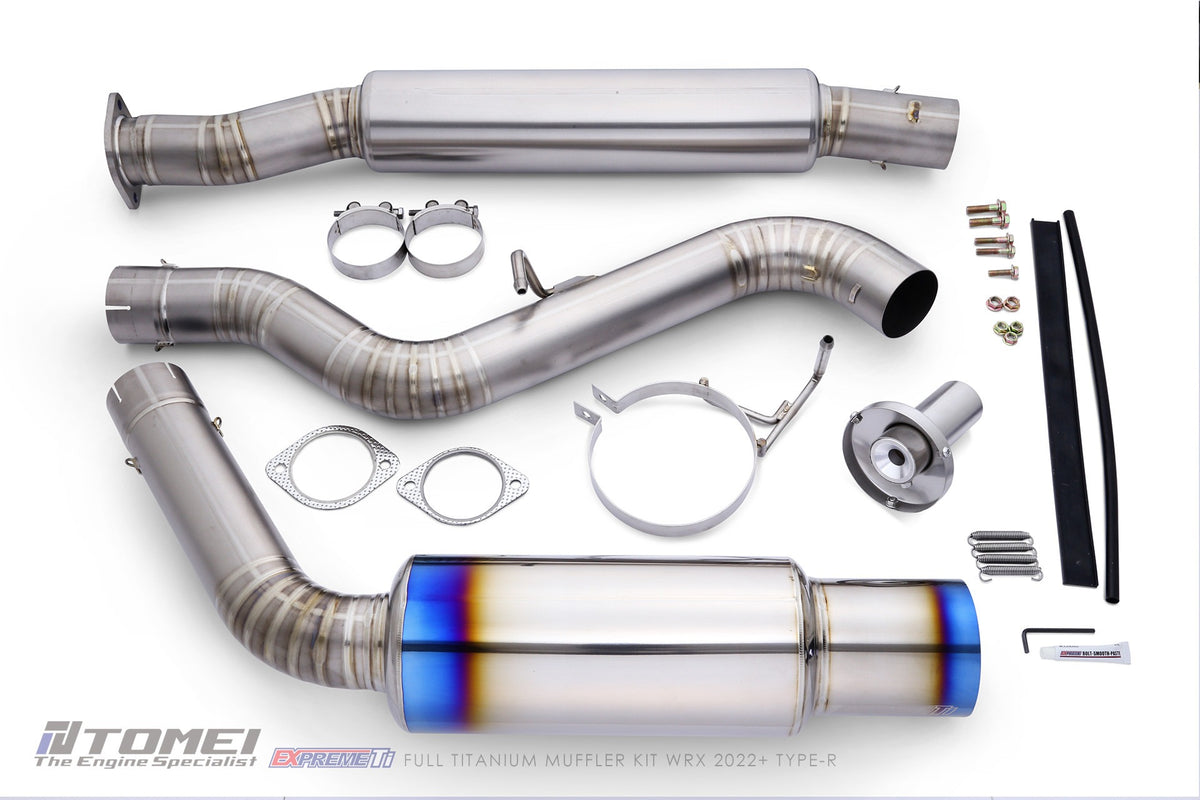

• MATERIAL - Titanium
• MAIN PIPE DIAMETER - 3.2inch [80.5mm ]
• MAIN PIPE THICKNESS - 1.0mm
• SUB SILENCER DIAMETER - 4.7inch [118.0mm]
• SUB SILENCER THICKNESS - 1.0mm
• SILENCER DIAMETER - 6.0inch [152.0mm]
• SILENCER THICKNESS - 1.0mm
• EXIT DIAMETER - 4.5inch [115.0mm)]
• EXIT THICKNESS - 1.0mm
• FLANGE THICKNESS - 8.0mm
• WEIGHT - 17.9lbs [8.1kg]

-MATERIAL-

Sourcing our own raw materials allows us to significantly improve quality whilst also keeping the price low. In addition, having complete control over the raw materials and manufacturing process is what allows us to produce high quality products at an affordable price.

-TAIL PIPE-

Made from Titanium material to Φ115mm diameter and 1mm thick piping. Straight cut designed and finished for race use. Finished off with the EXPREME Ti logo laser etched on the tip with the Titanium gradation blue colours.



-CLAMP BAND-

This clamp design is much stronger than the conventional flange and bolt type. It secures the pipe in place and can keep an airtight fixture whilst still being able to cope with the high heat, the stress loads and the vibrations that it will endure.

-SILENCER CASE-
This part is made from Titanium with the pipe size of φ152 and 1mm thickness. The oversized shell design optimizes exhaust gas flow which helps with power gains. Then with the embossed Tomei logo and beautiful heat gradation colouring gives it the finishing touch that you'd expect.

-PUNCHED MESH-
Made entirely from Titanium of 1mm thickness and with the open slot ratio of 32.6%. With the combination of light weight Titanium material, the high flow design delivers a really nice racing exhaust sound.

-GLASS WOOL-
The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.



-CONNECTING SPRINGS-

The pipes are connected together with the use of the hook and spring design. This allows the pipe with some movement to help absorb vibrations. The hook springs alone is sufficient enough to hold the pipes together. However you will get the best secured pipe joints when using the clamp band and the springs together.





-PRECISION WELDS-

Titanium is known to be difficult to weld but with our experienced methods we are able to achieve the best results with strength, durability and quality in finish. With the use of the right equipment, attention to details to yeild the best results you would expect.

Only Muffler installed.

	TYPE-R	TYPE-D
with Sound Reducer ver.2	89db	85db
with Sound Reducer	95db	90db
without Sound Reducer	99db	95db
