Tomei ARMS BX7760 Turbo - Subaru Models (Inc. 2002-2007 Subaru WRX / 2004-2021 STI / 2005-2006 Baja / 2004-2008 Forester / 2005-2006 Sab 9-2X)

$1,780.00 USD

~~$1,780.00 USD~~ $1,780.00 USD

Sale Sold out

Shipping calculated at checkout.

Ships from manufacturer when available

Price Match Guarantee up to 100%

30 Day Satisfaction Guarantee

Free Shipping! On orders over $199

Rated Excellent & Trusted

The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

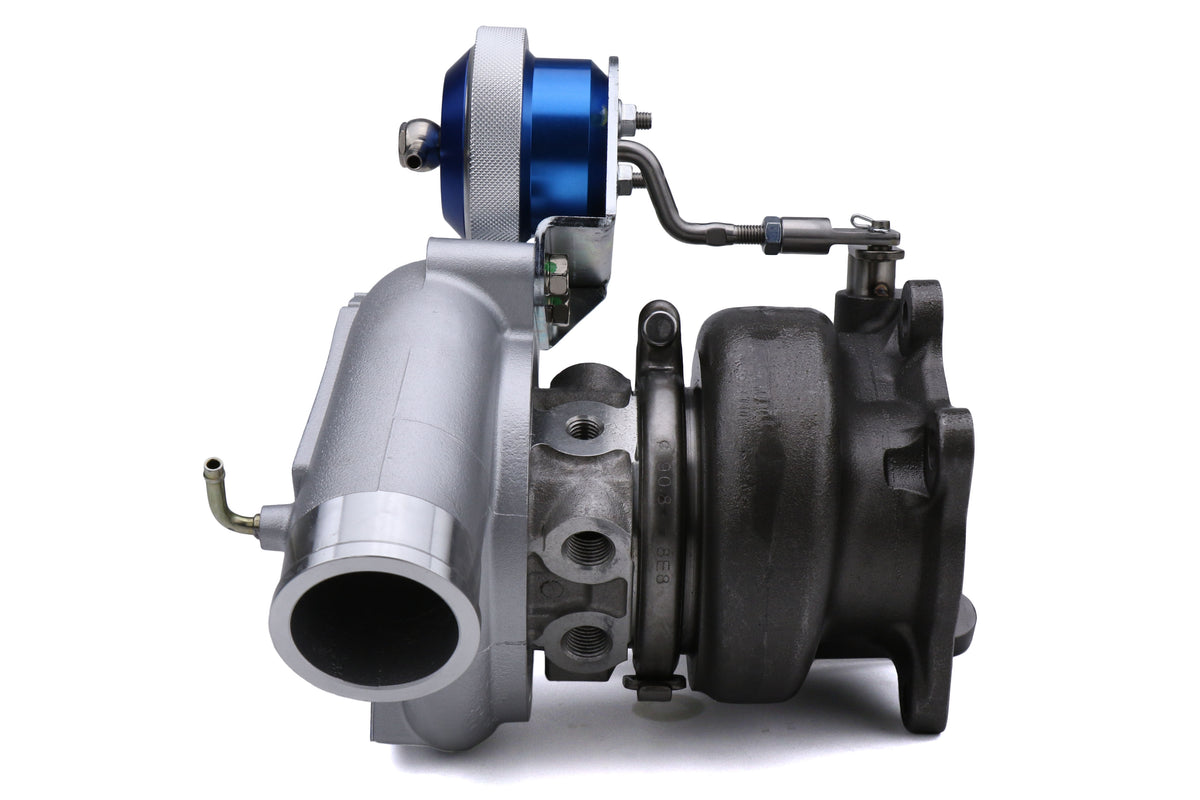

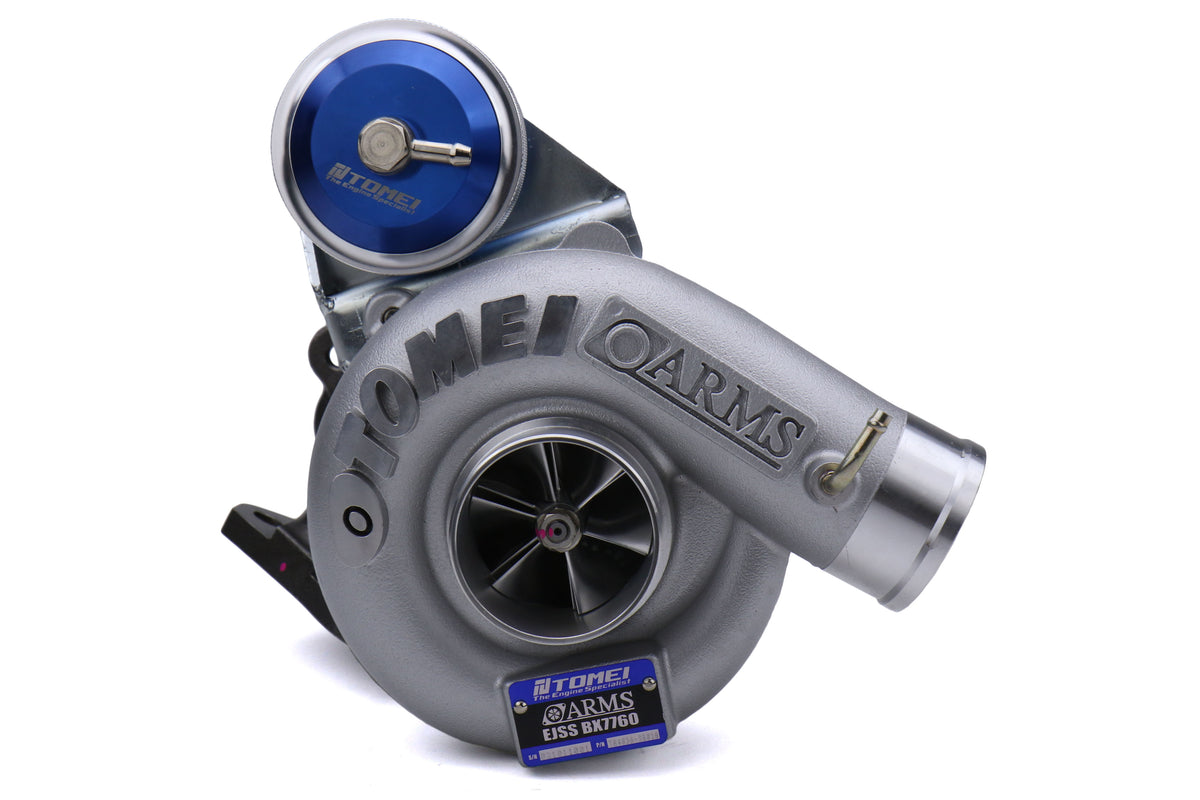

Tomei ARMS BX7760 Turbo

Highlights

Rated up to 380 HP with supporting modifications
Ball-bearing type
1.0 BAR initial boost setting
Single-scroll type

CNC BILLET COMPRESSOR WHEEL:

Machined from aerospace-grade materials
Highly durable and lightweight
Made with thinner blades with a larger surface area
Improves the air flow and turbo spool

TURBINE WHEEL SPECS:

49.1mm exducer
56mm inducer
77 trim
9 blades
Cast K418 construction

MULTI-RATE BILLET ACTUATOR:

Large capacity
Reinforced forged billet construction
Includes a total of (6) springs for fine boost adjustments
The swivel-type nipple allows for greater freedom when routing hoses
You can combine up to (3) springs to find the perfect setup

COMPRESSOR WHEEL SPECS:

52.6mm inducer
68mm exducer
60 trim
6/6 blades
CNC billet A2618 construction

COMPRESSOR HOUSING SPECS:

53.6mm inducer
41.63mm exducer
A/R: 0.78

TURBINE HOUSING SPECS:

45.0mm inducer
EJ exducer
A/R: 0.57

Faster Track Times

The BX-Series is Tomei's latest ball-bearing turbocharger example that features the latest in turbocharger technology. This turbocharger features a CNC billet compressor wheel for durability over the conventional cast compressor wheel, and it also features Tomei's Multi-Rate Billet Actuator to allow the user to perform fine-tuning of the boost so you can hit your preferred targets every time.

A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
