ACT XT Race Sprung 4 Pad Clutch Kit w/ Flywheel - 2015-2021 Subaru WRX / 2006-2008 Forester / 2006-2014 Impreza

Recommended for high horsepower street or race use Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle Rated at 650 ft/lbs of torque. NOTE: Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J*806877. Clutch kits and flywheels are not compatible with the revised OEM components. The included flywheel must be installed due to a larger clutch components on the OEM clutches.

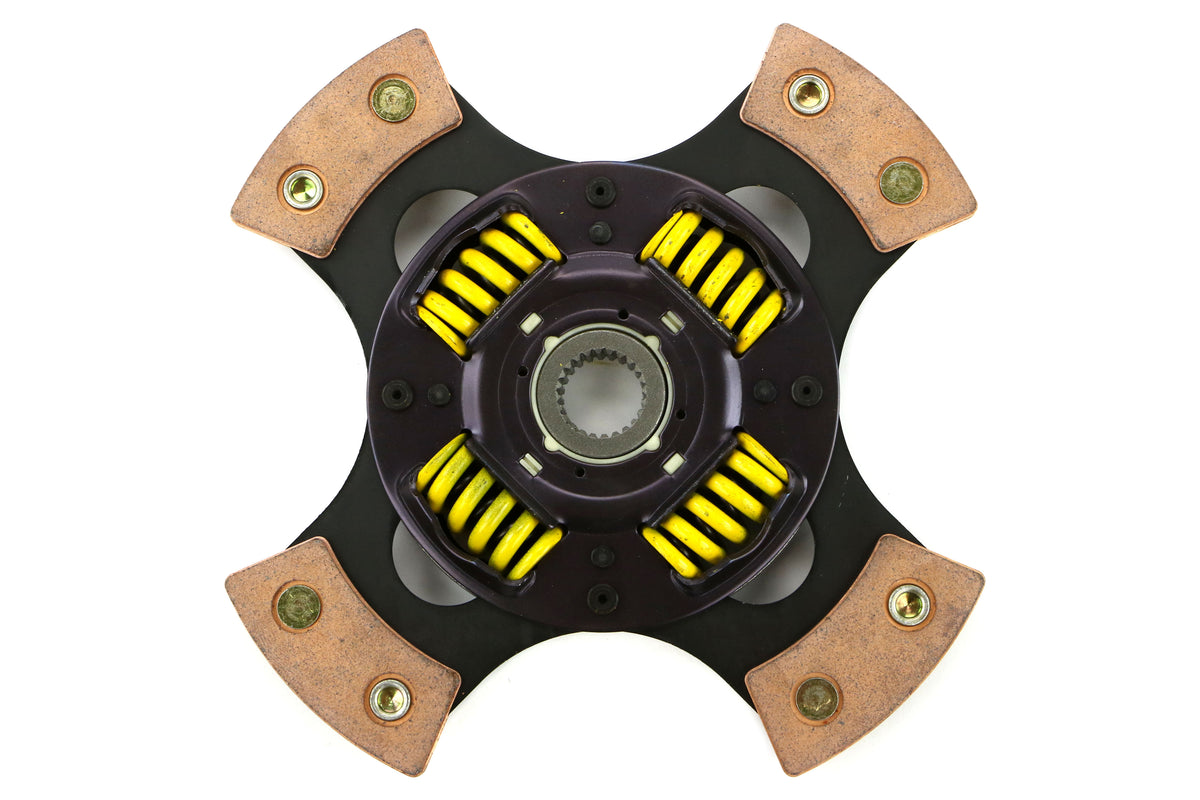

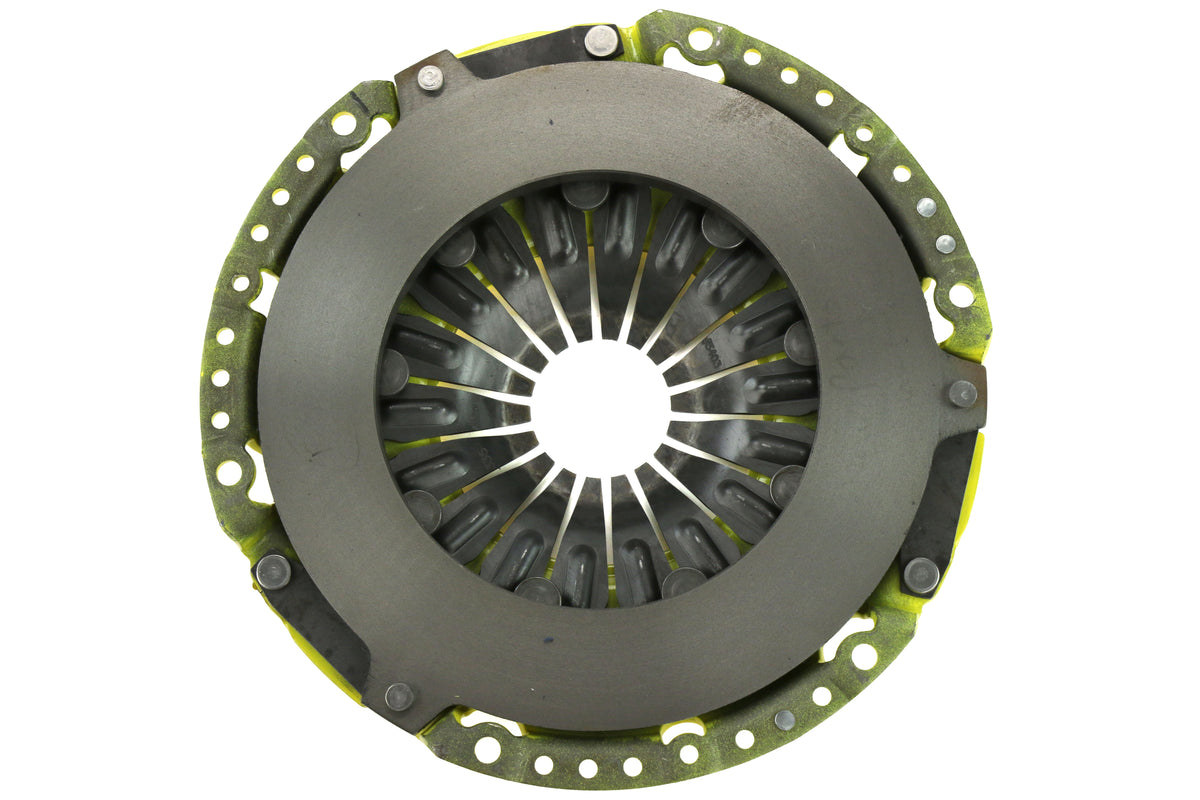

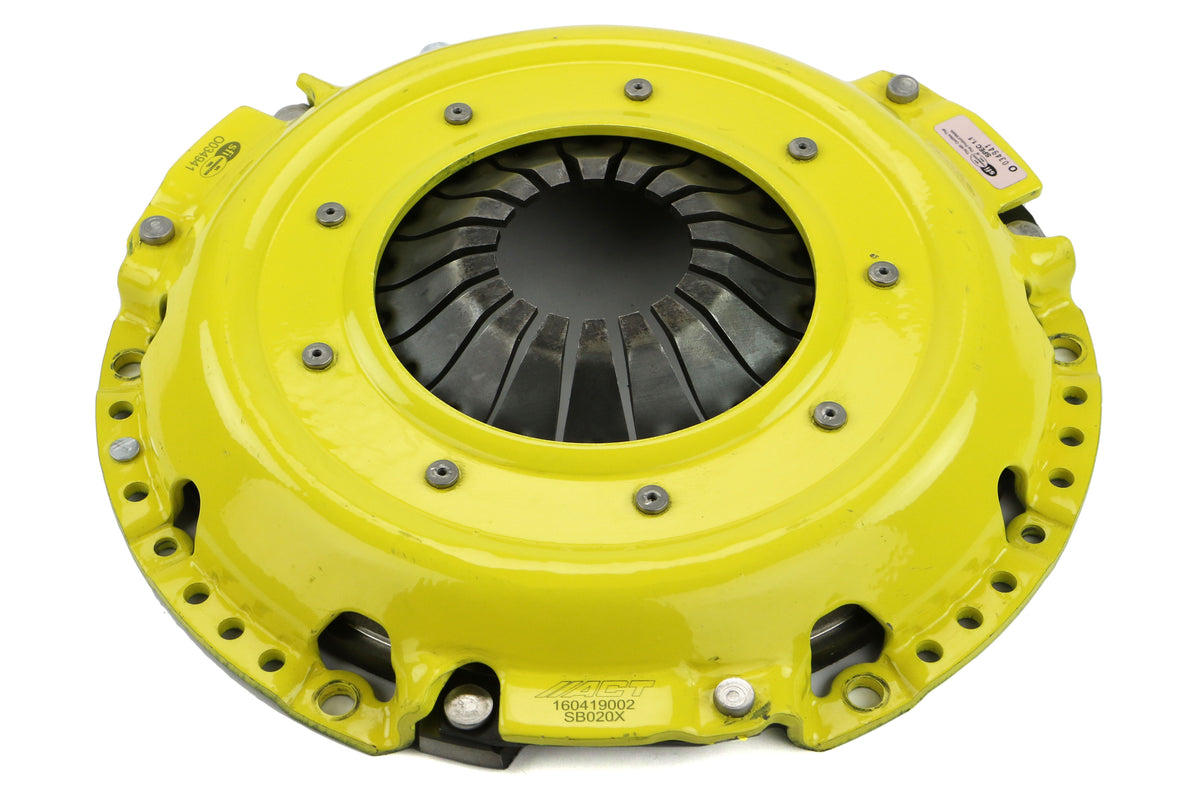

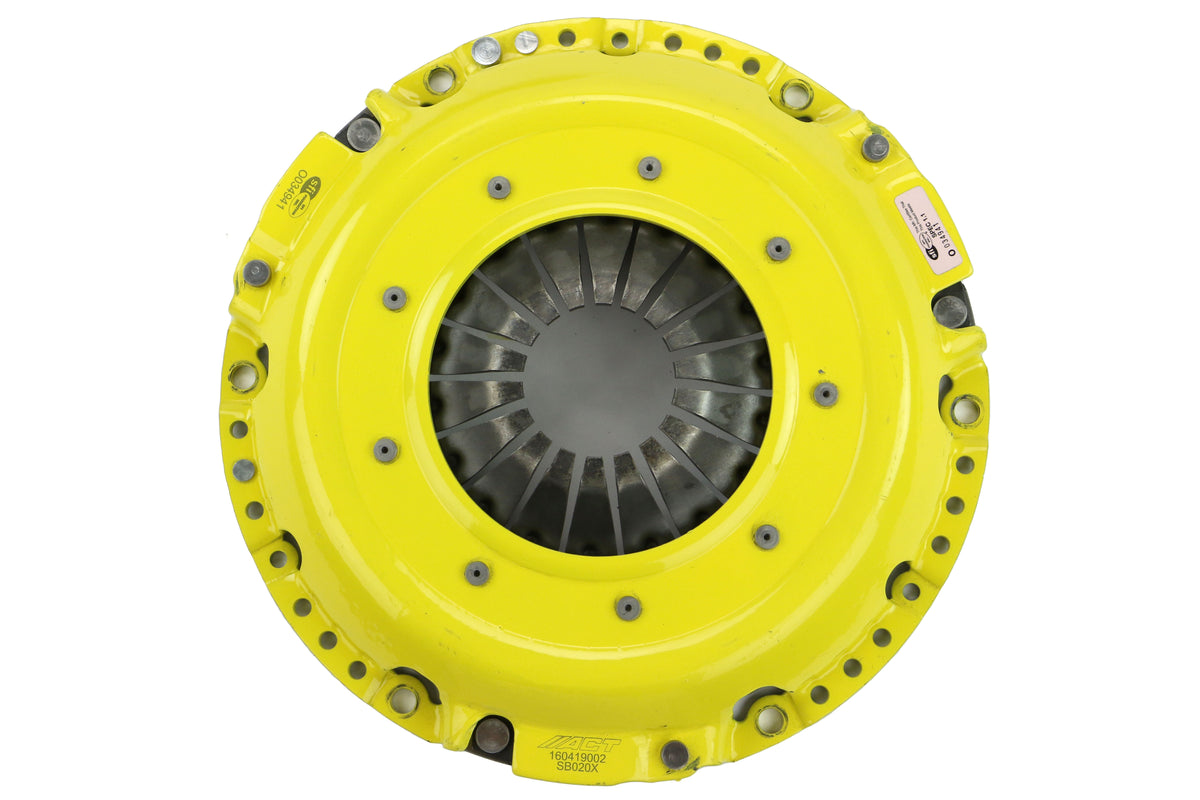

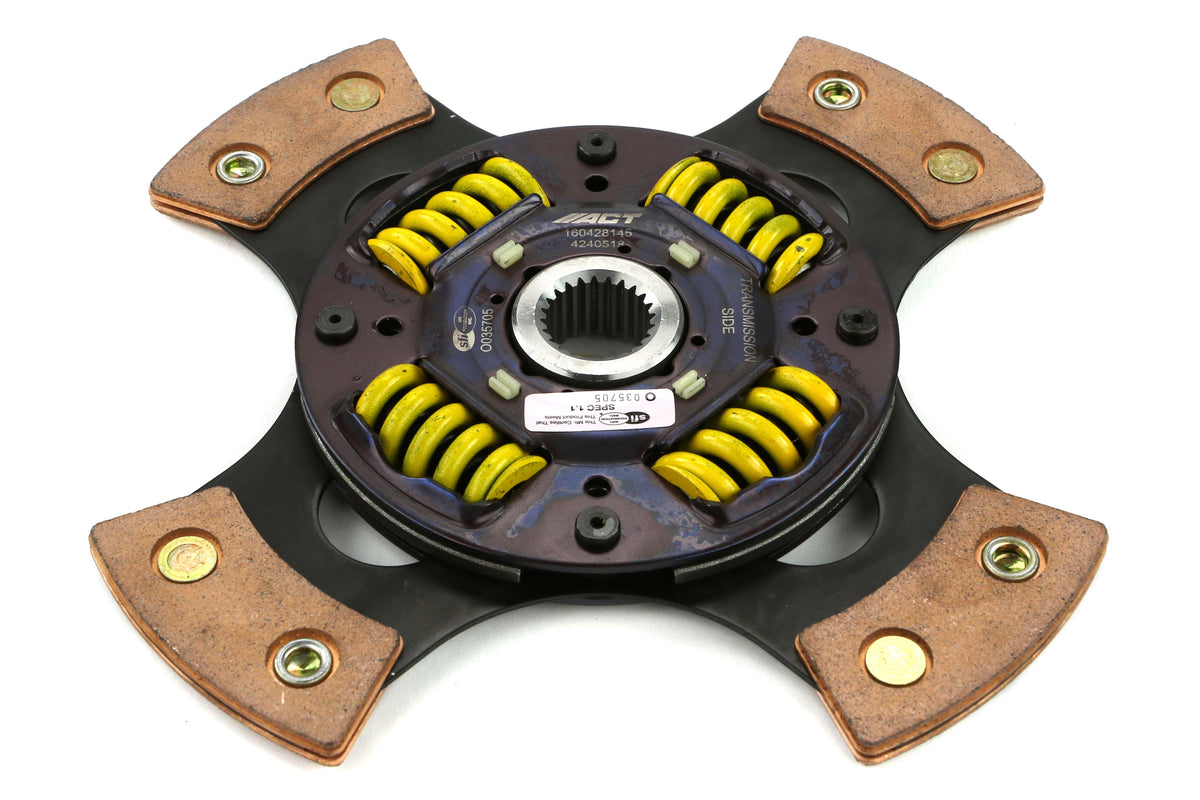

SB11-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

NOTE: Subaru has increased the clutch component sizes. Aftermarket clutches that include a flywheel must have the flywheel installed, as designed by the manufacturer.

The included flywheel must be installed due to a larger clutch components on the OEM clutches.

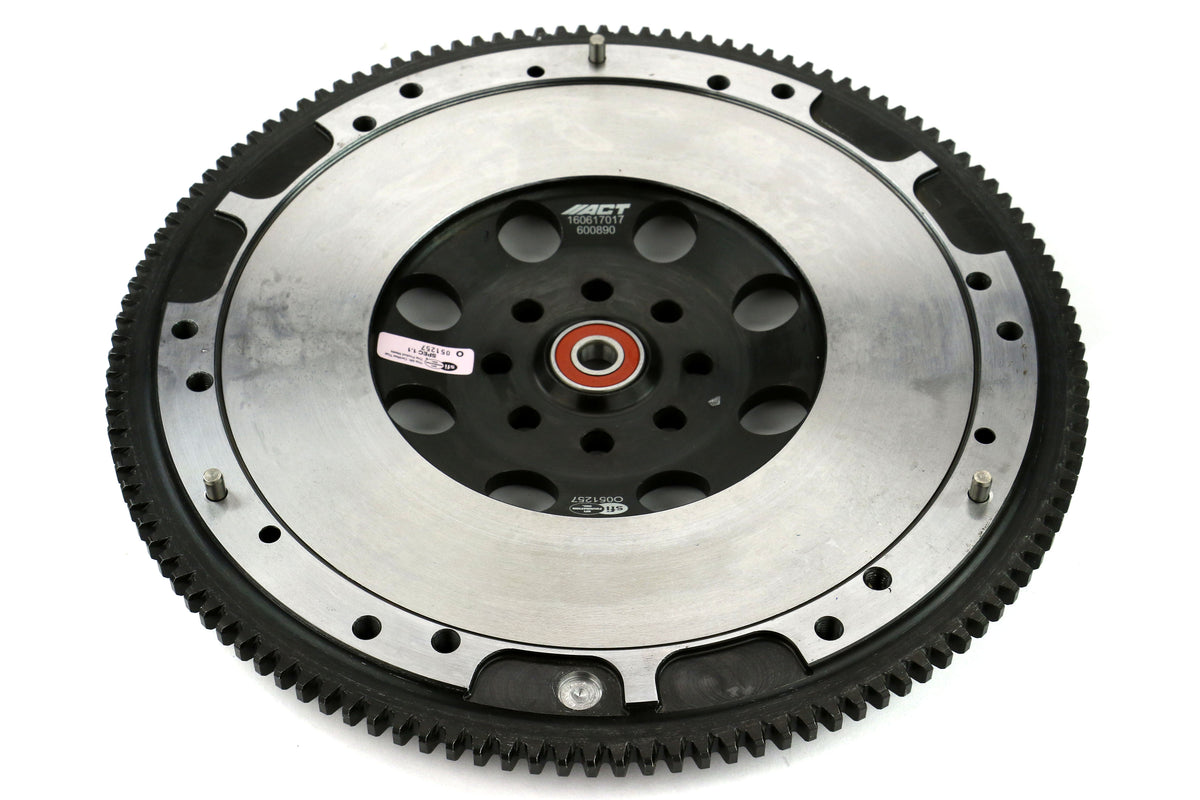

Application Note: 240mm upgrade. Must use ACT flywheel (included in kit).

Details

• Feel - Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
• Life - Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use - Recommended for high horsepower street or race use
• ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specfications

Part Number: SB11-XTG4
Description: XT/Race Sprung 4 Pad
Torque Capacity (ft/lbs.): 650
Torque Capacity Over OE: 94%
Flywheel Tooth Count: 124
Disc Type: Race Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9.4
Disc Diameter (mm.): 240
Pressure Plate Type: Xtreme
Product Weight (lbs.): 28.5

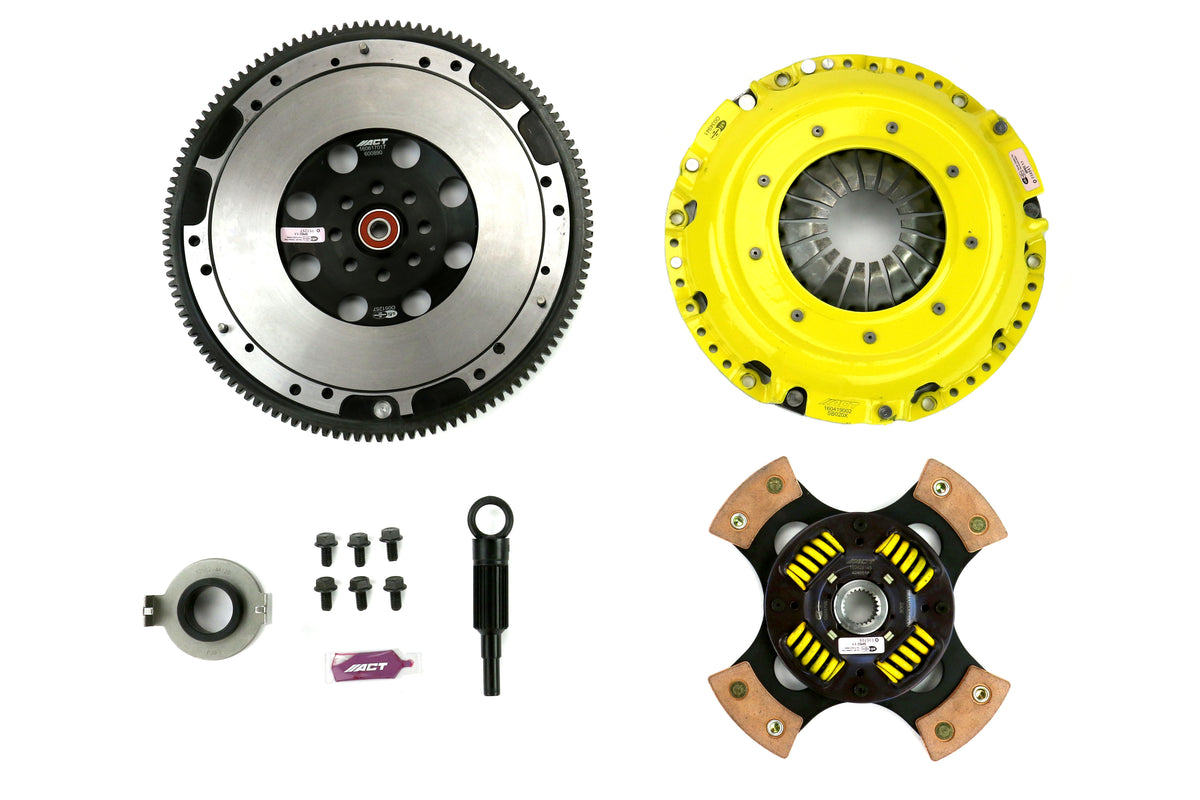

Kit Contents: SB020X, 4240518, 600890, RB844, PB1004, AT90
Warranty (Product Warranty): One (1) Year from Retail Purchase
