ACT HD Race Sprung 6 Pad Clutch Kit w/ Flywheel - 2006-2021 Subaru WRX / 2005-2009 Subaru Legacy GT

Recommended for high horsepower street or race use Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle Rated at 565 ft/lbs of torque. NOTE: Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J*806877. Clutch kits and flywheels are not compatible with the revised OEM components.

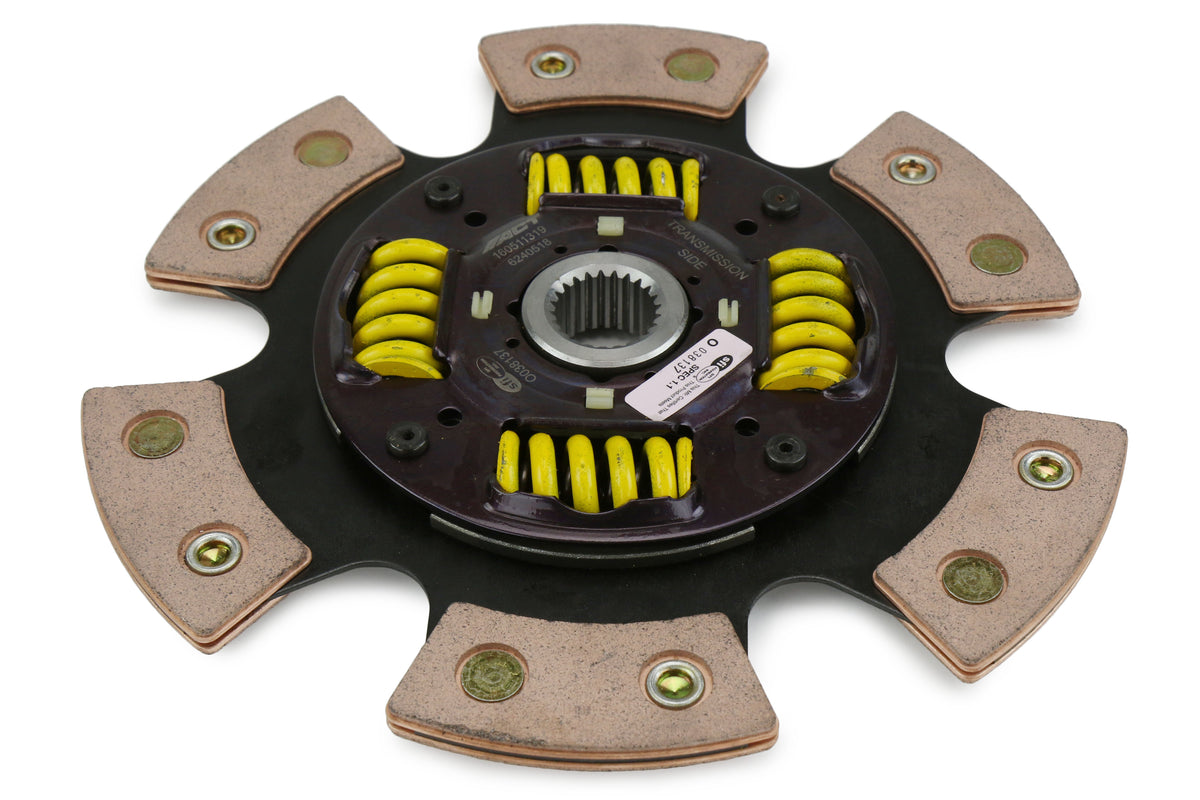

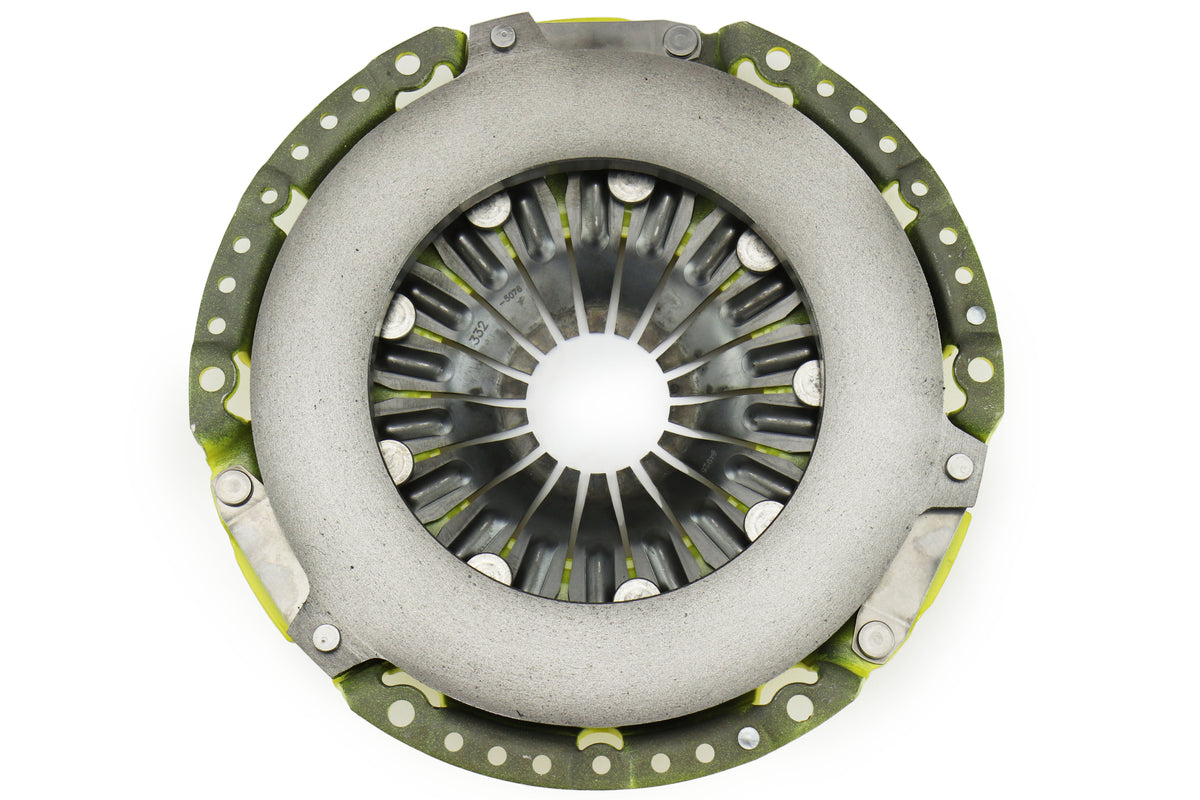

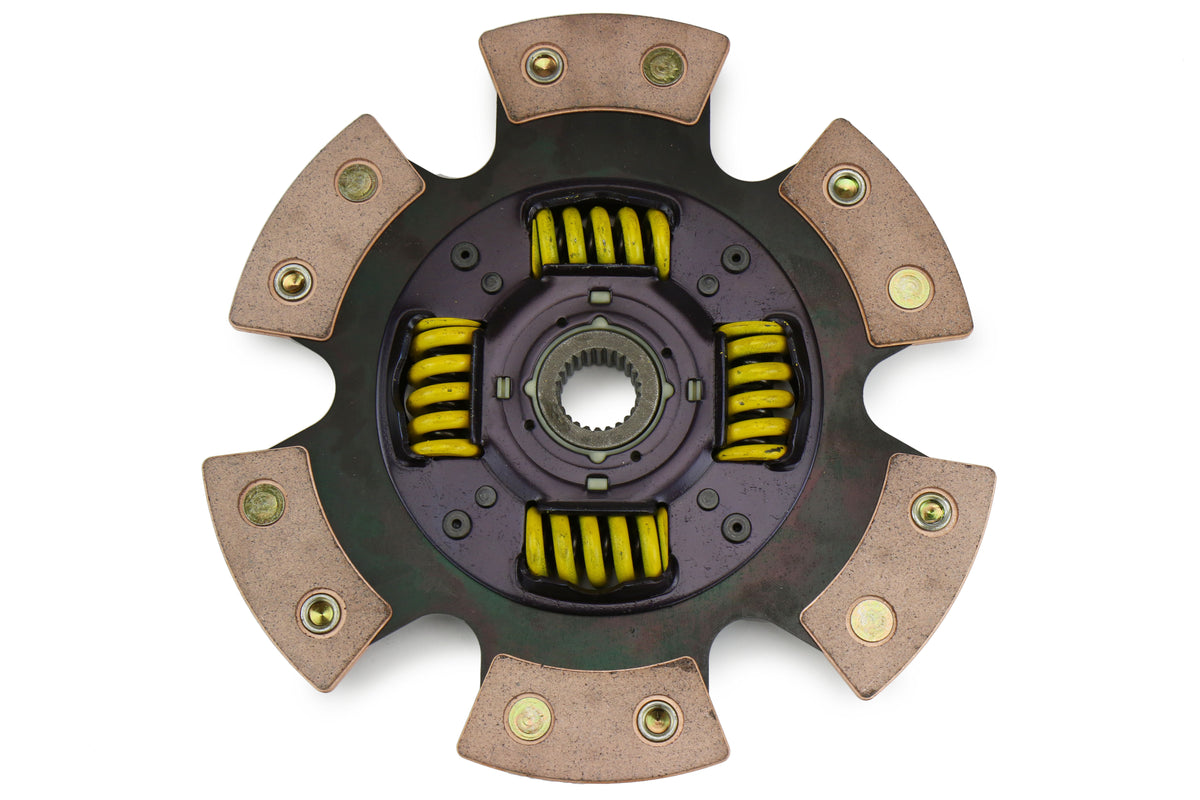

SB11-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

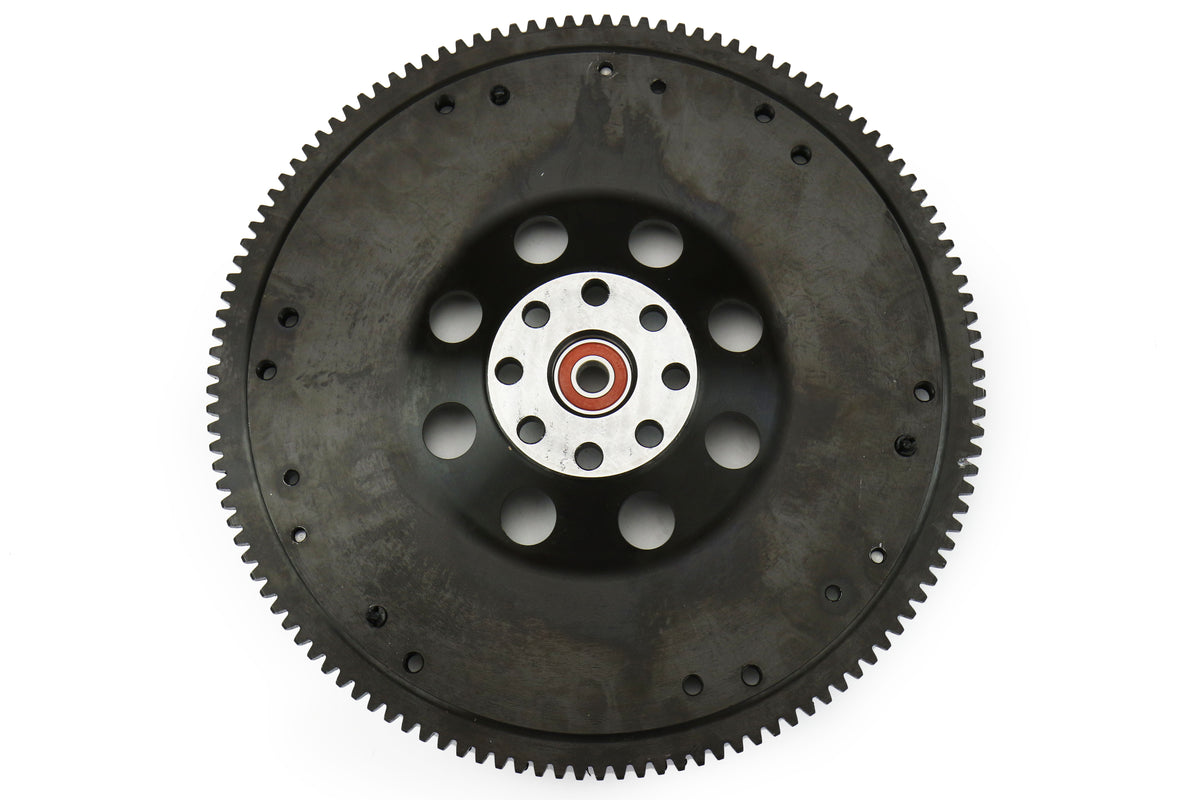

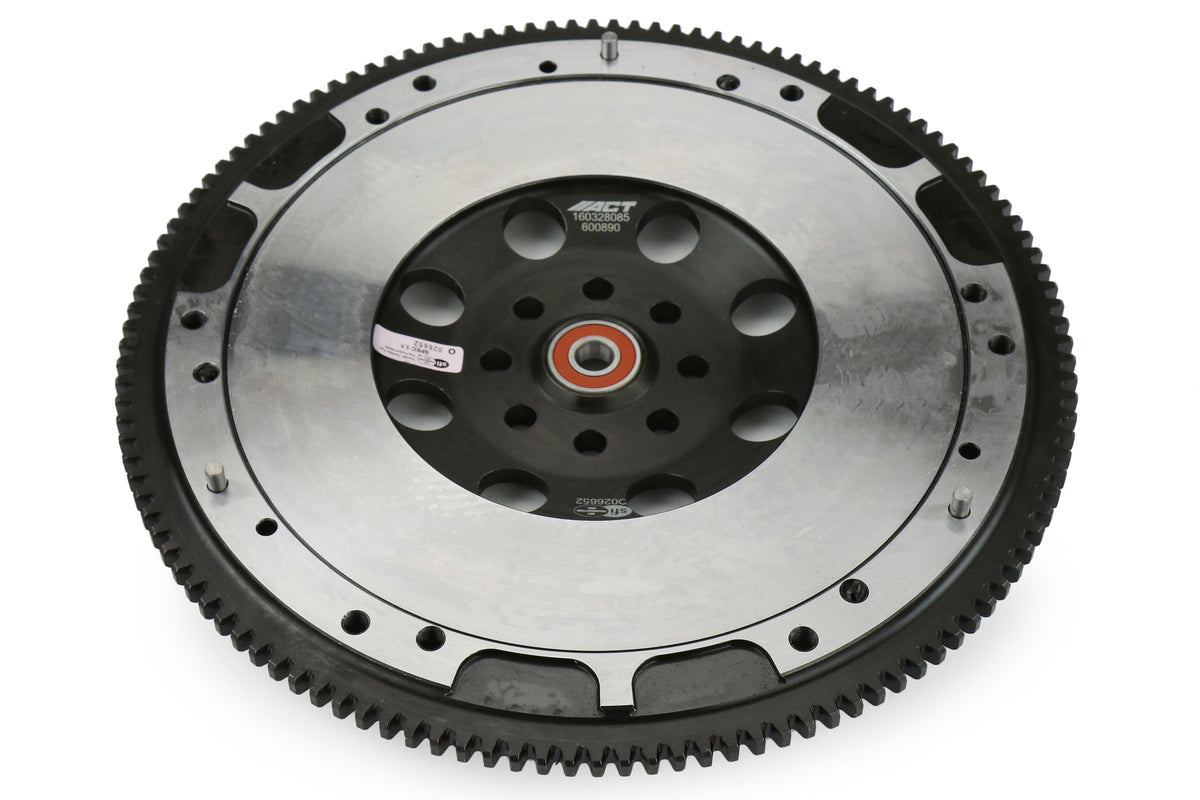

Application Note: 240mm upgrade. Must use ACT flywheel (included in kit).

Details

• Feel - Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life - Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use - Recommended for street and race use
• ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specfications

Part Number: SB11-HDG6
Description: HD/Race Sprung 6 Pad
Torque Capacity (ft/lbs.): 565
Torque Capacity Over OE: 69%
Flywheel Tooth Count: 124
Disc Type: Race Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9.4
Disc Diameter (mm.): 240
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 29

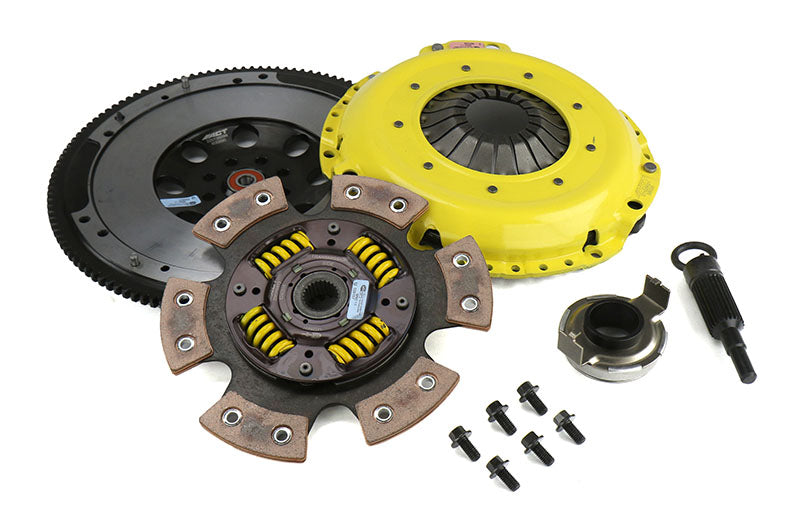

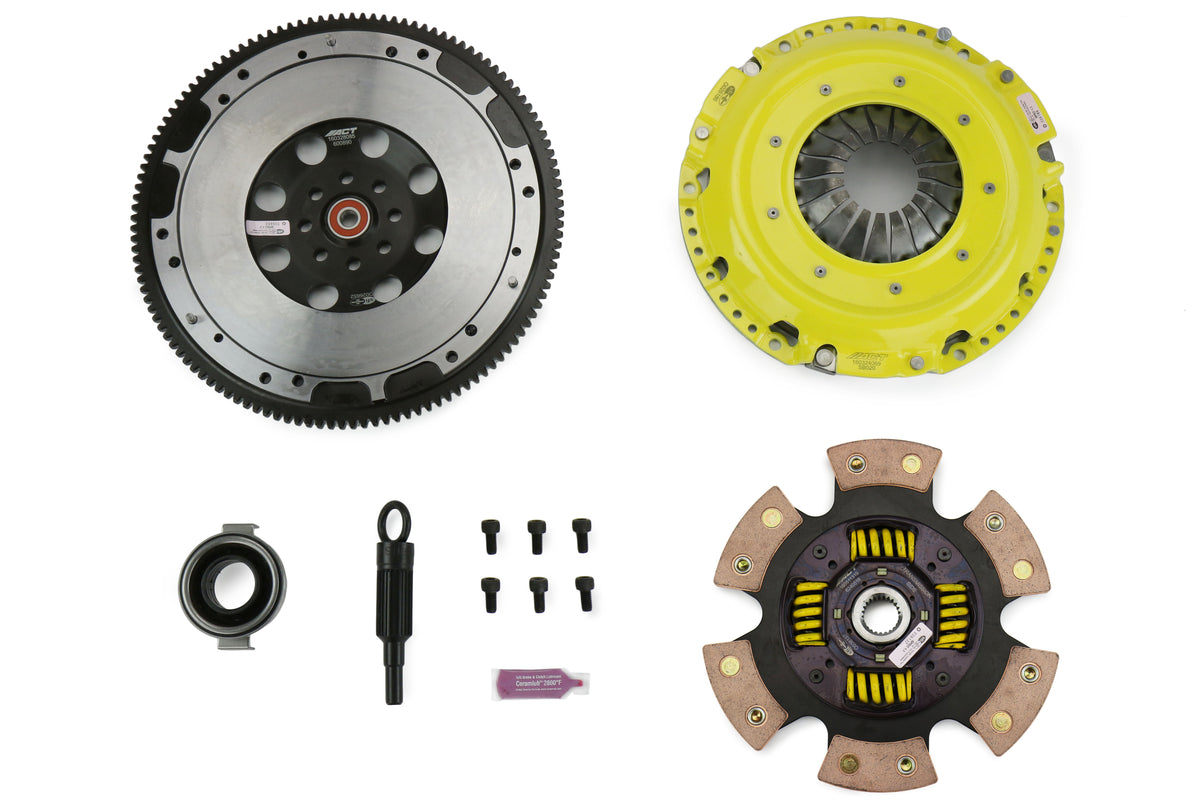

Kit Contents: SB020, 6240518, 600890, RB844, PB1004, AT90
Warranty (Product Warranty):One (1) Year from Retail Purchase
