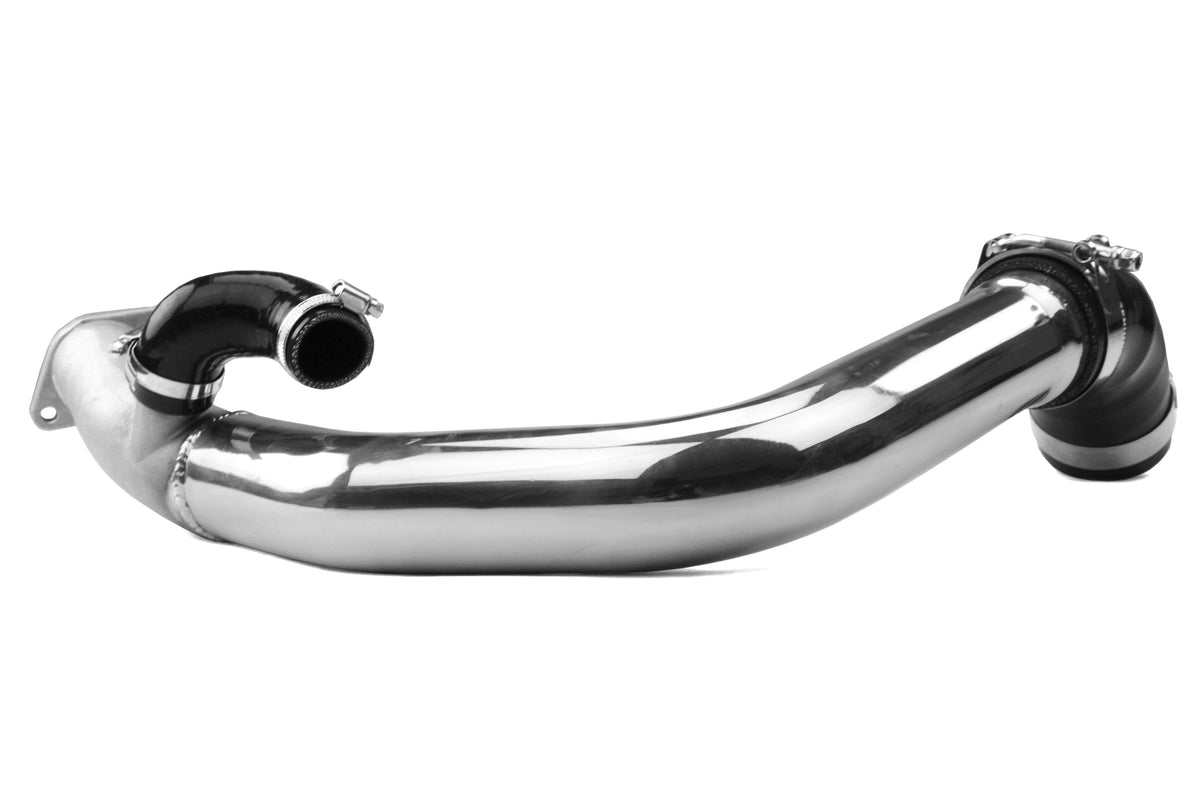

Mishimoto Charge Pipe Kit (Polished) - 2015-2021 Subaru WRX

Mishimoto, the world leader in performance cooling products, is proud to introduce the charge-pipe system for the 2015+ Subaru WRX. Tuning is not required after installing this 2015 WRX charge-pipe kit. Looking for a way to improve spool-up, increase power potential, and improve engine bay aesthetics? Mishimoto has you covered with a new charge-pipe designed specifically for the 2015+ Subaru WRX. Utilizing a one-piece construction with a cast aluminum pipe outlet, this charge-pipe provides a smooth transition in size from the turbocharger compressor outlet to the interooler end tank. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under one hour. The kit also includes a new charge-pipe to intercooler hose, and new bypass valve hoses. These components negate the need to gather supplies for installation, and their high-quality construction ensures years of reliable service. This innovative charge-pipe is available in polished, wrinkle black, or wrinkle red finish and like our entire line of 2015 WRX parts, includes the signature Mishimoto Lifetime Warranty. If you're looking for a way to reduce high intake temperatures on your stock or modified 2015 WRX, purchase the WRX charge-pipe with the Mishimoto WRX top-mount intercooler kit, engineered specifically for the 2015+ Subaru WRX.

Features

• Direct fit for the 2015+ Subaru WRX
• 10% faster spool-up with no other modifications!

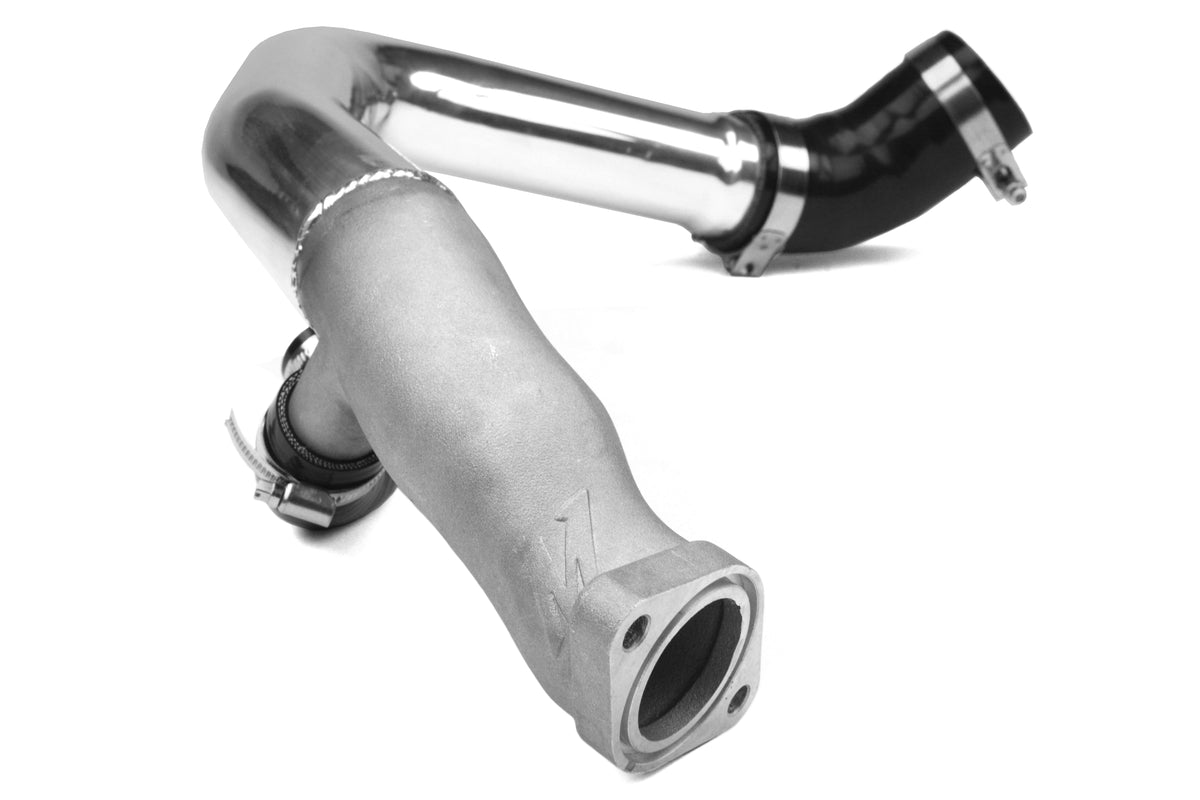

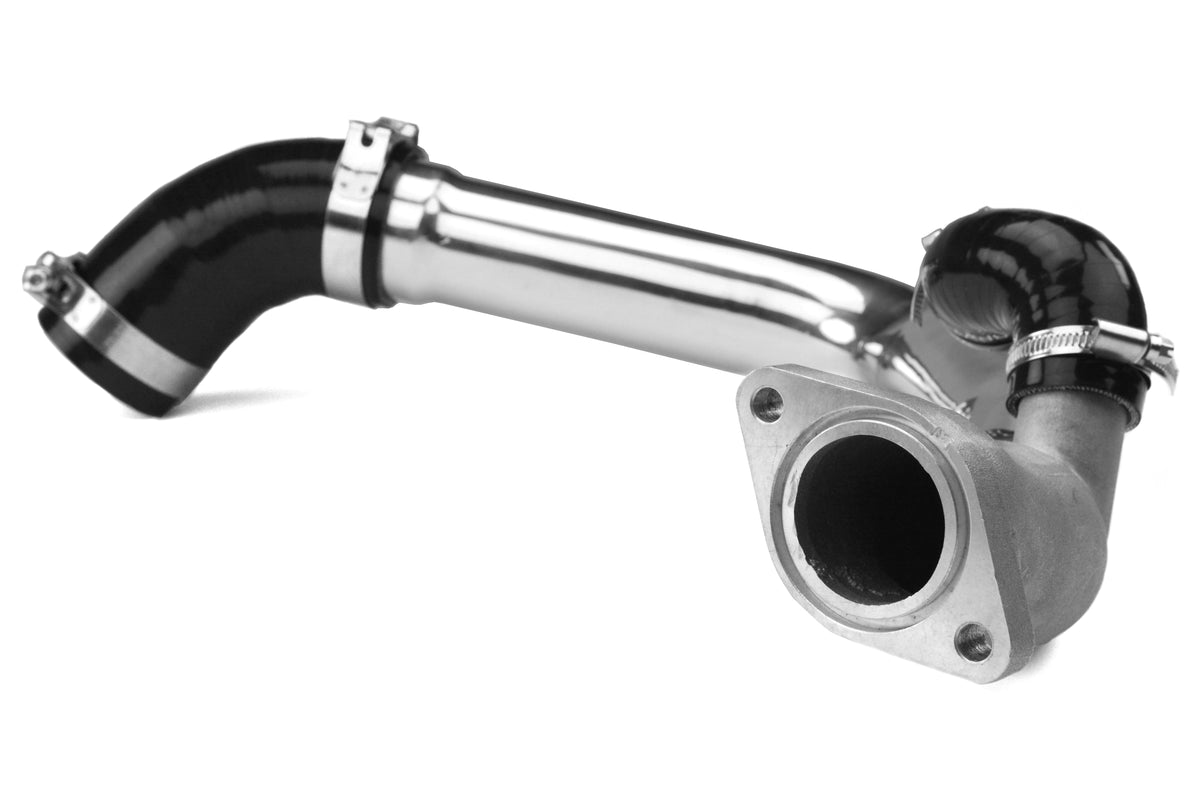

• Innovative casting of the turbo outlet is engineered for maximum airflow and eliminates the need for added couplers and clamps
• Compatible with the stock top-mount intercooler or Mishimoto top-mount intercooler
• Maximum airflow results from the larger-diameter Mishimoto charge-pipe versus the smaller plastic stock pipe
• Replaces the weak, plastic stock charge-pipe for maximum durability
• No tuning necessary
• Available in a polished, wrinkle black, or wrinkle red finish
• Includes silicone bypass valve hoses and reinforced hose for charge-pipe to intercooler
• Mishimoto Lifetime Warranty
• PLEASE NOTE: Red Charge-Pipes will not be available until the end of June.

Specifications

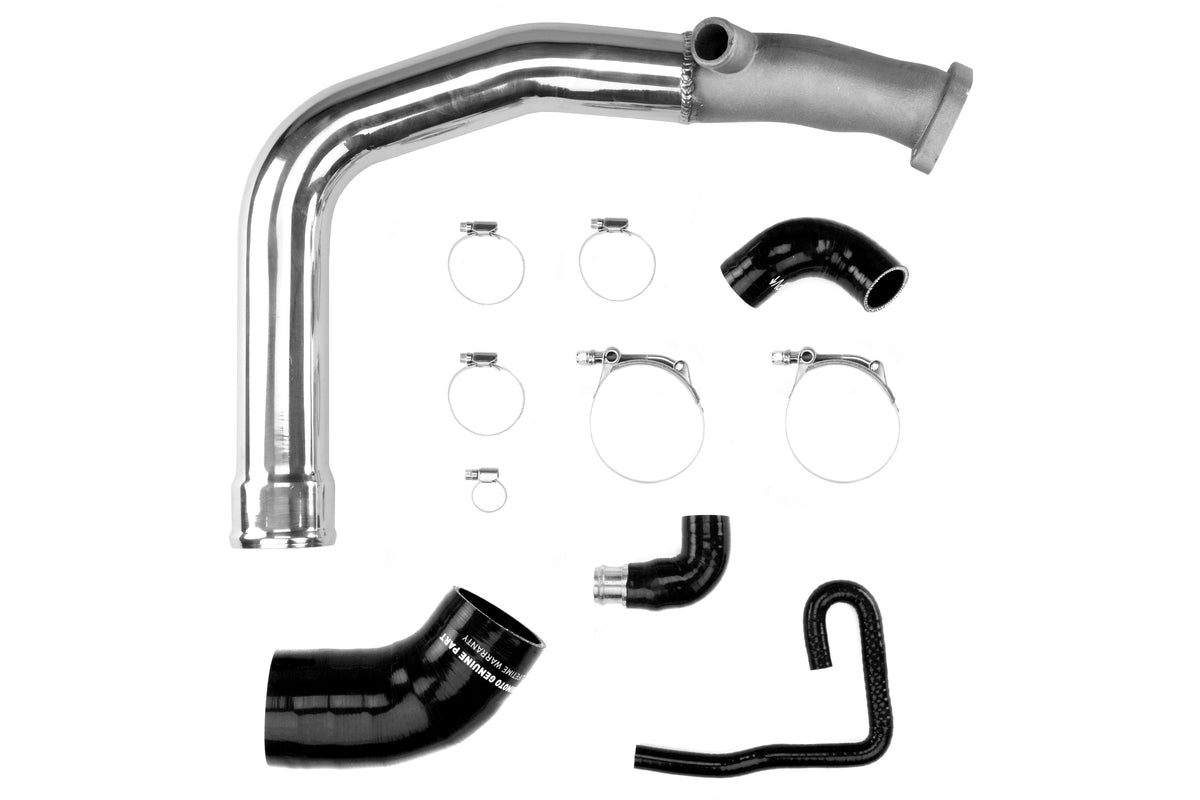

PURCHASE INCLUDES

.

(1) Charge-Pipe Assembly
(1) Charge-Pipe to Intercooler Hose
(3) Bypass Valve Hoses
(2) 3" T-Bolt Clamps
(4) Worm-Gear Clamps
Mishimoto Lifetime Warranty

PIPE CONSTRUCTION

Aluminum casting with T6063 aluminum tubing

INNER DIAMETER

2.19" at the turbo transitioning to 2.60" at the intercooler hose

OUTER DIAMETER

2.75" at the intercooler hose

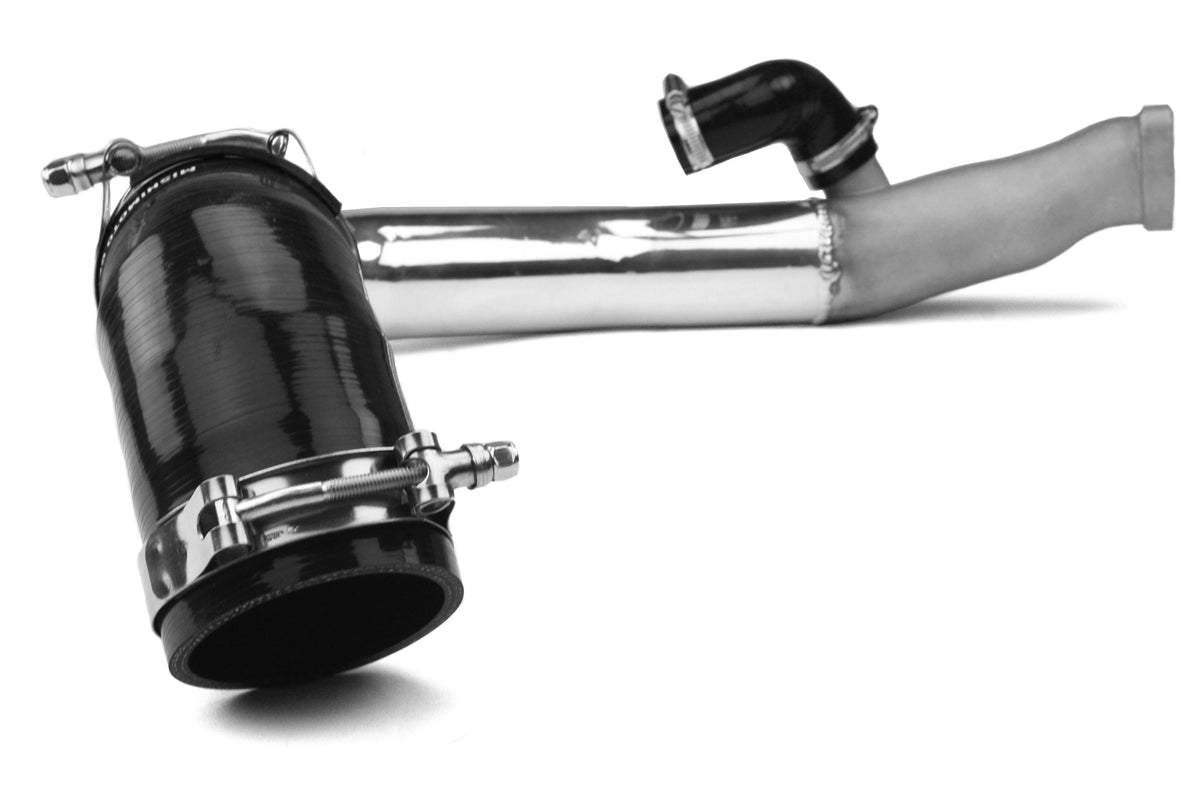

CHARGE-PIPE TO INTERCOOLER HOSE SPECS

2.75" I.D.
3.00" O.D.
4mm thick

ENGINE CODES

FA20DIT

ALSO FITS

2014+ Subaru Forester XT*
*Does not use supplied Mishimoto air splitter.

CHASSIS CODES

VA

NOTE: This charge-pipe will only work with stock turbo or turbos with a standard two-bolt outlet flange.

Tuning is not required after installing this 2015 WRX charge-pipe kit.

INSTALLATION TORQUE SPECS

22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

27 in-lbs (3N*M) recommended for all t-bolt and constant-tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Installation Video

NOTE: The following video was made for Mishimoto's full intercooler + charge pipe kit.
