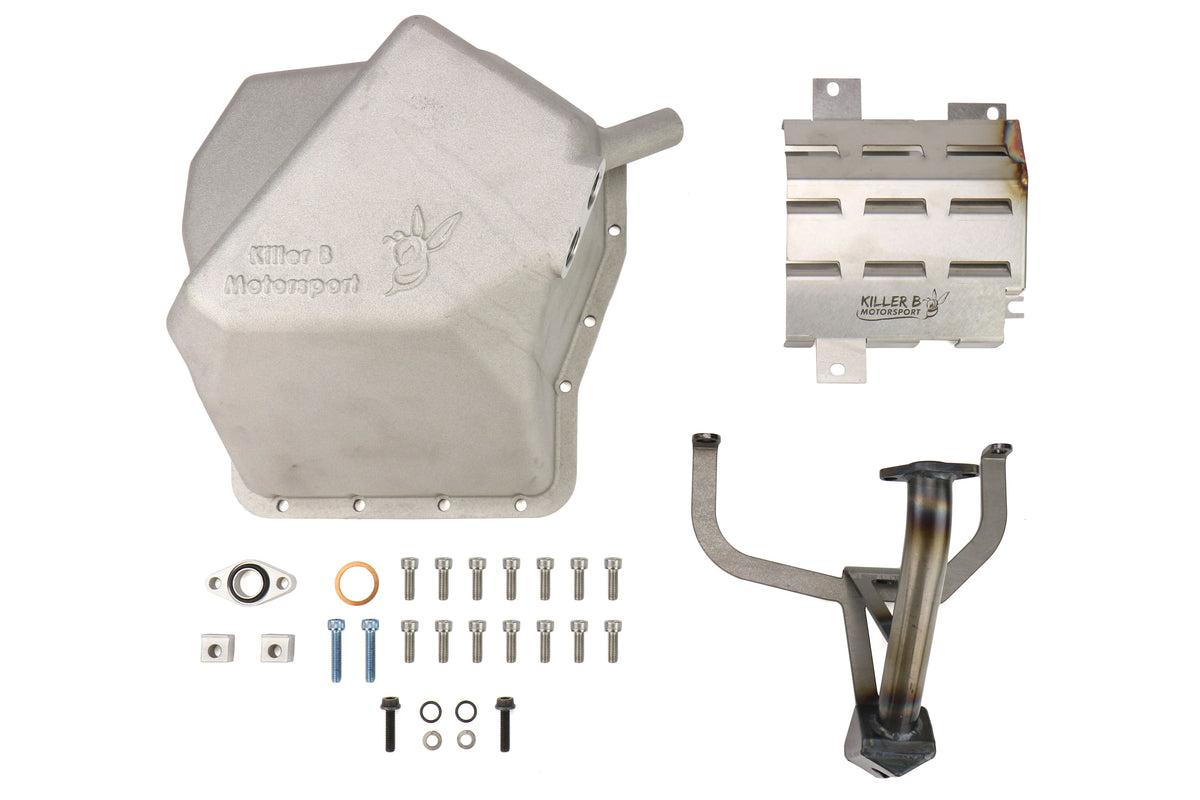

Killer B Motorsport Aluminum Oil Pan Package - 2002-2014 Subaru WRX / 2004-2021 Subaru STI

Oil starvation is a killer. Kills your day and kills your engine. Let Killer B's 3 piece oil pan package make your day.

KB's V2 Performance Oil pan is designed to reliably meet the demands of high performance Subaru Engines used on street or track applications. Oil Pan holds an extra 1.4 quarts of oil, +40% increase in capacity over OEM.



The ULTIMATE OIL PICKUP uses a .12” thick double bracket, 3X OEM oil pickup tube thickness and a brace between bracket and oil pickup tube to further strengthen the assembly. This is a super duty, engineered solution. No other vendor has anything this rugged available, although I’m sure it will be copied.

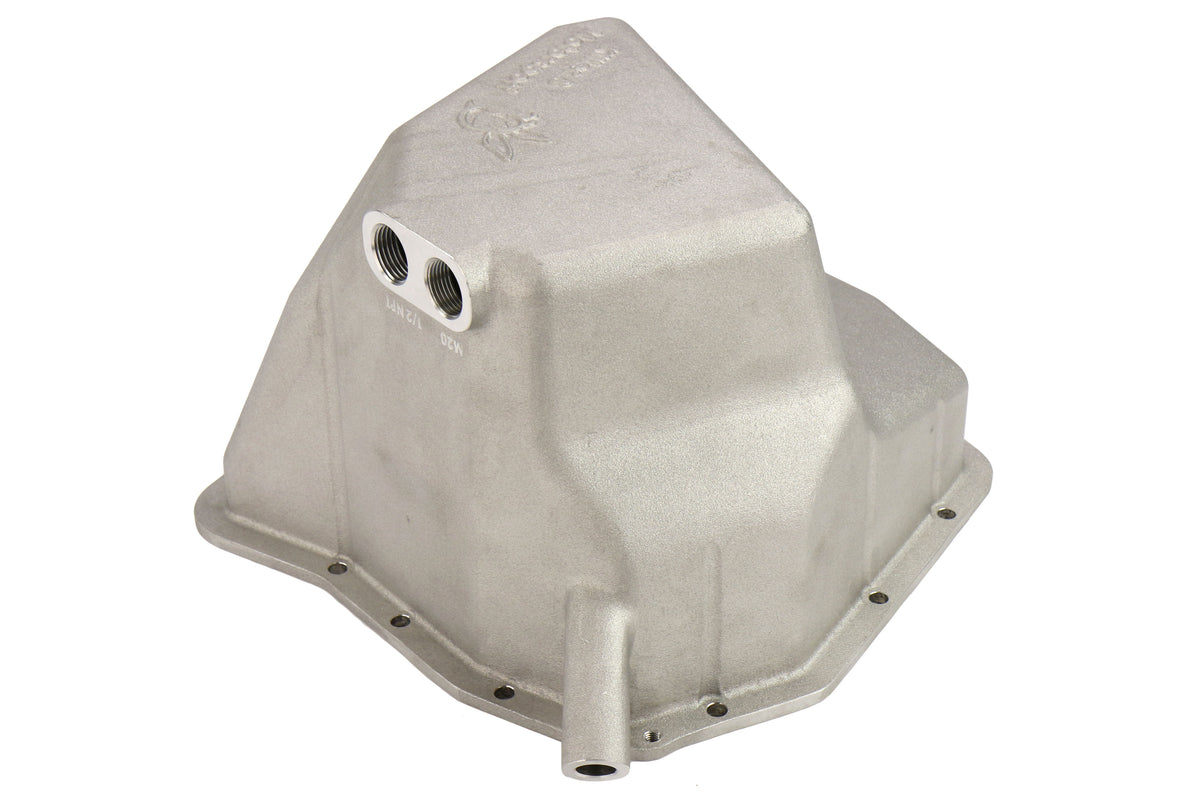

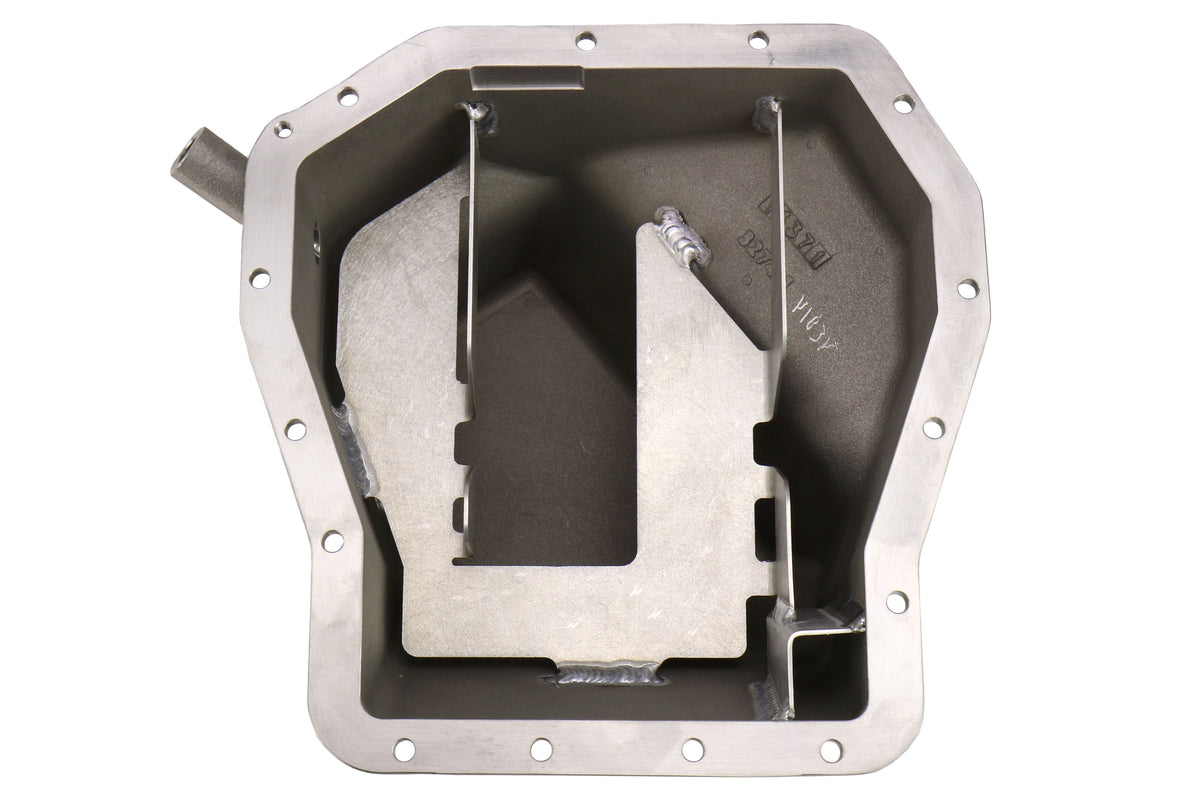

KILLER B MOTORSPORTS ALUMINUM OIL PAN:

• This Oil Pan holds an extra 1.4 quarts of oil, over 40% increase in capacity over the OEM one - This Oil Pan was designed to work with their Ultimate Oil Pickup (OEM ones are known to break), but can be modified to work with the OEM pickup
• This oil pan works with almost all headers and all are fit, and leak tested before leaving Killer B Motorsport - There have been reported issues of fitment issues with some Invidia headers, but not all
• Each pan comes with an OEM sized drain port as well as one 1/2" NPT Port - You will need to get a plug for the NPT port if you don't plan on using a quick drain valve or anything else
• OEM Belly pan will need to have a small piece trimmed on some models
• Turbo EJ20 engines will need to change to the STi dipstick and tube or simply mark the old dipstick with a new full mark

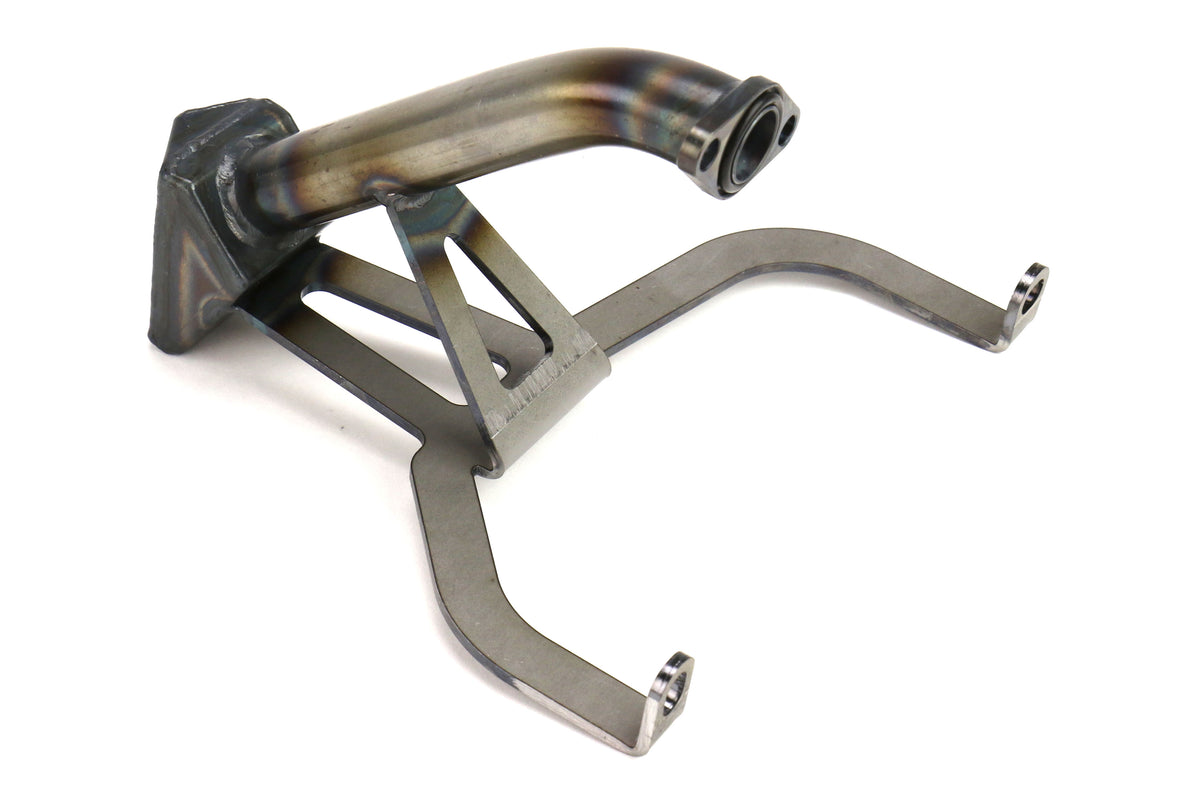

KILLER B MOTORSPORT ULTIMATE OIL PICKUP:

• This ULTIMATE OIL PICKUP uses a .12” thick double bracket, 3X OEM oil pickup tube thickness and a brace between bracket and oil pickup tube to further strengthen the assembly - This is a super duty, engineered solution that no other vendor has anything this rugged available
• Works with all Turbo EJ25 motors in the WRX/STI as well as some other cars with OEM oil pans as well as the Killer B Oil Pa - Turbo EJ20 cars will need to have a Turbo EJ25 oil pan installed to use this pickup
• 2004-2005 Forester XT and 2005 Legacy GT / OXT will need to verify their oil pan before ordering - In late 2005 Subaru changed the sump on those cars to match the Impreza lineup

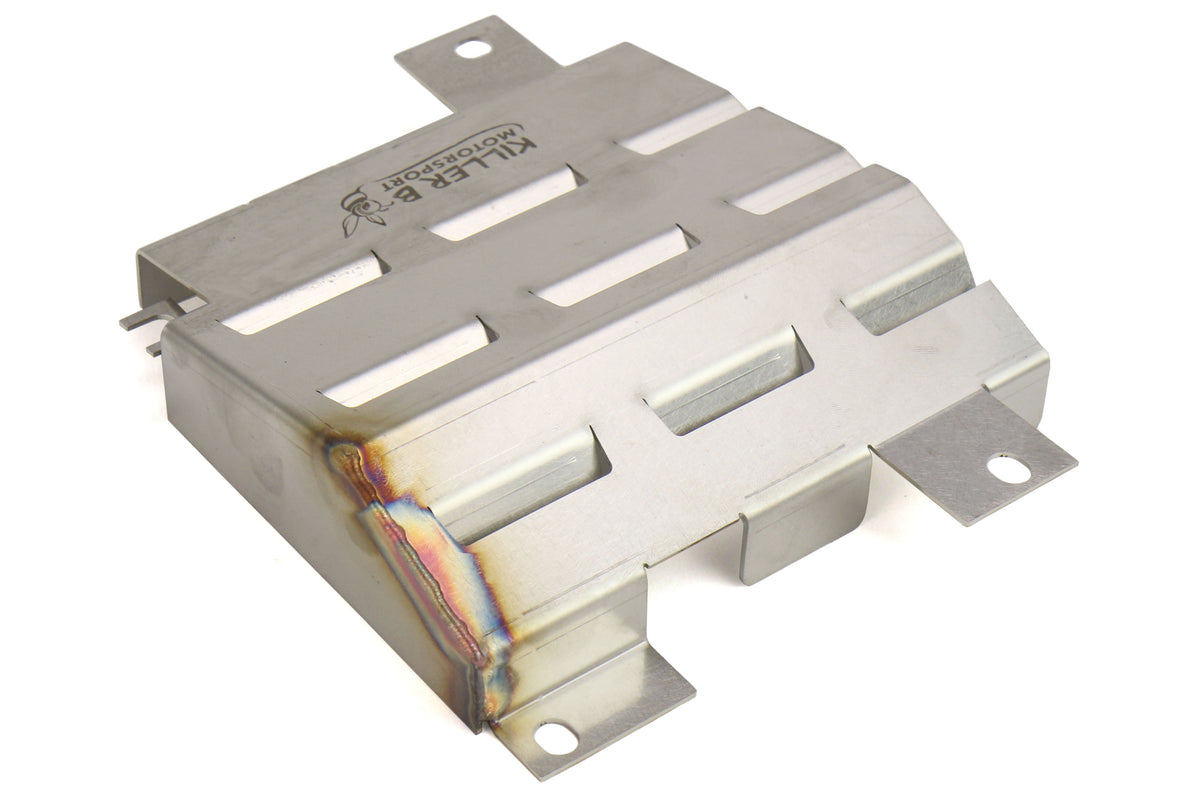

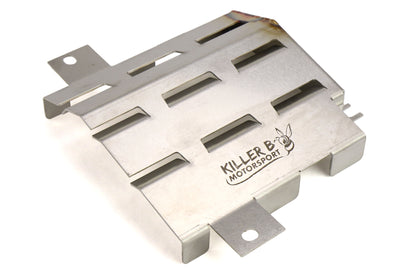

Features and Advantages of the Killer B Motorsport Windage Tray / Baffle over the OEM piece:

• Closed rear section to prevent oil from sloshing into the crank under hard acceleration and aggressive shifts.
• Block contoured profile to minimize oil returning from the heads interfering with the crank.
• Directional louvers prevent oil in the pan from splash/sloshing into the crank.
• Low profile design to control windage and strip oil from the crank immediately to reduce oil “roping” on the crank.
• Improved oil entry to the pan/pickup to help prevent oil starvation.
• Made from stainless steel for long life, durability and corrosion resistance.

Install Video
