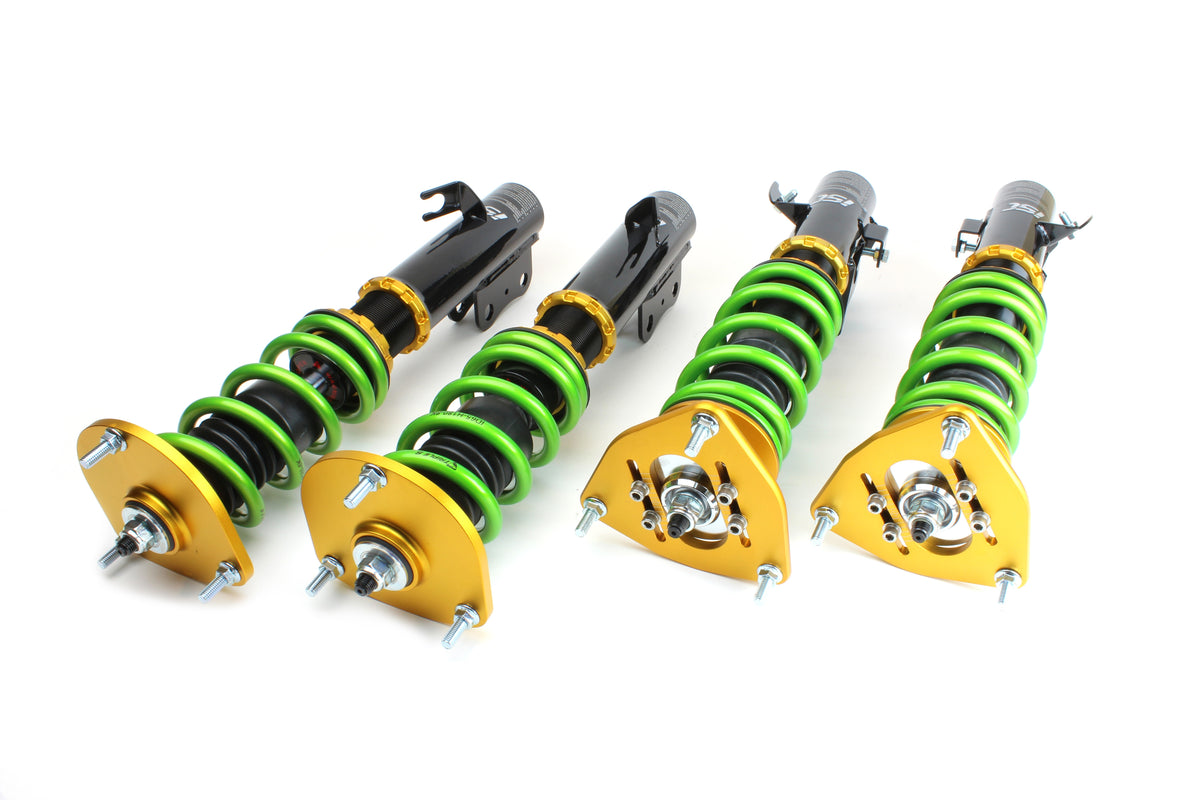

ISC Suspension V2 Basic Track/Race Coilover Kit (With Triple S Upgraded Coilover Springs) - 2013-2016 Scion FR-S / 2013-2020 Subaru BRZ / 2017-2020 Toyota 86

The product images shown are for illustration purposes only and may not be an exact representation of the product.









ISC Suspension V2 Basic Track/Race Coilover Kit (With Upgrade Triple S Coilover Springs) - 2013-2016 Scion FR-S / 2013-2021 Subaru BRZ / 2017-2020 Toyota 86

---

Features:

• Includes Triple S Upgraded Coilover Springs
• Engineered for track-ready performance
• Unparalleled adjustability and control
• Advanced damping technology for fine-tuning suspension settings
• Enables aggressive cornering and precise control at high speeds
• Robust construction and race-proven performance
• Ultimate choice for enthusiasts seeking uncompromising track dominance
• For 2013-2016 Scion FR-S / 2013-2021 Subaru BRZ / 2017-2020 Toyota 86 models



Performance Simplified - V2 Basic Coilovers

The ISC V2 Basic coilover boasts all the fantastic attributes of the ISC V2 N1 kit with the exception of rubber isolated top mounts in place of a camber plate or pillowball application up front. The ISC V2 Basic was designed to simplify the product and remove any features that would not be needed for your typical street car that is not going for track performance or aggressive camber/stance. Many street enthusiasts might not need adjustable camber plates. This enables us to provide our customers with the ISC V2 Basic coilover at a reduced cost without compromising on quality.



Version 2 Track and Race System

The ISC Suspension V2 Basic Track/Race Coilover Kit, designed specifically for the 2013-2016 Scion FR-S / 2013-2021 Subaru BRZ / 2017-2020 Toyota 86 models, epitomizes track-ready performance. Engineered with precision and crafted for durability, these coilovers offer unparalleled adjustability and control on the race track. Featuring advanced damping technology, the V2 Basic Coilover Kit allows drivers to fine-tune their suspension settings for optimal handling and responsiveness, enabling aggressive cornering and precise control at high speeds. With its robust construction and race-proven performance, this coilover kit is the ultimate choice for enthusiasts seeking uncompromising performance and dominance on the track.



Spring Perch Isolator Pads

Redesigned reinforced spring perch isolator pads lower friction, enabling more effective preload adjustment and an extended product life. Now includes copper-based anti-seize lubricant for coilover installation and setup.

Triple S Upgraded Coilover Springs

The ISC Triple S Upgraded Coilover Spring kit have springs made of high tensile steel, allowing for increased spring stroke, and better performing ride by having less coils per spring when compared to a standard coilover spring.

They are about 20% lighter than a standard steel coilover spring, a great upgrade for both street and track cars.

V2 Thrust Bearings
The latest V2 thrust bearings feature reduced stack height and sealed self-lubricating Japanese bearings, requiring minimal maintenance.

Piston Design

32-way adjustable dampening, Shafts are valved according to the spring rate, Shock dyno is used to ensure quality and consistent results.



Single Cylinder Configuration
Employing a mono-tube damper infused with high-pressure nitrogen, this design boasts a larger cylinder and piston setup, enhancing both driving stability and agility. The threaded section of the shaft undergoes a powder coating followed by a salt spray coating, ensuring unparalleled street durability. For added protection against harsh elements, especially in snow and salt-exposed environments, we recommend using anti-seize or similar protective products during coilover installation.

We suggest also using anti seize or other protective products when you install your coilovers for even further protection from the elements if you are exposed to snow and salt.



ISC Springs
Crafted from premium SAE9254 steel, these springs undergo rigorous testing, enduring over 500,000 compression cycles with minimal deformation, less than 5%.

Fully customizable spring rates (spring rates vary depending on application, custom spring rates are available).

Adjustable Ride Height
Most applications offer full-length height adjustability of up to 3 inches. Utilizing high-quality T6061 aluminum alloy for all adjustment locks ensures a lightweight design that effectively maintains spring and vehicle downforce.

Bound Adjustable with Separate Spring Locks.

Preload is separate from ride height, the lower you go, the ride quality stays the same.



Certifications

ISO9001, 2000R Certified and ARTC Certified.

Warranty
ISC Suspension offers a LIFETIME WARRANTY to the original purchaser against defects in workmanship and material.  For more info on this please refer to ISC Warranty.
