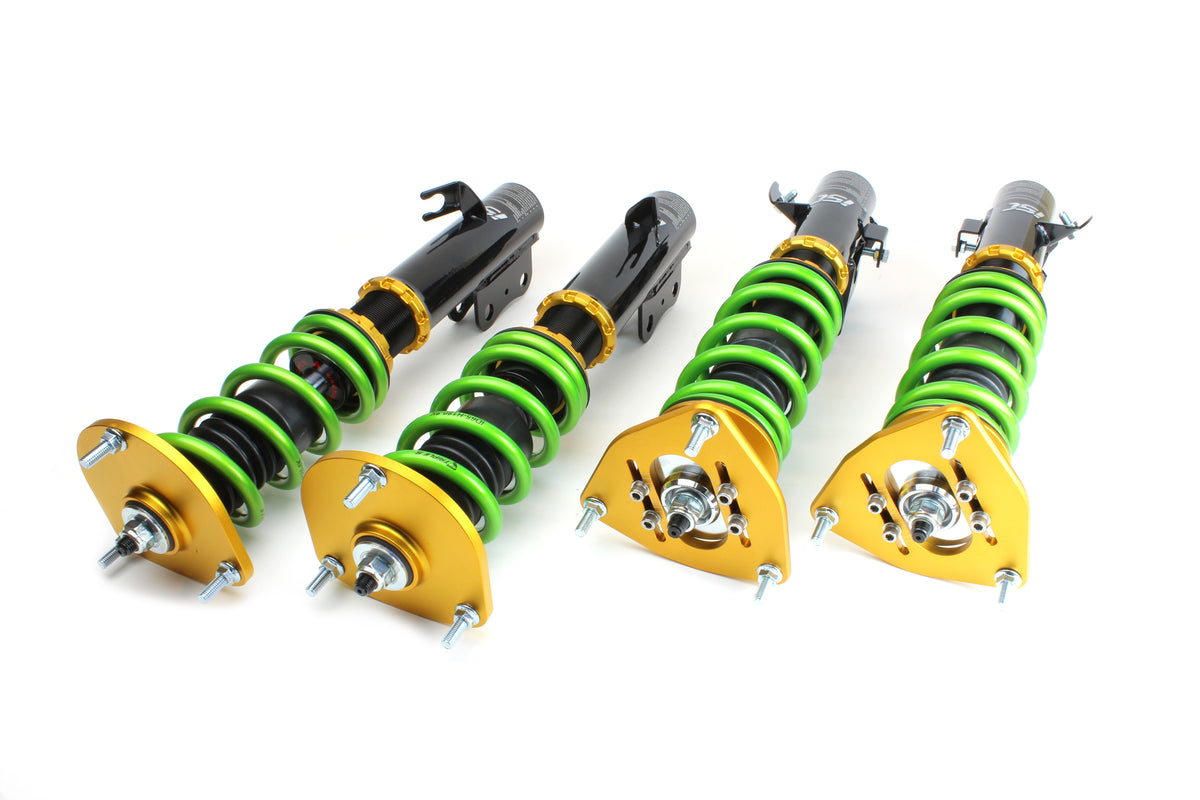

ISC Suspension V2 N1 Track/Race Coilover Kit (With Triple S Upgraded Coilover Springs) - 2002-2007 Subaru Impreza

PLEASE NOTE - This is a special order item that is built to order direct with the manufacturer and carries a minimum 8-10 week build time subject to changes or delays per manufacturing timelines. Once you have placed an order successfully, it cannot be canceled or altered in any way. Please ensure you understand these terms and waiting period before purchasing.

ISC Suspension N1 Track/Race Coilover Kit  (With Triple S Upgraded Coilover Springs) - 2002-2007 Subaru Impreza

Features:

• Optimal performance with Pillowball Upper mounts
• Prevents spring bind with Thrust Bearing
• Standard Front Camber Plates for up to 3 degrees of adjustment
• Advanced Piston Design with 32-way adjustable dampening
• High-quality ISC Springs undergo over 500,000 dyno tests
• Customizable Spring Rates available
• Up to 3 inches of Ride Height Adjustment
• Separate Spring Locks maintain preload independently
• ISC Triple S Upgraded Coilover Spring Kit: High tensile steel, increased stroke, 20% lighter
• Certified: ISO9001, 2000R, ARTC
• Lifetime Warranty against defects

Pillowball Upper mounts

For optimal performance pillowball upper mounts are available on most ISC N1 coilovers (see application guide for specifics)

Thrust Bearing

Thrust bearings help to eliminate the chance of spring bind, a common side effect of running aftermarket coilovers.

Front Camber Plates

When your vehicle suspension geometry allows (vehicle specific, please check our application guide), all ISC N1 coilovers come with adjustable camber plates as standard. Up to 3 degrees of camber adjustment. T6061 anodized aluminum top plate.

Piston Design

32-way adjustable dampening, Shafts are valved according to the spring rate, Shock dyno is used to ensure quality and consistent results. Single Cylinder Design: Monotube damper with high pressure nitrogen, Larger cylinder and piston design to advance driving stability and dexterity, Threaded portion of shaft is powder coated then salt spray coated for optimum durability. We suggest also using anti seize or other protective products when you install your coilovers for even further protection from the elements if you are exposed to snow and salt.

ISC Springs

 Made from high quality SAE 9254 steel, Dyno tested over 500,000 times on compression inspection with less than 5% deformation. Fully customizable spring rates (spring rates vary depending on application, custom spring rates are available)

Ride Height Adjustable

Full length height adjustability of up to 3 inches on most applications, High quality T6061 aluminum alloy used for all adjustment locks to provide a lightweight design that holds spring and vehicle down force.

• Bound Adjustable with Separate Spring Locks
• Preload is separate from ride height, the lower you go, the ride quality stays the same

The ISC Triple S Upgraded Coilover Spring kit have springs made of high tensile steel, allowing for increased spring stroke, and better performing ride by having less coils per spring when compared to a standard coilover spring. They are about 20% lighter than a standard steel coilover spring, a great upgrade for both street and track cars

Certifications

ISO9001, 2000R Certified and ARTC Certified.

Warranty

ISC Suspension offers a LIFETIME WARRANTY to the original purchaser against defects in workmanship and material. For more info on this please refer to ISC Warranty
