Injector Dynamics ID1050X Top Feed Fuel Injectors - Subaru Models (inc. 2002-2014 WRX / 2007-2020 STI / 2007-2011 Forester XT / Legacy GT)

Injector Dynamics ID1050X Top Feed Fuel Injectors - Subaru Models (inc. 2002-2014 WRX / 2007-2020 STI / 2007-2011 Forester XT / Legacy GT)

Skip to product information
1 of 5

Injector Dynamics

Injector Dynamics ID1050X Top Feed Fuel Injectors - Subaru Models (inc. 2002-2014 WRX / 2007-2020 STI / 2007-2011 Forester XT / Legacy GT)

Injector Dynamics ID1050X Top Feed Fuel Injectors - Subaru Models (inc. 2002-2014 WRX / 2007-2020 STI / 2007-2011 Forester XT / Legacy GT)

Regular price $600.60 USD
Regular price Sale price $600.60 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
54 in stock and ready to ship!
Price Match Guarantee up to 100%
30 Day Satisfaction Guarantee
Free Shipping! On orders over $199
Rated Excellent & Trusted

Overview

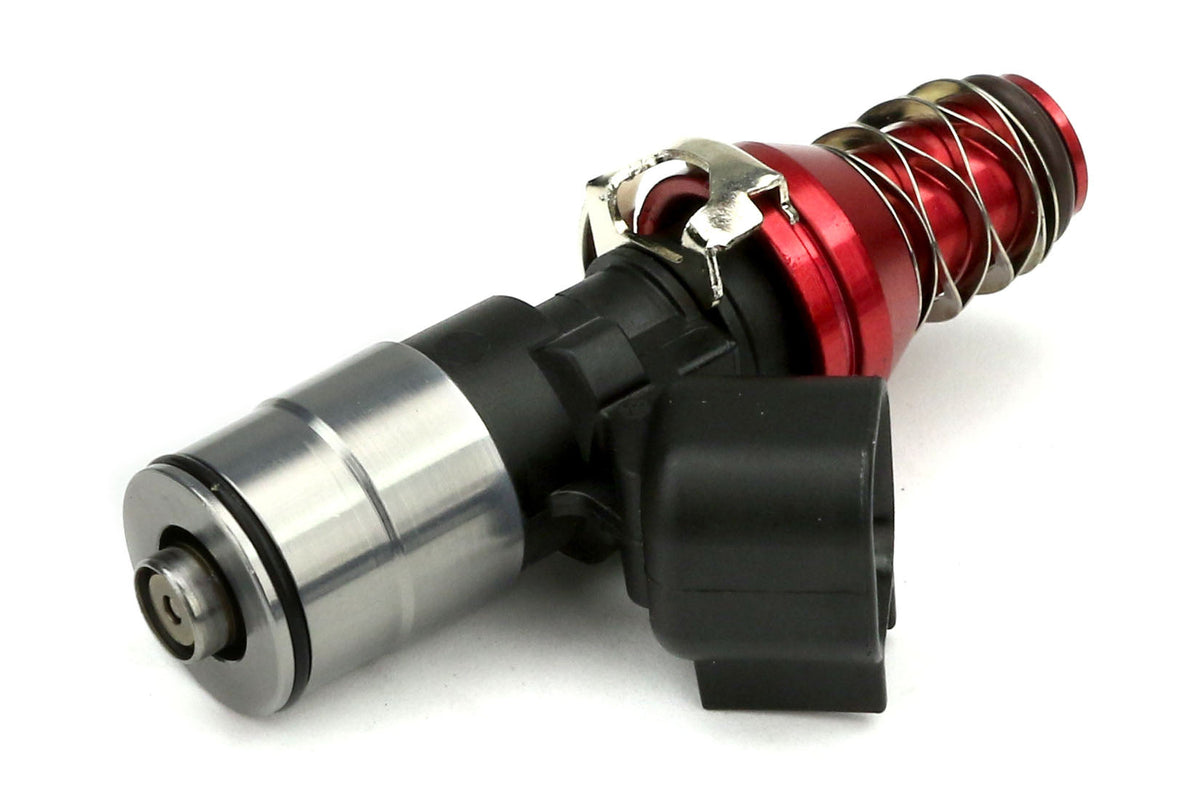

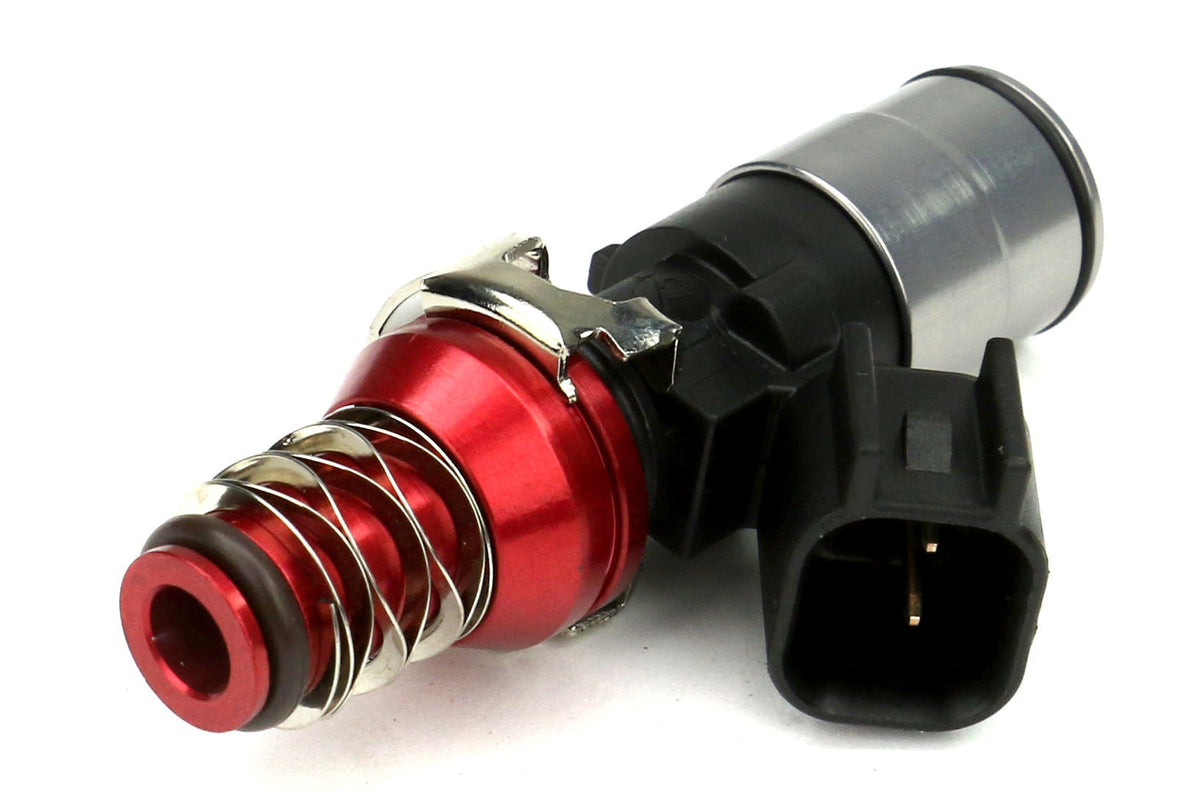

The Injector Dynamics ID1050X is a set of four top-feed fuel injectors for Subaru models including the 2002-2014 WRX, 2007-2020 STI, and the 2007-2011 Forester XT and Legacy GT. It flows 1065 cc/min and is built by Injector Dynamics with Bosch Motorsport for tuners who need more fuel than the factory injectors can deliver.

Features & Specs

  • Built to a motorsport spec by Injector Dynamics in partnership with Bosch Motorsport
  • Compact body for fitment in 200+ applications
  • Improved internal flow path adds about 5% output over the ID1000 without hurting low-flow performance
  • Corrosion-resistant internals for long service life on corrosive fuels
  • Stronger magnetic circuit for stable operation up to 10 bar
  • Replaceable inlet filter
  • Configuration: 48mm body length, 11mm top, Denso low cushion (WRX spec)
  • Nominal flow rate: 1065 cc/min at 3.0 bar (43.5 psi)
  • Maximum differential fuel pressure: 10.0 bar (145 psi)
  • Fuel compatibility: Compatible with all known fuels
  • Electrical connector: USCAR
  • Not CARB legal. Not for sale or use on pollution-controlled vehicles in California.

What's Included

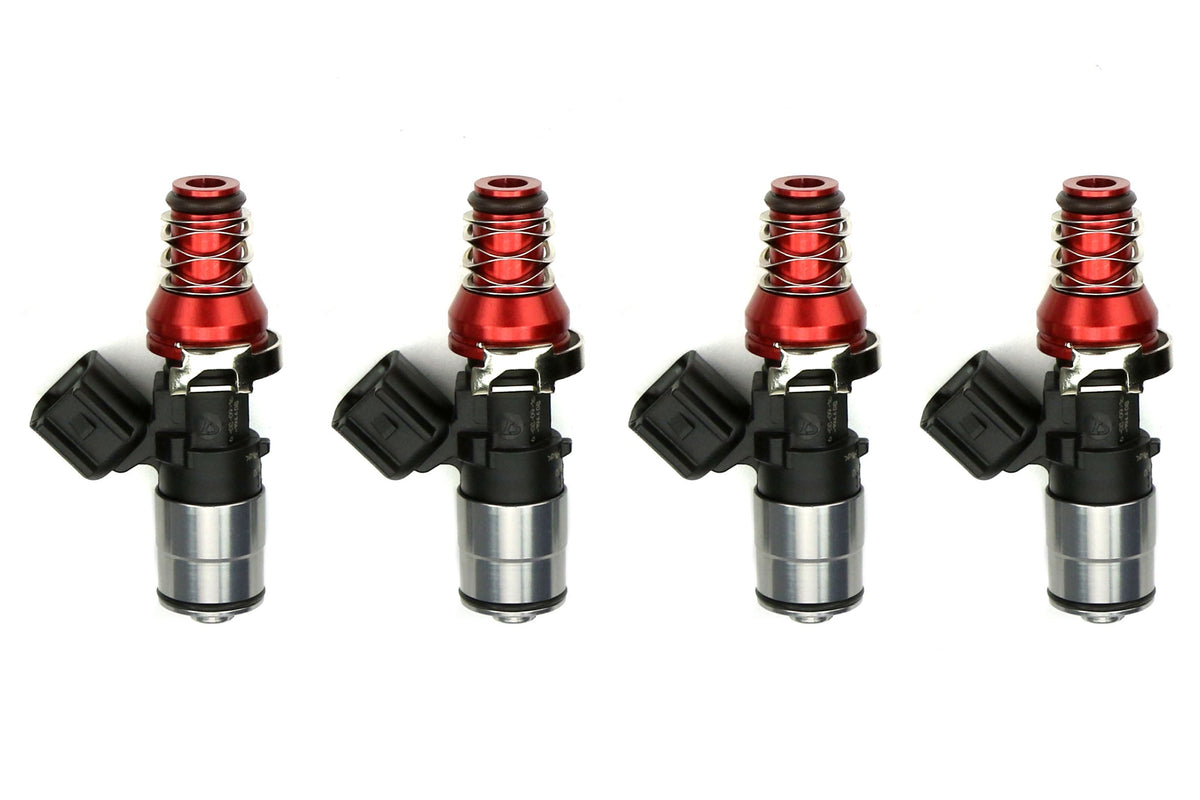

  • (4) Injector Dynamics ID1050X fuel injectors

Straight from SubiSpeed

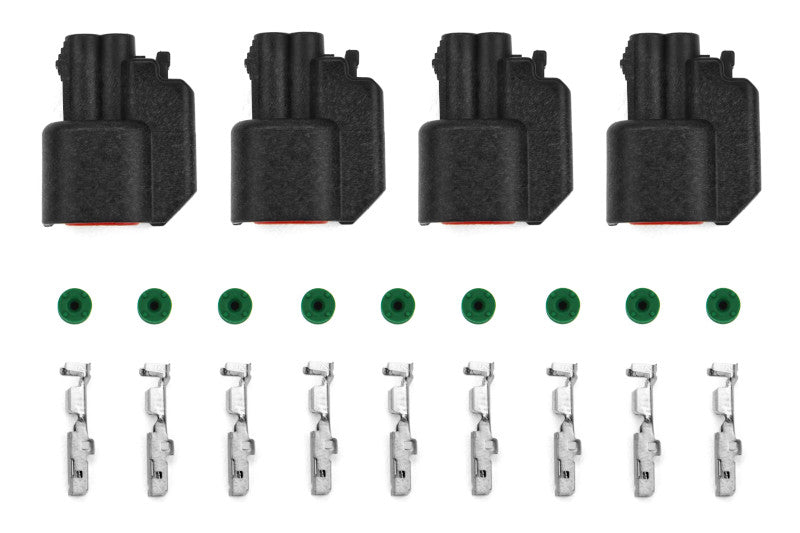

We reach for the 1050X when a build has outgrown the factory injectors but is not chasing big-turbo or high-ethanol numbers. It needs a custom tune that uses the slope and offset data Injector Dynamics publishes, so plan that into the job. If your harness connectors do not match the injectors, an Injector Dynamics PnP adapter avoids cutting wires. Check your connector style before ordering.

View full details
Specification Value
Injector Size 1050Cc
INJECTOR TYPE Top Feed
O-Rings Included Yes
Plug and Play No (Yes W/ Adapters)
Qty 4
Rails Included No
