IAG 550 LONG BLOCK ENGINE WITH IAG 550 HEADS FOR 02-14 WRX, 04-21 STI, 04-13 FXT, 05-09 LGT

A "DROP-IN" SOLUTION

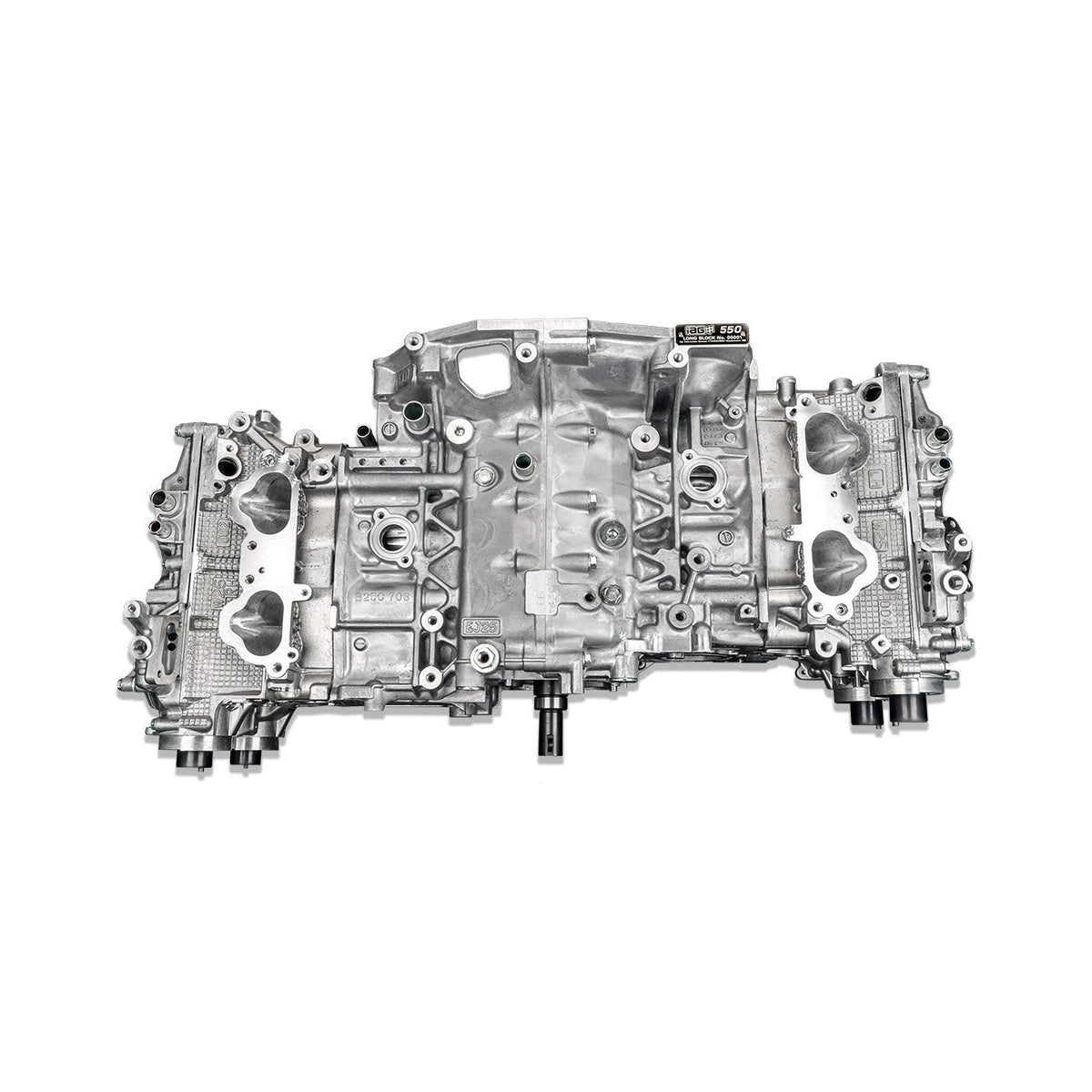

The IAG Performance Hand-Built 550 Subaru EJ25 Long Block Packages are a complete, valve cover to valve cover, crate engine. These long block engines offer significant ease of installation for customers seeking a complete "drop-in" engine package for their Subaru WRX, STI, Forester XT or Legacy GT. The Long Blocks feature a combination of our proven IAG 550 Performance Short Block and IAG 550 Cylinder Head package, along with other race-proven components to complete the assembly. When paired with our Long Block Installation Packages, you have a true plug-and-play solution to get you back on the road, FAST! All components included are BRAND NEW and there is NEVER A CORE CHARGE required.

BUILT WITH 100% NEW COMPONENTS

The IAG 550 package is ideal for clients looking for a long block engine package to support up to 550 BHP applications. The IAG 550 long block features our highly popular IAG 550 Short Block that utilizes a brand new EJ25 Subaru case, 99.75mm IAG-Spec JE forged pistons, IAG Spec H-Beam connecting rods and OEM STI Crank. The block is then paired up with our IAG 550 Cylinder Head Package which features Subaru WRX STI OEM cylinder head castings and GSC valvetrain components. To complete the package, we add an 11mm ARP 2000 head stud set and all required gaskets for the final valve cover-to-valve cover assembly.

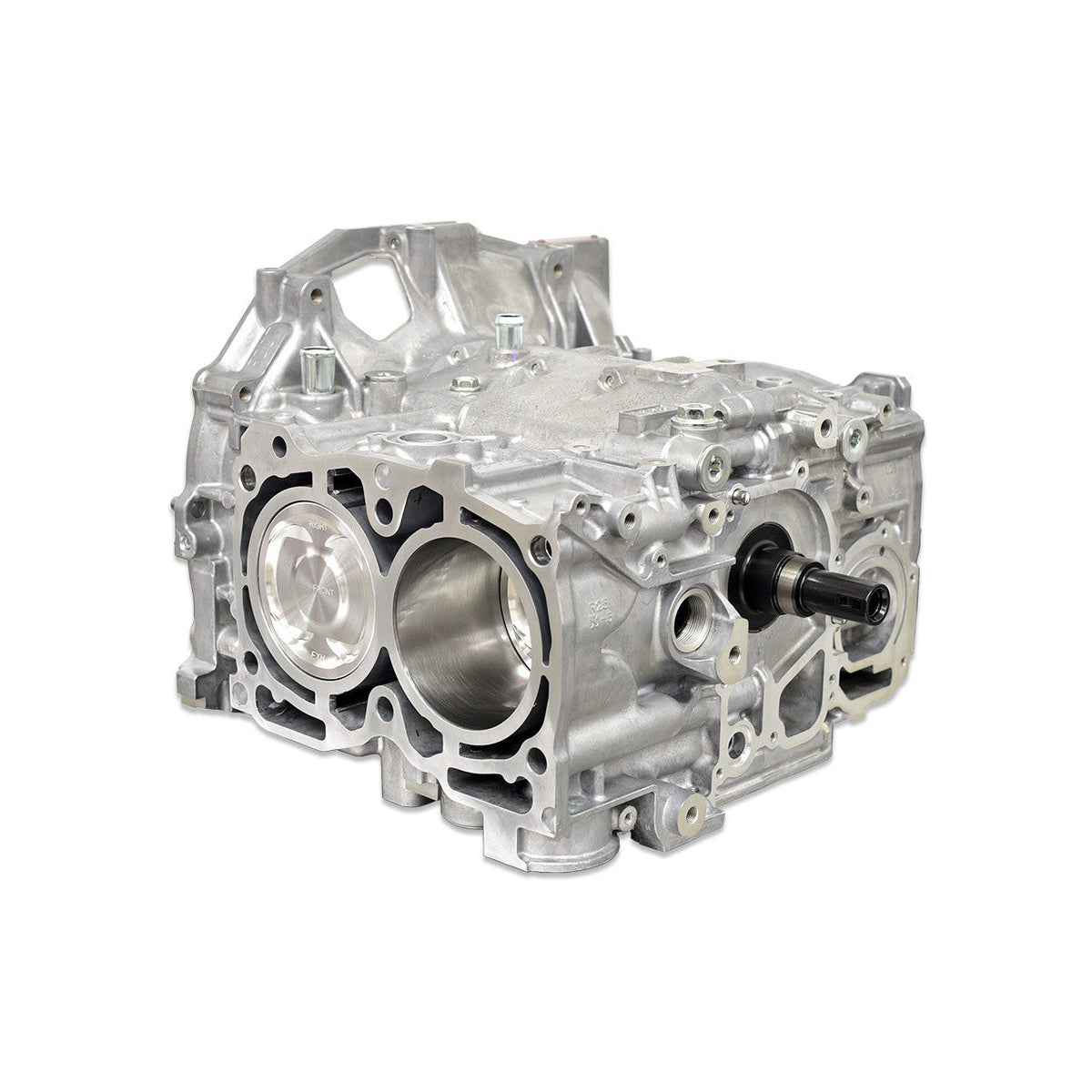

IAG 550 EJ25 2.5L SUBARU SHORT BLOCK

DESIGNED FOR STRENGTH

The IAG 550 Short Block is designed for modified EJ25 Subarus that need a stronger short block to support increased cylinder pressures created by additional boost pressure. The IAG 550 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by larger turbochargers or increased boost which the OEM STI rods found in the Stock short blocks cannot support reliably.

BUILT WITH 100% NEW COMPONENTS

Each IAG 550 Short Block starts with brand new EJ25 Subaru 2.5L, 99.75mm stock bore engine case halves as standard. The case haves are carefullly measured and assembled using a new 2017+ Subaru 2.5L nitride treated STI crankshaft, which is matched to ACL or King race main bearings. The IAG 550 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE 99.5mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.

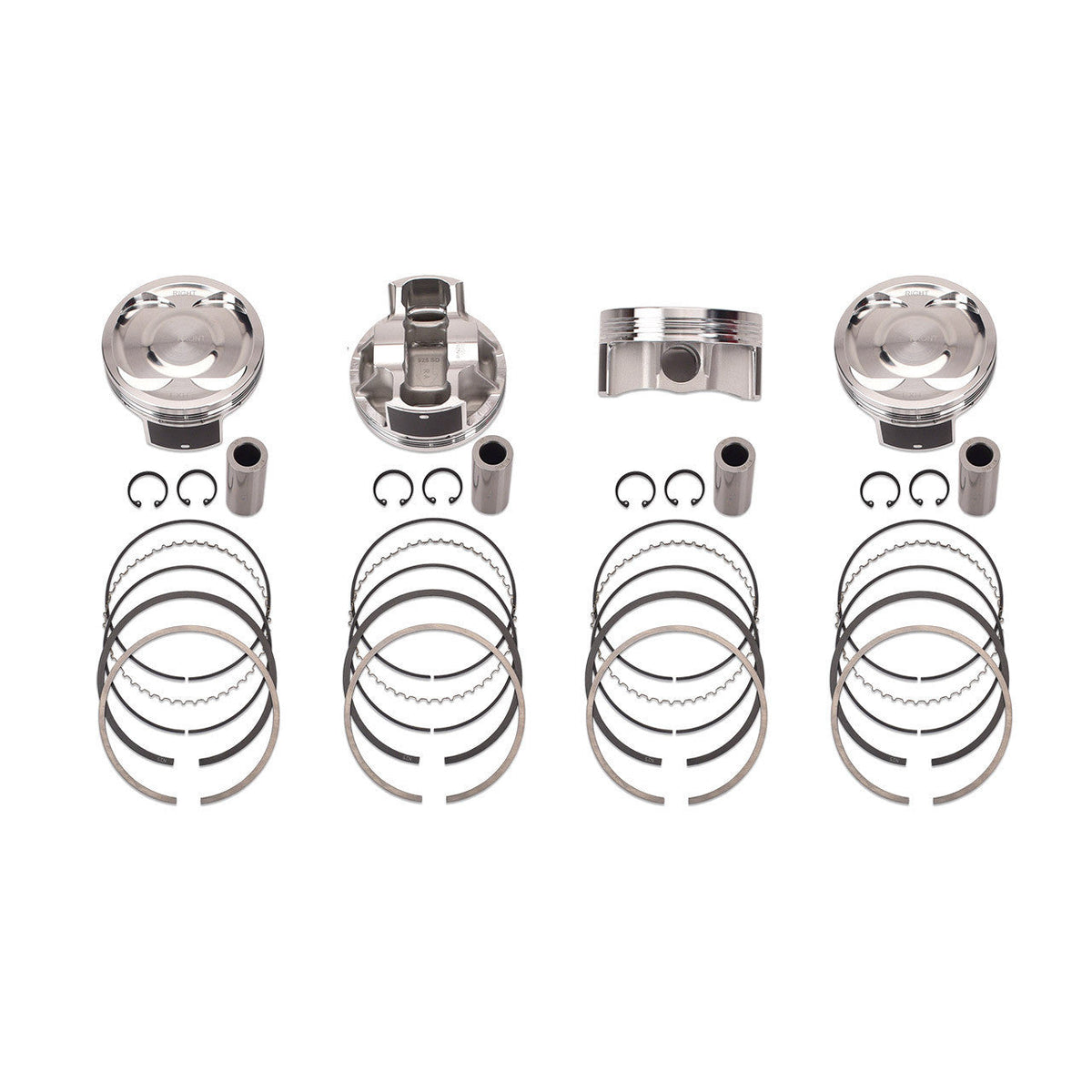

FORGED PISTONS, DESIGNED FOR BOOST

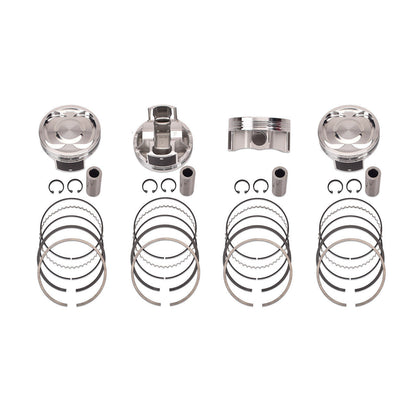

Each IAG 550 Short Block features IAG Spec JE 99.75mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .905 x 2.250" x .180" wall carbon steel wrist pins with Tru Arc locks.

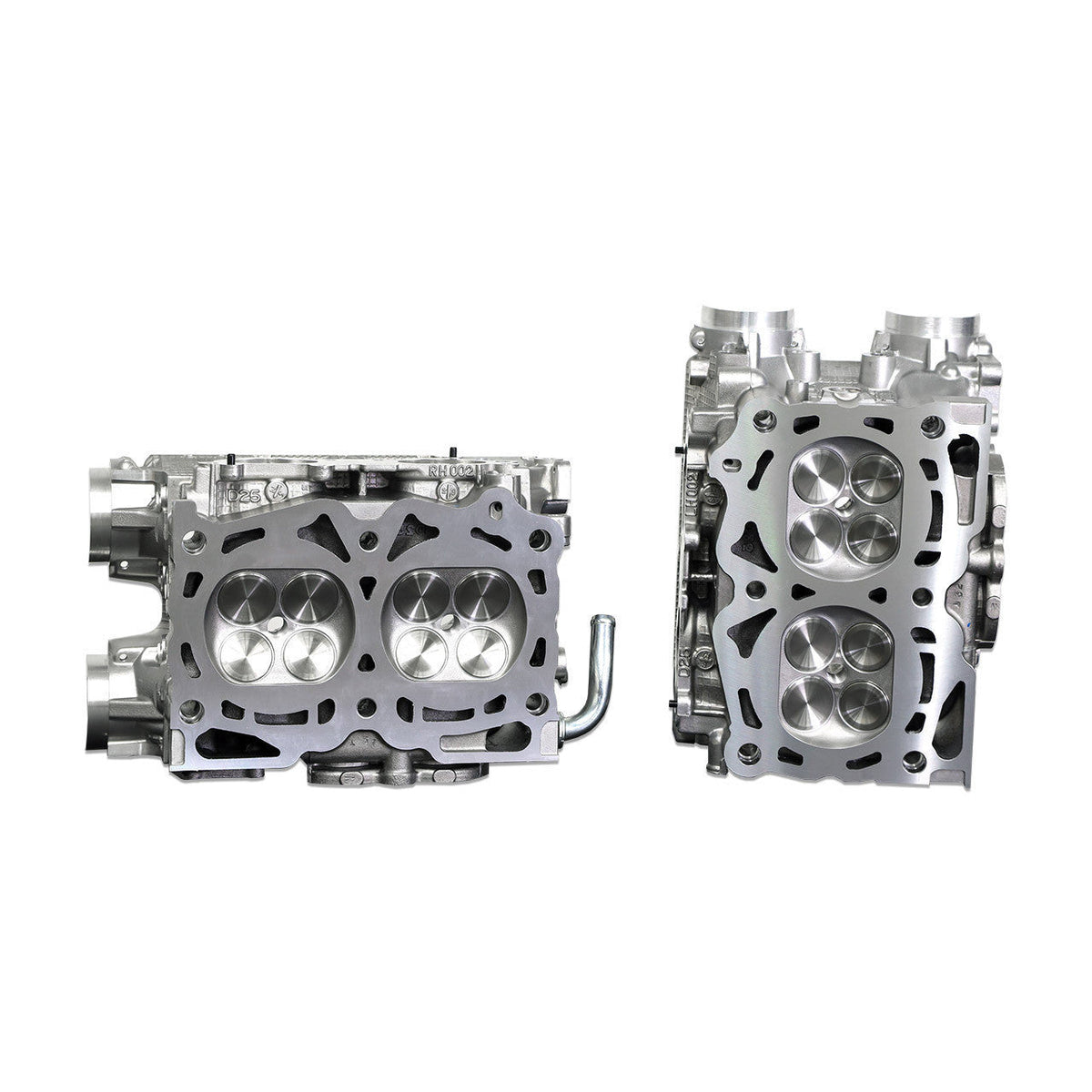

IAG 550 STREET CYLINDER HEADS PACKAGE FOR 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT

ENTRY-LEVEL STOCK REPLACEMENT HEADS

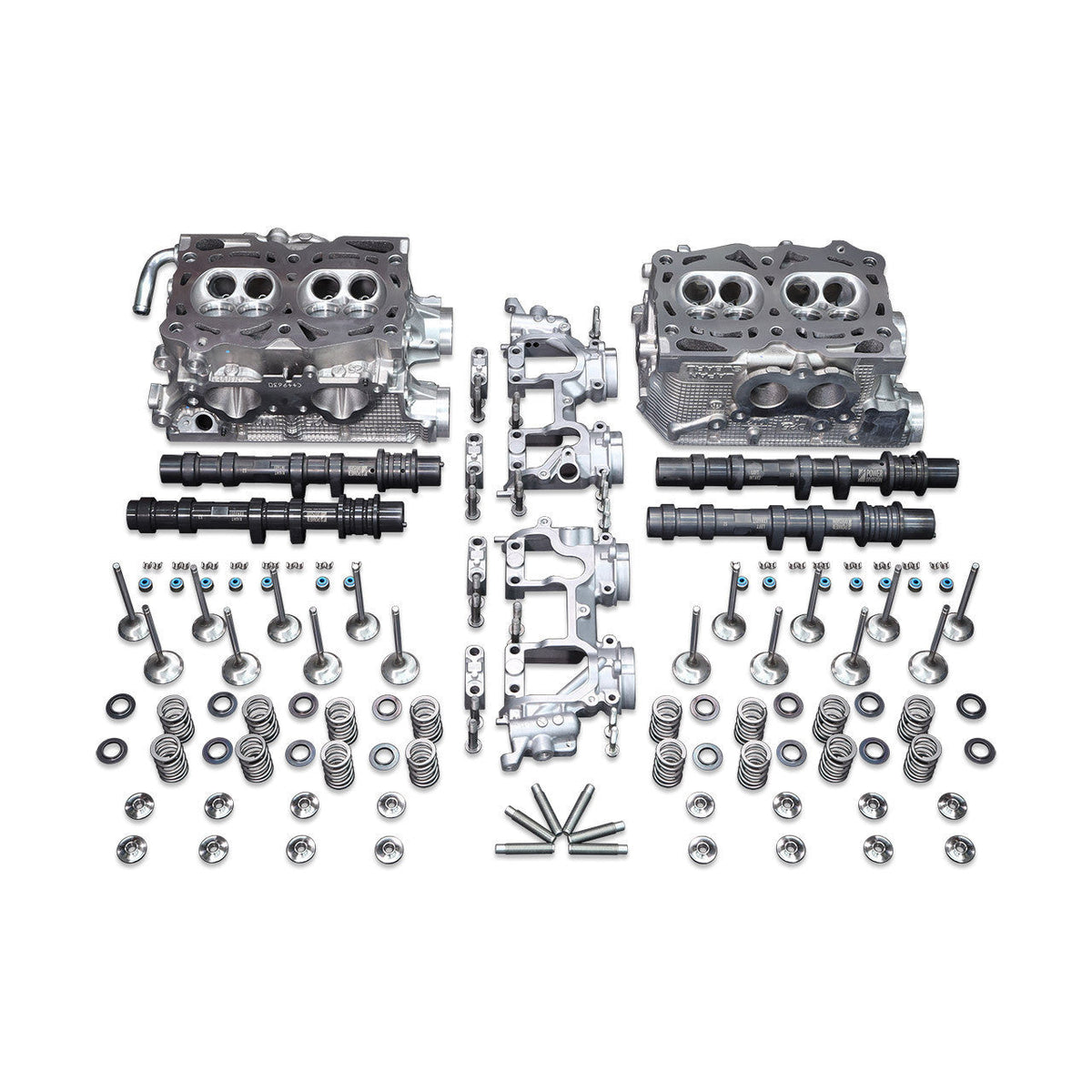

The IAG 550 Cylinder Heads are designed to function as an entry-level replacement for stock OEM heads. If your engine has suffered a catastrophic failure which requires replacement of your cylinder heads, or if you don't have OEM heads to start with, the IAG 550 Cylinder Heads are a perfect solution. These heads also work great for cars with basic bolt-on parts up to 550 BHP. These heads include upgraded GSC standard size valves, GSC Viton Valve Stem Seals, IAG Stage 1 Valve Springs with Titanium Retainers, and OEM Keepers. GSC S1 Camshafts are available with OEM valve lifter buckets.

BUILT WITH 100% NEW COMPONENTS

Each IAG 550 Cylinder Head Set starts with new OEM castings from Subaru of America. The first step is to select your Year and Model of vehicle so that we may provide you with the right castings to fit your project. Next, you'll select whether or not you want to include our optional GSC camshaft package. If selected, these heads will include new GSC S1 Camshafts and OEM Lifter Buckets for valve adjustment. The bare castings are visually inspected and then fixtured into our in-house Centroid 5-axis CNC Machine. In the Centroid, the heads undergo a cam clearance machining process which removes material from the lifter area where larger lift and duration cam profiles are known to contact the castings. (Just in case you want to go bigger later.) Then the heads are fixtured in our Newen Valve Guide and Seat Machine to cut all intake and exhaust seats with a multi-angle valve job that suits the flow characteristics of GSC's standard size 36mm Intake and 32mm Exhaust valves. At this point, the heads' decks are resurfaced using our TS-3000 BlockMate, which cuts the aluminum to a smooth, even finish. Next, the heads are ultrasonically cleaned to remove debris and oils from the machining process. Finally, the heads are reassembled using GSC Stainless Intake and Exhaust Valves, GSC Viton stem seals, IAG-Stage 1 Valve Springs with Titanium Retainers, and OEM Valve Keepers.

GSC S1 CAMSHAFT AND LIFTER BUCKET PACKAGE

The included GSC Power-Division billet S1 camshafts for your IAG 550 Head Package will not drop any low end power, and will create more power and torque across the entire RPM range. These are perfect for stock frame upgraded turbos or up to 500 WHP upgrades. Along with the camshafts we'll include all new OEM valve lifter buckets and set final lash.

COMPLETE TIMING COMPONENT KITS AVAILABLE FOR EVEN EASIER INSTALLATION

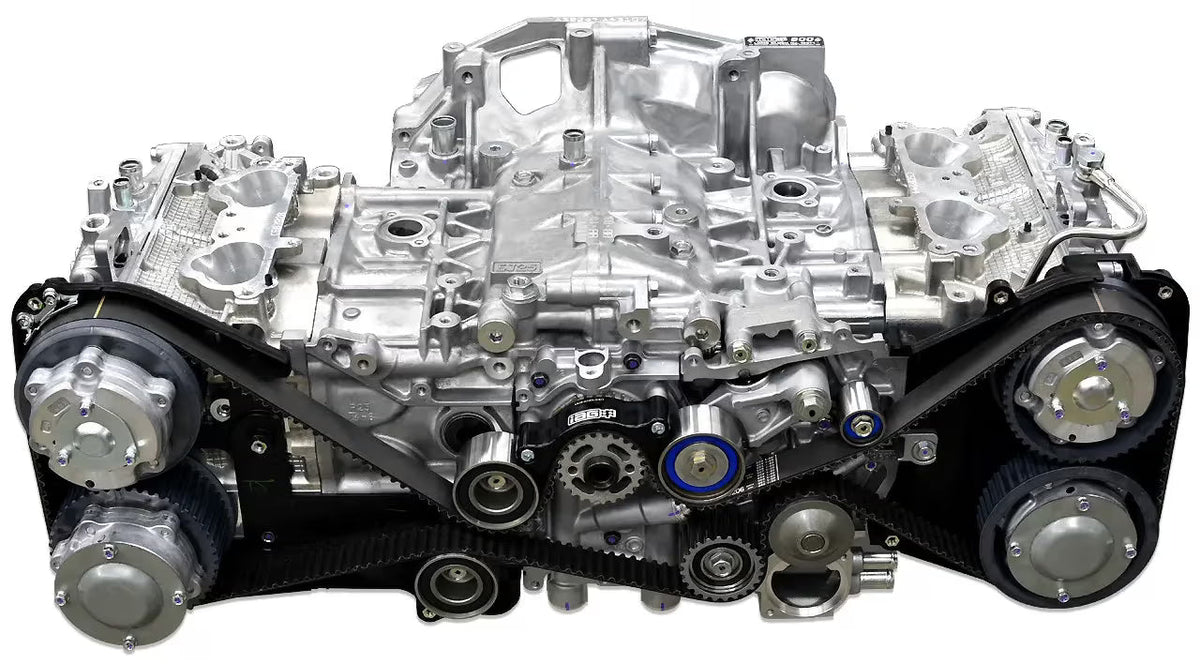

Save time and money by adding an IAG Performance Complete Timing Component Kit to your order. For optimal performance of your modified IAG long block, it’s important to use high-quality, reliable components that ensure precise timing to protect your investment. Available in Street or Comp versions each kit includes our high-strength black Kevlar belt, IAG billet aluminum Belt Guide, IAG Oil pump, timing tensioner, idlers, cam bolts, and even the inner and outer timing covers with all hardware. Compatible with all EJ Subaru long blocks, this kit provides all the correct and necessary parts for your swap at a discounted package rate. Not sure about installing the timing belt and components on your new long block yourself? Let our experts do it for you. Our highly trained technicians have years of experience installing these timing systems, and have performed thousands of installations. Did you know that you can easily cause permanent and catastrophic damage to your valves if the timing procedure is performed incorrectly? Achieve peace of mind in knowing that our experts have set the timing perfectly, making the IAG Long Blocks the easy solution for reliable power.

IAG 550 EJ25 2.5L LONG BLOCK INCLUDES:

IAG 550 EJ25 Short Block:

• Case Halves -Brand new Subaru OEM case halves

• 99.75mm Stock Bore Pistons -IAG-Spec JE 99.75mm Forged Pistons, Ring Set, .180" Chromoly Steel Pins, Clips, (Perfect Skirt Coating and Offset Wrist Pin)

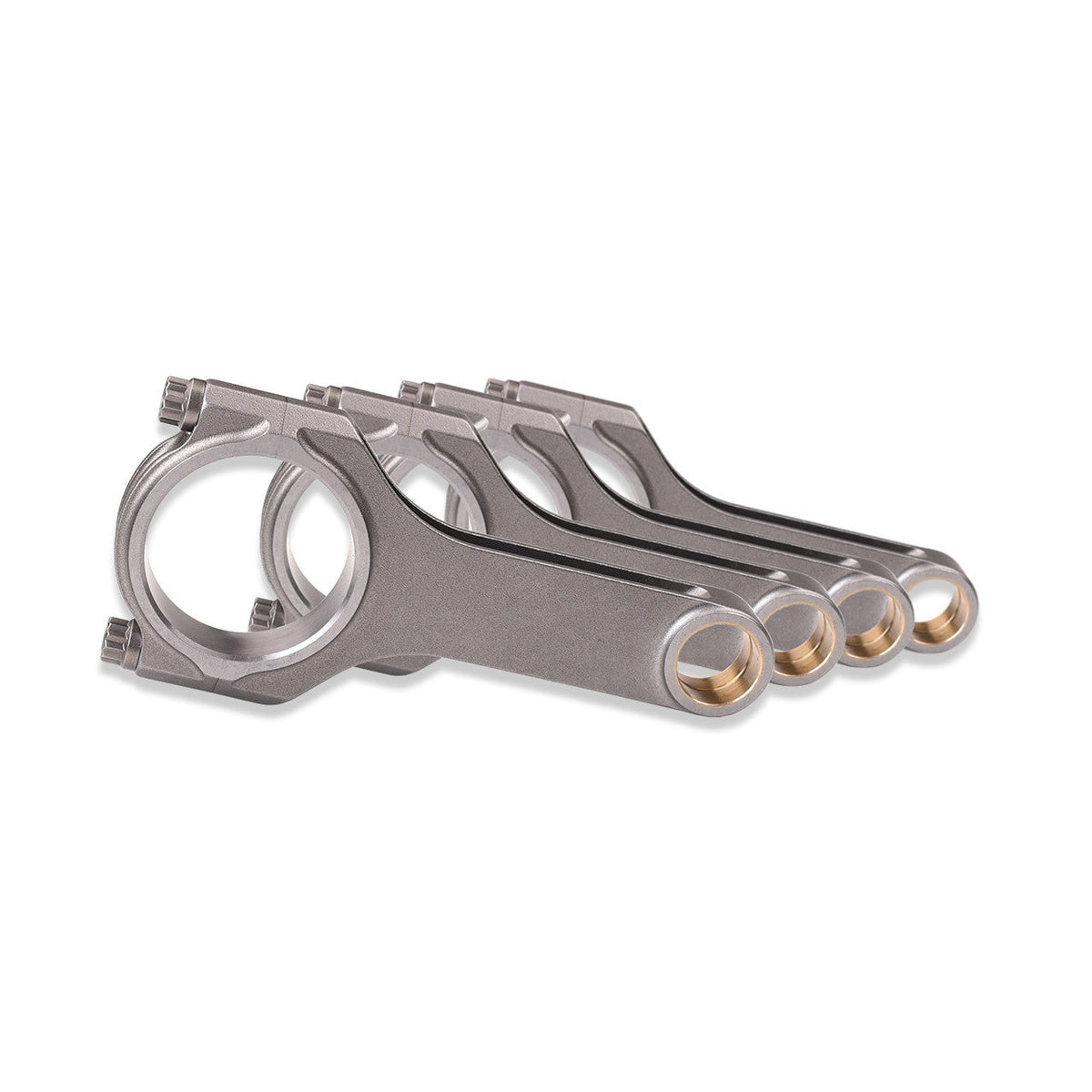

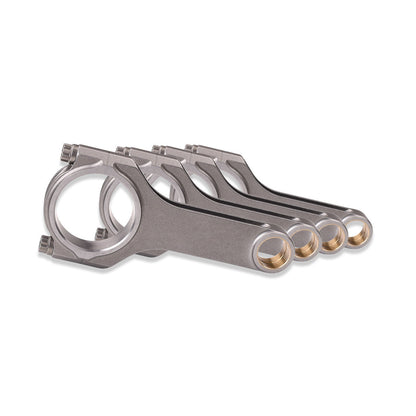

• Connecting Rods -IAG Spec H-Beam Rods w/ ARP2000 Rod Bolts

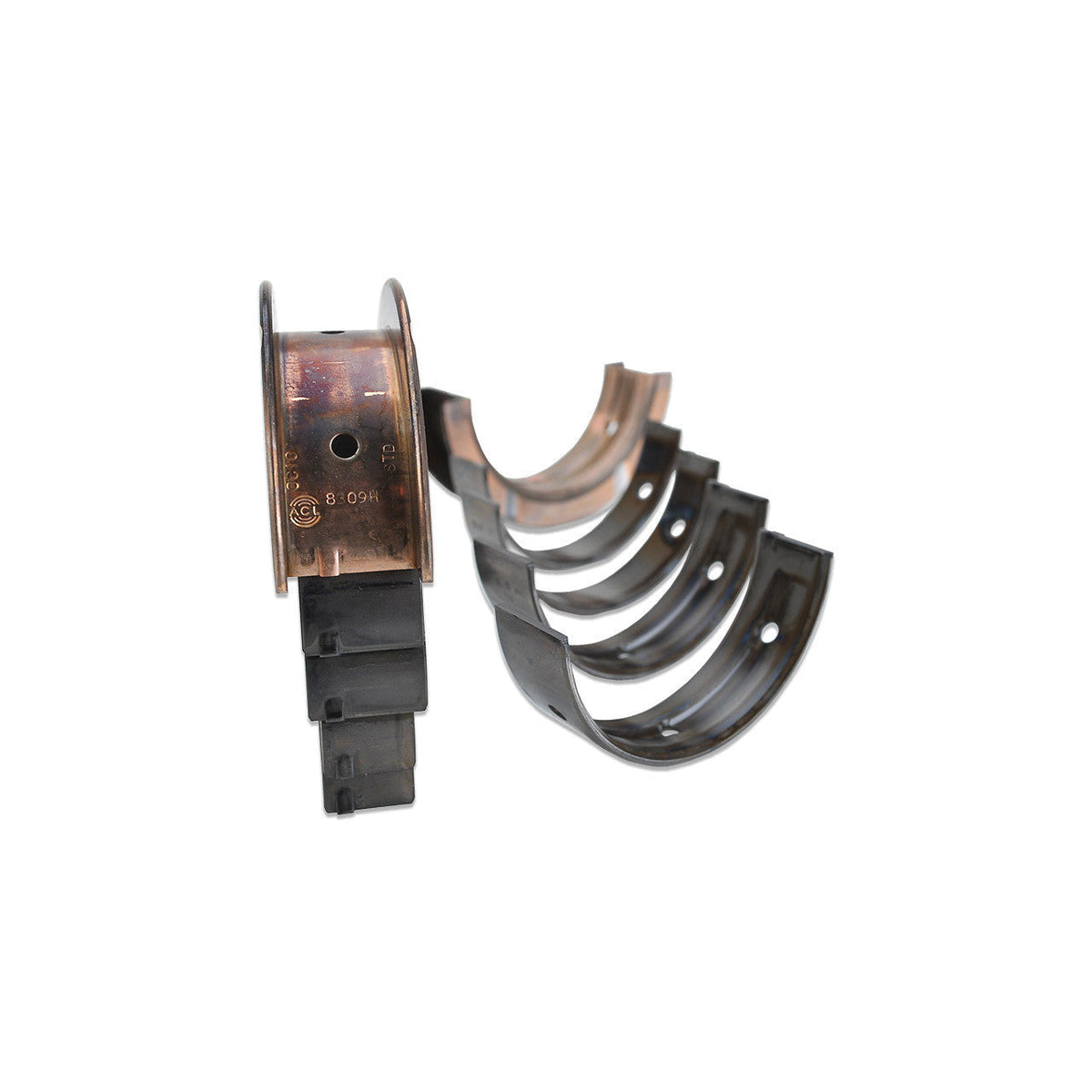

• Rod / Main Bearings -ACL or King Bearings

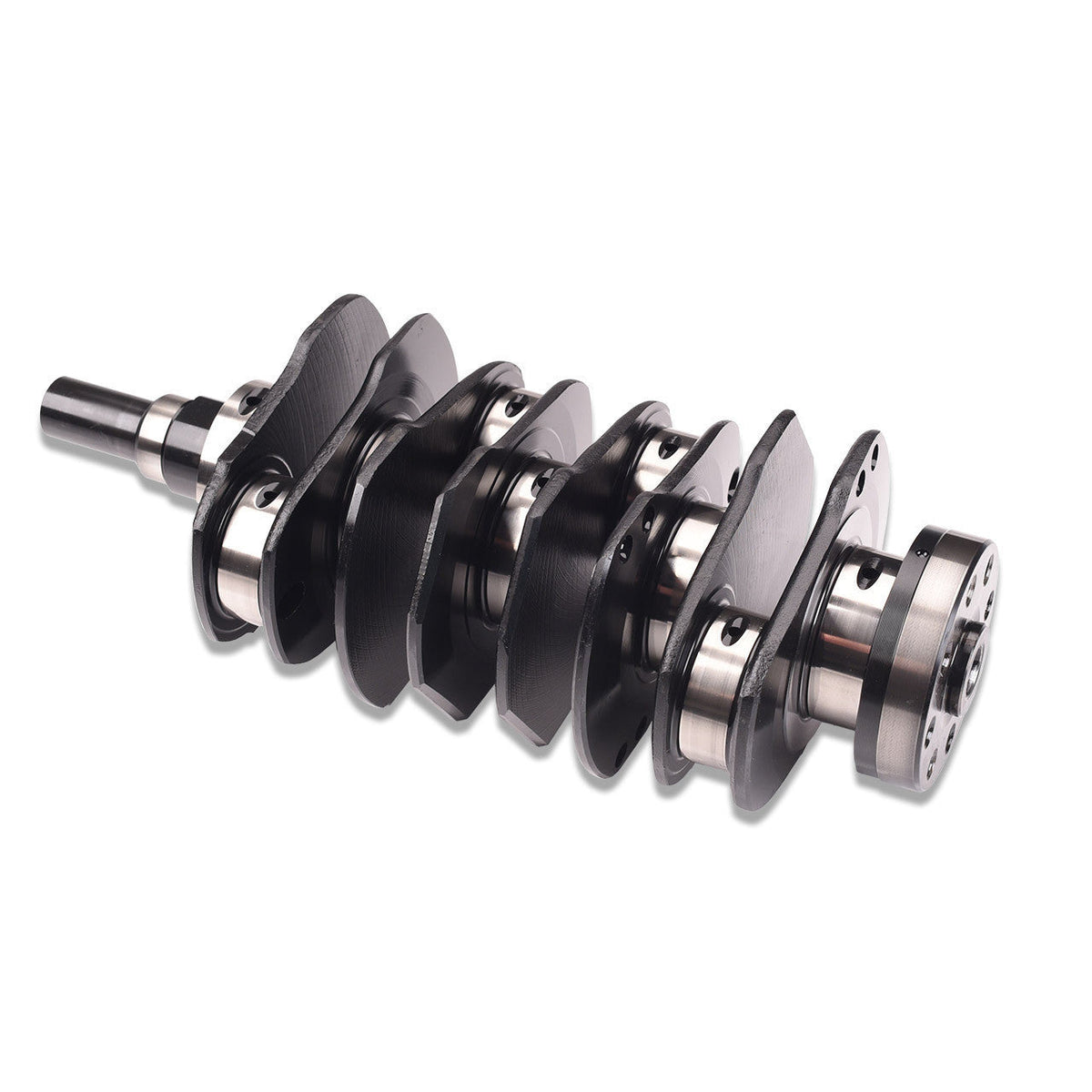

• Crankshaft -Standard New Subaru Nitride Treated 2017+ STI Crankshaft

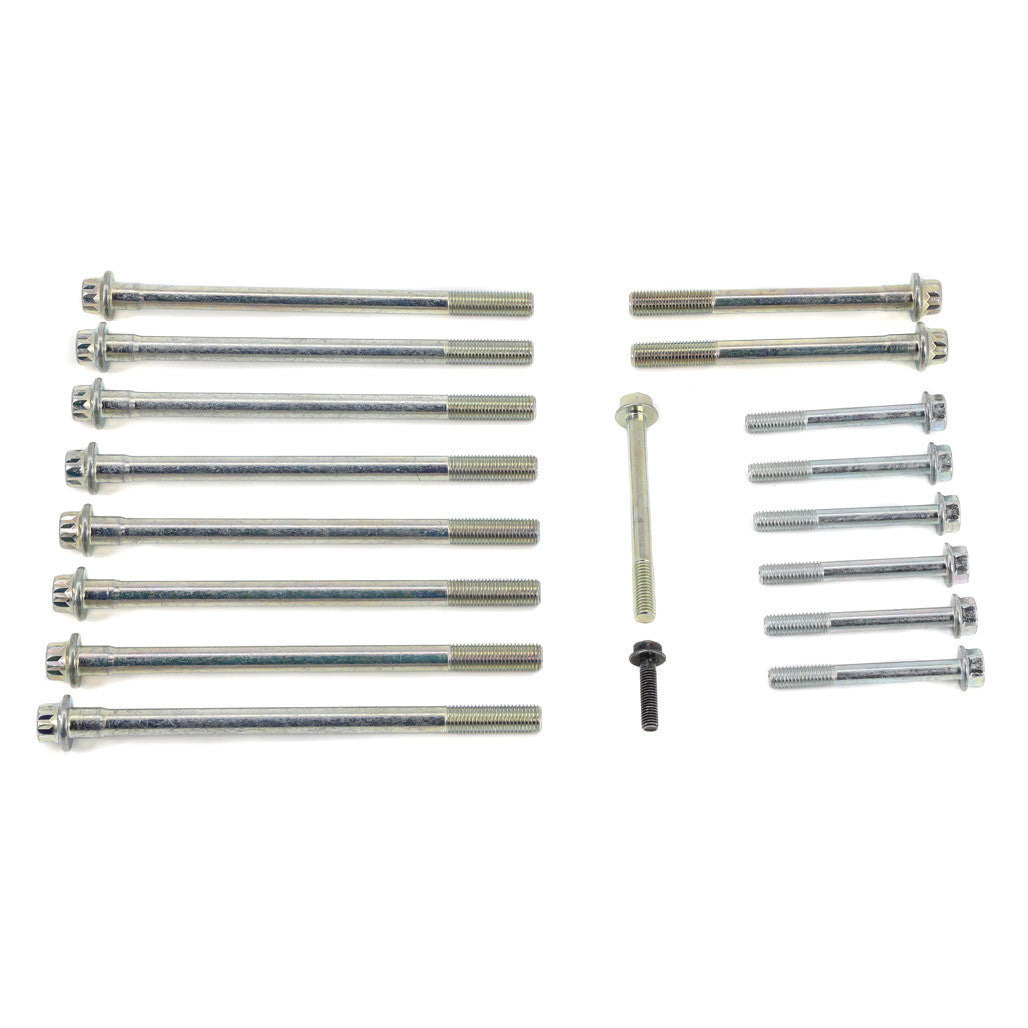

• Case / Main Bolts -Standard FHI Subaru case bolts

IAG 550 Cylinder Heads:

• Heads - Brand New Subaru OEM WRX STI Cylinder Head Castings
• Intake Valves - GSC 36mm (Standard) Intake Valves
• Exhaust Valves - GSC 32mm (Standard) Exhaust Valves
• Springs / Retainers - GSC Valve Springs & Titanium Retainers
• Guides - OEM Valve Guides
• Valve Seals - GSC Valve Stem Seals
• Lifters - OEM Lifter Buckets
• Camshafts - GSC Stage 1 Billet Camshafts
• Multi-Angle Valve Job
• Machined Cam Lobe Clearance
• Resurface
• Ultrasonic Cleaning
• Final Lash

Gaskets, Hardware & Accessories:

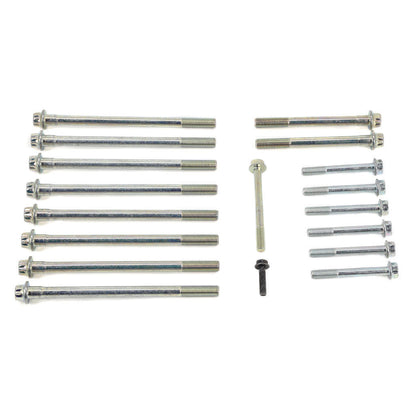

• Head Studs - ARP 2000 11mm Set
• Head Gaskets - OEM
• Valve Cover Gaskets - OEM
• Cam Seals - OEM
• Valve Covers - OEM

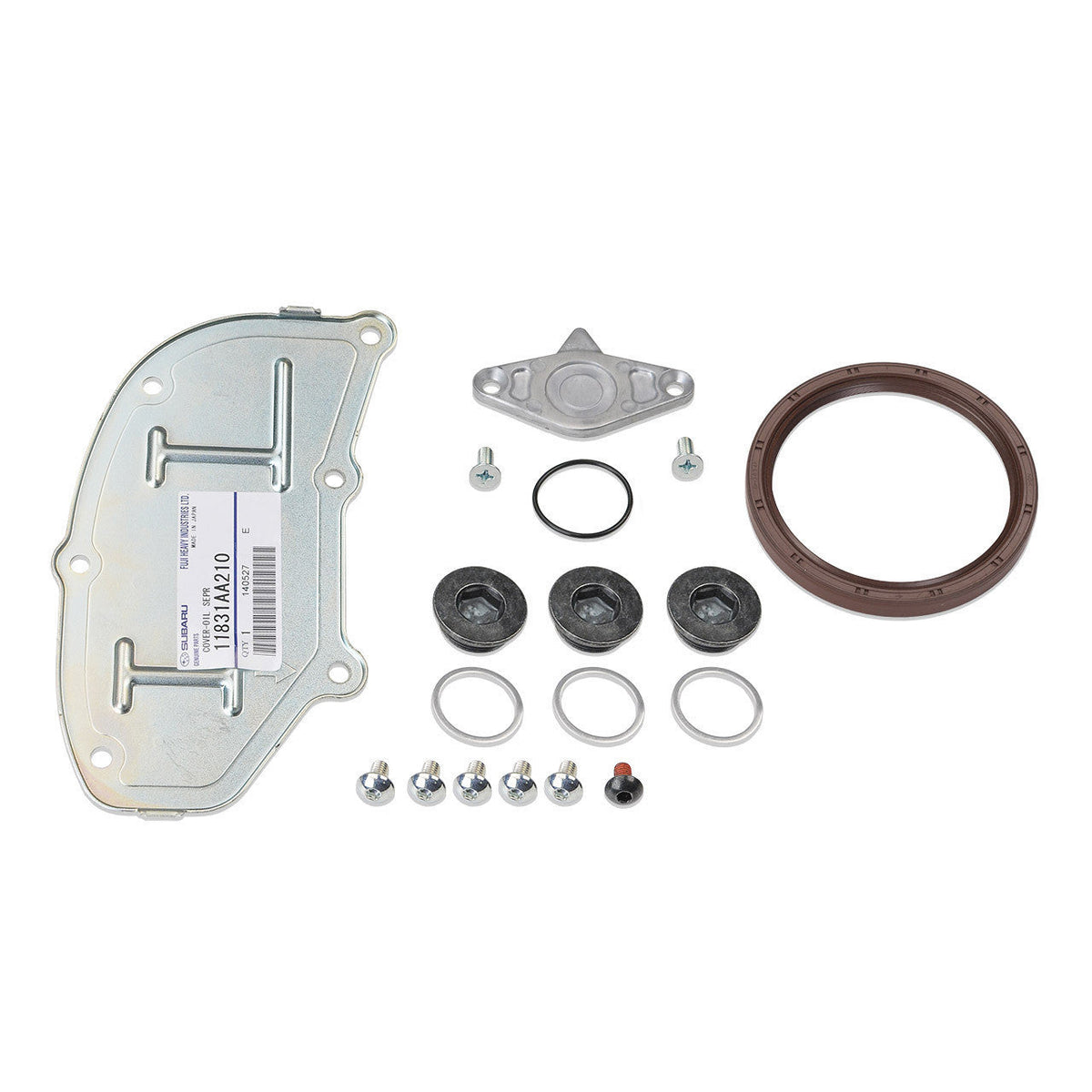

• Wrist Pin Seal, Rear Main Seal & Separator Kit
• Crankshaft Woodruff Key

Please Note: This item is not eligible for standard ground shipping and must be delivered via freight.
STOCK NOTICE: This item is built to order and carries a minimum 6-8 week build time.

IMPORTANT DELIVERY NOTE: Your order is shipping Via Truck Freight which requires you to be available at the time of receipt. There is a possibility the trucking company will try to schedule a delivery time with you. At the time of delivery, the driver will hand you the delivery receipt also referred to as the bill of lading, you will use this to notate any damages to the shipment. It is important that you fully inspect the shipment from all sides and notate any dents, punctures or rips in the outside packaging on the delivery receipt. Once you've inspected your shipment from the outside, you will need to open it and check the product in its entirety for damages and notate them if any. If there is no damage sign for the package and enjoy! In the rare case, you do find that your order arrived with damages, it is important you follow these steps. - Do not refuse the product- Document the damages in as much detail as possible on the Bill of Lading
- Take numerous photos from all angles (including packaging)
- Keep the product and contact the shipping company to start the damage claim
- Contact us either by phone or email for the next steps In the situation where the delivery driver is unable to wait for you to open and inspect your product, simply document "driver was unable to wait for inspection." All damage must be noted on the Bill of Lading before signing and initiating a damage claim. If the damage is not notated before signing for the item it is assumed to be in good condition. This will forfeit the ability for a shipping claim and you will not be eligible for refund or replacement.
