The Equal Length Header and Up-Pipe Package will increase the exhaust flow in the Subaru WRX/STI.

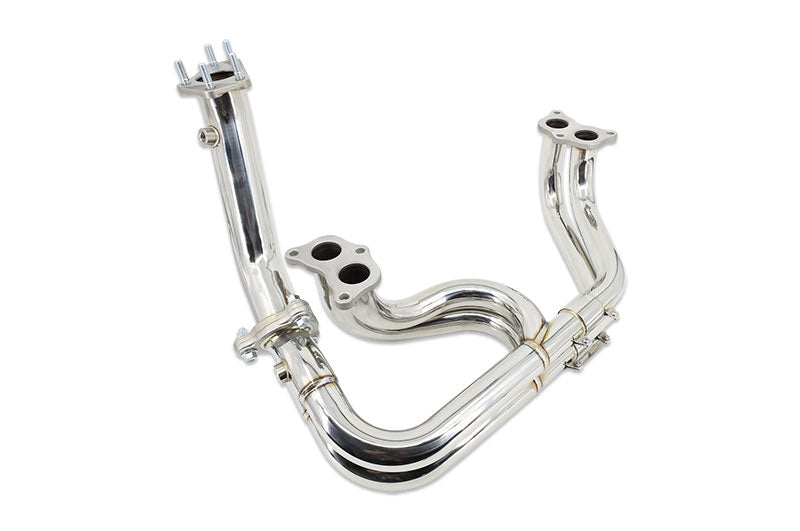

IAG Performance Equal Length Header & Up-Pipe Subaru Models inc. 2002-2014 WRX 2004=2020 STI

---

SPECS:

• Durable stainless steel construction on both header and up-pipe
• Equal length layout
• 4-2-1 configuration
• Smooth mandrel bends
• Increased piping diameter
• Includes 3-bolt up-pipe
• Increases horsepower
• Increases torque
• Produces the aggressive Subaru rumble
• Improves the turbo spool by 300 RPM
• Improves throttle response
• Reduces turbo lag
• Includes zinc-plated hardware
• Includes new exhaust gaskets

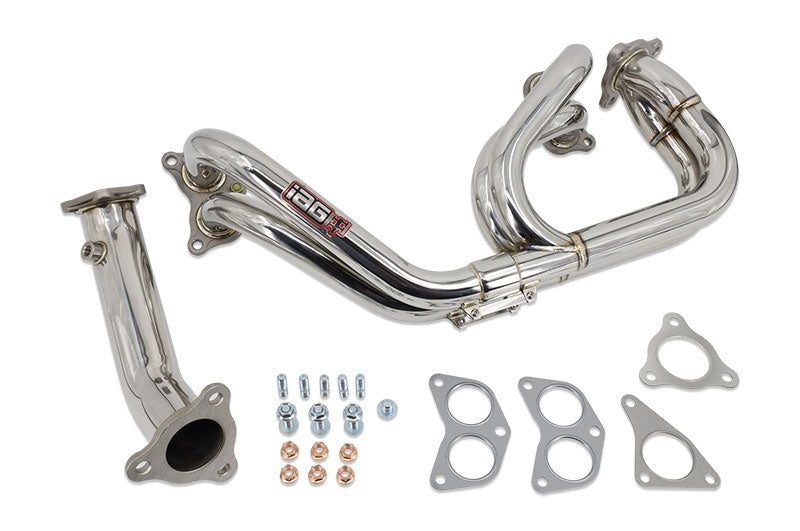

INCLUDES:

• (x1) Equal Length Stainless Steel Header
• (x1) 3 Bolt Stainless Steel Uppipe
• (x1) 3 Bolt Uppipe Gasket
• (x3) Uppipe to Manifold Zinc Plated Bolts and Nuts.
• (x5) Uppipe to Turbo Threaded Studs
• (x1) EGT Plug

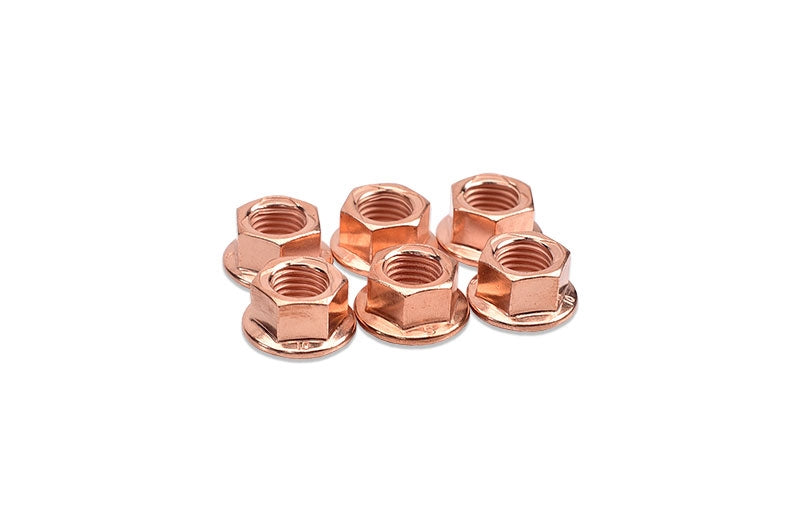

• (x6) Copper Flange Nuts (Manifold to Head)
• (x2) Manifold to Cylinder Head Gaskets
• (x1) Uppipe to Turbo Gasket



NOTES:



• This header will remove the "Boxer" rumble when installed.
• 2002-05 WRX Requires 2.5L STI Oil Pan
• 2006-07 WRX Requires STI Oil Cooler and STI Oil Pan



GET RACE-LIKE EXHAUST FLOW

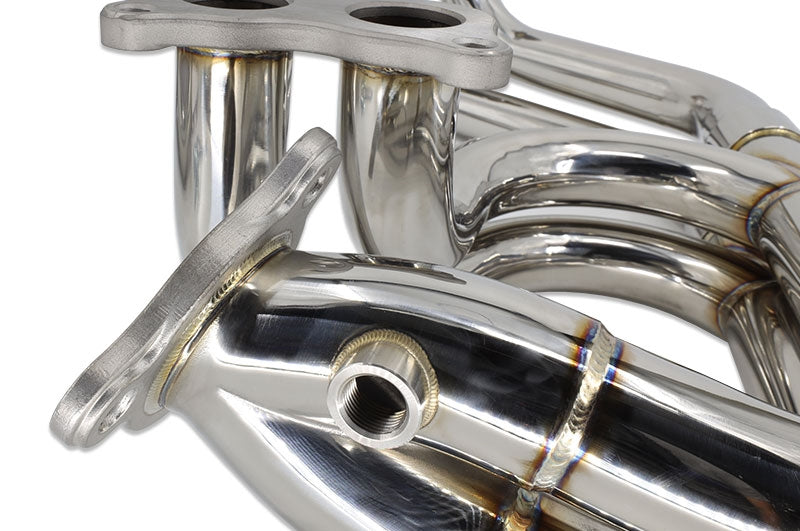

The IAG Performance Equal-Length Exhaust Manifold and Up-Pipe is a great way to increase the horsepower and the torque while improving the turbo spool by 300rpm to produce a race-inspired 4cyl exhaust note. The header features true 304 stainless steel construction along with cast stainless flanges. The header also has a 45mm piping diameter to allow for an unobstructed flow path for the exhaust gases leading to the turbocharger. Because of the free-flowing design, you will see power gains across the entire RPM band.

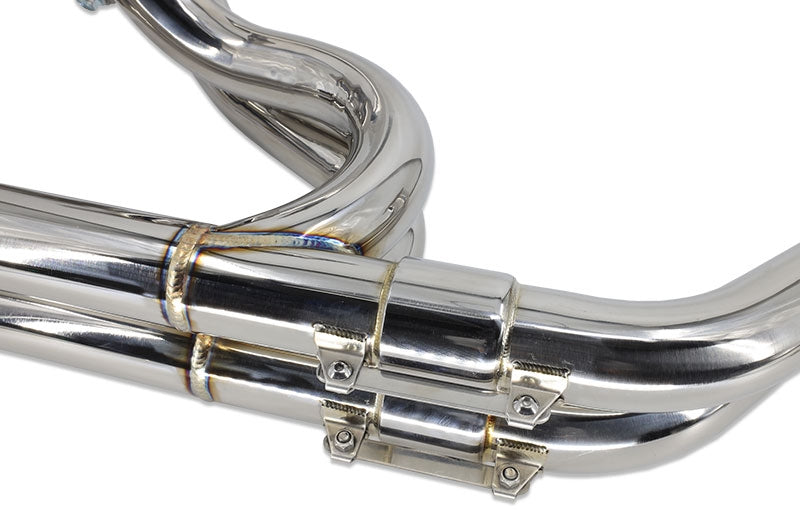

The header also features a slip-joint expansion section to accommodate for the flex that is caused by heat cycling and is TIG-welded to provide maximum strength. The up-pipe included in this package features a 60mm piping diameter with a 3-bolt flange, and it will come supplied with a multi-layer steel gasket to provide an optimal seal between the header and the up-pipe.
