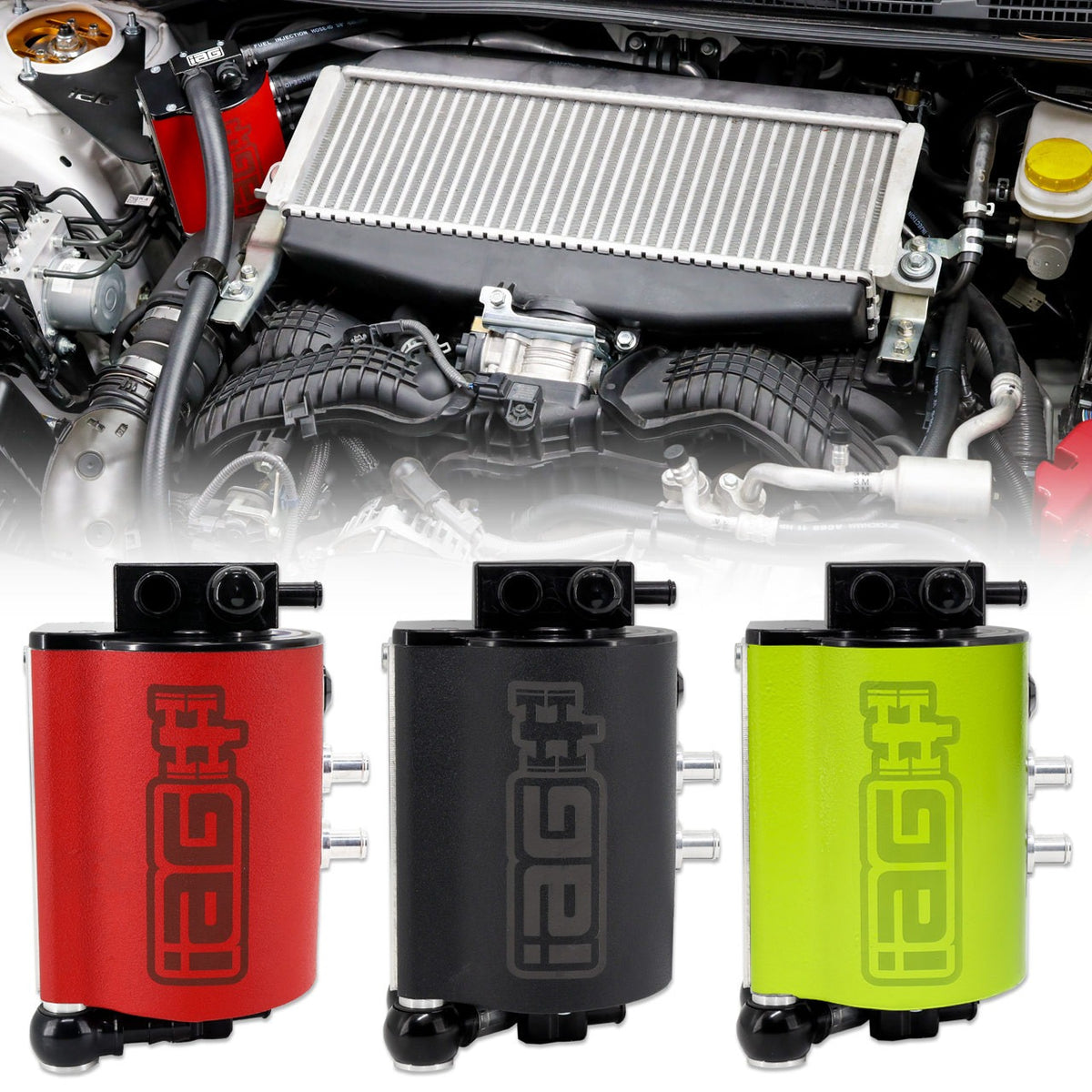

IAG Air Oil Separator - Neon Yellow - 2022-2024 Subaru WRX

The IAG Performance V3 Street Series Air/Oil Separator (AOS) is an excellent investment that comes highly recommended for maintaining the peak performance of your Subaru vehicle. Engineered to work seamlessly alongside the OEM PCV system, the Street Series AOS effectively supplements its capacity. Extensive testing has been conducted on various standard and competition applications to ensure its reliability.

This exceptional AOS features a generous 1-liter cast aluminum swirl pot canister, allowing for efficient separation of oil from the PCV system, effectively preventing its entry into the intake system. Setting itself apart from alternative options, the Street Series AOS showcases a fully-heated cast aluminum housing, superior venting, and an innovative patent-pending baffle design.

Furthermore, the Street Series AOS is compatible with all fuel types and suitable for standard ECU calibrations. Its benefits extend beyond engine longevity, as it also enhances crankcase ventilation for optimal performance. Trust the IAG Performance V3 Street Series Air/Oil Separator to maintain your Subaru's performance at its best.

IAG Air Oil Separator

---

KEEPS OIL OUT OF THE INTAKE:

The prevention of premature mechanical failure and the preservation of performance heavily rely on the effective elimination of oil from the engine intake tract. The presence of oil within the intake tract can have various detrimental effects. Primarily, it forms a coating on the internal components of the intake system, intercooler, and associated piping. This coating has the potential to accelerate the deterioration of rubber or silicone hoses, leading to connections that may fail over time.

Once oil infiltrates the intake tract, it directly enters the intake manifold, subsequently finding its way into the engine's combustion chamber. The introduction of oil into the combustion chamber gives rise to a range of issues, including detonation and preignition, increased emissions, smoke generation, power loss, reduced fuel efficiency, and in severe cases, catastrophic engine failure that necessitates costly repairs.

MAINTENANCE-FREE:

The IAG AOS is purposefully engineered to provide a hassle-free experience, requiring minimal maintenance. Distinguishing itself from conventional catch-can systems, our Air Oil Separators eliminate the need for regular draining and upkeep. Once the AOS is installed, it functions effortlessly without any ongoing maintenance obligations. The separated oil collects on the inner walls of the AOS canister and gradually returns to the engine's crankcase through gravity drainage. Our unique heating system ensures that the captured oil remains free from sludge, guaranteeing safe recirculation back into the engine. Moreover, the AOS body's ample volume allows sufficient time for oil drainage, minimizing the risk of overflow often associated with smaller catch cans.

MAINTAINS FUNCTION OF THE OEM PCV SYSTEM:

The Street Series AOS goes beyond maintaining the functionality of the OEM PCV system by augmenting its capacity. This AOS directs the PCV discharge gases back to the turbo inlet, incorporating a PCV valve that enhances suction and resulting in improved air oil separation. This configuration proves particularly advantageous for ethanol-fueled applications, as the Street Series AOS acts as a safeguard against oil dilution and lubrication failures. It achieves this by capturing fuel vapors from the oil and redirecting them to the intake tract for combustion.

Through its effective capture of both oil entrainment in the intake flow and oil dilution within the engine's lubrication system, the Street Series AOS surpasses the capabilities of the OEM PCV system alone. This comprehensive protection ensures optimal performance and prolongs the longevity of your engine.

INSIDE THE AOS:

The IAG Air Oil Separator features a unique baffle system that effectively captures and directs the oil present in the engine's PCV (Positive Crankcase Ventilation) gases back to the crankcase. Positioned strategically on one side of the AOS body, the inlet hoses contribute to the creation of a swirling motion within the system. As the gases enter, they circulate along the inner walls of the AOS body, guided by a series of baffles. These baffles serve a dual purpose of collecting the oil while allowing the gases to escape from the top of the AOS. Importantly, the OEM PCV operation is maintained, generating a vacuum within the engine that assists in efficiently evacuating the PCV gases through the AOS assembly.

HEATED TO REDUCE CONDENSATION BUILDUP:

The IAG Street Series Air Oil Separator incorporates an innovative heating system that effectively tackles a common issue found in inferior catch cans. To address this, we have integrated the AOS with the vehicle's cooling system, allowing the transfer of the engine's heat into the AOS. This proactive approach provides a solution to the problem of condensation formation within cold hoses when hot PCV gases pass through them. Over time, this condensation combines with the oil in the system, resulting in the formation of sludge. However, by heating the AOS body to match the engine's temperature, the occurrence of condensation and the subsequent buildup is significantly reduced or eliminated entirely. This ensures a cleaner and more efficient operation of the AOS system, promoting optimal performance.

SIMPLE PLUG-AND-PLAY INSTALLATION:

IAG's team of engineers set out to simplify the installation process for the 2022+ Subaru WRX. With this goal in mind, they have designed custom injection molded fittings that perfectly integrate with the unique breather ports of the 2022+ Subaru WRX. These fittings are specifically engineered to be plug-and-play, eliminating the need for any modifications when connecting them to the OEM breather ports. Furthermore, you have the freedom to select from a range of three vibrant colors for the AOS, enabling you to personalize your engine bay and highlight its appearance to your liking.

INCLUDES:

• IAG Performance V3 Street Series Air Oil Separator (AOS) for 2022+ Subaru WRX
• Part Numbers: IAG-ENG-7183BK, IAG-ENG-7183RD, IAG-ENG-7183NY
• Material: Cast Aluminum
• Available Colors: Black, Red, Neon Yellow
• Kit Includes: 1x Air Oil Separator, Plug and Play Hoses and Fittings, 1x Mounting Bracket
• Fitment: 2022+ Subaru WRX
