Each IAG 600 Short Block features IAG Spec JE FSR 86.1mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. FSR forgings reduce mass and wear caused by friction without sacrificing strength. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .905 x 2.250" x .150" wall carbon steel wrist pins with Tru Arc locks. Note this block features standard 12.5:1 compression ratio which is ideal for low boost or stock applications.

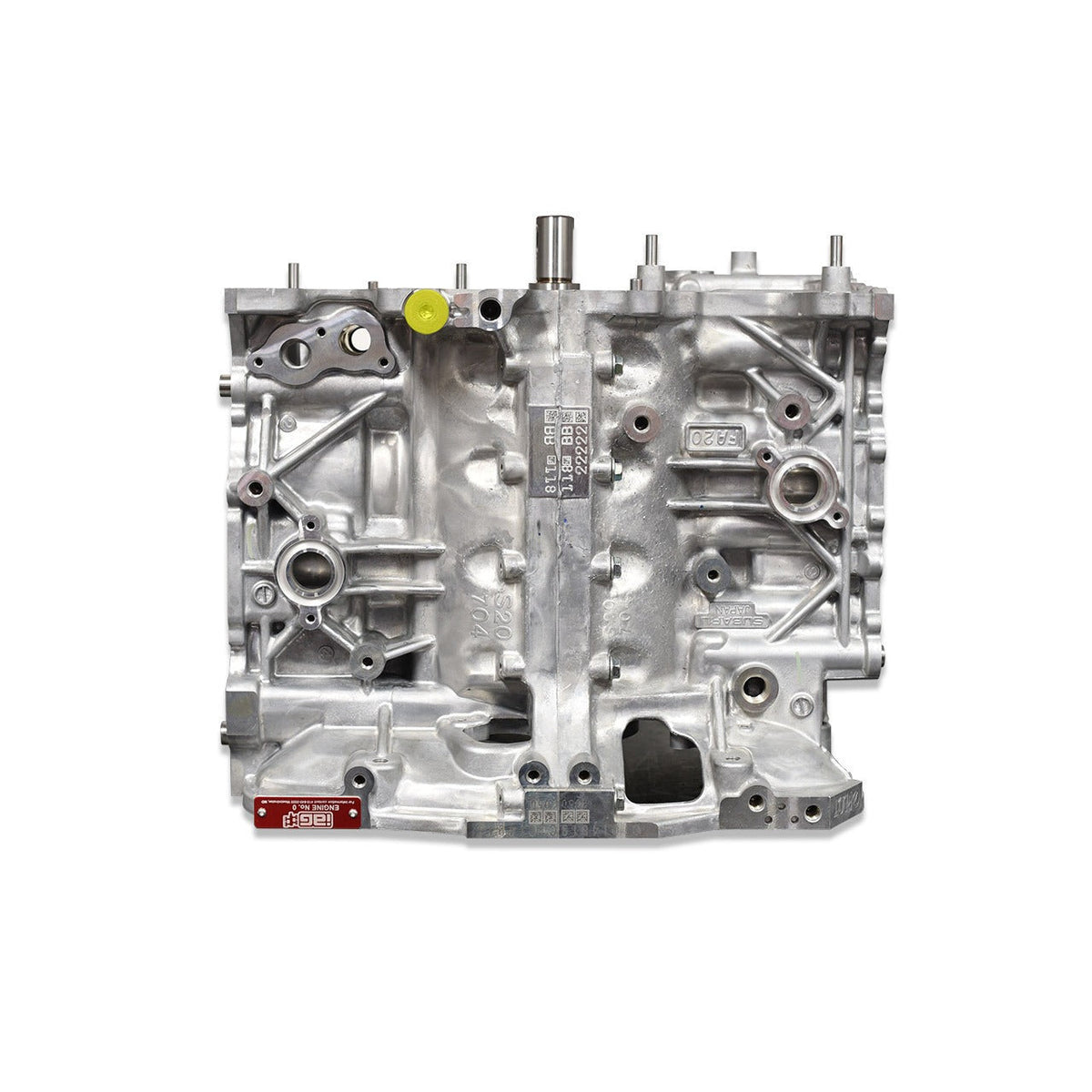

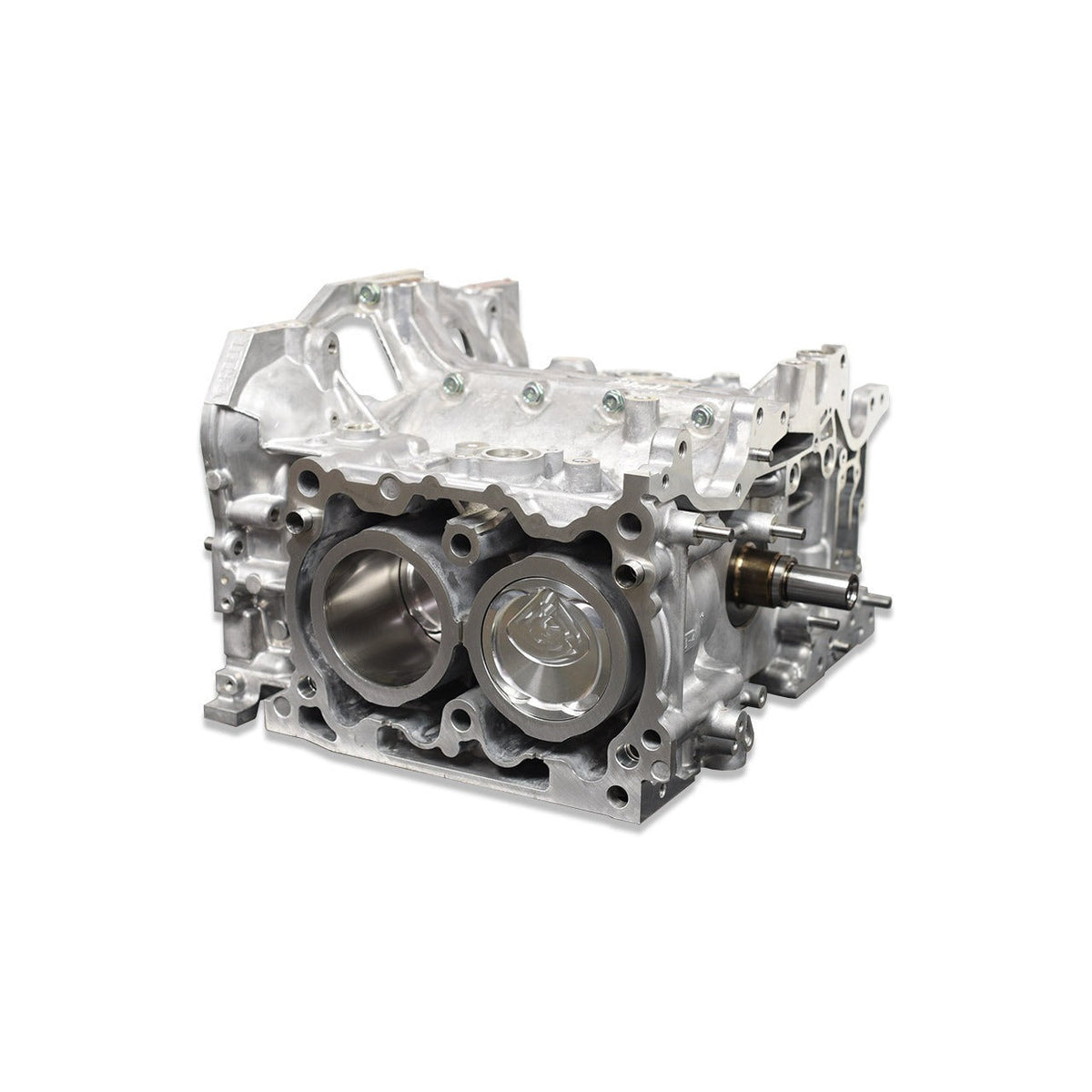

IAG 600 FA20 2.0L FT86/BRZ Standard Compression Short Block Includes:

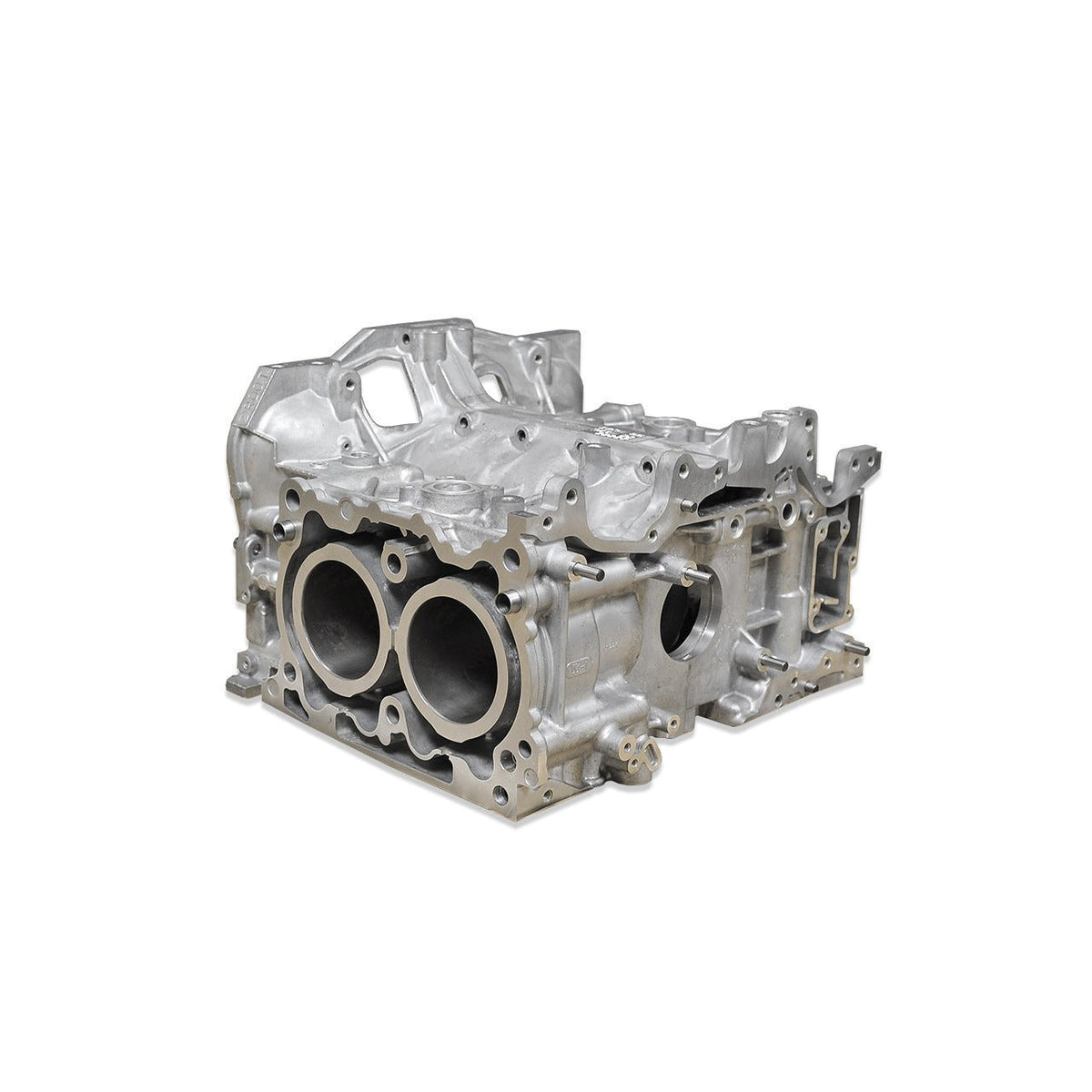

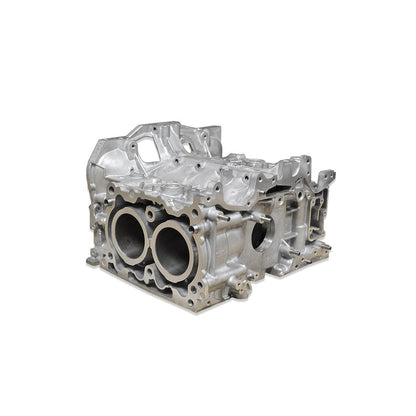

- Case Halves -Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
- Case Machining - Modified for improved oiling
- Case Machining - Bored and honed to 86.1mm

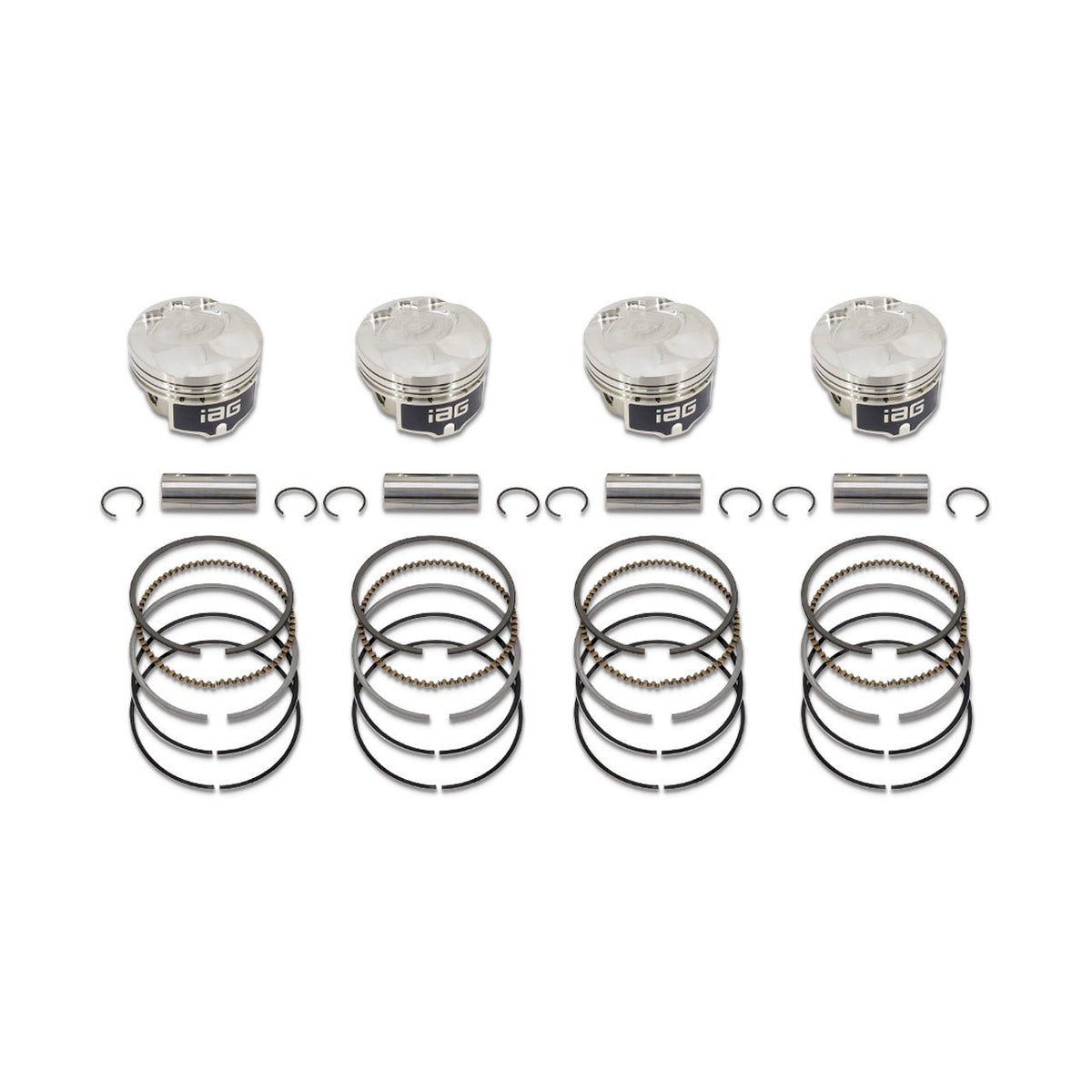

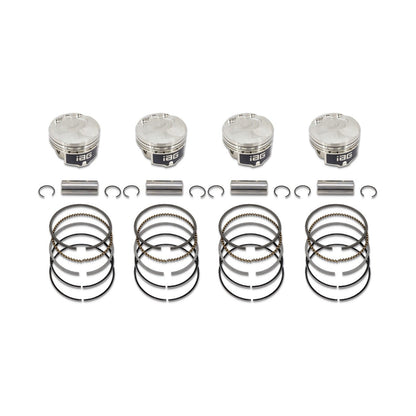

- Pistons -IAG-Spec 86.1mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins.

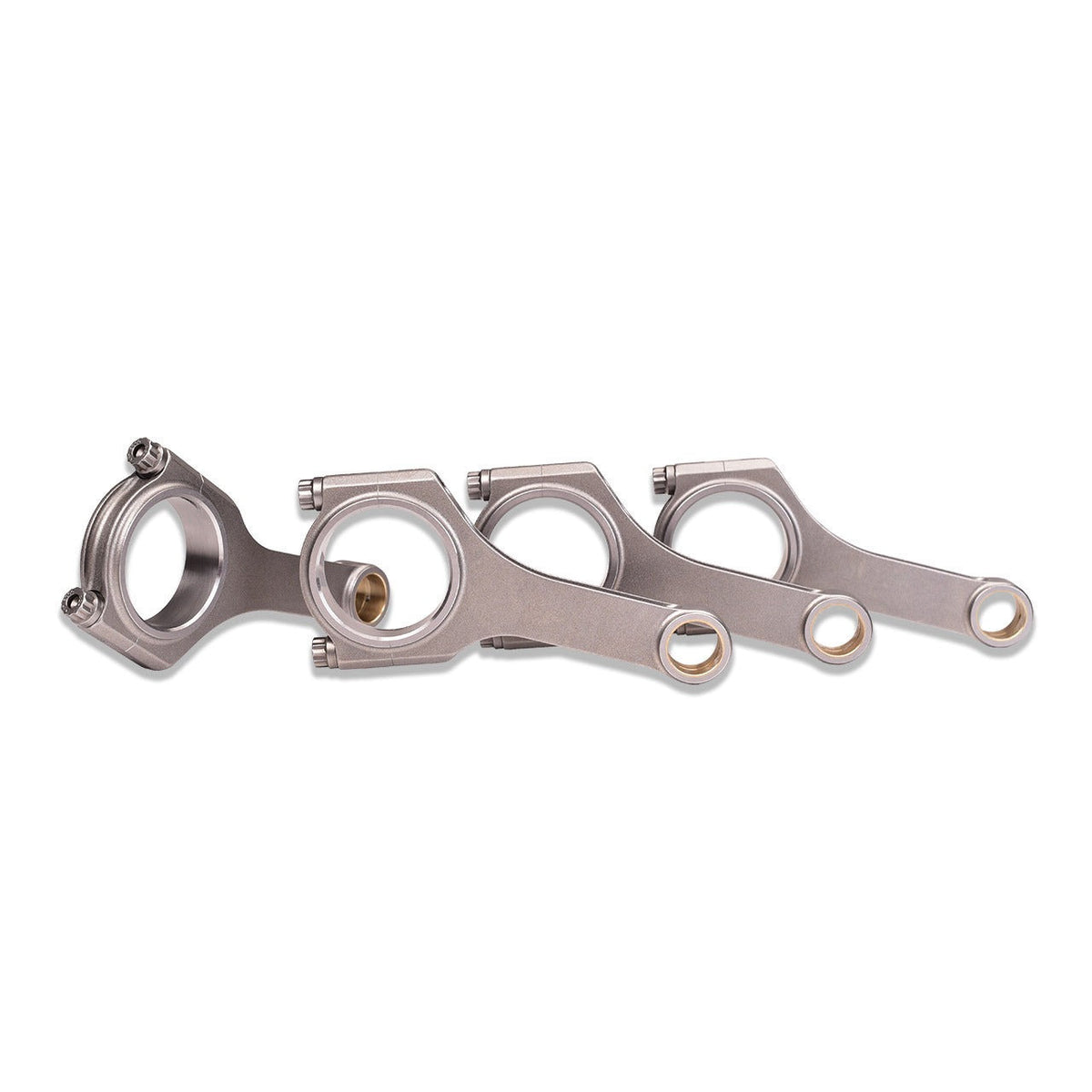

- Connecting Rods -IAG-Spec H-Beam / ARP2000 Rod Bolts

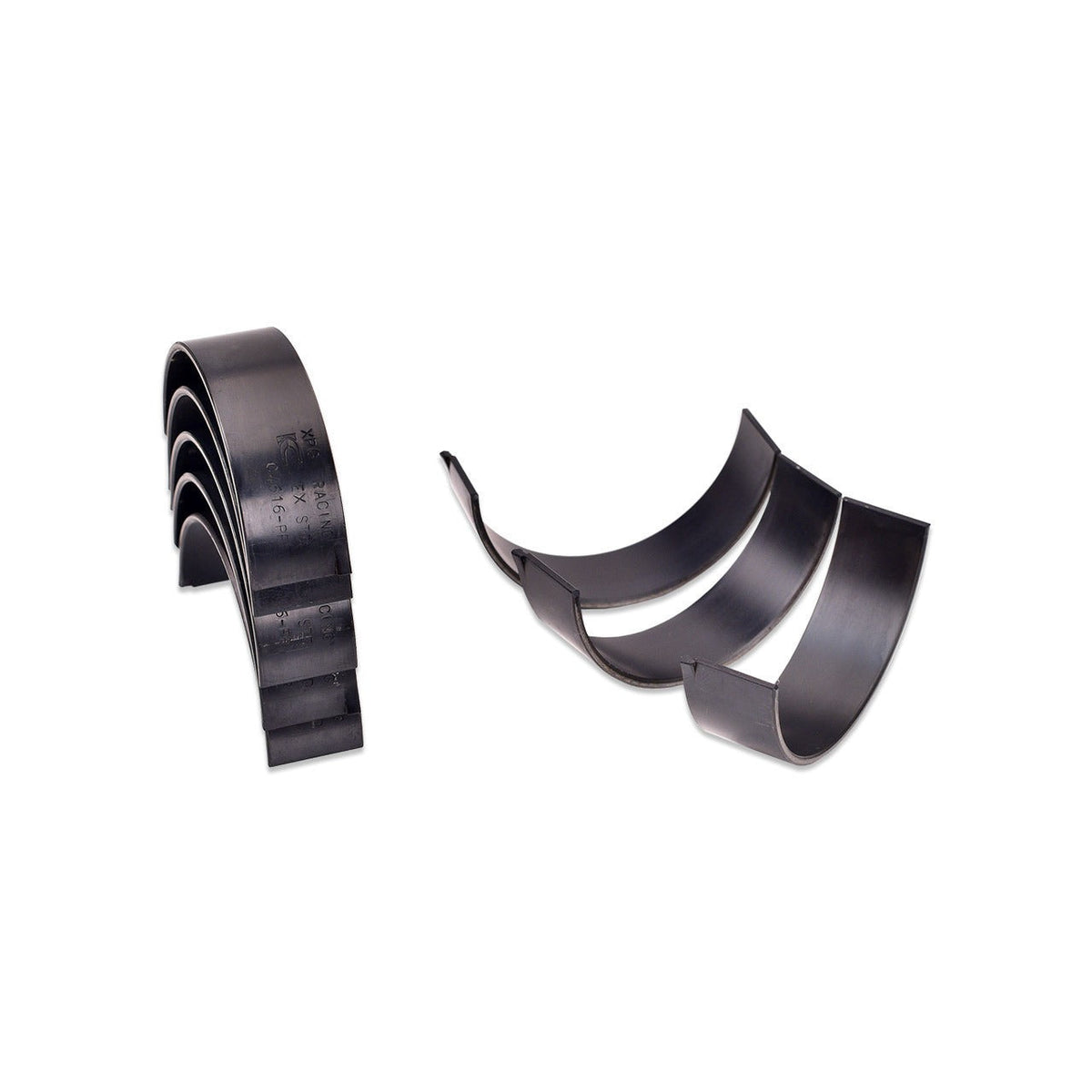

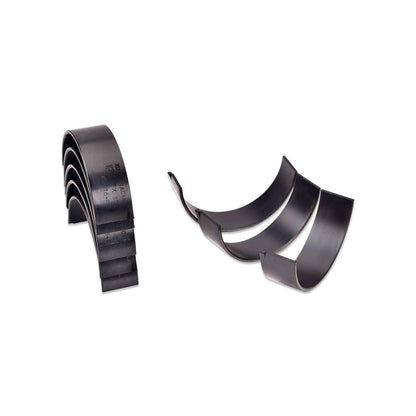

- Rod -ACL or King XPG

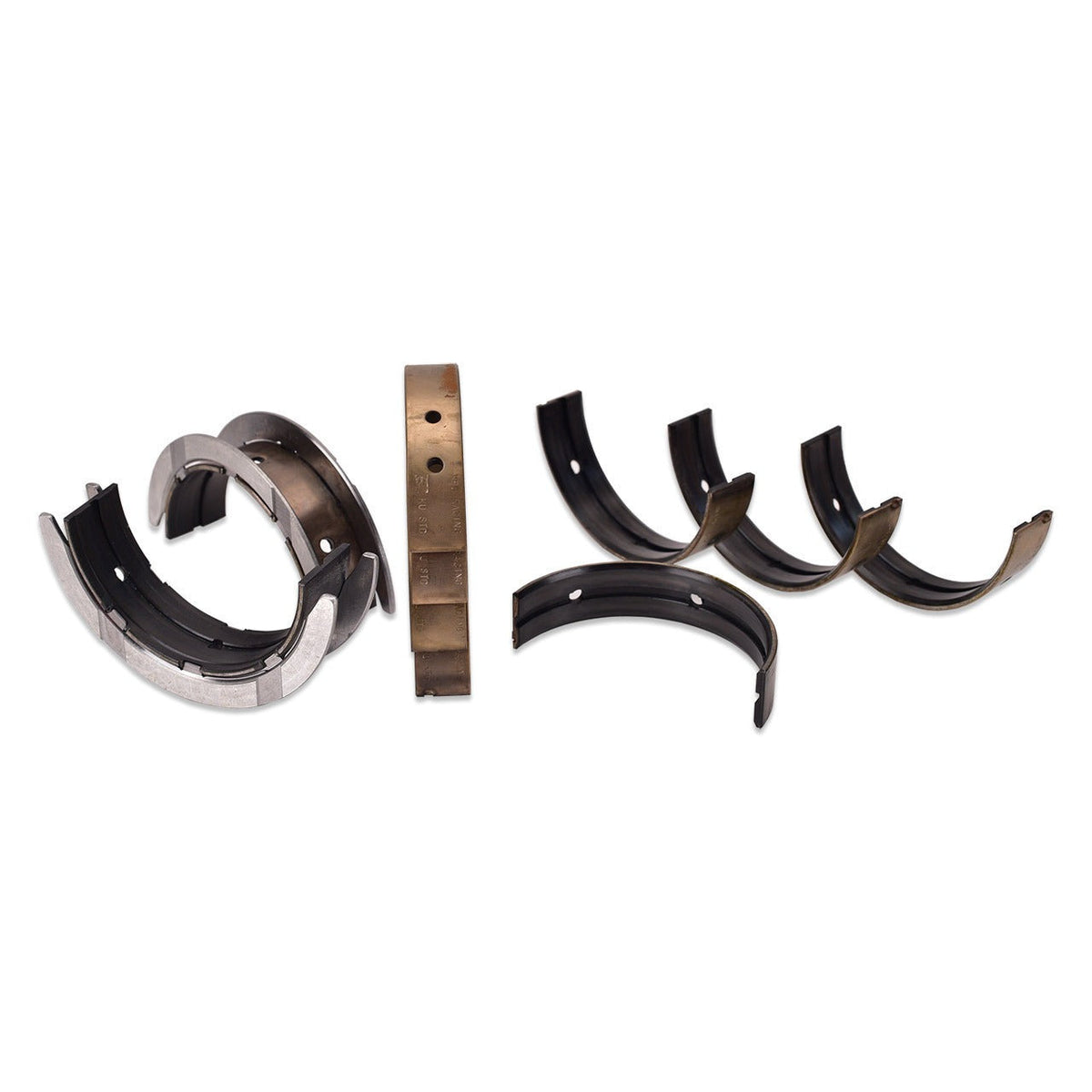

- Main Bearings -OEM or King XPG

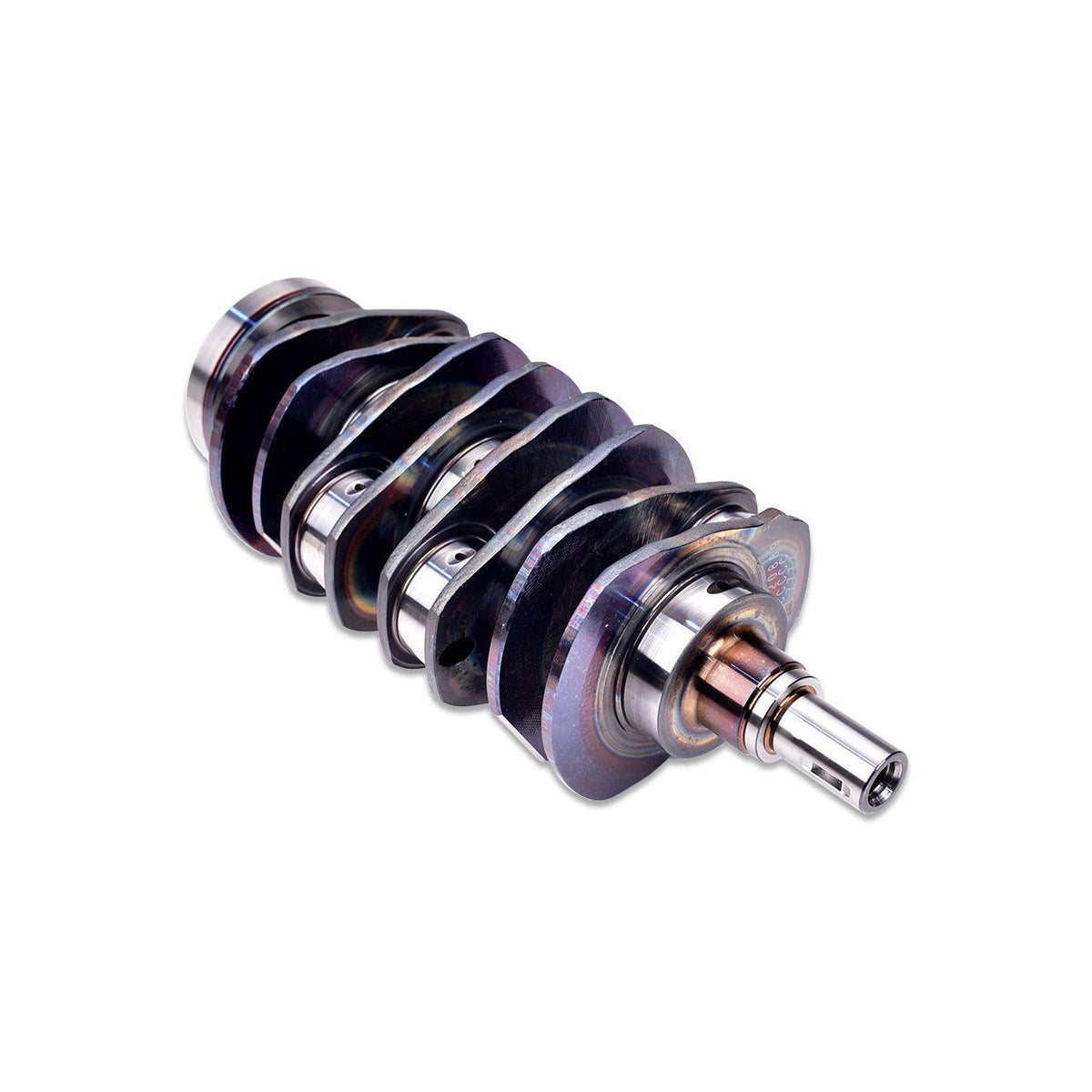

- Crankshaft -New Subaru FA20 crankshaft
- Case / Main Bolts -Standard Subaru case bolts

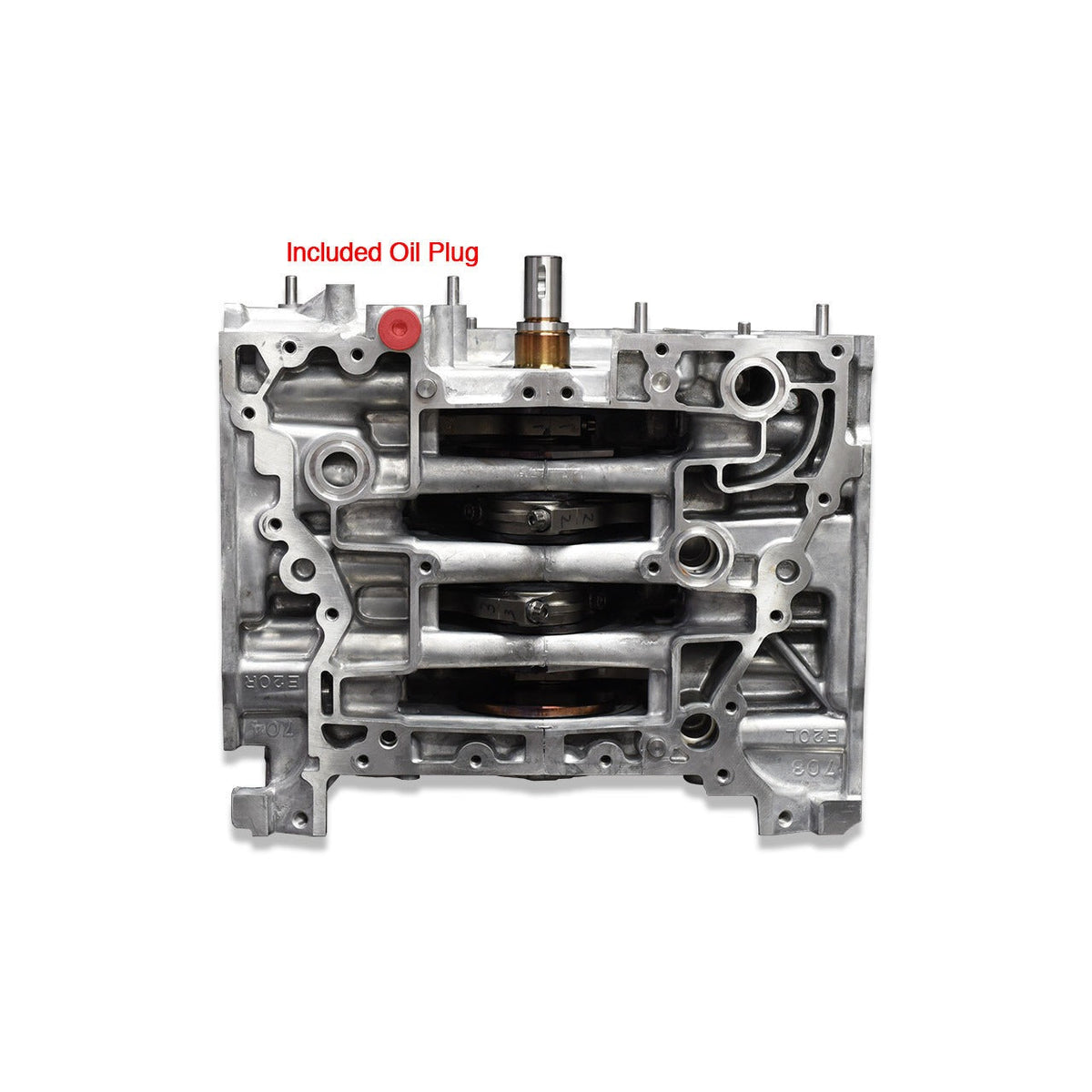

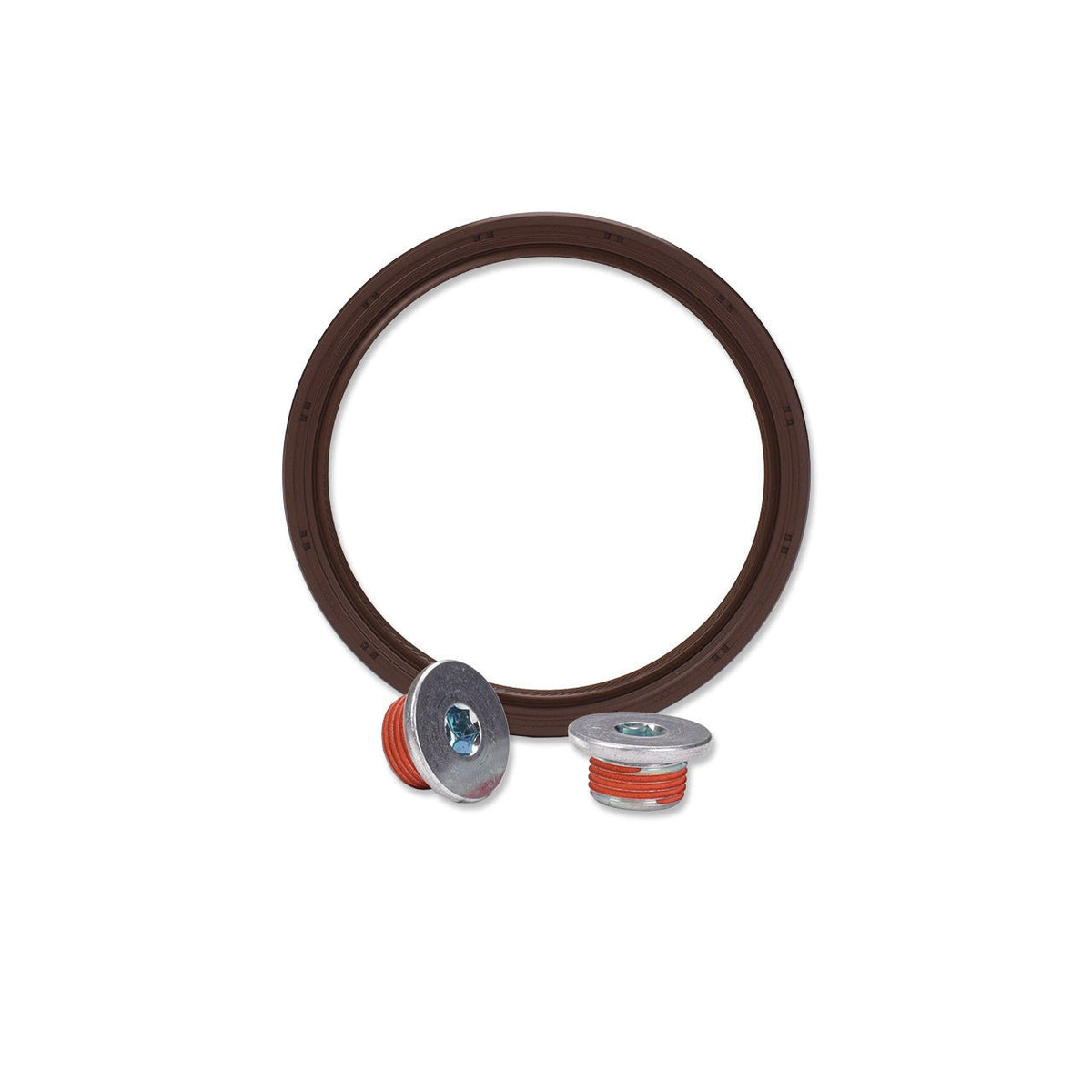

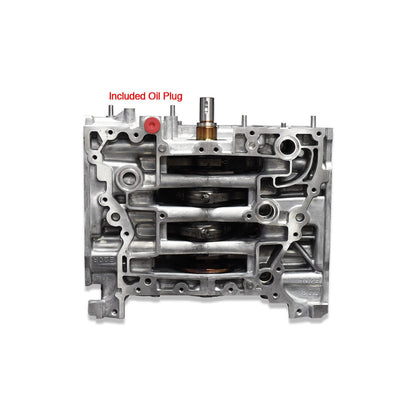

- Hardware - OEM Oil Plug - comes preinstalled at the oil pan location
Compression Ratio:
- 12.5:1 compression on standard gasket thickness.
IMPORTANT DELIVERY NOTE:
Your order is shipping Via Truck Freight which requires you to be available at the time of receipt. There is a possibility the trucking company will try to schedule a delivery time with you.
At the time of delivery, the driver will hand you the delivery receipt also referred to as the bill of lading, you will use this to notate any damages to the shipment. It is important that you fully inspect the shipment from all sides and notate any dents, punctures or rips in the outside packaging on the delivery receipt. Once you've inspected your shipment from the outside, you will need to open it and check the product in its entirety for damages and notate them if any.
If there is no damage sign for the package and enjoy!
In the rare case, you do find that your order arrived with damages, it is important you follow these steps.
- Do not refuse the product
- Document the damages in as much detail as possible on the Bill of Lading
- Take numerous photos from all angles (including packaging)
- Keep the product and contact the shipping company to start the damage claim
- Contact us either by phone or email for the next steps
In the situation where the delivery driver is unable to wait for you to open and inspect your product, simply document "driver was unable to wait for inspection." All damage must be noted on the Bill of Lading before signing and initiating a damage claim. If the damage is not notated before signing for the item it is assumed to be in good condition. This will forfeit the ability for a shipping claim and you will not be eligible for refund or replacement.
