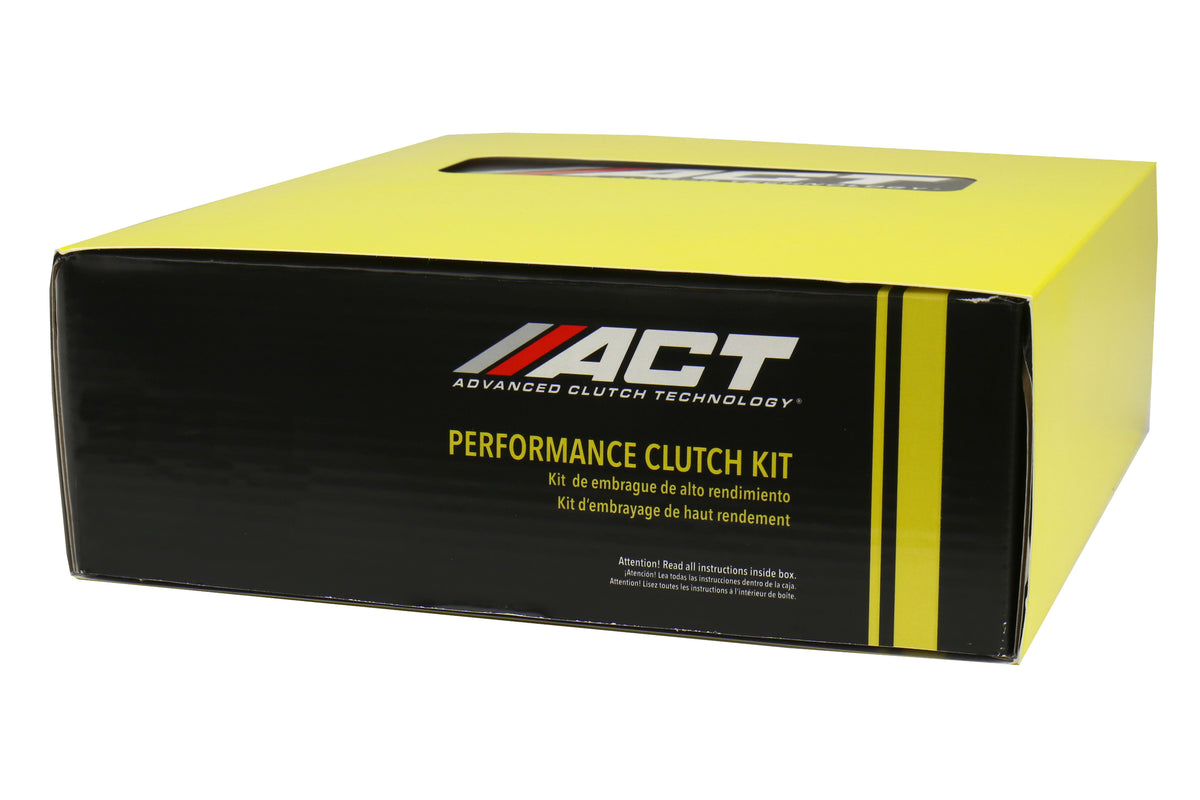

ACT XT-M/Race Sprung 6 Pad Clutch Kit - 2004-2021 Subaru STI

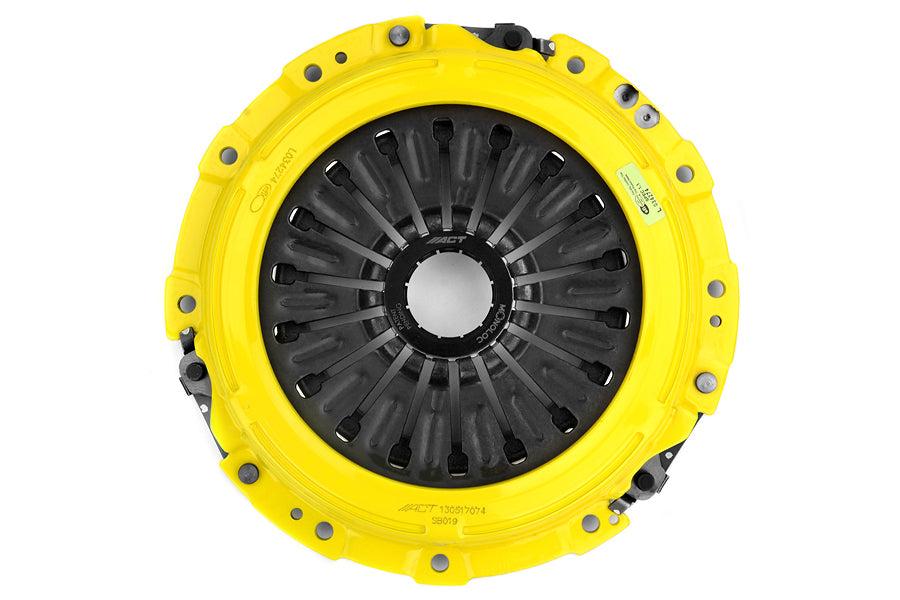

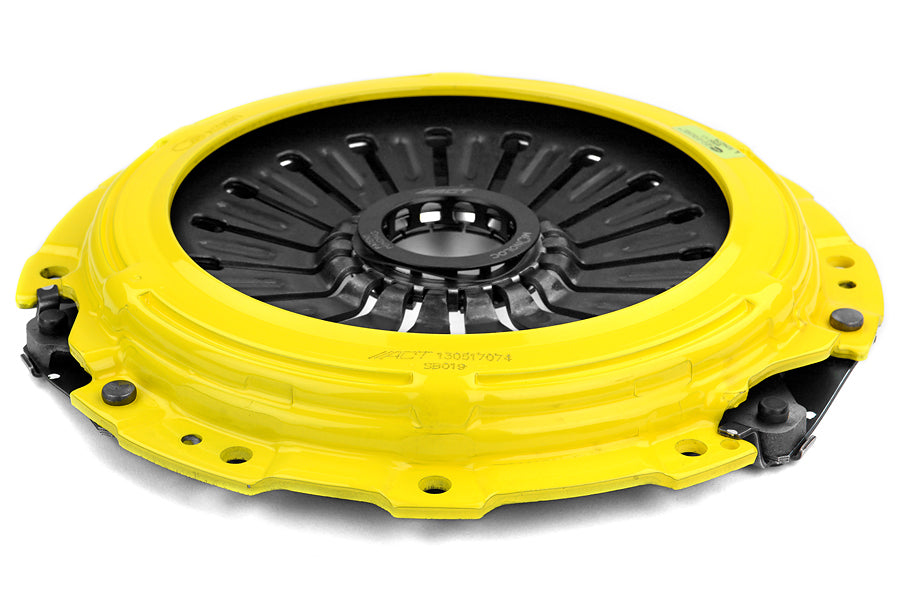

SB10-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. Torque capacity of 755lbs

ACT XT-M/Race Sprung 6 Pad Clutch Kit

---

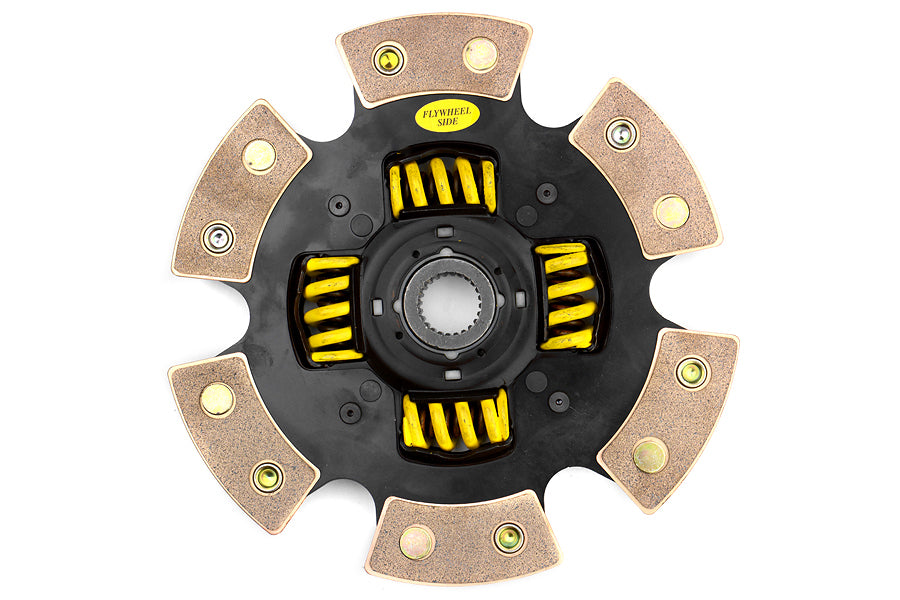

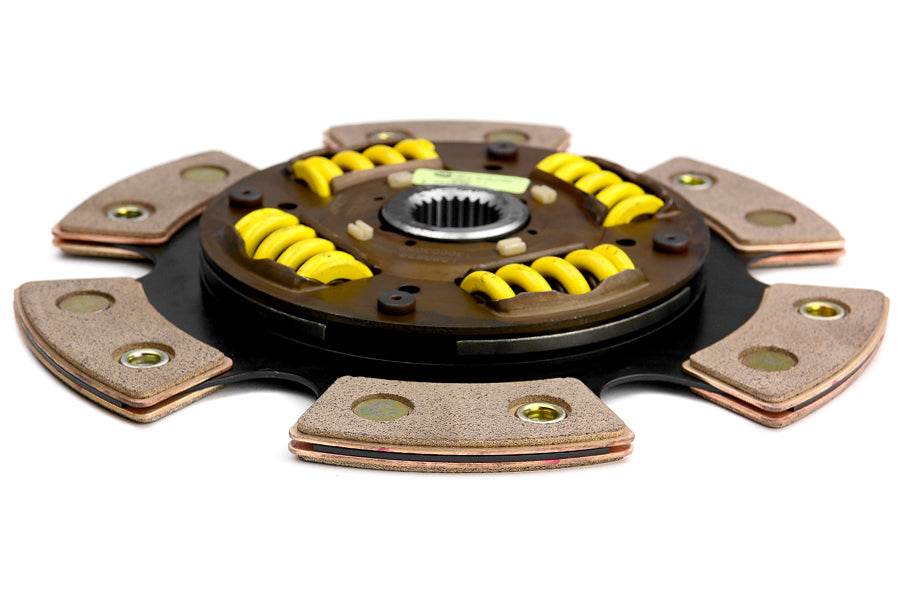

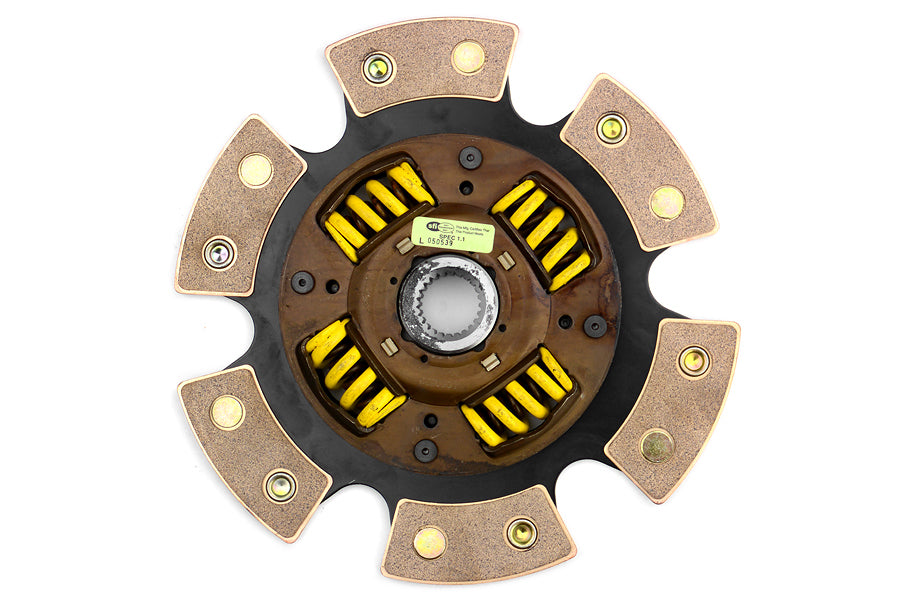

SB10-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions.

ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism

Recommended Use: Recommended for high horsepower street or race use

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Specs:

• 104% Torque capacity over OEM
• Torque capacity of 755lbs
• Disc diameter 9.4 inches (240mm)
• 24 Spline count
• Clutch disc features ceramic materials for improved thermal resistance
• Moderate to heavy pedal effort, smooth positive engagement, OE to mild gear rattle, better confidence during hard shifts
• Longer friction life, exclusive diaphragm design, dramatic improvement in release mechanism life
• Recommended for high horsepower or race use

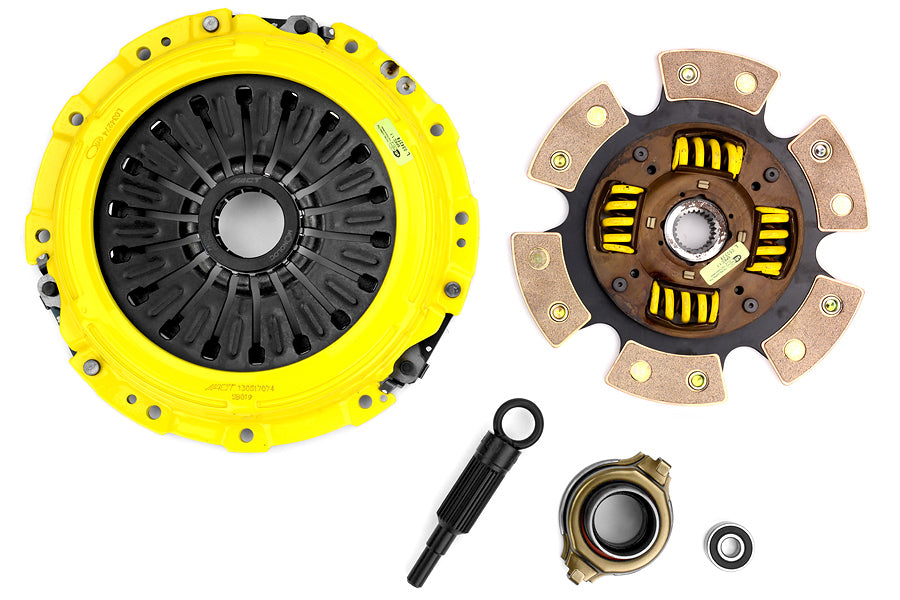

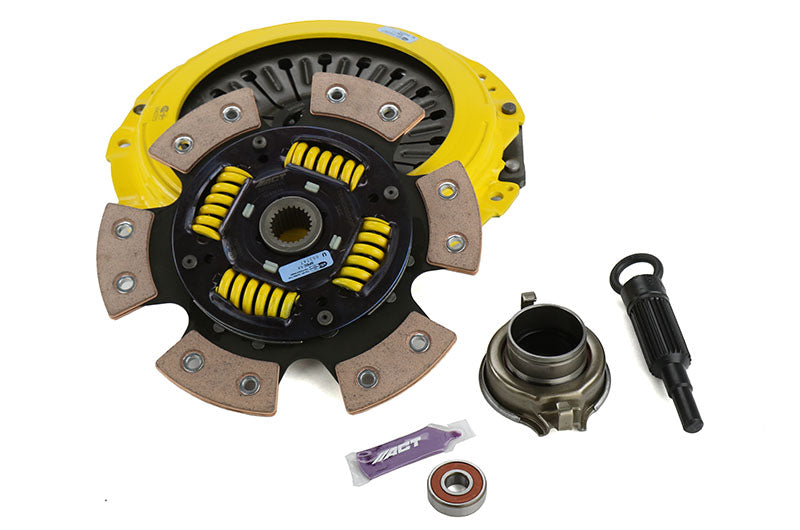

Clutch kit includes:

• Xtreme Duty Pressure Plate
• Sprung race disc
• Release bearing
• Pilot bearing
• Clutch alignment tool
