ACT HD Race Rigid 4 Pad Clutch Kit - 2015-2017 Subaru WRX / 2006-2008 Forester / 2006-2014 Impreza

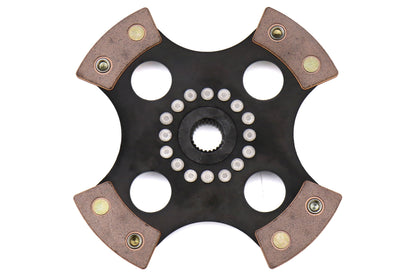

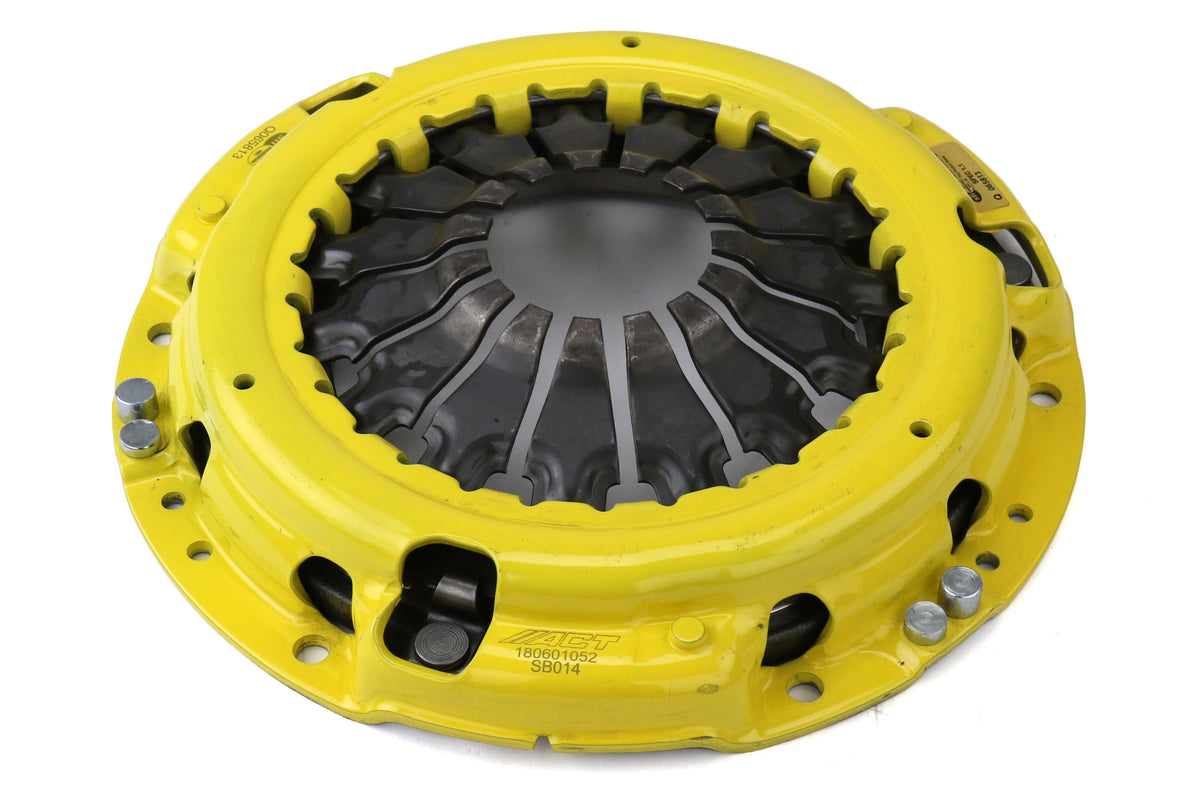

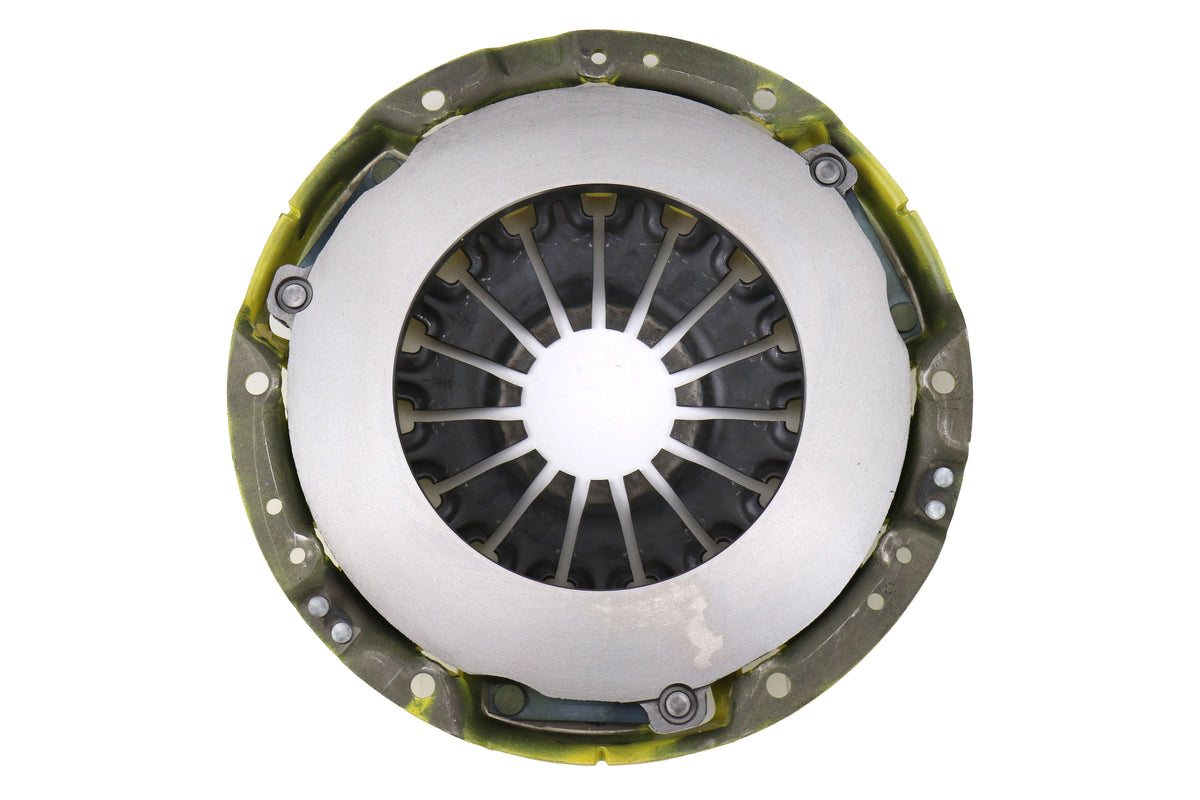

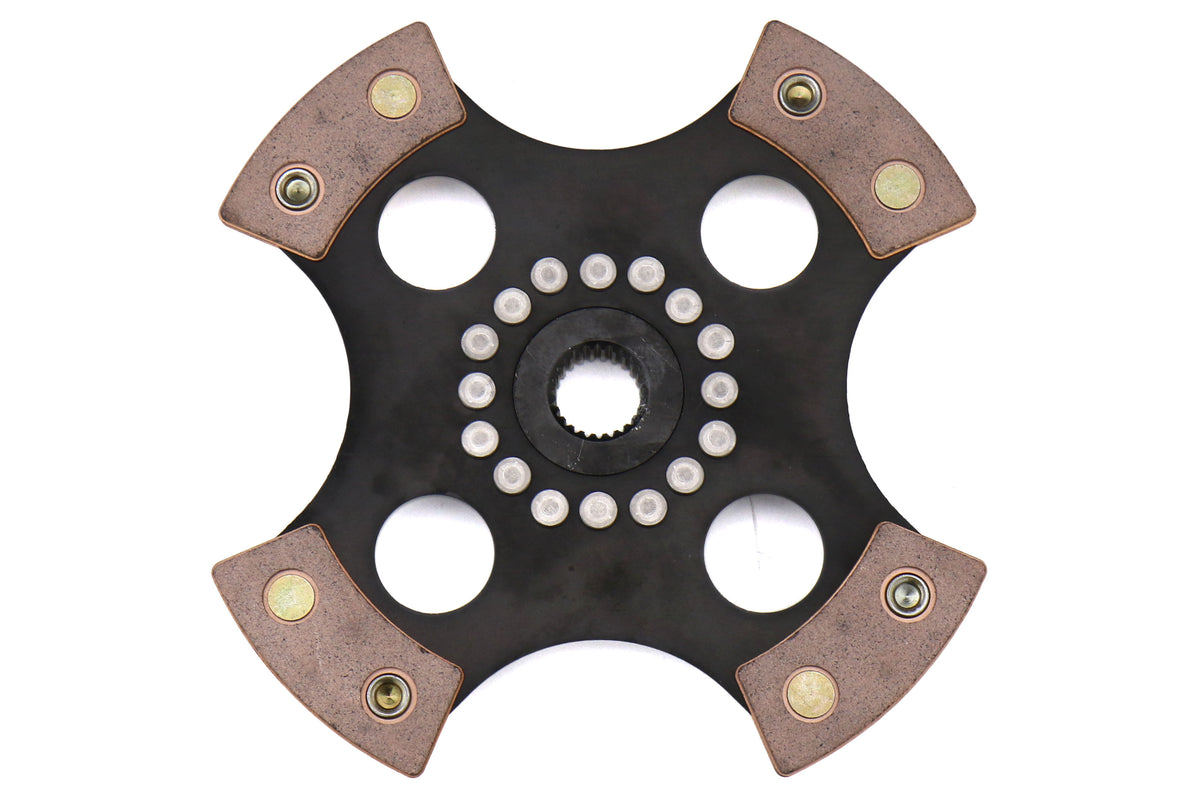

ACT's HD Race Rigid 4 Pad Clutch Kit features ACT's most popular Heavy Duty pressure plate. This Kit is designed to fit 2015-2017 Subaru WRX, 2006-2008 Forester, as well as some other Subaru Models (see fitment below).  ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.



Details

• Feel - Light to moderate pedal effort, aggressive engagement, increased gear rattle
• Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
• Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use - Recommended for race use only
• ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability



Recommended for race use only Light to moderate pedal effort, aggressive engagement, increased gear rattle Rated at 535 ft/lbs of torque.

NOTE: Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J*806877. Clutch kits and flywheels are not compatible with the revised OEM components.



Specfications

Part Number: SB5-HDR4
Description: HD/Race Rigid 4 Pad
Torque Capacity (ft/lbs.): 535
Torque Capacity Over OE: 69%
Disc Type: Race Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9
Disc Diameter (mm.): 228
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 13.0

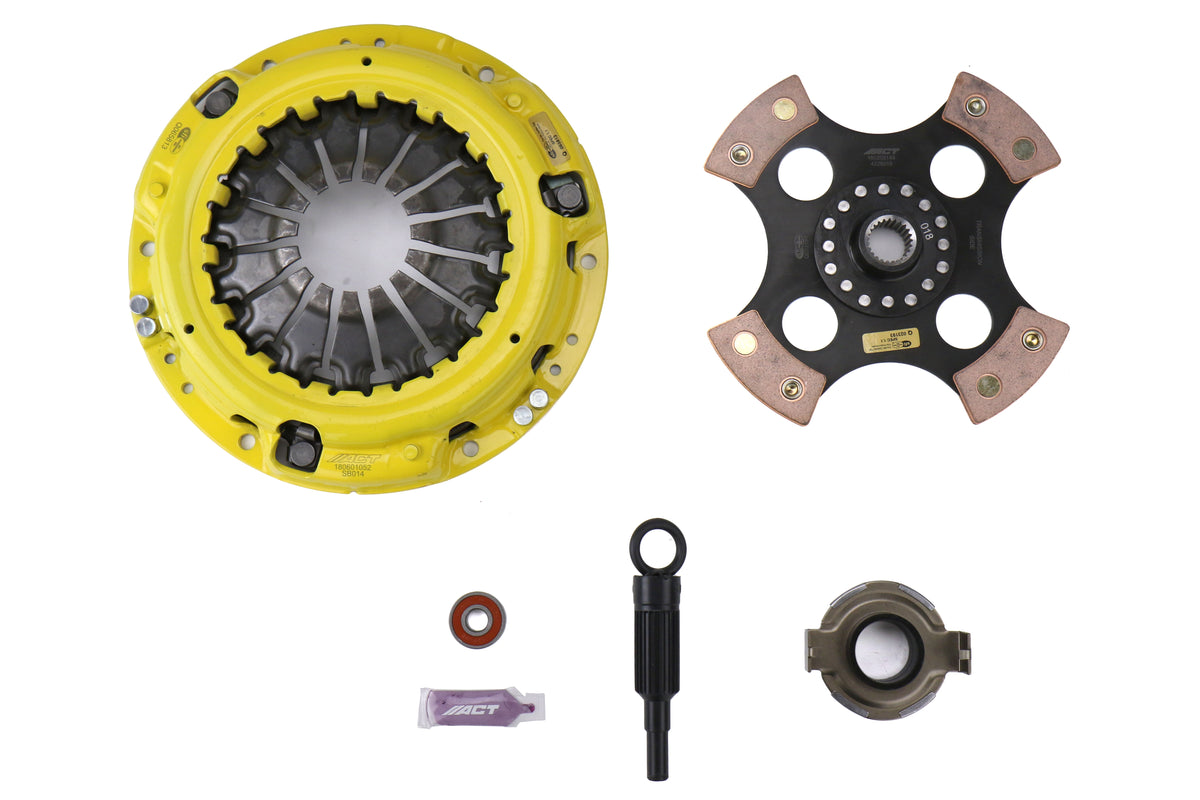

Kit Contents: 4228018, AT90, PB1004, RB844, SB014
Warranty (Product Warranty):One (1) Year from Retail Purchase
