Injector Dynamics ID2600-XDS Fuel Injectors Top Feed Conversion Kit - 2004-2006 Subaru STI
Injector Dynamics ID2600-XDS Fuel Injectors Top Feed Conversion Kit - 2004-2006 Subaru STI
Regular price
$1,813.35 USD
Regular price
Sale price
$1,813.35 USD
Shipping calculated at checkout.
Quantity
Ships from manufacturer when available
Couldn't load pickup availability
Have any technical questions?
Call or text: +1 (925) 433-6318
Price Match Guarantee up to 100%
30 Day Satisfaction Guarantee
Free Shipping! On orders over $199
Rated Excellent & Trusted
Overview
The Injector Dynamics ID2600-XDS top-feed conversion kit replaces the side-feed injector setup on the 2004-2006 Subaru STI with top-feed injectors and Injector Dynamics billet fuel rails. Sets of four injectors are matched by Injector Dynamics.
Features & Specs
- Highest flow rate of any injector offered by Bosch, about 50% more than the ID1700x
- Dual Slope Matching: sets are matched in both the linear and non-linear range for better cylinder-to-cylinder fueling at low pulse widths
- Developed for liquid fuels, with corrosion-resistant internals and long-term compatibility with ethanol and methanol
- Built with Bosch Motorsport
- Configuration: 48mm body length, 14mm top
- Nominal flow rate: 2600 cc/min at 3.0 bar (43.5 psi)
- Maximum differential fuel pressure: 9.0 bar (130.5 psi), requires at least 11 volts
- Fuel compatibility: Compatible with methanol, ethanol and all known hydrocarbons. Not compatible with ethers (MTBE, ETBE, TAME) or nitromethane
- Electrical connector: USCAR
- Not CARB legal. Not for sale or use on pollution-controlled vehicles in California.

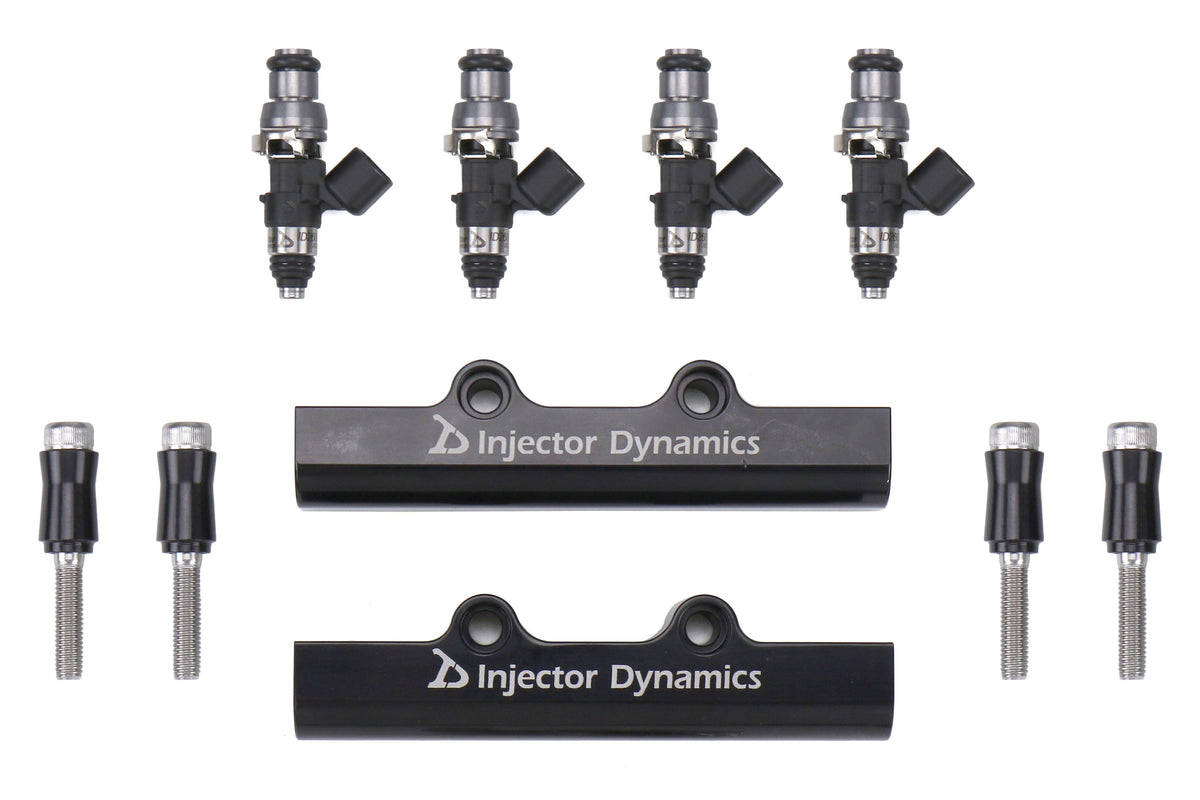

What's Included

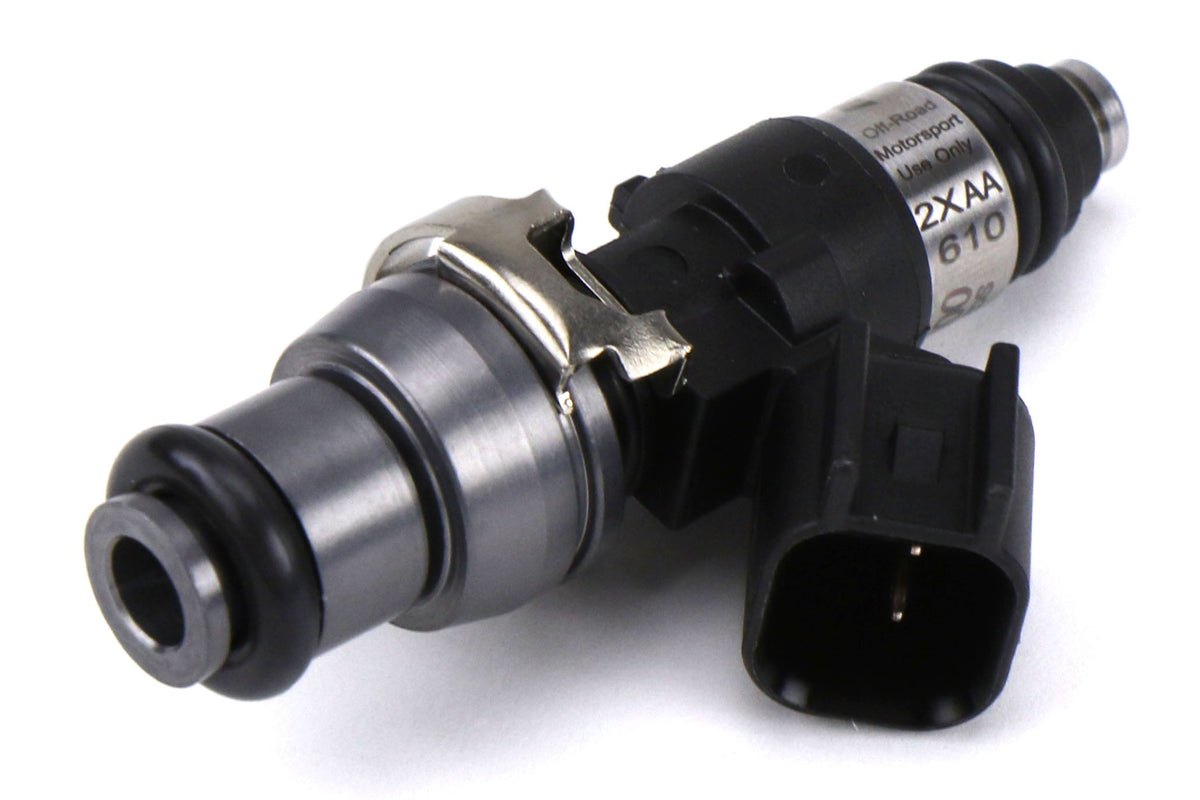

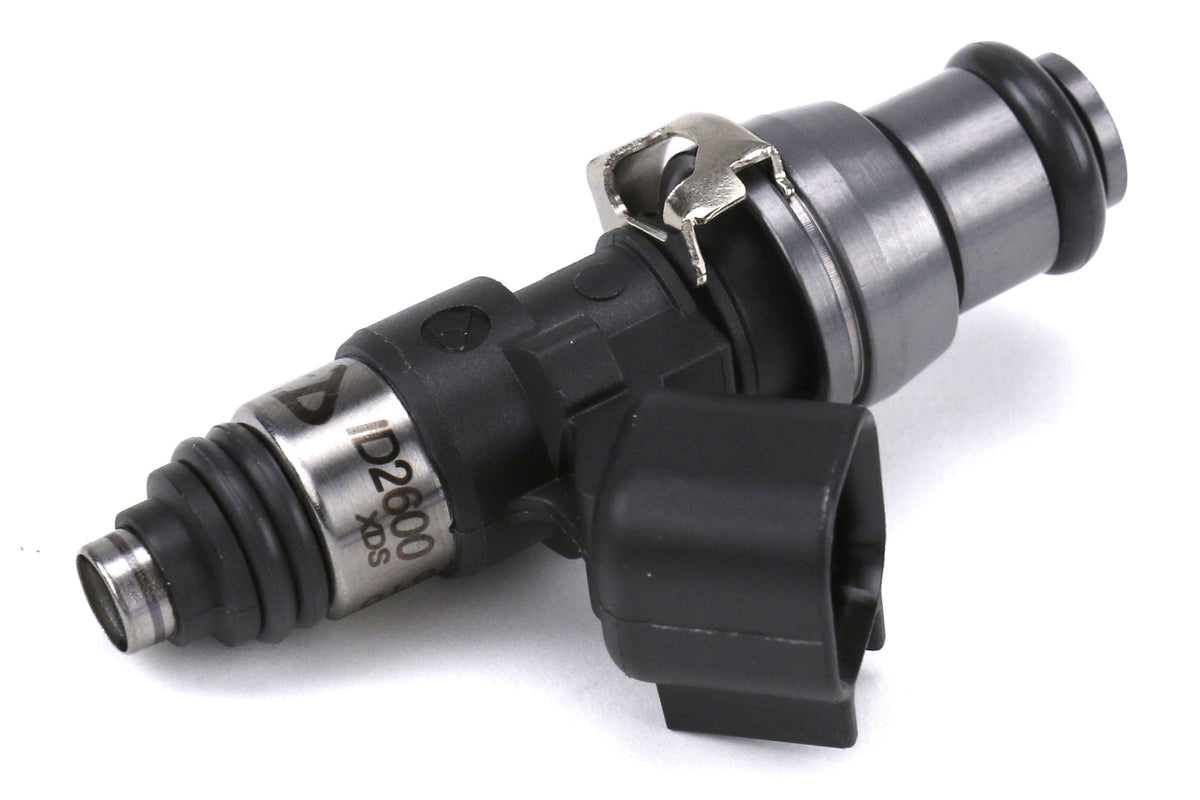

- (4) Injector Dynamics ID2600-XDS fuel injectors

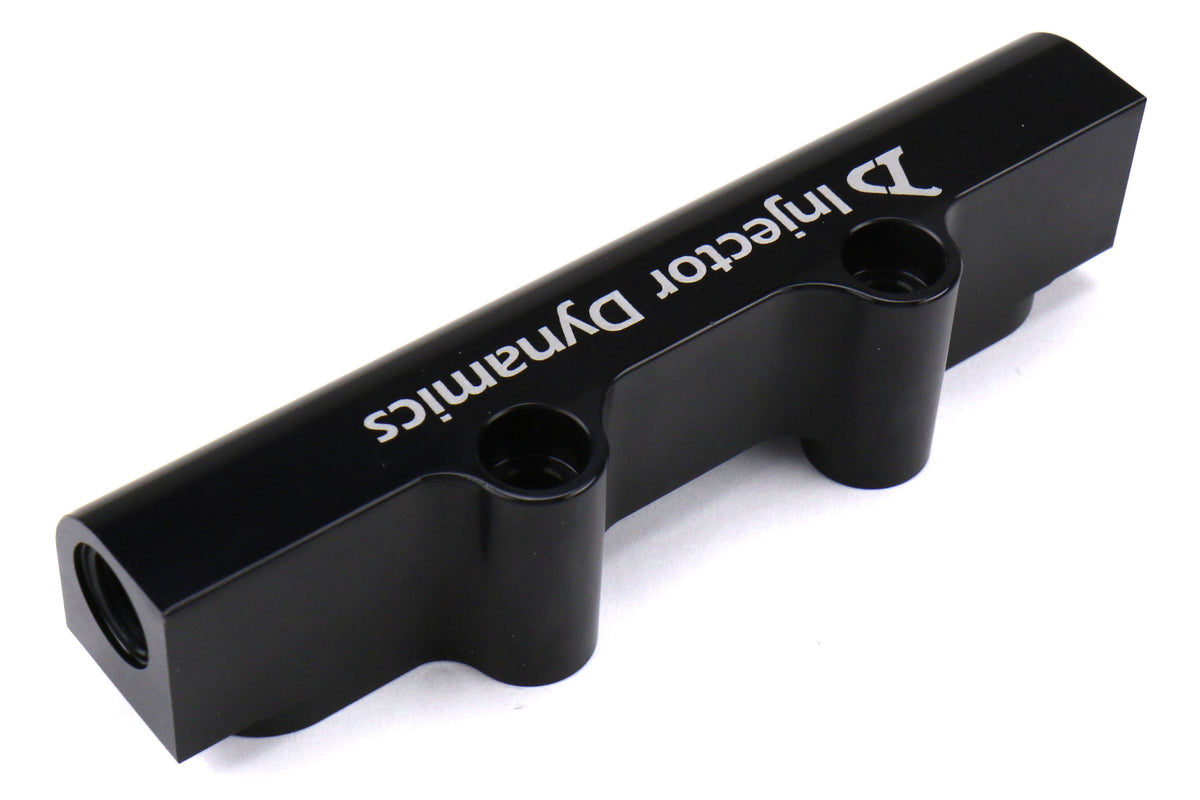

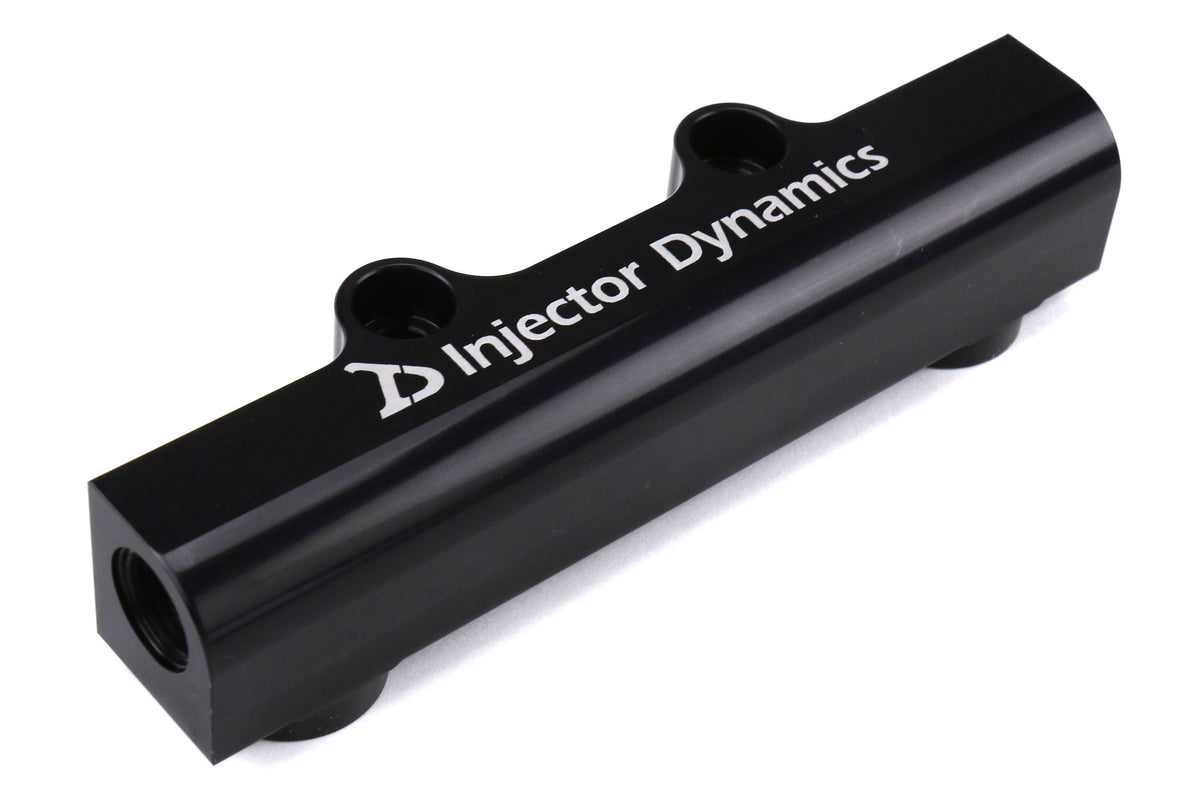

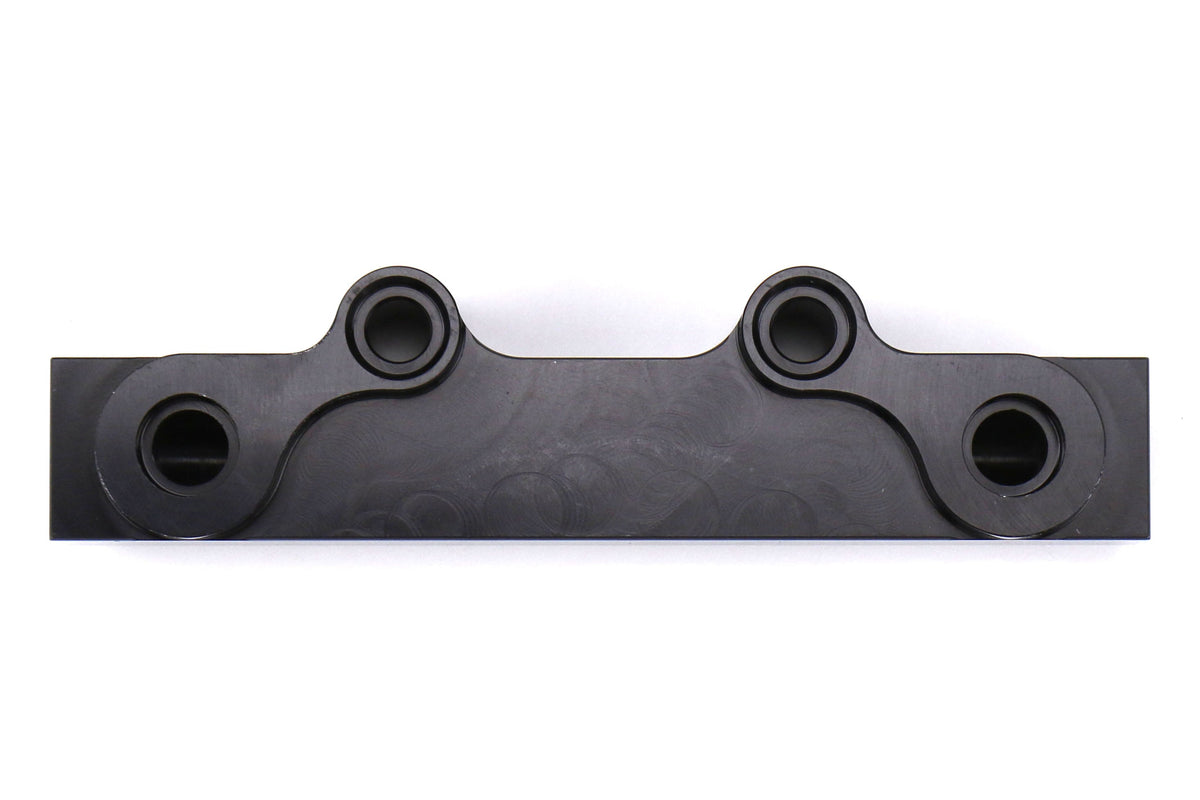

- (2) Injector Dynamics billet top-feed fuel rails
- Lower o-rings
- Injector dead-time compensation data across the pressure and voltage range
Straight from SubiSpeed
This is the complete way to move a 2004-2006 STI to top-feed injectors in one purchase. This is a maximum-effort injector for very large turbo builds on ethanol or methanol. It needs a thorough tune, fuel that does not contain ethers, and a healthy electrical system to support the 9 bar rating.

| Specification | Value |
|---|---|
| INJECTOR TYPE | Top Feed |
| O-Rings Included | Yes |
| Qty | 4 |
