Radium Engineering Subaru EJ Top Feed Fuel Rail Conversion Kit w/1-2 Brackets - 2004-2006 Subaru STI / Legacy GT / 2004-2005 Forester XT / 2005-2006 Outback XT

These are Radium's Subaru EJ Top Feed Fuel Rail Conversion Kit. This kit will convert the OEM side feed fuel injector setup to top feed allowing the use of high-flow fuel injectors. The fuel rail injector bores are 14mm ID, are manufactured with a large internal bore, and can support all necessary engine power requirements. These are CNC machined from solid 6061 aluminum and are anodized black with laser engraving for a high-quality surfaced finish. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.

Radium Engineering Subaru EJ Top Feed Fuel Rail Conversion Kit w/1-2 Brackets

---

SPECS:

• CNC machined from solid 6061 aluminum
• Anodized black with laser engraving for a high-quality surfaced finish
• Compatible with all fuel types including popular alcohol mixtures such as E85
• The four billet injector seats are also anodized and laser-etched and provide a sealed receptacle for top-feed fuel injectors
• The seats are designed for injectors with 14mm lower O-rings
• Each fuel rail features (3) 8AN ORB threaded ports (6) total
• Press-fit spacers are included to thermally insulate the intake manifold heat transfer

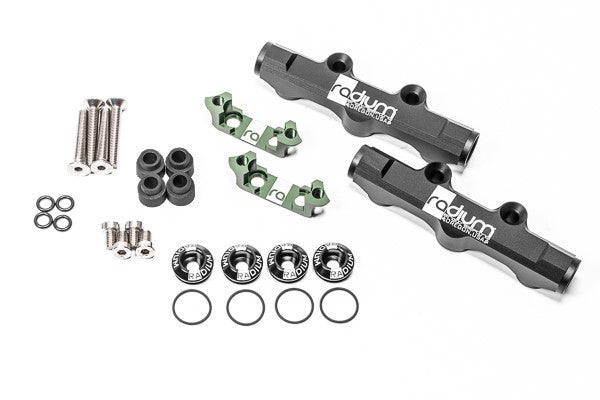

INCLUDES:

• (2) Black anodized laser-etched aluminum fuel rails
• (2) Black anodized version 3-6 conversion fuel rail mounts
• (4) Black anodized and laser-etched 26mm injector seats
• (4) Thermal insulating press-in spacers
• (4) Stainless steel M8 x 1.25 mounting bolts
