Radium Fuel Hanger Plumbing Kit Microglass Filter - 2013-2021 Scion FR-S / Subaru BRZ / Toyota 86

This is the Radium Engineering Fuel Hanger Plumbing Kit. This kit will convert the OEM returnless system into a traditional return system. This kit includes everything required to connect directly to the OEM or aftermarket fuel rails for both single and dual pump configurations. An -8AN PTFE hose attaches to a Radium Engineering fuel filter that mounts underneath the vehicle using a chassis-specific bolt-on bracket.

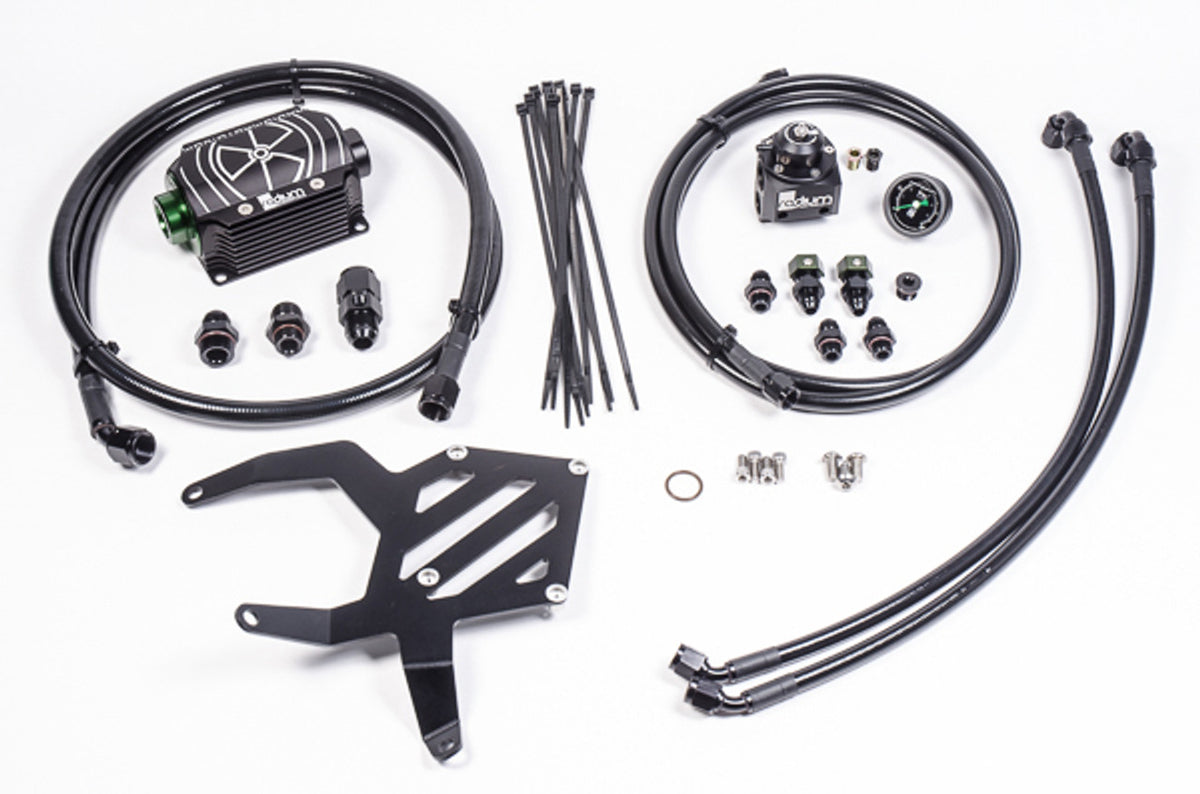

Radium Engineering Fuel Hanger Plumbing Kit Microglass

---

SPECS:

• Microglass filter option
• Converts the OEM returnless system into a traditional return system
• Includes everything required to connect directly to the OEM or aftermarket fuel rails for both single and dual pump configurations
• An -8AN PTFE hose attaches to a Radium Engineering fuel filter that mounts underneath the vehicle using a chassis-specific bolt-on bracket
• The fuel filter is secured to an in-line Radium Fuel Pressure Gauge which is attached to an adjustable Radium Fuel Pressure Regulator
• The FRP can be used to mimic the OEM fuel system, or it can be ran 1:1 with a vacuum reference
• -6AN PTFE hoses are included to connect to the fuel rail and high-pressure fuel pump



INCLUDES:

• Microglass filter option
• Fuel pressure regulator
• Fuel pressure gauge
• Heat exchanger filter mount
• Aluminum filter bracket
• SAE quick connects
• Aluminum adapter fittings
• -8AN and -6AN PTFE fuel hoses
• -6AN PushLok hose ends
• -3/8" Fuel return hose
• Stainless and aluminum hardware



NOTE:

• This plumbing kit is NOT compatible with automatic transmission models
