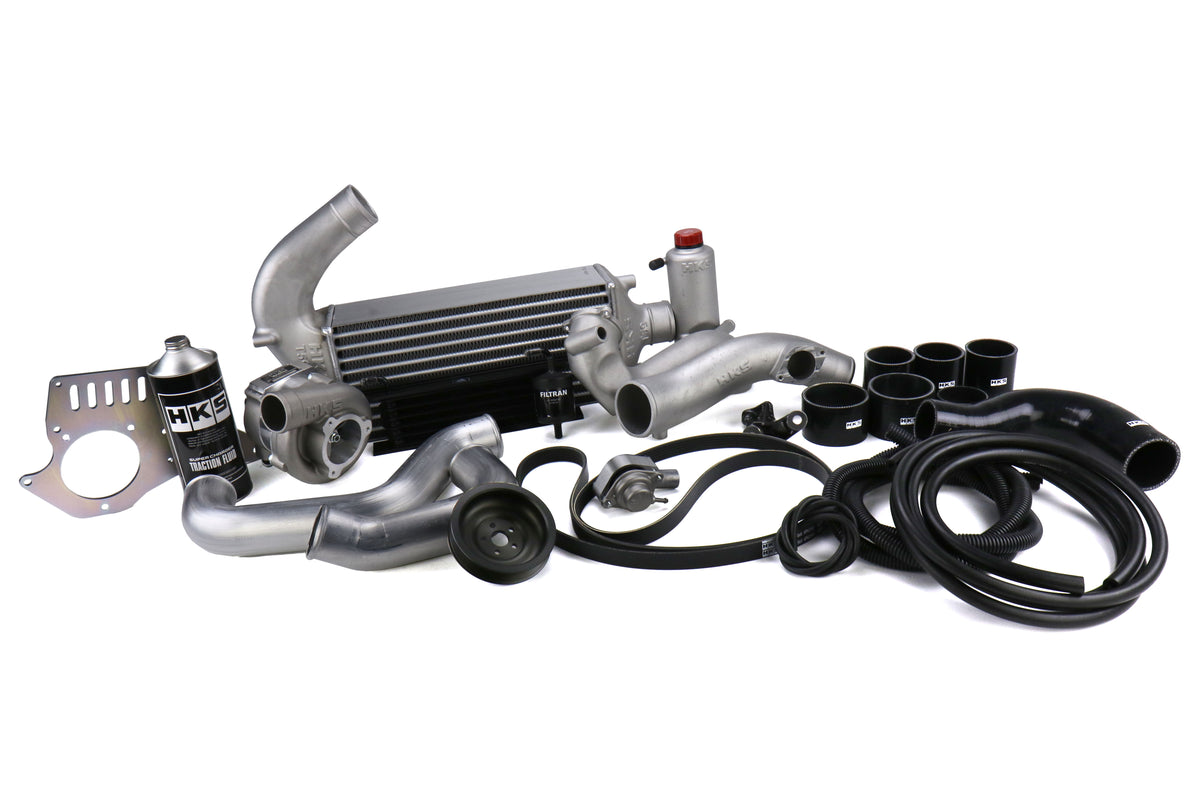

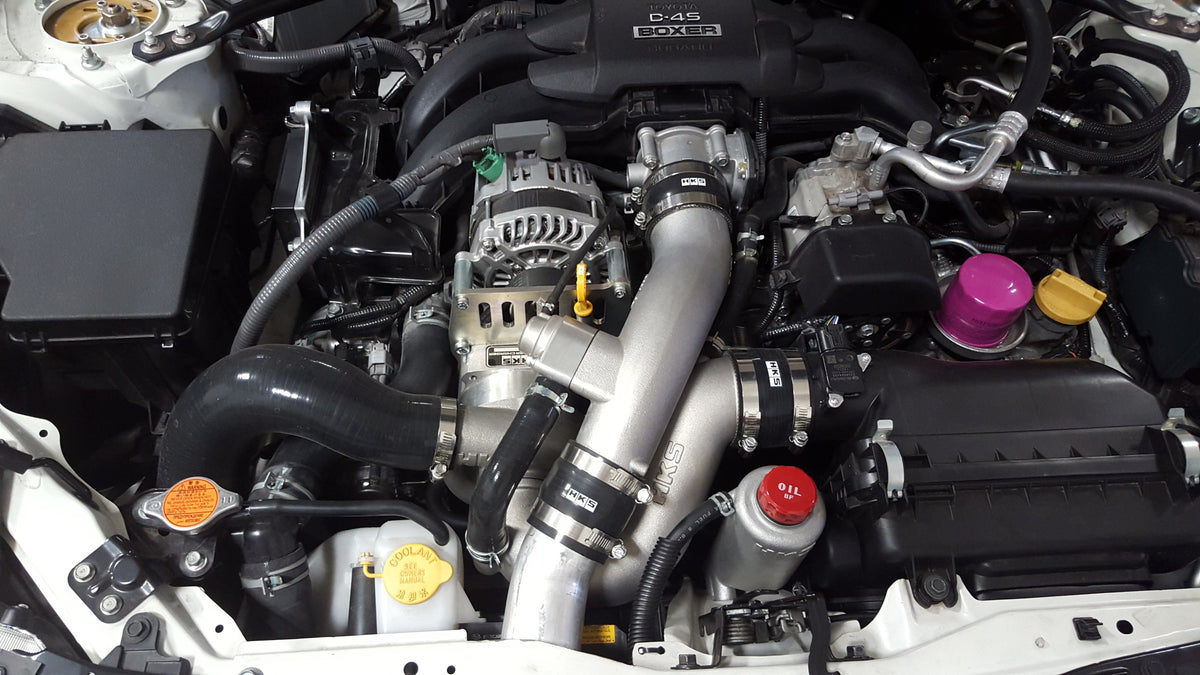

    HKS12001-KT004A HKS GT V3 Supercharger System (with ECU Tuning) - 2013-2015 FR-S / BRZ / 86 (MT Only),

    HKS GT V3 Supercharger System (with ECU Tuning) - 2013-2016 Scion FR-S / 2013-2020 Subaru BRZ / 2017-2019 Toyota 86

    $4,100.00

    $4,920MSRP

    Save $820.00 on MSRP (17%)

    Payin full orin 4 interest-free installmentsof$1025.00.

    In Stockwill ship same day if ordered before3pm EST

    Price Match Guarantee up to 110%

    30 Day Satisfaction Guarantee

    Rated Excellent & Trusted

    HKS

    Authorized Dealer of

    HKS

    Check compatibility with your vehicle

    Manufacturer's Warranty: This part is new and carries a full manufacturer warranty. See manufacturer's website for additional details.

    Product Video

    Product Description

    HKS12001-KT004A

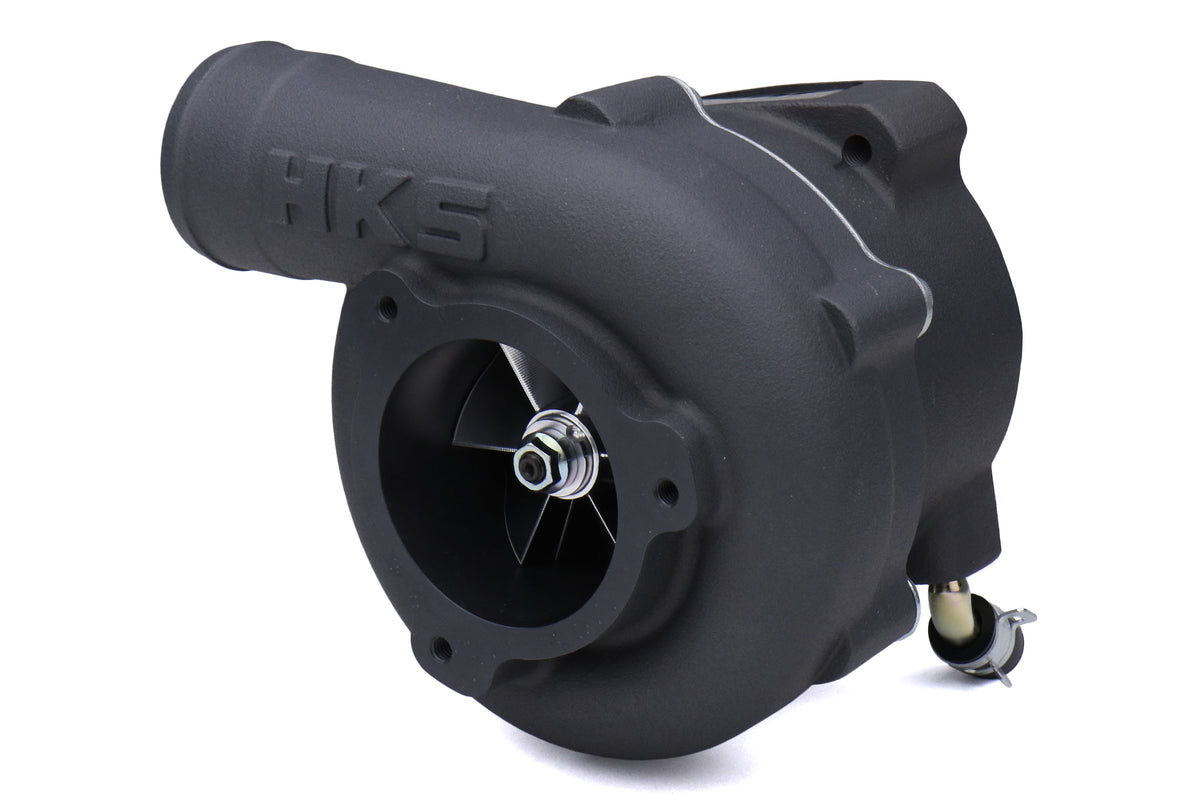

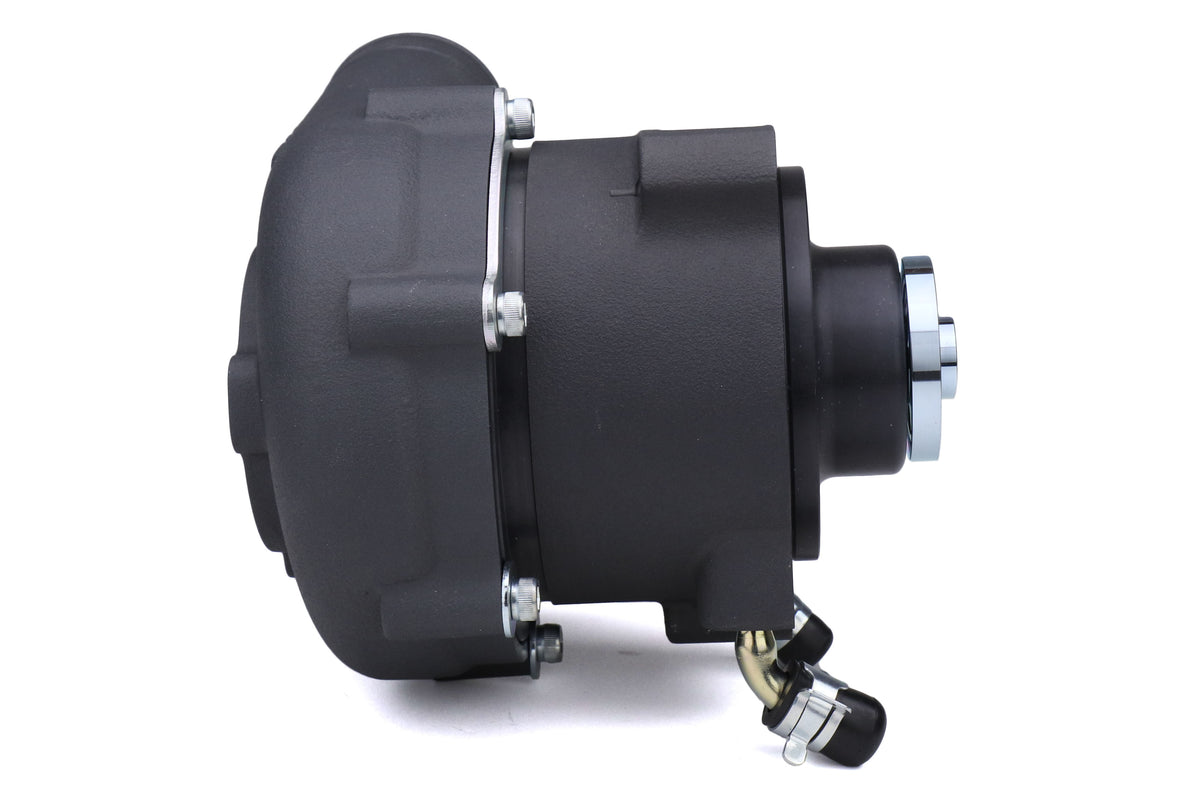

    The V3 Supercharger kit features a revised inlet pipe with a larger inside diameter than the previous version. The restrictor plate has also been removed, as well as a larger supercharger pulley.Note: This is for manual transmission only.

    Note: The Flash editor provided by HKS is only compatible with the 13-16 BRZ/FRS with a manual transmission.

    HKS GT V3 Supercharger System (with ECU Tuning)

    Supercharger Kit V3

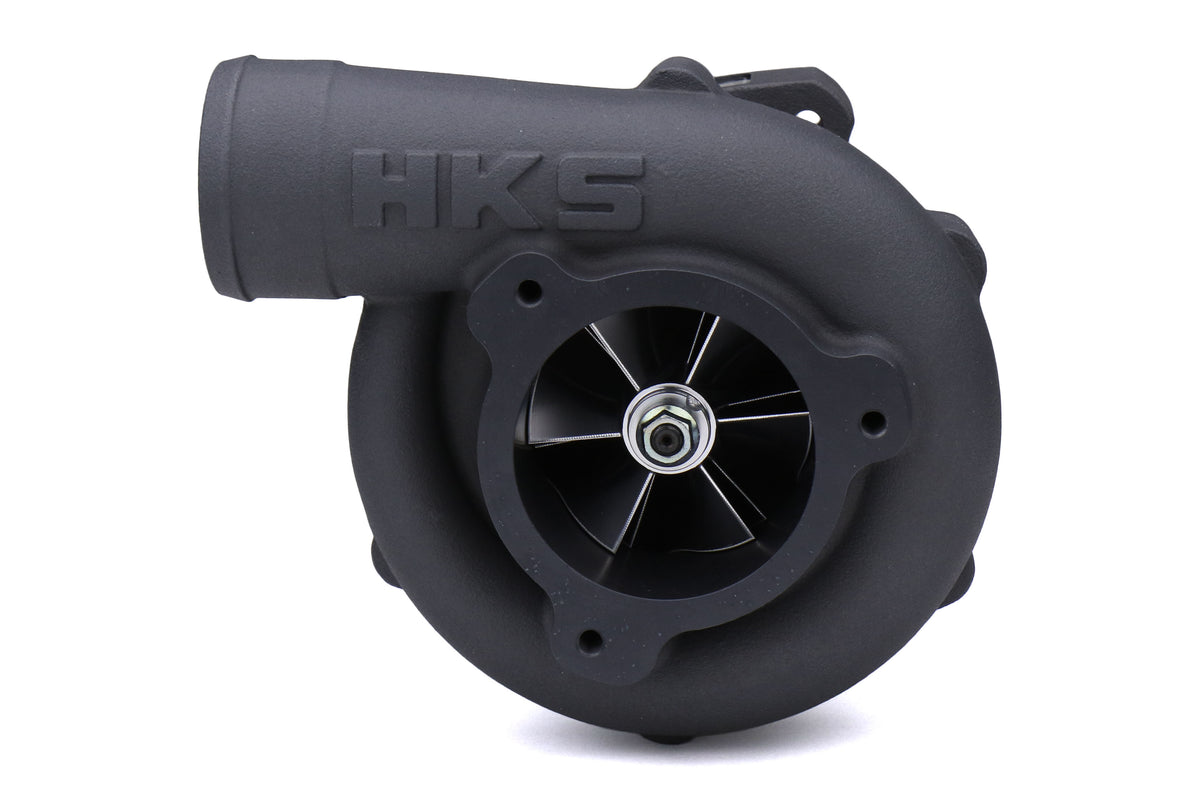

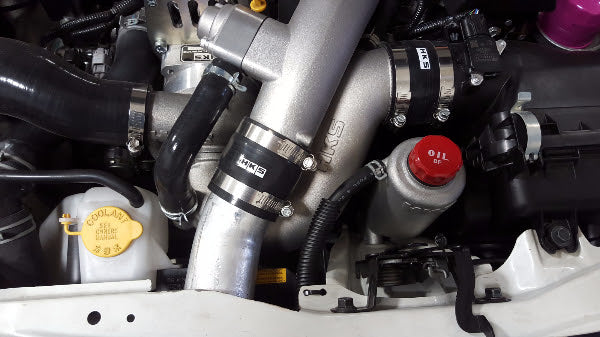

    The V3 Supercharger kit features a revised inlet pipe with a larger inside diameter than the previous version. The restrictor plate has also been removed, as well as a larger supercharger pulley.

    These changes optimize the airflow into the supercharger, allowing a slower spinning, but more efficient airflow. The reduction in supercharger speed, along with the less restrictive air flow, allows for a larger volume of air and cooler intake temperatures than before, creating more power than previous variations of the kit. In addition, the V3 Supercharger is available with an optional Flash Editor with pre-programmed tunes for 91 octane and E85. A 93 octane calibration is also available exclusively through HKS USA.

    • Unrestricted Supercharger and Larger Diameter Inlet Pipe for Maximized Air Flow

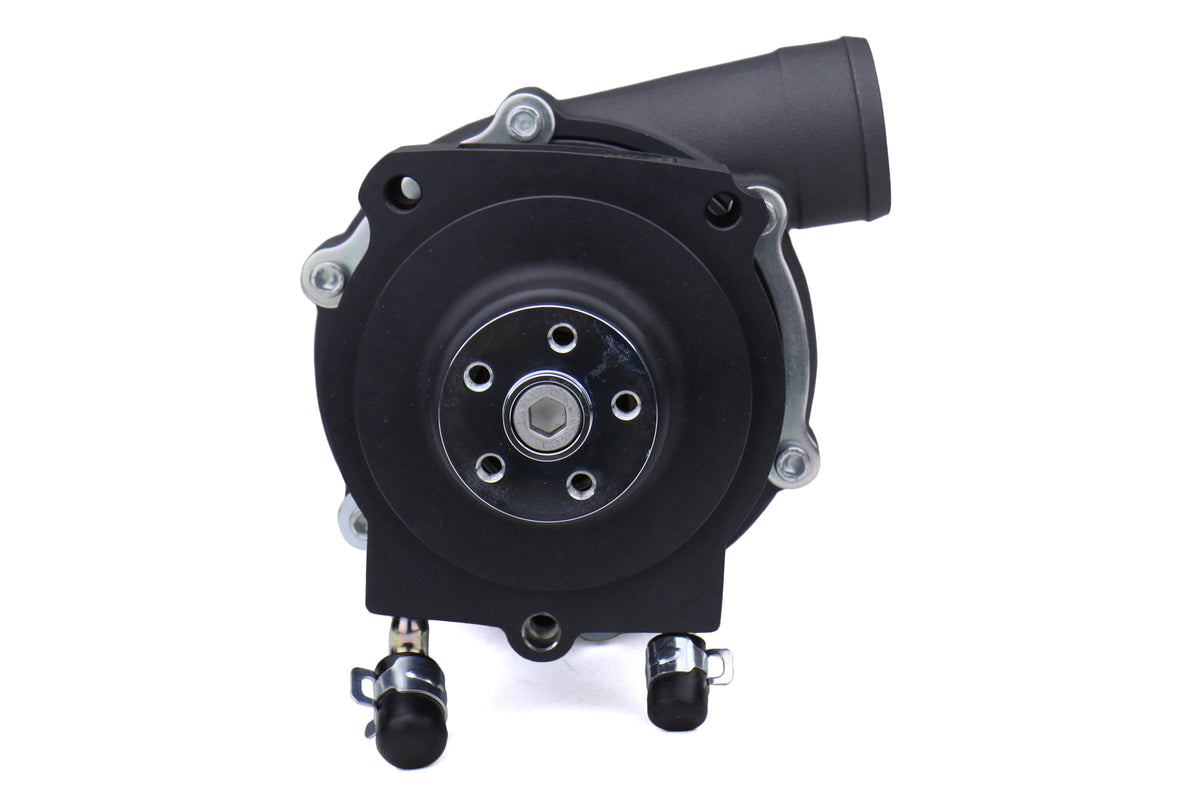

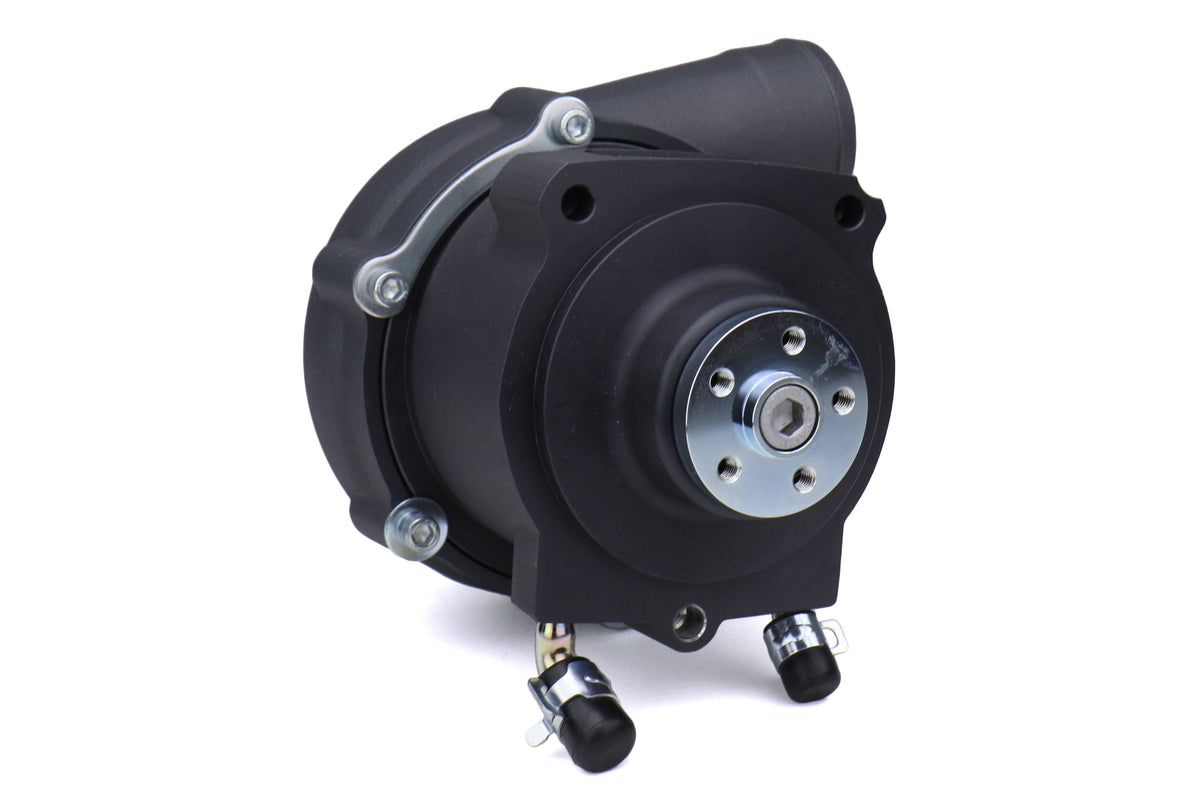

    • Larger Supercharger Pulley for Less Strain and Heat

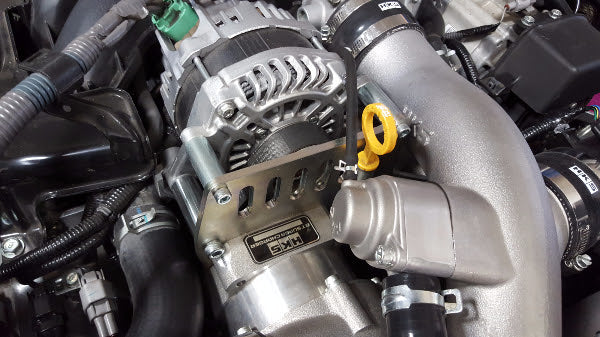

    • Newly Designed Supercharger Bracket for Pulley Clearance

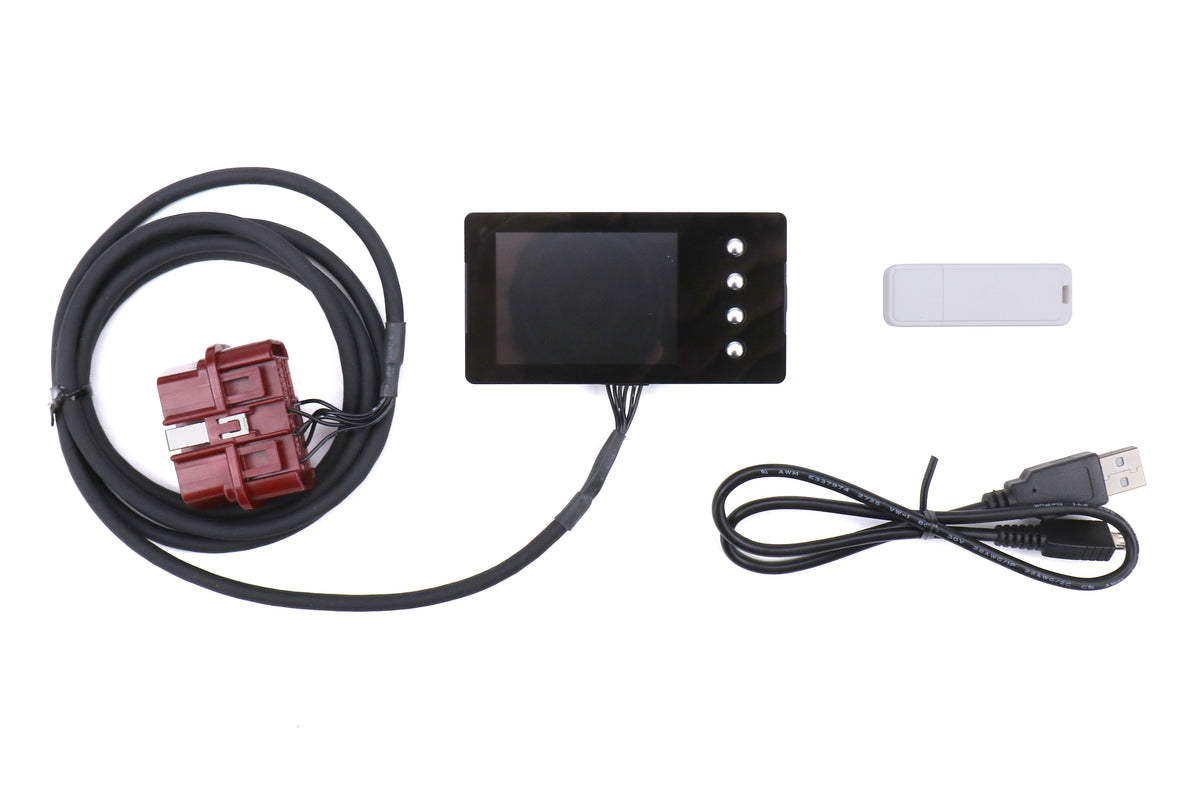

    • Flash Editor with Pre-Programmed Tunes for 91 Octane and E85

    FTspeed's HKS GT V3 Supercharger Overview

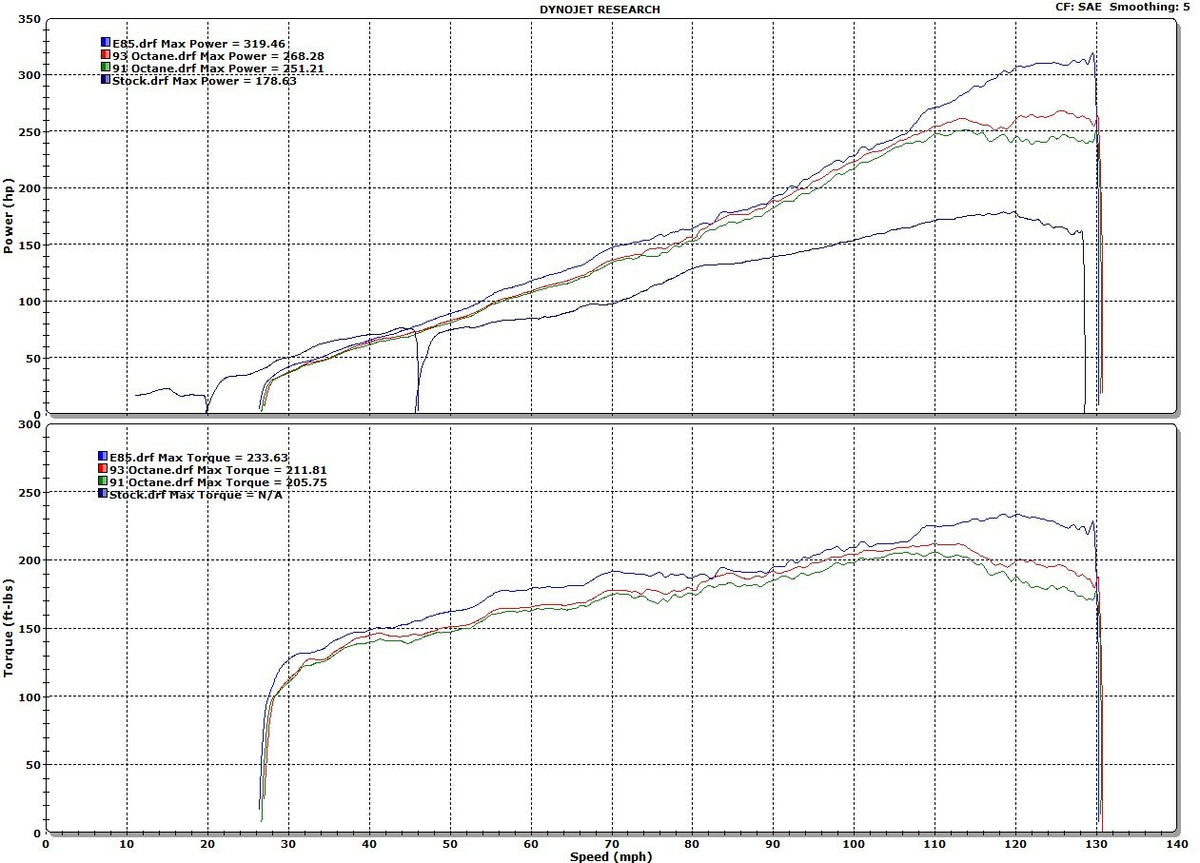

    Dyno Results

    Stock, HKS Intake, Headers, Exhaust - 179 hp peak
    91 Octane, HKS I/H/E & Supercharger Kit V3 - 251 hp / 212 lb-ft peak
    93 Octane, HKS I/H/E & Supercharger Kit V3 - 268 hp / 211 lb-ft peak (available by contacting HKS USA directly)
    E85, HKS I/H/E & Supercharger Kit V3 + 900cc Injectors - 319 hp / 234 lb-ft peak

    Specifications

    ColorMatte Gunmetal
    Includes EmsYes

    This Part Fits

    2013 Scion FR-S

    2014 Scion FR-S

    2015 Scion FR-S

    2016 Scion FR-S

    2013 Subaru BRZ

    2014 Subaru BRZ

    2015 Subaru BRZ

    2016 Subaru BRZ

    2017 Subaru BRZ

    2018 Subaru BRZ

    2019 Subaru BRZ

    2020 Subaru BRZ

    2017 Toyota 86

    2018 Toyota 86

    2019 Toyota 86
