FFA1.10010.1
FactionFab Pitch Stop Mount - Subaru Models (inc. 2015-2021 WRX / STI)
$99.00
Payin full orin 4 interest-free installmentsof$24.75.
Price Match Guarantee up to 110%
30 Day Satisfaction Guarantee
Rated Excellent & Trusted
Authorized Dealer of
FactionFabCheck compatibility with your vehicle
Manufacturer's Warranty: This part is new and carries a full manufacturer warranty. See manufacturer's website for additional details.
Product Description
FFA1.10010.1

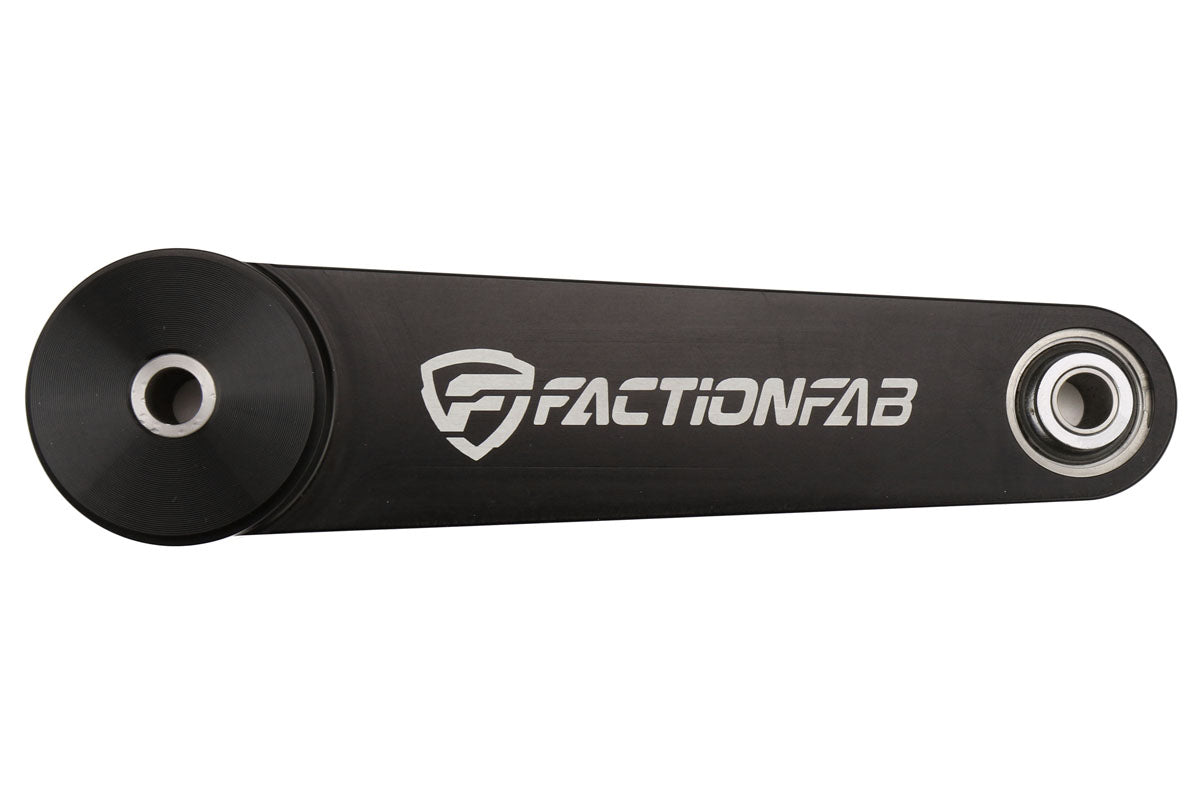

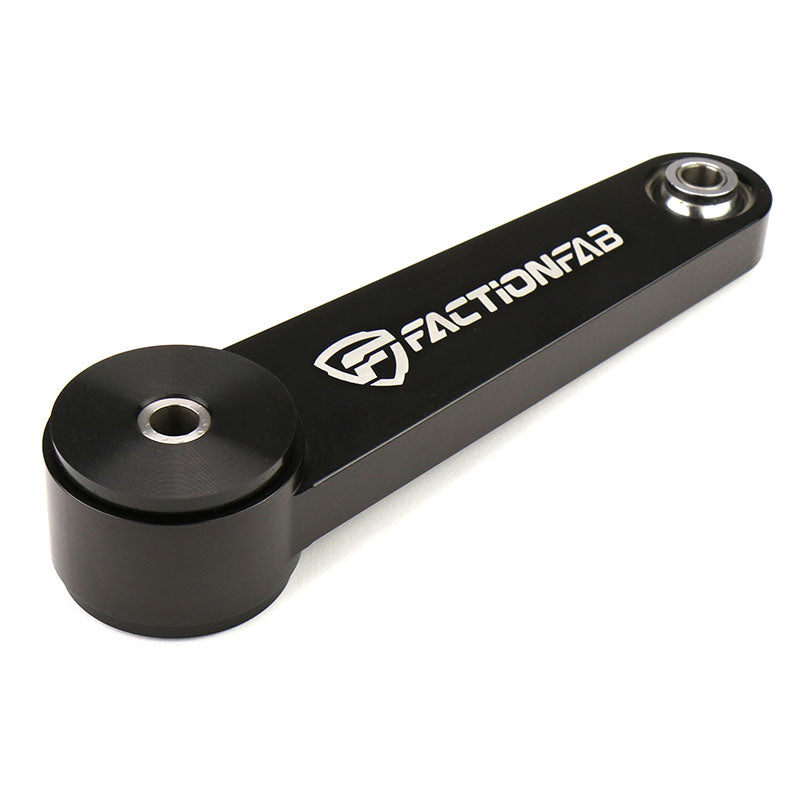

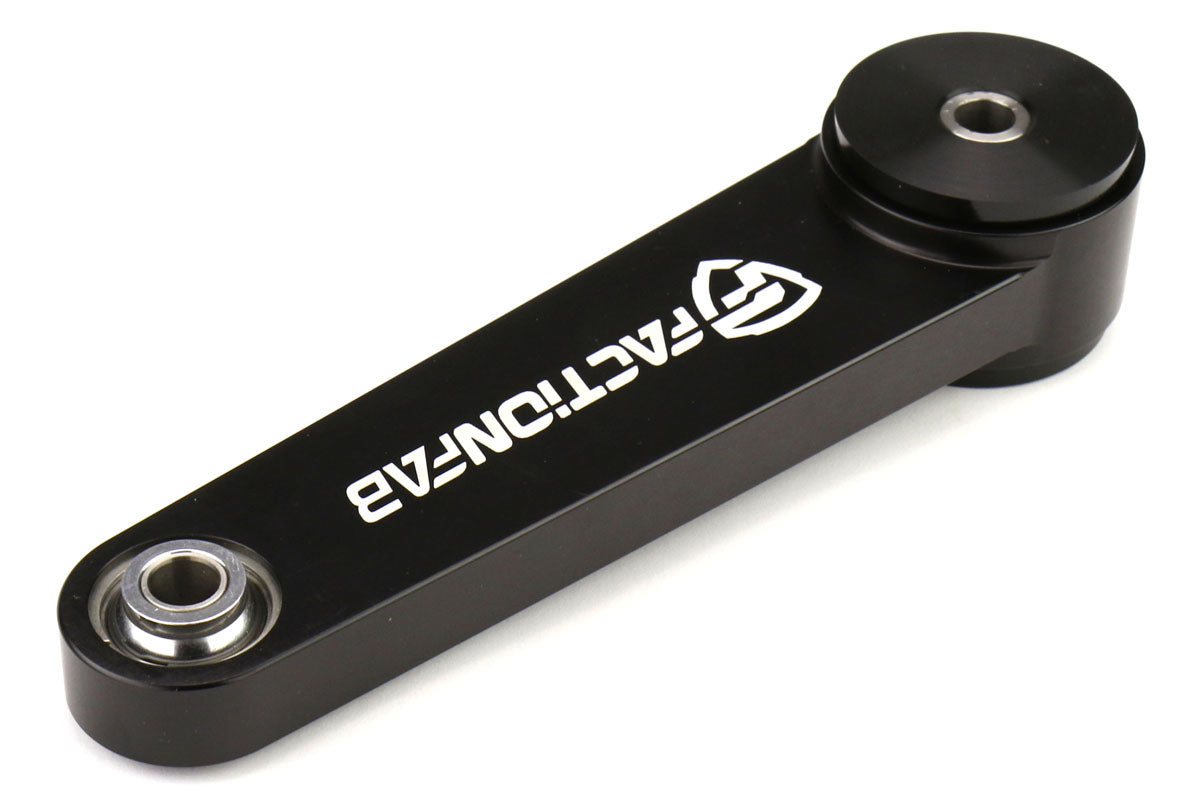

FactionFab Pitch Stop Mount
The pitch stop is designed to reduce front to back engine movement under acceleration and braking. In order to achieve maximum comfort, the factory unit is made out of compliant and flexible materials which do not hold the engine as steady as possible.

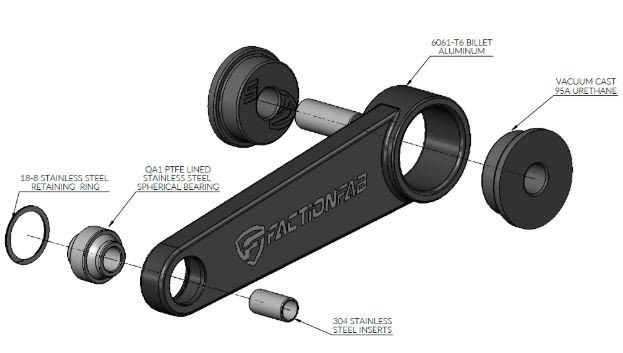

The FactionFab billet aluminum Pitch Stop features a unique design that eliminates front to back engine movement, while eliminating the undesirable torsional firewall deflection that can contribute to firewall mount failure. This unique design features a spherical bearing that allows for up to 20° of combined torsional deflection before any stress is transferred to the firewall. This is especially critical on vehicles which were effected by firewall mount failure which resulted in torn firewalls.
In addition to the unique spherical bearing design, the pitch stop mount uses a vacuum cast 95A Durometer Urethane bushing to practically eliminate any front to back movement. When combined with billet 6061-T6 mount, this is the ultimate pitchstop mount for any Subaru enthusiast.
Features:
- QA1 High precision Stainless Steel PTFE lined spherical bearing with up to 20 degree of movement
- Billet 6061-T6 Aluminum mount with black type 2 hard anodization
- 95A Durometer Vacuum Cast Polyurethane
- Direct factory replacement with no modifications needed
- 304 Stainless Steel machined Inserts for load distribution and corrosion resistance
Specifications
| Color | Black |
|---|---|
| Bushing Durometer | 95A |
| Bushing Material | Polyurethane / Spherical Bearing |
| Material | Billet Aluminum |
