Mishimoto Performance Front Mount Intercooler Kit Carb Cert

Get the Most Power out of you 2015-2020 WRX

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto WRX Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. The Mishimoto front-mount intercooler was designed with a large 28" intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The Mishimoto WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter mile.

Improved Airflow and Cooling Capabilities over Stock

The stock intercooler on your 2015-2020 WRX does its job just fine and as it should, but isn’t the most efficient thing in the world, especially when you start to stack on other performance parts and aggressive tuning onto you WRX. The stock intercooler just isn’t able to keep charged air cool enough to maximize the horsepower and torque. That's when you need to jump up to the Mishimoto Performance Front Mount Intercooler for your 2015-2020 Subaru WRX. Mishimoto Performance front mount intercooler features a much larger cooling area and an utterly massive core that greatly improves cooling ability over stock while also maximizing in-bound airflow so that your 2015-2020 WRX can reach the full potential of all its performance parts and tuning and see extra horsepower and torque.

• 2015-2020 Subaru WRX

PURCHASE INCLUDES

(1) Bar-and-Plate Intercooler
(1) Intercooler Mounting Bracket
(1) Charge Pipe Assembly
(1) Air Splitter with Attached Rubber Gaskets
(1) Charge Pipe to Intercooler Hose
(1) Intercooler to Throttle Body Hose
(3) Bypass Valve Hoses
(2) 3" T-bolt Clamps
(2) 3.5" T-bolt Clamps
(4) Worm-Gear Clamps
Mounting Hardware
Mishimoto Lifetime Warranty

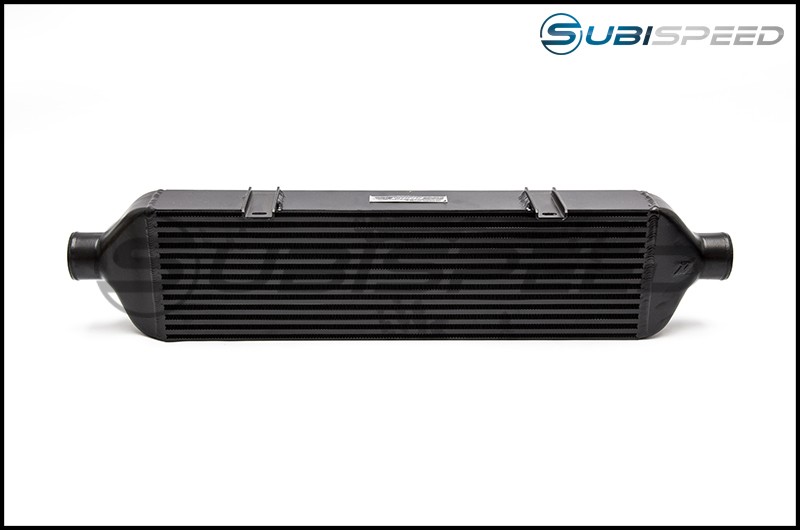

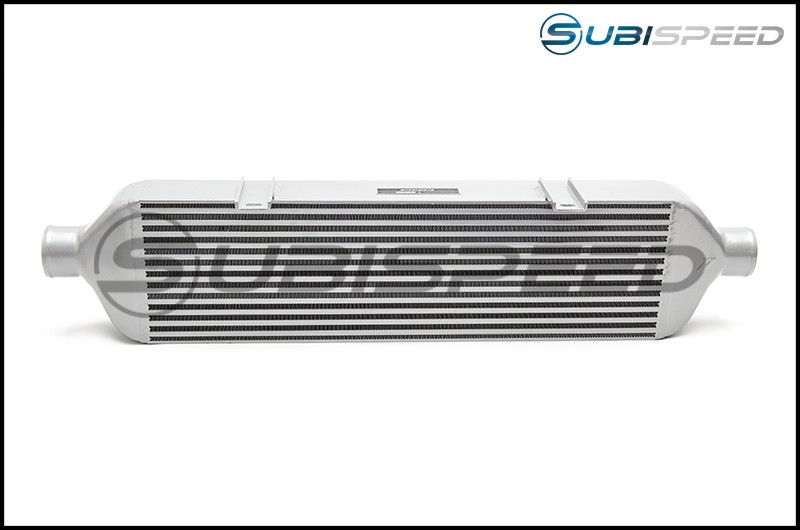

COOLER OVERALL SIZE

37.7" x 8.6" x 5.4"

COOLER CORE SIZE

28" x 8.05" x 3.5"

COOLER CONSTRUCTION

Bar-and-plate with cast end tanks

COOLER INLET / OUTLET

2.45" I.D. / 2.75" O.D.

Hot-Side Intercooler Pipe Specs

• Made from Polished Mandrel-Bent Aluminum
• 2.25" I.D.
• Hot-Side has CNC-Machined Flange for a Leak Free Connection to Turbo
• Includes Two Lower Intercooler Pipes

COLD-SIDE INTERCOOLER PIPE SPECS

• Made from Polished Mandrel-Bent Aluminum
• 2.5" & 2.75" I.D. Pipes
• Includes Upper and Lower Intercooler Pipes

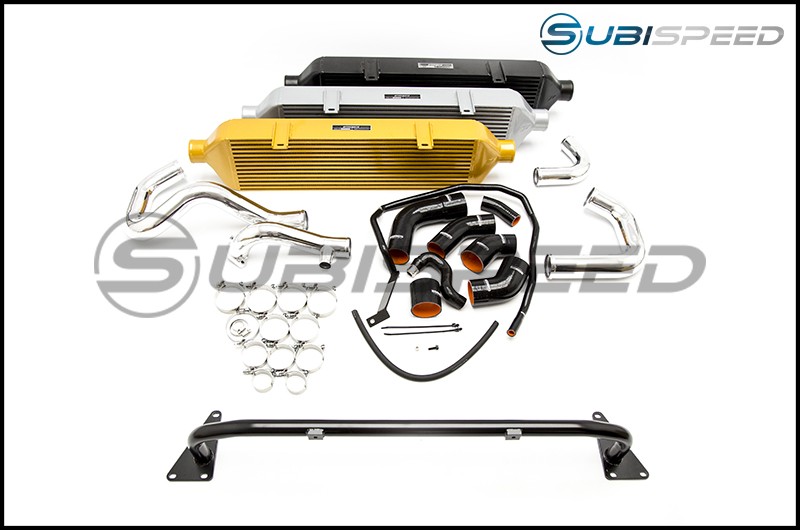

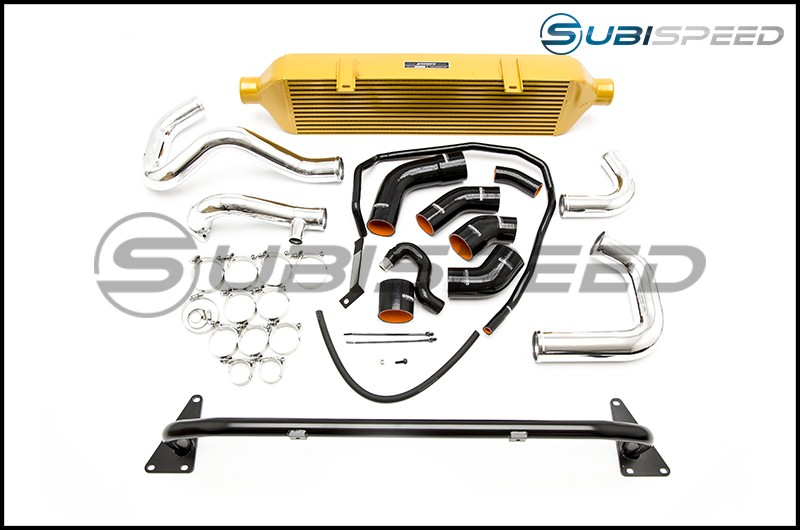

PURCHASE INCLUDES

(1) Bar-and-Plate Intercooler
(1) Steel Crash Bar w/Mounting Hardware
(2) Hot-Side Intercooler Pipes
(2) Cold-Side Intercooler Pipes
(1) Air Intake Bracket
(1) 2.25" 45° Coupler
(1) 2.25" to 2.75" 45° Transition Coupler
(1) 2.5" to 2.75" 55° Transition Coupler
(1) 2.5" to 2.75" 65° Transition Coupler
(1) 3.00" Straight Coupler
(1) BPV Recirculation Hose
(1) BPV Vacuum Hose
(1) 30-45mm Worm Gear Clamp
(2) 1.75" T-Bolt Clamps
(3) 2.5" T-Bolt Clamps
(2) 2.75" T-Bolt Clamps
(5) 3" T-Bolt Clamps
Mishimoto Lifetime Warranty

CRASH BAR SPECS

Steel Construction with Black Powder Coat
Application-Specific Mounting Holes

ENGINE CODES

FA20DIT

CHASSIS CODES

VA

Installation Torque Specs

27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

NOTE

Mishimoto recommends that this intercooler kit, not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle’s ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle. This kit is rated for approximately 600 whp during normal operating conditions. Maximum horsepower potential will be near 700 whp. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.

THIS FRONT-MOUNT INTERCOOLER KIT WILL NOT FIT WITH THE MISHIMOTO 2015+ WRX OIL COOLER KIT
