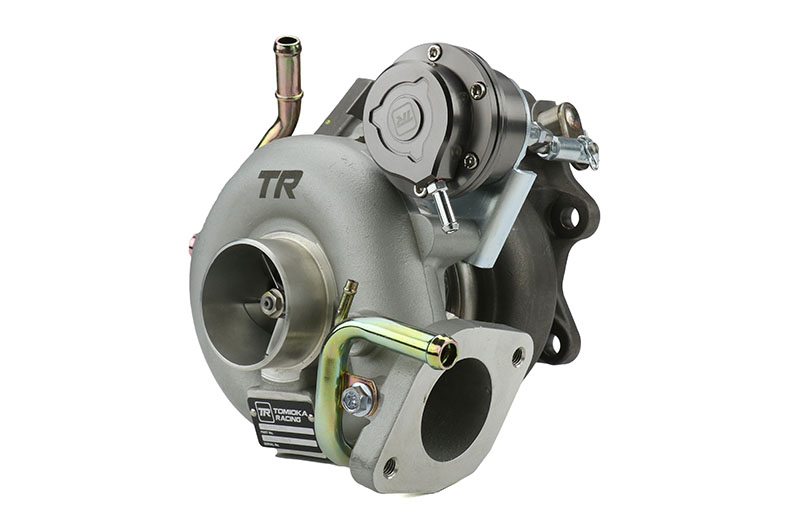

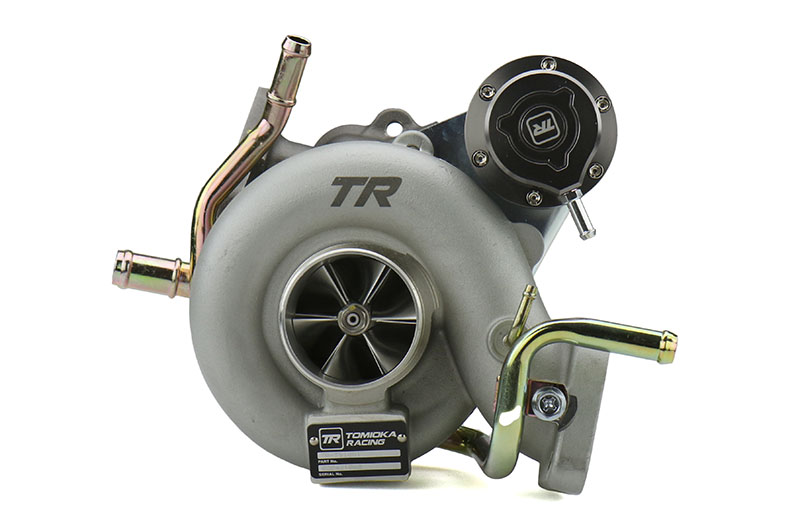

Tomioka Racing TD05-20G Ball Bearing Turbo
2008-2014 Subaru WRX / 2005-2008 Subaru Legacy GT
HIGHLIGHTS:
- Ceramic ball-bearing technology for a quicker spool
- Capable of supporting up to 480 WHP with a supporting engine build
- Direct bolt-on upgrade
Details

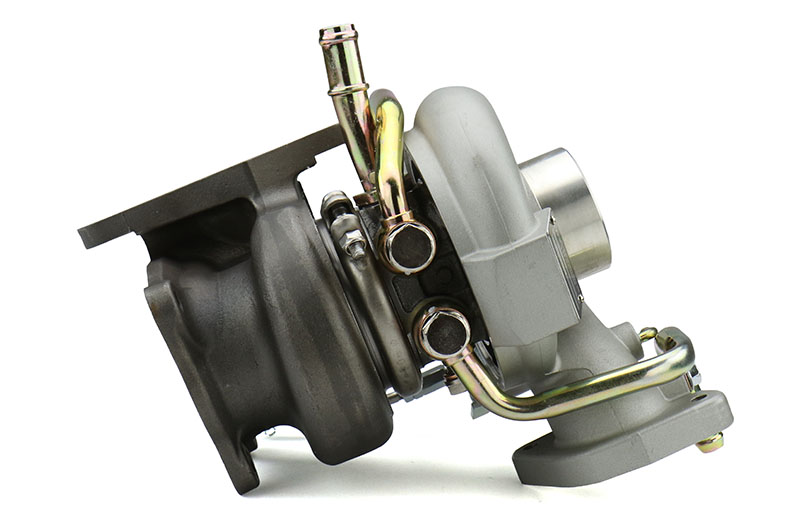

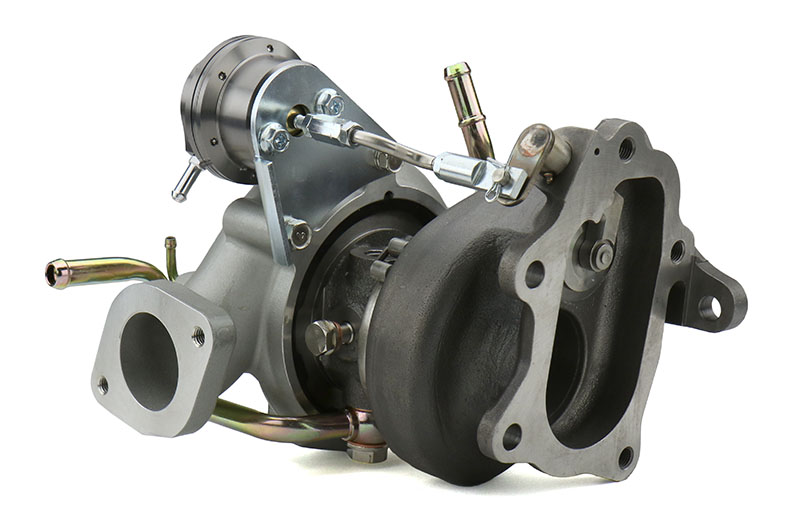

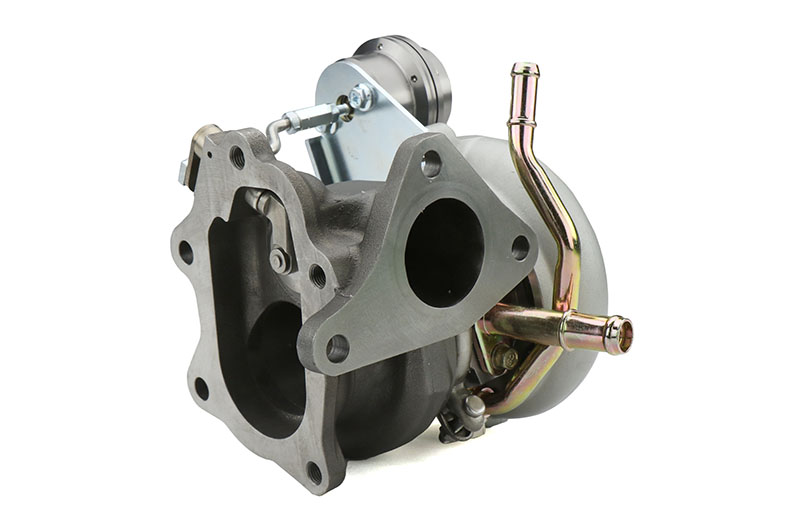

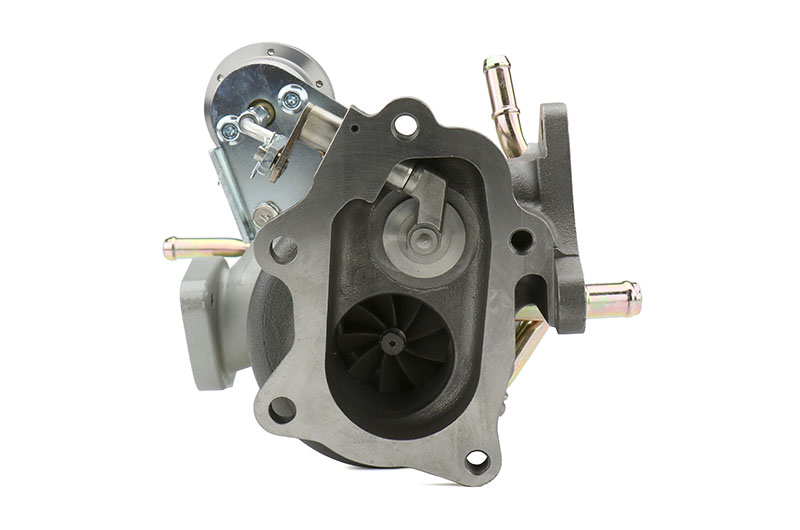

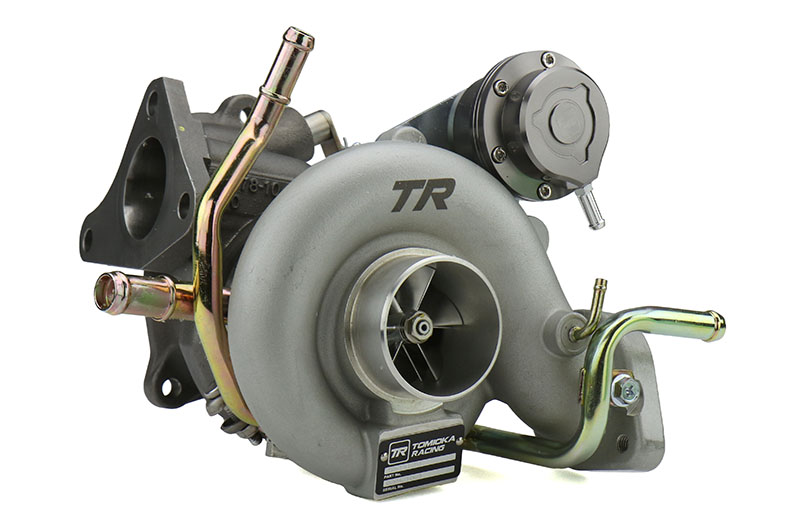

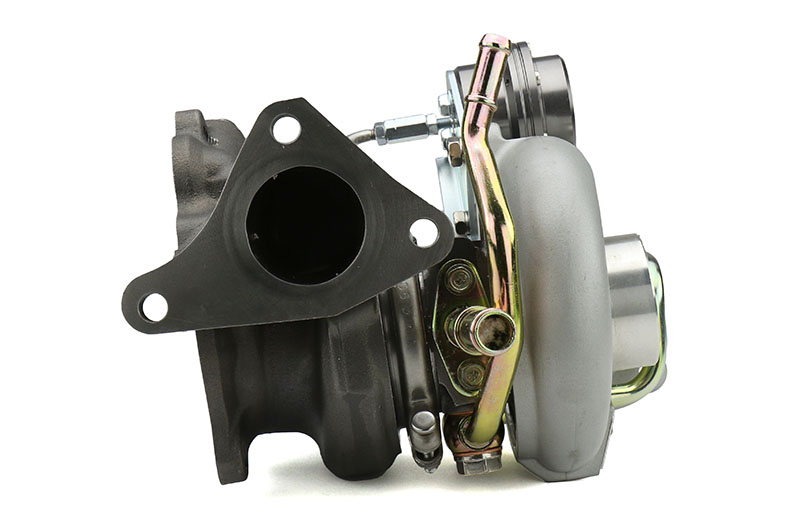

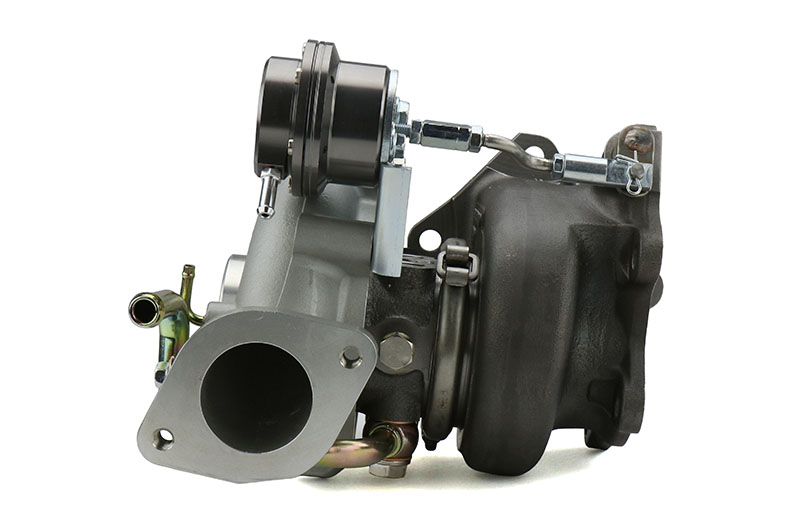

Tomioka Racing TD05-20G Ball Bearing Turbo
SPECS:
- Ceramic ball bearing type
- Billet compressor wheel option
- Standard Subaru 5-bolt flange type
- Compressor wheel inducer: 52.5mm
- Compressor wheel exducer: 68mm
- Turbine wheel inducer: 56mm
- Turbine wheel exducer: 49.2mm
- 1.1 BAR/19psi billet wastegate actuator
- Turbine housing: 8cm2
- Max power rating: 480 HP
- Includes oil pipe
- Includes water pipe

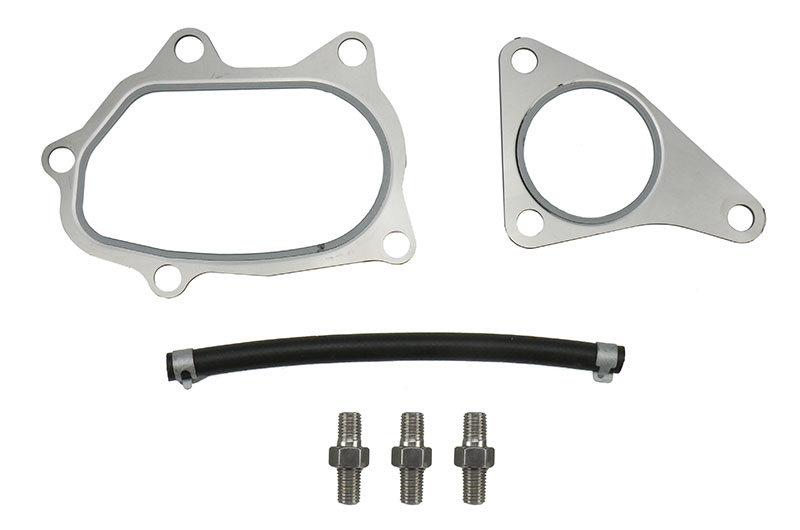

- Includes new gaskets
- Includes hardware kit
POWERFUL BALL-BEARING TURBO CAPABLE OF SUPPORTING UP TO 480 HP
The Tomioka Racing TD05-20G Ball Bearing Turbocharger makes for an excellent bolt-on upgrade for those in the market for a turbocharger capable of making more than 400 WHP with supporting modifications. This direct bolt-on upgrade includes an internal wastegate actuator and will come pre-assembled with the required oil lines, and it will come with new gaskets. This particular model features the billet compressor wheel, as well as ceramic ball bearings that will make it spool close to a factory turbo with the right tune.
