- WRX
Tomioka Racing

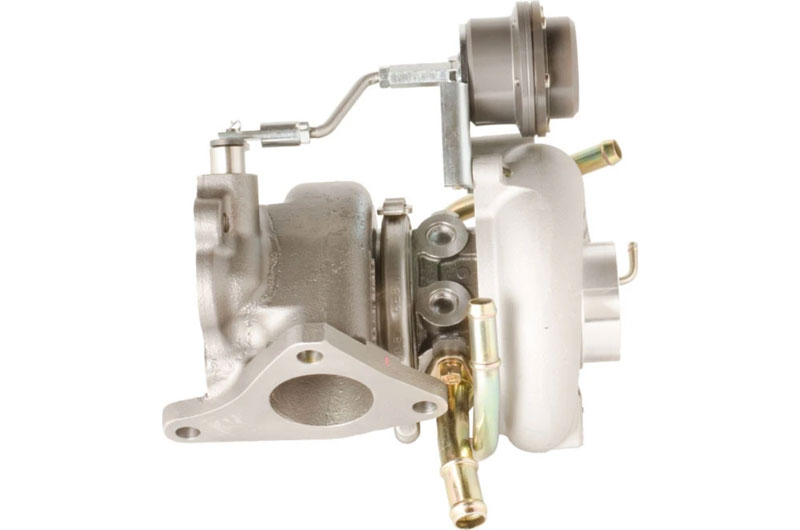

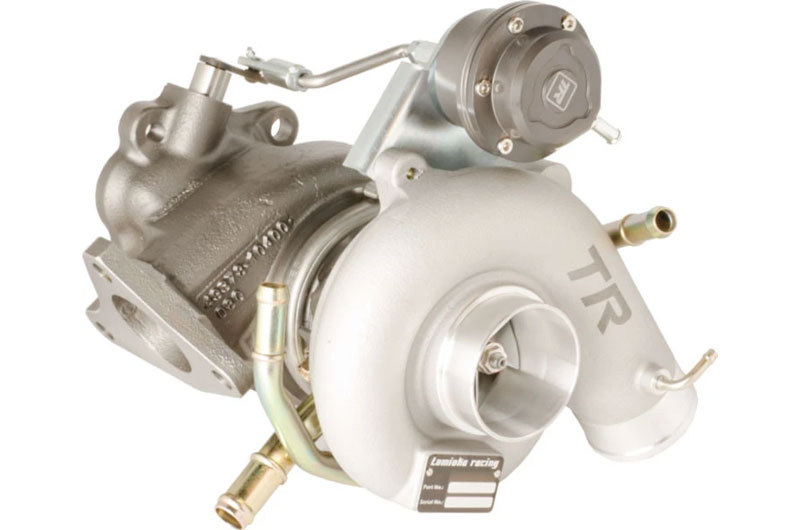

Tomioka Racing TD05-20G Turbo with Billet Wheel and Actuator
2015-2020 Subaru STI
$ 1480$1,480.00Ships for free in the 48 states
SKU: TR-TS1018
This particular model features the billet compressor wheel, as well as the billet actuator and can support up to 480 HP.
Details
Tomioka Racing TD05-20G Turbo with Billet Wheel and Actuator
Highlights
- Journal bearing type
- Billet compressor wheel option
- Standard Subaru 5-bolt flange type
- Compressor wheel inducer: 50.3mm
- Compressor wheel exducer: 68mm
- Turbine wheel inducer: 56mm
- Turbine wheel exducer: 49.2mm
- 1.3 BAR/19psi billet wastegate actuator
- Turbine housing: 8cm
- Max power rating: 480 HP

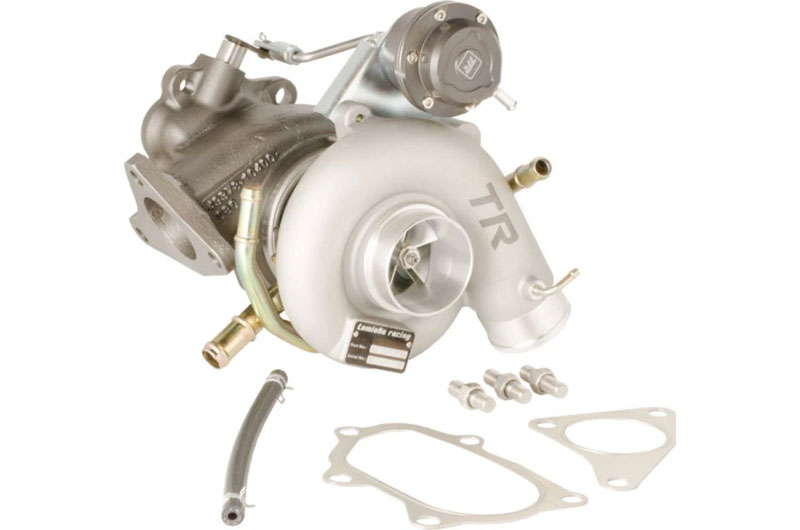

- Includes oil pipe
- Includes water pipe
- Includes new gaskets
- Includes hardware kit
The popular stock replacement TR TD05-20G turbo now comes in billet wheel. Potentially increasing performance from VF39 and TD04 turbo and at least 10% more efficient than the regular TD05-18G. The billet upgrade has a rating of 400HP, a truly perfect turbo for daily driving Subaru!
0 customer reviews
QUESTIONS & ANSWERS
No questions have been asked about this product.Upload images for this product
