- ACT HD Street Clutch Kit (Lightweight FW)
ACT

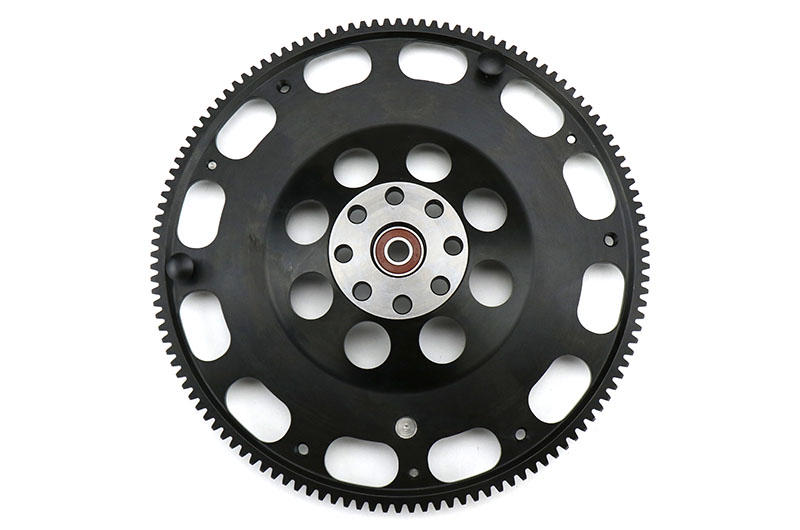

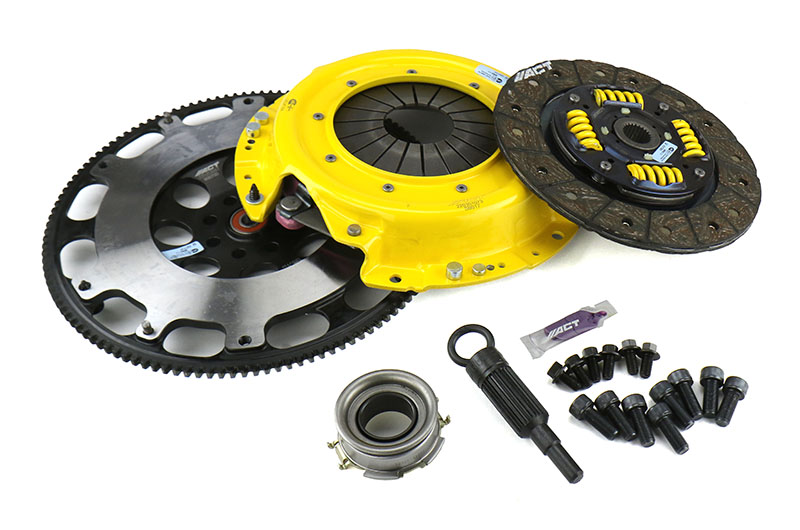

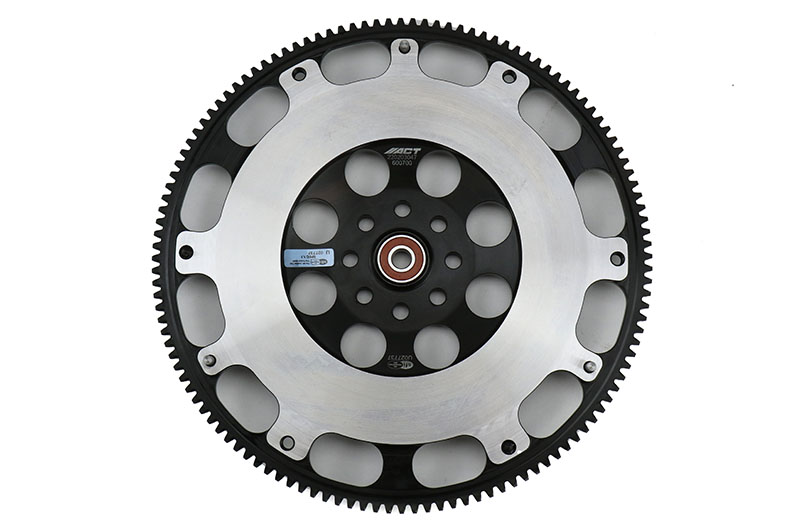

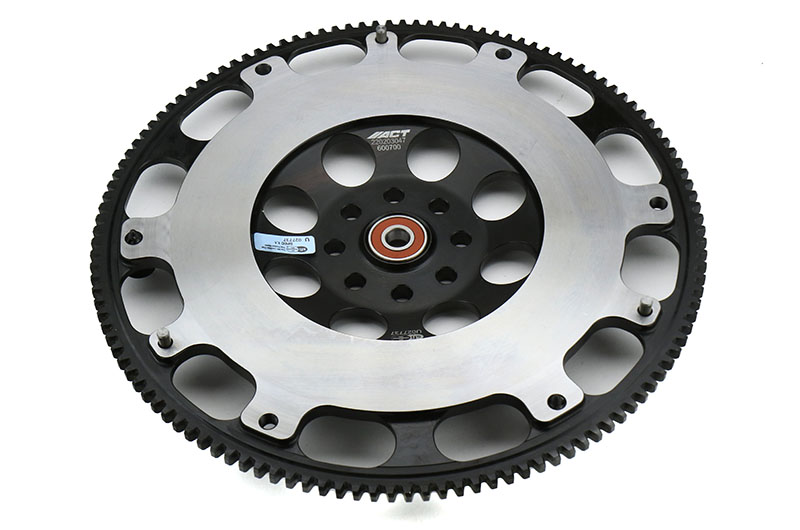

ACT HD Street Clutch Kit (Lightweight FW)
2013+ FR-S / BRZ / 86

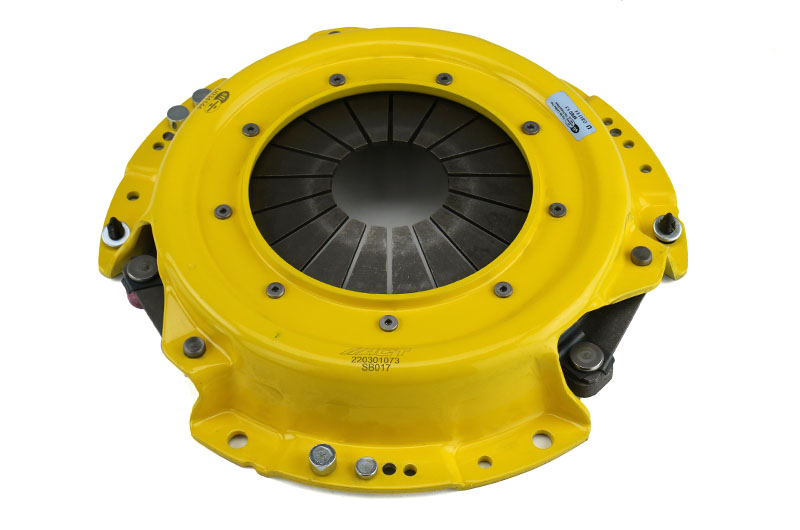

This Performance Street Kit features ACT's most popular Heavy Duty Pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stamping to provide rigidity and consistency. ACT?s Performance Street discs are the most popular disc purchased. They feature premium organic materials with higher copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.Details
ACT HD Street Clutch Kit (Lightweight FW)

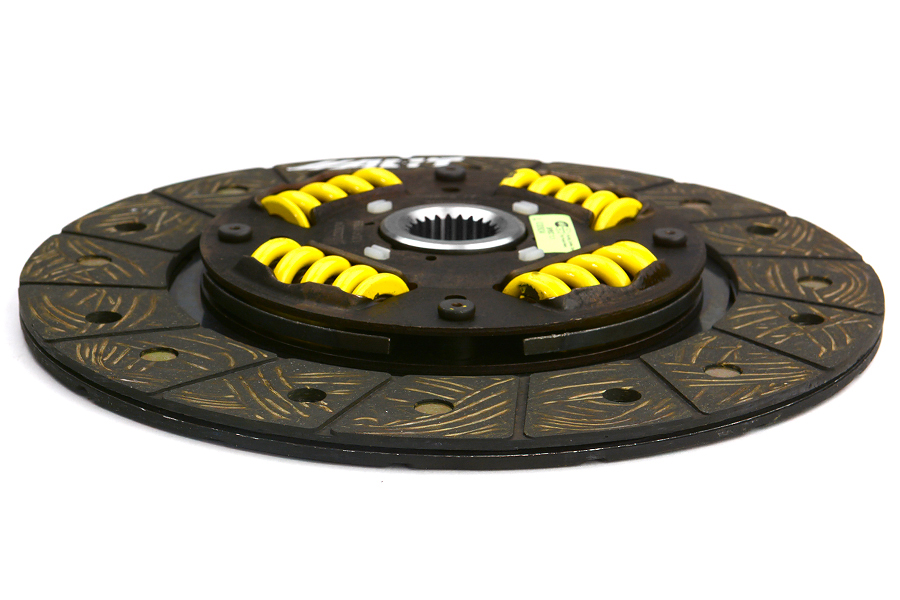

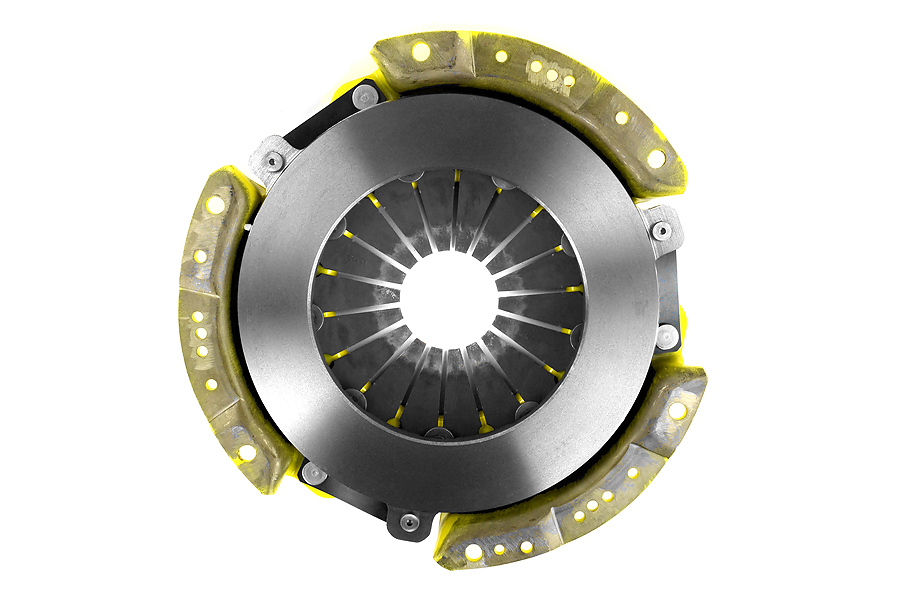

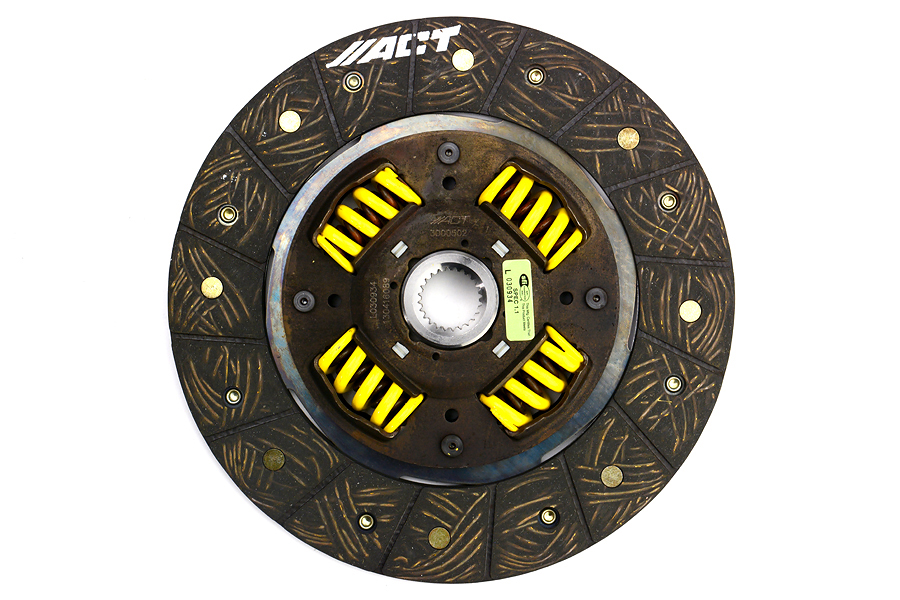

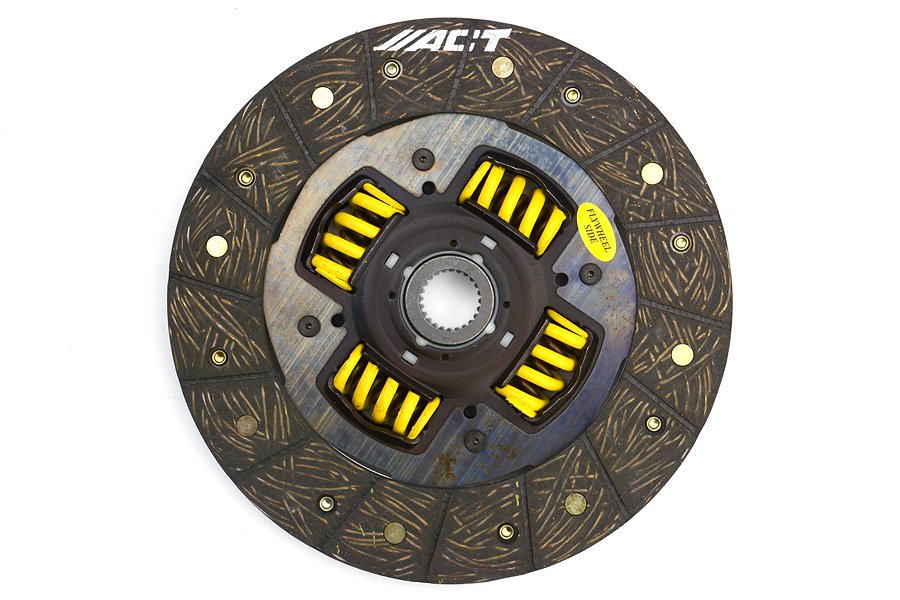

SB8-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
ACT HD Street Clutch
- Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
- Life Longer friction life, extended by ACT's exclusive diaphragm design
- Quality Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
- Recommended Use Recommended for street and race use
- ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specs:
- Part Number:SB8-HDSS
- Description:HD/Perf Street Sprung
- Torque Capacity (ft/lbs.):270
- Torque Capacity Over OE:70%
- Flywheel Tooth Count:124
- Disc Type:Street Disc
- Spline Count:24
- Spline Size (in.):1
- Disc Diameter (in.):8.8
- Disc Diameter (mm.):224
- Pressure Plate Type:Heavy Duty
- Product Weight (lbs.):24.9
Additional Information
Installation Instructions Link Additional Warranty Information None
ACT HD Street Clutch Kit (Lightweight FW) / SB8-HDSS Fits
Scion FR-S Base2013 Scion FR-S Base2014 Scion FR-S Base2015 Scion FR-S Base2016 Scion FR-S BaseSubaru BRZ Limited2013 Subaru BRZ Limited2014 Subaru BRZ Limited2015 Subaru BRZ Limited2016 Subaru BRZ Limited2017 Subaru BRZ Limited2018 Subaru BRZ Limited2019 Subaru BRZ Limited2020 Subaru BRZ LimitedPremium2013 Subaru BRZ Premium2014 Subaru BRZ Premium2015 Subaru BRZ Premium2016 Subaru BRZ Premium2017 Subaru BRZ Premium2018 Subaru BRZ Premium2019 Subaru BRZ PremiumSeries.Blue2015 Subaru BRZ Series.BlueSeries.HyperBlue2016 Subaru BRZ Series.HyperBlueSeries.Hyperblue2016 Subaru BRZ Series.HyperbluetS2018 Subaru BRZ tS2020 Subaru BRZ tSToyota 86 Base2017 Toyota 86 Base2018 Toyota 86 Base2019 Toyota 86 BaseGT2018 Toyota 86 GT2019 Toyota 86 GTGT Black2018 Toyota 86 GT BlackTRD Special Edition2019 Toyota 86 TRD Special Edition0 customer reviews
