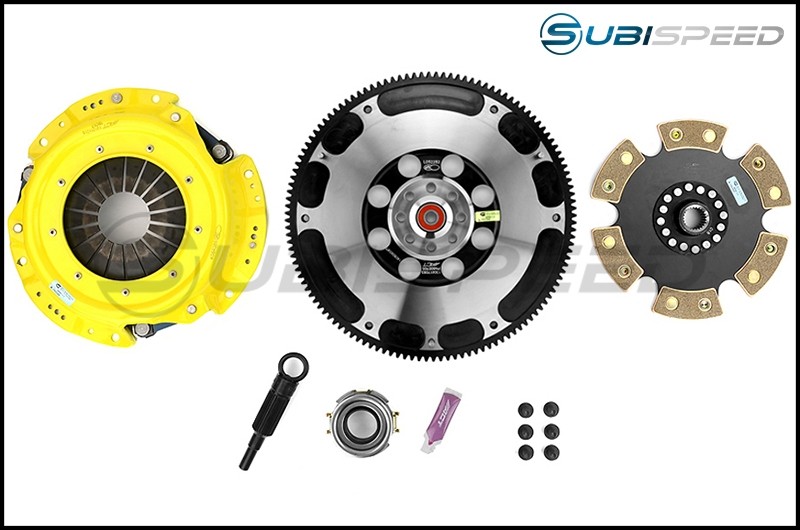

ACT Heavy Duty Solid 6-Puck Disc Clutch Kit Prolite Flywheel Included
2013+ BRZ
Details
ACT Heavy Duty Solid 6-Puck Disc Clutch Kit Prolite Flywheel Included
SB8-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Feel:Light to moderate pedal effort, aggressive engagement, increased gear rattle.
Life:Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear.
Quality:Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance.
Recommendation:Recommended for race use only.
Difference:100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.
Specs:
- Designed with an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life
- All diaphragms endure a four-stage heat-treating process for unparalleled performance
- Pressure plate has precision cover stampings for improved rigidity and consistency
- 6-pad spring-centered race disc features a spring center construction to properly clamp torsional vibration and to resist failure under harsh conditions
- Spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support
- Spring-centered race disc engagement is harsher but provides faster shifts
- Monoloc collar
- Non-Sprung race disc type
- Heavy duty pressure plate type
- 117% torque capacity over stock
- Torque capacity rated at 345 ft/lbs
- Includes Prolite Flywheel
- New Flywheel Bolts included
- Includes release bearing
- Includes pilot bearing
- Includes alignment tool
