- ACT 4 Puck Clutch Kit (Normal FW)
ACT

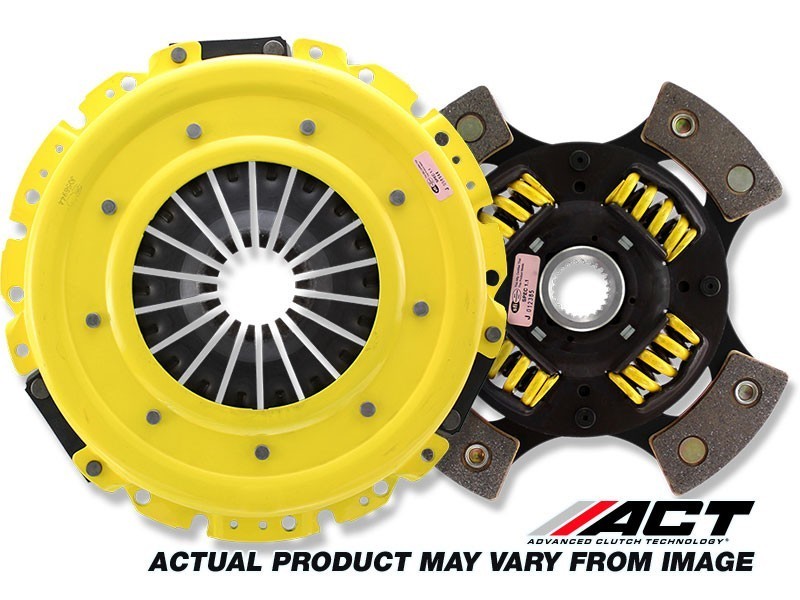

ACT 4 Puck Clutch Kit (Normal FW)
2013+ FR-S / BRZ / 86
$ 735$735.00Bundle Savings:Ships for free in the 48 states
SKU: SB7-HDG4
On order from MFG
Average time to ship: 7 business daysThis Performance Race Kit features ACT's most popular Heavy Duty Pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT?s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc engagement is harsher, but shifting is fast. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.Details
This Performance Race Kit features ACT's most popular Heavy Duty Pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT?s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc engagement is harsher, but shifting is fast. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Feel
A low to moderate pedal feel; aggressive engagement with stock to low to moderate gear rattle.
Life
Longer clutch life achieved through ACT's exclusive diaphragm design
Quality
Premium ceramic friction materials provide low wear rates and high heat tolerance.
Recommended Use
Recommended for high horespower street or race use
ACT Difference
All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM
Features
- Part Number: SB7-HDG4
- Description: HD/Race Sprung 4 Pad
- Torque Capacity (ft/lbs.): 345
- Clamp Load Increase: 117%
- Disc Type: Race Disc
- Pressure Plate Type:Heavy Duty
- Product Weight (lbs.):26.1lbs
- Lightweight Flywheel Included (lbs):11.8lbs
- Kit Contents: 4224218-1, 600705, AT90, PB1004, RB004, SB017
- Warranty (90) Days from Retail Purchase
Fits:
Scion FR-S ACT 4 Puck Clutch Kit (Normal FW)
Scion FRS ACT 4 Puck Clutch Kit (Normal FW)
Subaru BRZ ACT 4 Puck Clutch Kit (Normal FW)
Toyota Gt-86 ACT 4 Puck Clutch Kit (Normal FW)Please note all ACT products are not applicable to coupon codes or any other discounts
Additional Information
Installation Instructions Link Additional Warranty Information None
ACT 4 Puck Clutch Kit (Normal FW) / SB7-HDG4 Fits
Scion FR-S Base2013 Scion FR-S Base2014 Scion FR-S Base2015 Scion FR-S Base2016 Scion FR-S BaseSubaru BRZ Limited2013 Subaru BRZ Limited2014 Subaru BRZ Limited2015 Subaru BRZ Limited2016 Subaru BRZ Limited2017 Subaru BRZ Limited2018 Subaru BRZ Limited2019 Subaru BRZ Limited2020 Subaru BRZ LimitedPremium2013 Subaru BRZ Premium2014 Subaru BRZ Premium2015 Subaru BRZ Premium2016 Subaru BRZ Premium2017 Subaru BRZ Premium2018 Subaru BRZ Premium2019 Subaru BRZ PremiumSeries.Blue2015 Subaru BRZ Series.BlueSeries.HyperBlue2016 Subaru BRZ Series.HyperBlueSeries.Hyperblue2016 Subaru BRZ Series.HyperbluetS2018 Subaru BRZ tS2020 Subaru BRZ tSToyota 86 Base2017 Toyota 86 Base2018 Toyota 86 Base2019 Toyota 86 BaseGT2018 Toyota 86 GT2019 Toyota 86 GTGT Black2018 Toyota 86 GT BlackTRD Special Edition2019 Toyota 86 TRD Special Edition0 customer reviews
