You have no obligation to purchase the product once you know the price. You can simply remove the item from your cart.ACT HD Race Rigid 4 Pad Clutch Kit0 / Review(s)CategoriesStockBrandRating- Home /
- ACT HD Race Rigid 4 Pad Clutch Kit
ACT
ACT HD Race Rigid 4 Pad Clutch Kit
2015+ WRX
$ 767$767.00Bundle Savings:Ships for free in the 48 states
SKU: SB5-HDR4
On order from MFG
Average time to ship: 9 business daysRecommended for race use only Light to moderate pedal effort, aggressive engagement, increased gear rattle Rated at 535 ft/lbs of torque. NOTE: Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J*806877. Clutch kits and flywheels are not compatible with the revised OEM components.Details
SB5-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Details
- Feel - Light to moderate pedal effort, aggressive engagement, increased gear rattle
- Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
- Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended Use - Recommended for race use only
- ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specfications
Part Number: SB5-HDR4
Description: HD/Race Rigid 4 Pad
Torque Capacity (ft/lbs.): 535
Torque Capacity Over OE: 69%
Disc Type: Race Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9
Disc Diameter (mm.): 228
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 13.0
Kit Contents: 4228018, AT90, PB1004, RB844, SB014
Warranty (Product Warranty):One (1) Year from Retail PurchaseAdditional Information

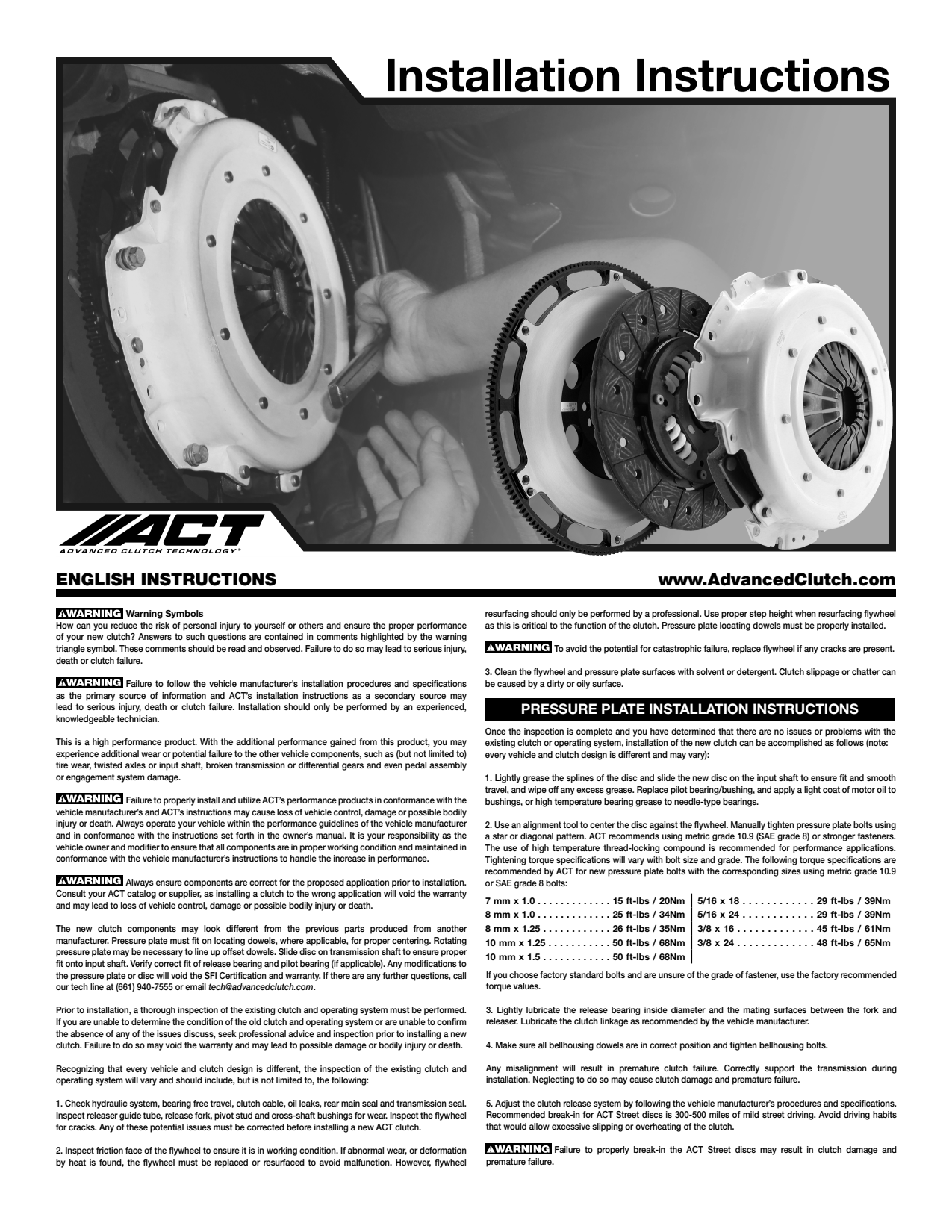

Installation Instructions Link Additional Warranty Information None
ACT HD Race Rigid 4 Pad Clutch Kit / SB5-HDR4 Fits
Subaru Forester Sports 2.5 XT2008 Subaru Forester Sports 2.5 XTXT Limited2006 Subaru Forester XT Limited2007 Subaru Forester XT Limited2008 Subaru Forester XT LimitedSubaru Impreza WRX2006 Subaru Impreza WRX2007 Subaru Impreza WRXWRX Hatchback2008 Subaru Impreza WRX Hatchback2009 Subaru Impreza WRX Hatchback2010 Subaru Impreza WRX Hatchback2011 Subaru Impreza WRX Hatchback2012 Subaru Impreza WRX Hatchback2013 Subaru Impreza WRX Hatchback2014 Subaru Impreza WRX HatchbackWRX Limited2006 Subaru Impreza WRX Limited2007 Subaru Impreza WRX LimitedWRX Limited Hatchback2010 Subaru Impreza WRX Limited Hatchback2011 Subaru Impreza WRX Limited Hatchback2012 Subaru Impreza WRX Limited Hatchback2013 Subaru Impreza WRX Limited Hatchback2014 Subaru Impreza WRX Limited HatchbackWRX Limited Sedan2010 Subaru Impreza WRX Limited Sedan2011 Subaru Impreza WRX Limited Sedan2012 Subaru Impreza WRX Limited Sedan2013 Subaru Impreza WRX Limited Sedan2014 Subaru Impreza WRX Limited SedanWRX Premium Hatchback2010 Subaru Impreza WRX Premium Hatchback2011 Subaru Impreza WRX Premium Hatchback2012 Subaru Impreza WRX Premium Hatchback2013 Subaru Impreza WRX Premium Hatchback2014 Subaru Impreza WRX Premium HatchbackWRX Premium Sedan2010 Subaru Impreza WRX Premium Sedan2011 Subaru Impreza WRX Premium Sedan2012 Subaru Impreza WRX Premium Sedan2013 Subaru Impreza WRX Premium Sedan2014 Subaru Impreza WRX Premium SedanWRX Sedan2008 Subaru Impreza WRX Sedan2009 Subaru Impreza WRX Sedan2010 Subaru Impreza WRX Sedan2011 Subaru Impreza WRX Sedan2012 Subaru Impreza WRX Sedan2013 Subaru Impreza WRX Sedan2014 Subaru Impreza WRX SedanWRX TR2006 Subaru Impreza WRX TR2007 Subaru Impreza WRX TRSubaru Legacy GT2006 Subaru Legacy GTGT LIMITED2006 Subaru Legacy GT LIMITEDGT Limited2007 Subaru Legacy GT Limited2008 Subaru Legacy GT Limited2009 Subaru Legacy GT LimitedGT spec.B2006 Subaru Legacy GT spec.B2007 Subaru Legacy GT spec.B2008 Subaru Legacy GT spec.B2009 Subaru Legacy GT spec.BSubaru WRX Base2015 Subaru WRX Base2016 Subaru WRX Base2017 Subaru WRX BaseLimited2015 Subaru WRX Limited2016 Subaru WRX Limited2017 Subaru WRX LimitedPremium2015 Subaru WRX Premium2016 Subaru WRX Premium2017 Subaru WRX Premium0 customer reviews
