- ACT HD Performance Street Sprung Clutch Kit w/ Flywheel
ACT
ACT HD Performance Street Sprung Clutch Kit w/ Flywheel
2006-2014 Subaru WRX / 2005-2009 Subaru Legacy GT
Recommended for street and race use Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle Rated at 445 ft/lbs of torque. NOTE: Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J*806877. Clutch kits and flywheels are not compatible with the revised OEM components.Details

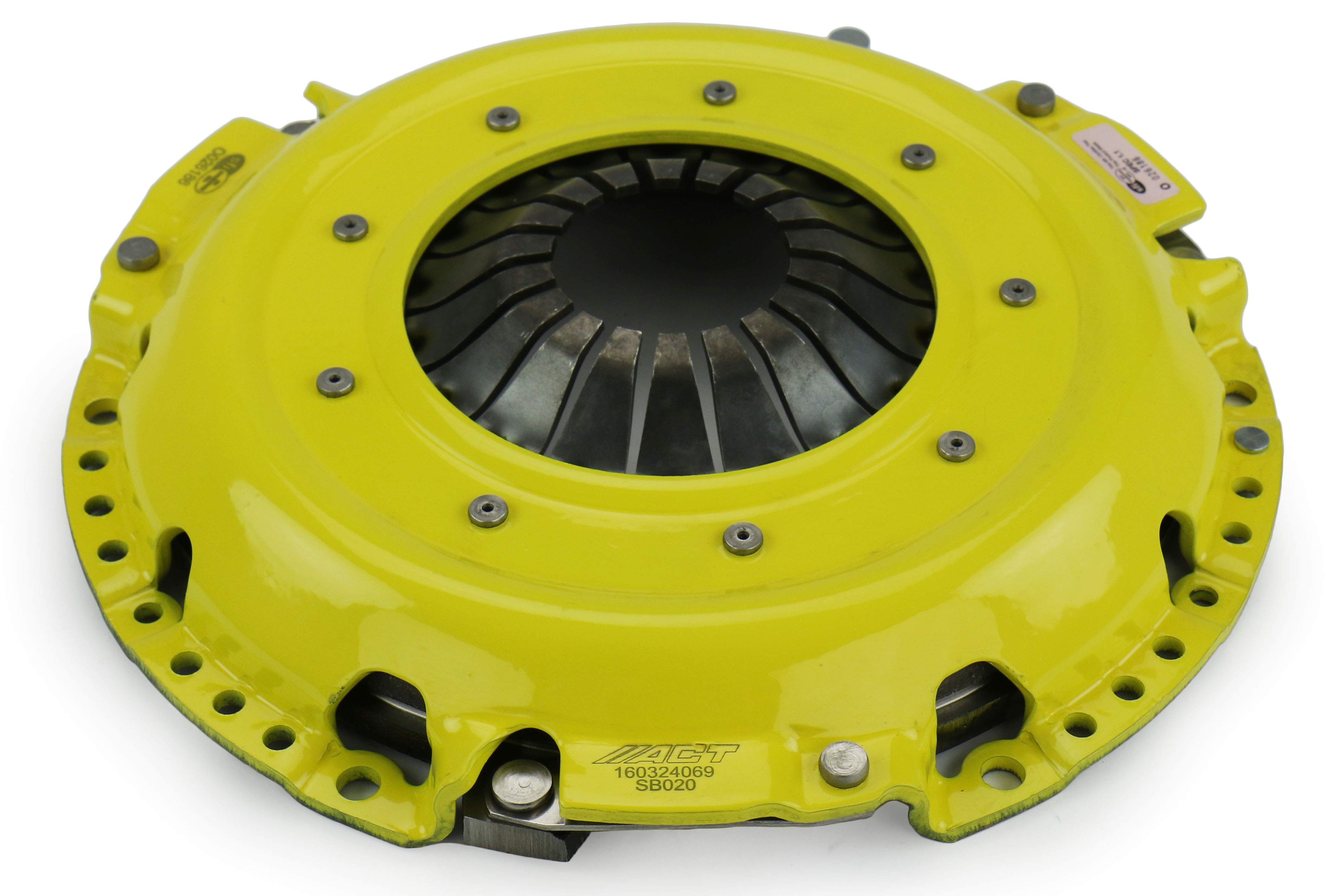

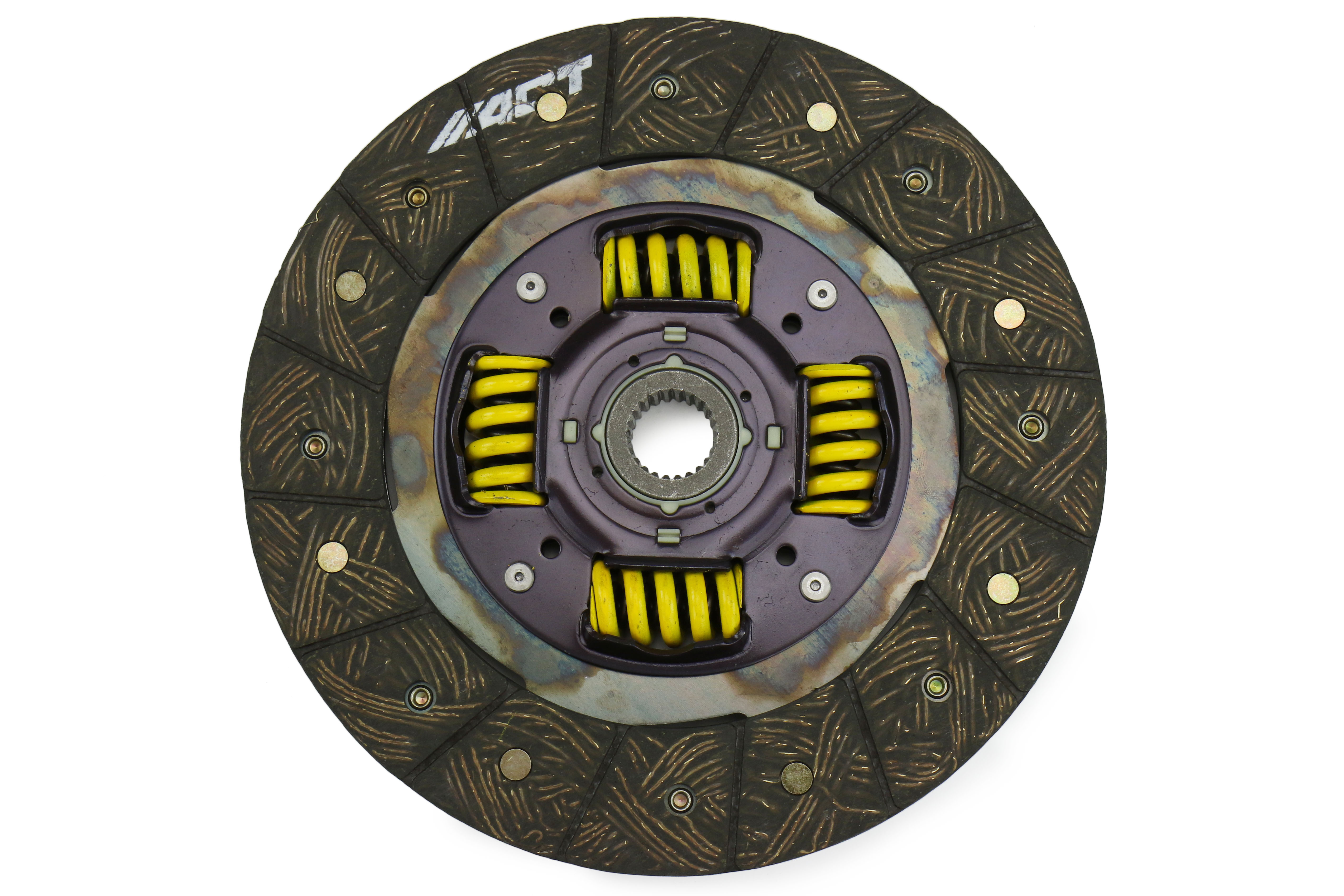

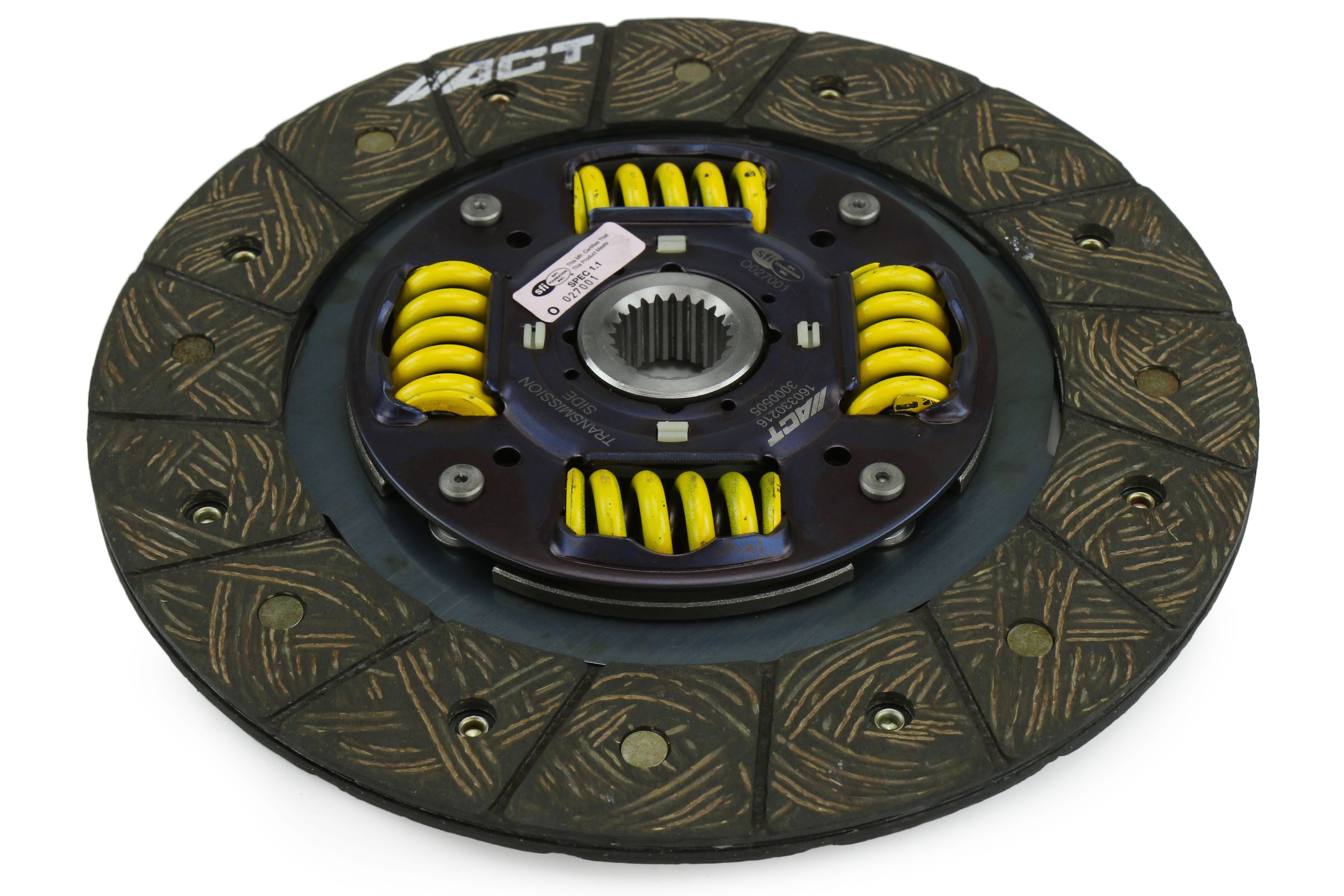

SB11-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

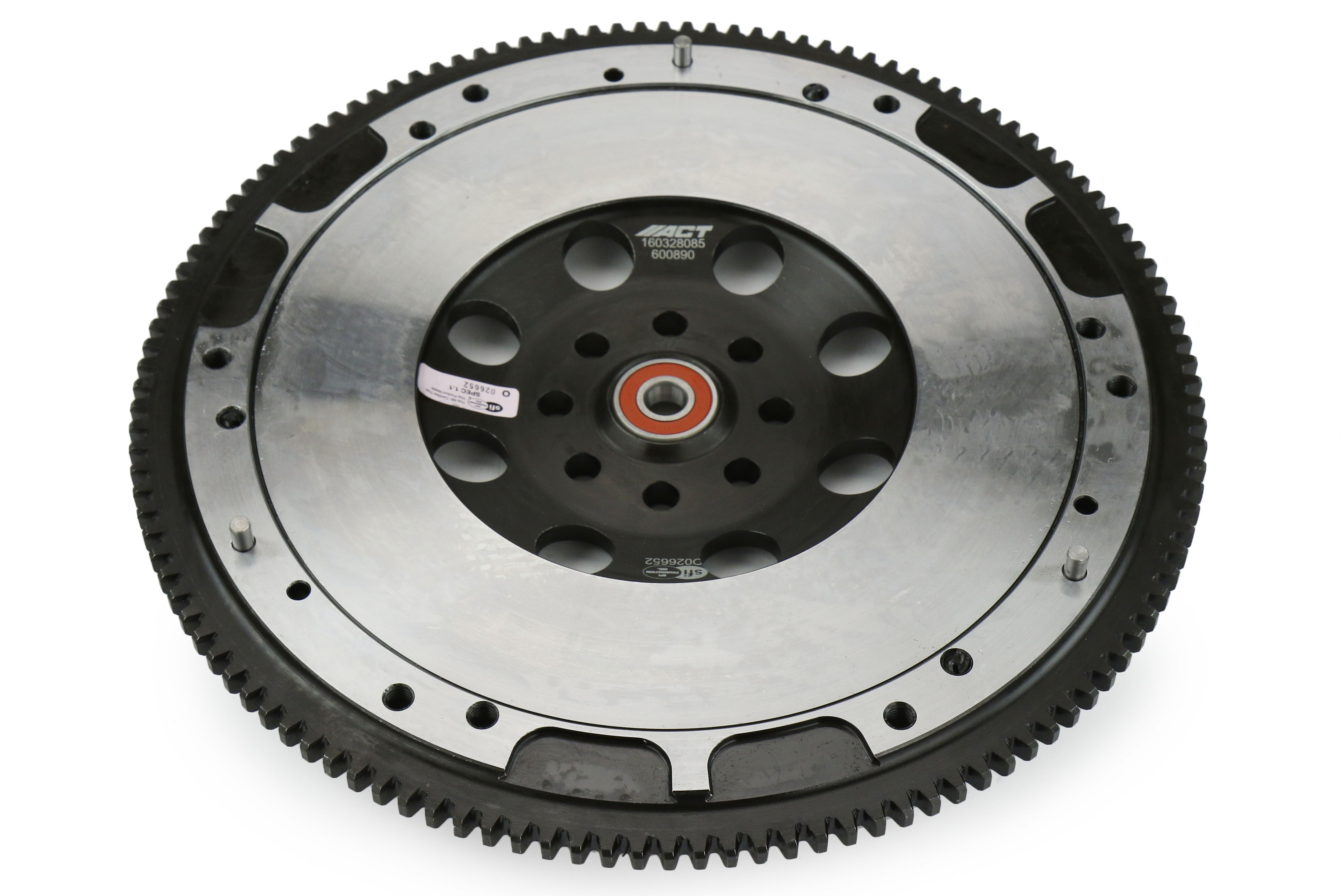

Application Note: 240mm upgrade. Must use ACT flywheel (included in kit).
Details
- Feel - Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
- Life - Longer friction life, extended by ACT's exclusive diaphragm design
- Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended Use - Recommended for street and race use
- ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specfications
Part Number: SB11-HDSS
Description: HD/Perf Street Sprung
Torque Capacity (ft/lbs.): 445
Torque Capacity Over OE: 32%
Flywheel Tooth Count: 124
Disc Type: Street Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9.4
Disc Diameter (mm.): 240
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 28.6

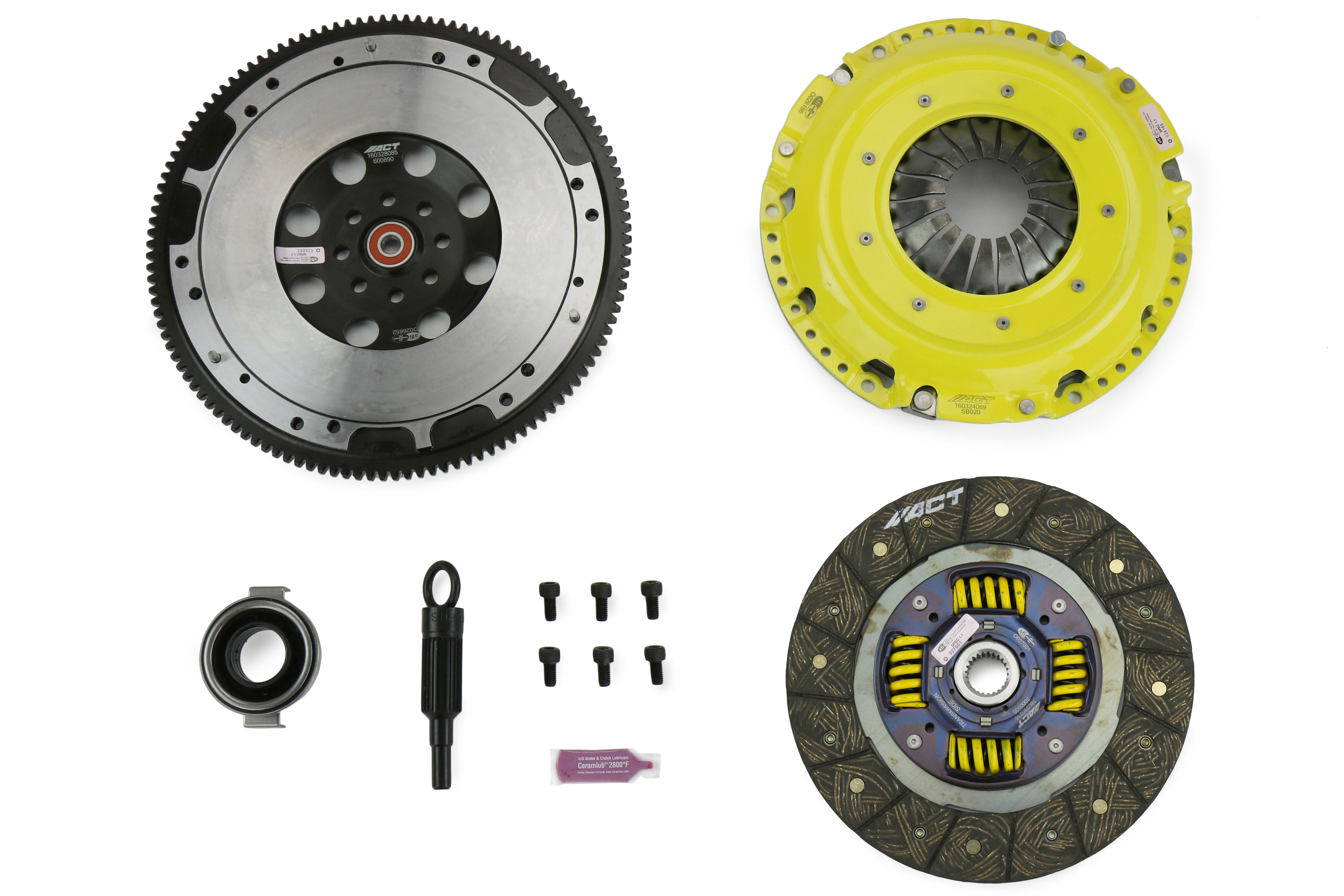

Kit Contents: SB020, 3000505, 600890, RB844, PB1004, AT90
Warranty (Product Warranty):One (1) Year from Retail PurchaseAdditional Information

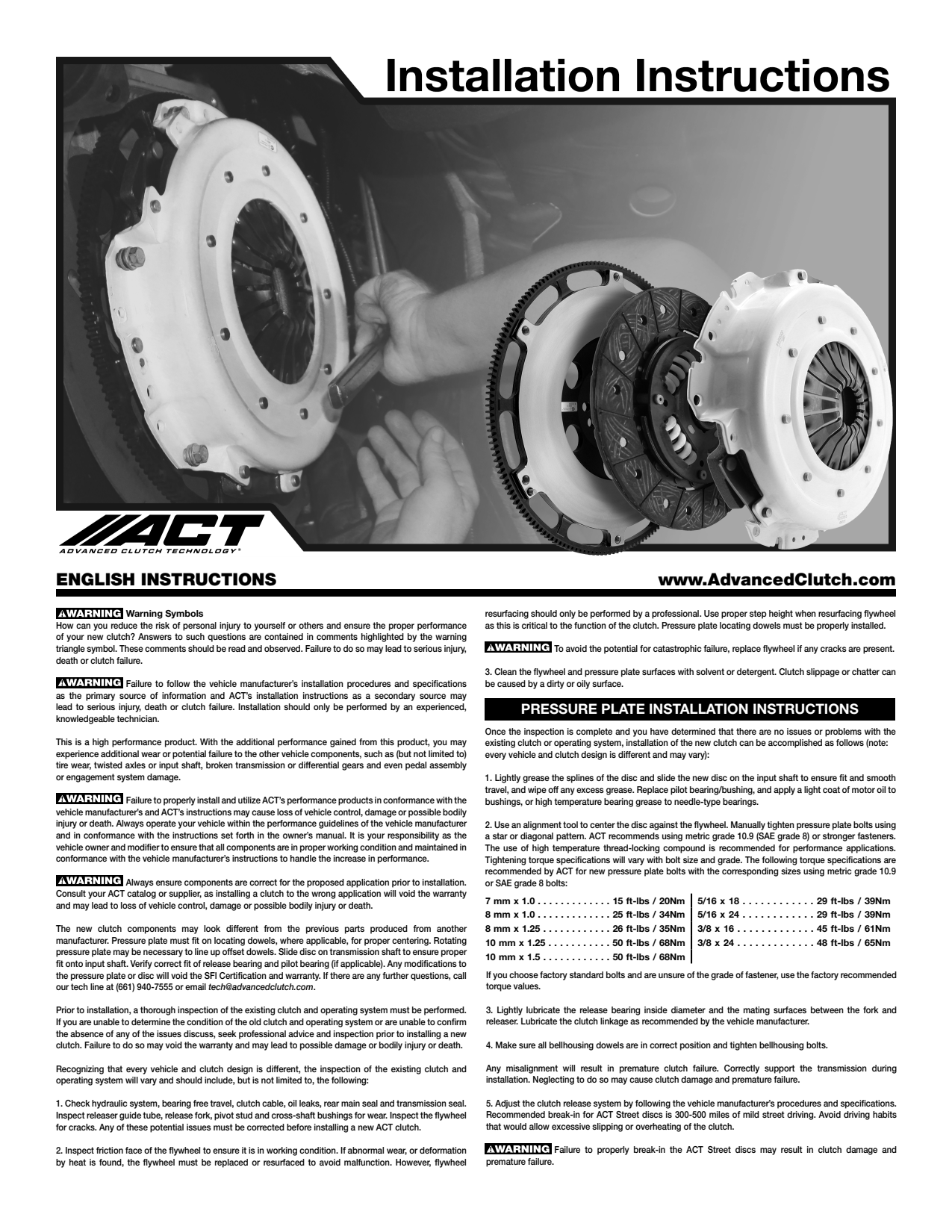

Installation Instructions Link Additional Warranty Information None
ACT HD Performance Street Sprung Clutch Kit w/ Flywheel / SB11-HDSS Fits
Subaru Forester Sports 2.5 XT2008 Subaru Forester Sports 2.5 XTXT Limited2006 Subaru Forester XT Limited2007 Subaru Forester XT Limited2008 Subaru Forester XT LimitedSubaru Impreza WRX2006 Subaru Impreza WRX2007 Subaru Impreza WRXWRX Hatchback2008 Subaru Impreza WRX Hatchback2009 Subaru Impreza WRX Hatchback2010 Subaru Impreza WRX Hatchback2011 Subaru Impreza WRX Hatchback2012 Subaru Impreza WRX Hatchback2013 Subaru Impreza WRX Hatchback2014 Subaru Impreza WRX HatchbackWRX Limited2006 Subaru Impreza WRX Limited2007 Subaru Impreza WRX LimitedWRX Limited Hatchback2010 Subaru Impreza WRX Limited Hatchback2011 Subaru Impreza WRX Limited Hatchback2012 Subaru Impreza WRX Limited Hatchback2013 Subaru Impreza WRX Limited Hatchback2014 Subaru Impreza WRX Limited HatchbackWRX Limited Sedan2010 Subaru Impreza WRX Limited Sedan2011 Subaru Impreza WRX Limited Sedan2012 Subaru Impreza WRX Limited Sedan2013 Subaru Impreza WRX Limited Sedan2014 Subaru Impreza WRX Limited SedanWRX Premium Hatchback2010 Subaru Impreza WRX Premium Hatchback2011 Subaru Impreza WRX Premium Hatchback2012 Subaru Impreza WRX Premium Hatchback2013 Subaru Impreza WRX Premium Hatchback2014 Subaru Impreza WRX Premium HatchbackWRX Premium Sedan2010 Subaru Impreza WRX Premium Sedan2011 Subaru Impreza WRX Premium Sedan2012 Subaru Impreza WRX Premium Sedan2013 Subaru Impreza WRX Premium Sedan2014 Subaru Impreza WRX Premium SedanWRX Sedan2008 Subaru Impreza WRX Sedan2009 Subaru Impreza WRX Sedan2010 Subaru Impreza WRX Sedan2011 Subaru Impreza WRX Sedan2012 Subaru Impreza WRX Sedan2013 Subaru Impreza WRX Sedan2014 Subaru Impreza WRX SedanWRX TR2006 Subaru Impreza WRX TR2007 Subaru Impreza WRX TRSubaru Legacy GT2005 Subaru Legacy GT2006 Subaru Legacy GTGT LIMITED2006 Subaru Legacy GT LIMITEDGT Limited2005 Subaru Legacy GT Limited2007 Subaru Legacy GT Limited2008 Subaru Legacy GT Limited2009 Subaru Legacy GT LimitedSubaru Outback XT2005 Subaru Outback XT2006 Subaru Outback XTXT Limited2005 Subaru Outback XT Limited2007 Subaru Outback XT Limited2008 Subaru Outback XT Limited2009 Subaru Outback XT LimitedSubaru WRX Base2015 Subaru WRX Base2016 Subaru WRX Base2017 Subaru WRX Base2018 Subaru WRX Base2019 Subaru WRX Base2020 Subaru WRX BaseLimited2015 Subaru WRX Limited2016 Subaru WRX Limited2017 Subaru WRX Limited2018 Subaru WRX Limited2019 Subaru WRX Limited2020 Subaru WRX LimitedPremium2015 Subaru WRX Premium2016 Subaru WRX Premium2017 Subaru WRX Premium2018 Subaru WRX Premium2019 Subaru WRX Premium2020 Subaru WRX Premium1 customer review
Average ratingEase of Installation Fit / Quality Overall Satisfaction -
Nice kit
The transmission was hard to pull! However, the kit bolted right in and was fairly easy to install. I've had it on for a couple thousand miles now and I really like how it feels. It is harder to engage in first due to the light flywheel but I daily it just fine. Expect a little bit of chatter when first breaking in.
