ACT HD Race Rigid 4 Pad Clutch Kit w/ Flywheel
2006-2021 Subaru WRX / 2005-2009 Subaru Legacy GT
Ships for free in the 48 states
SKU: SB11-HDR4We price match!

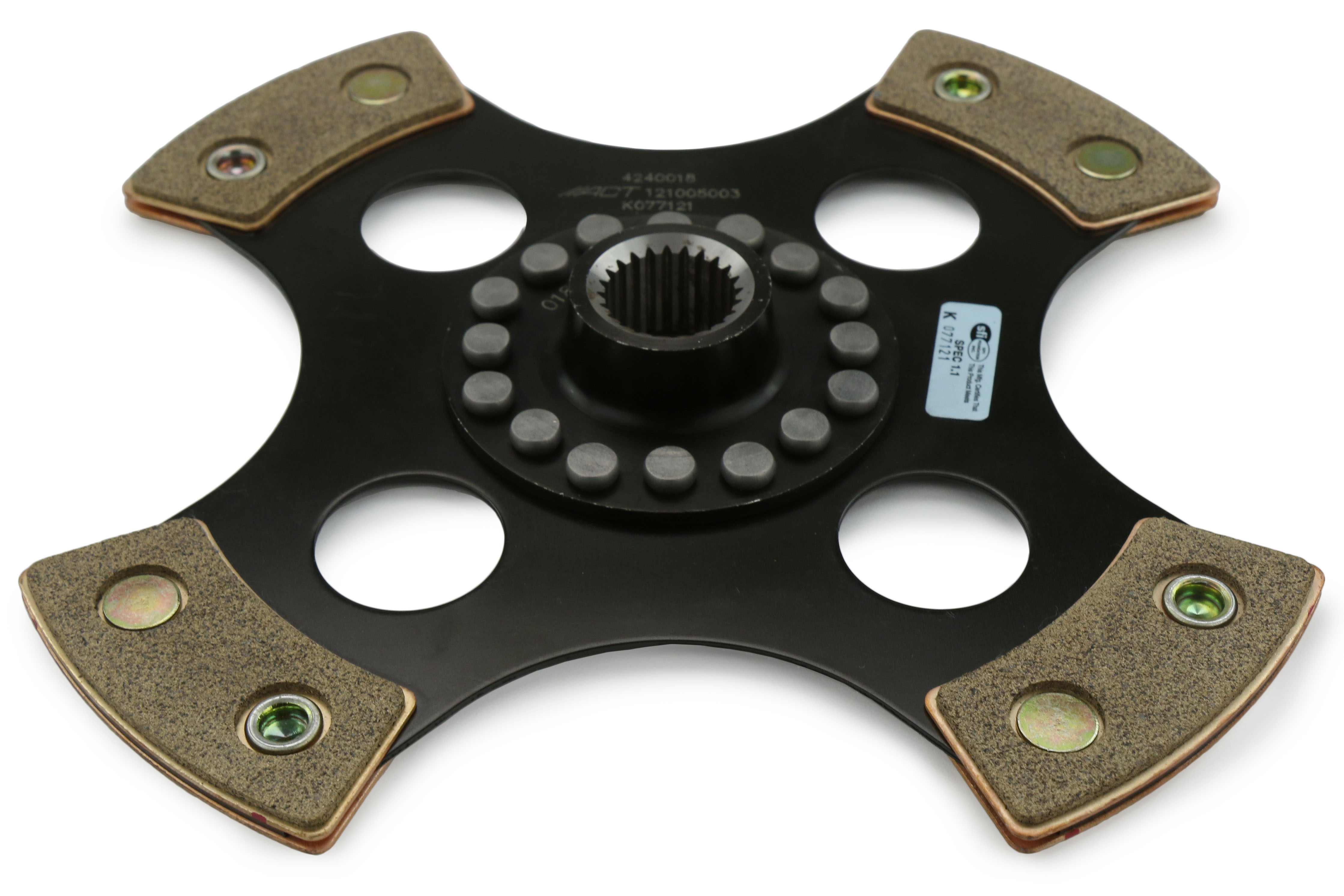

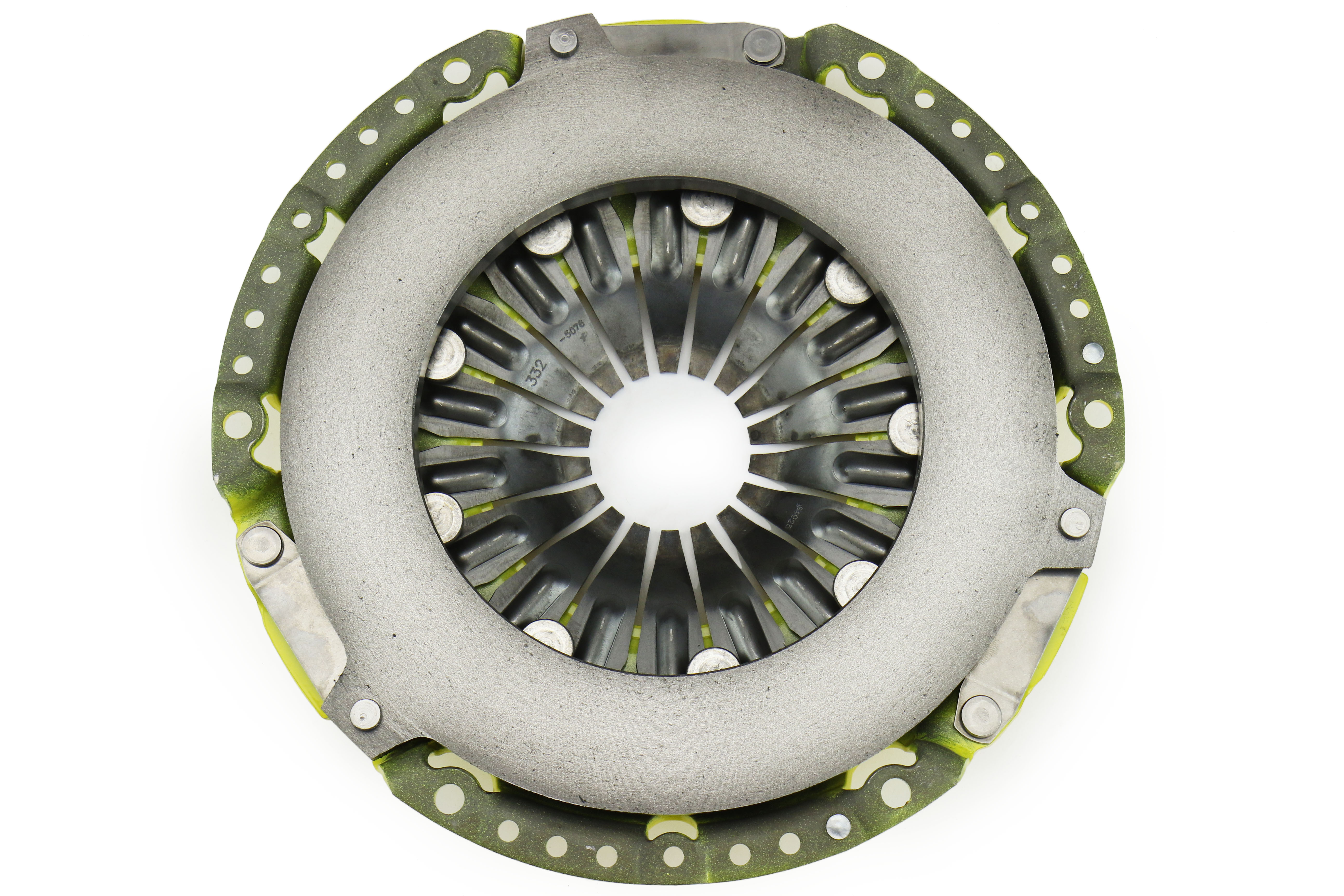

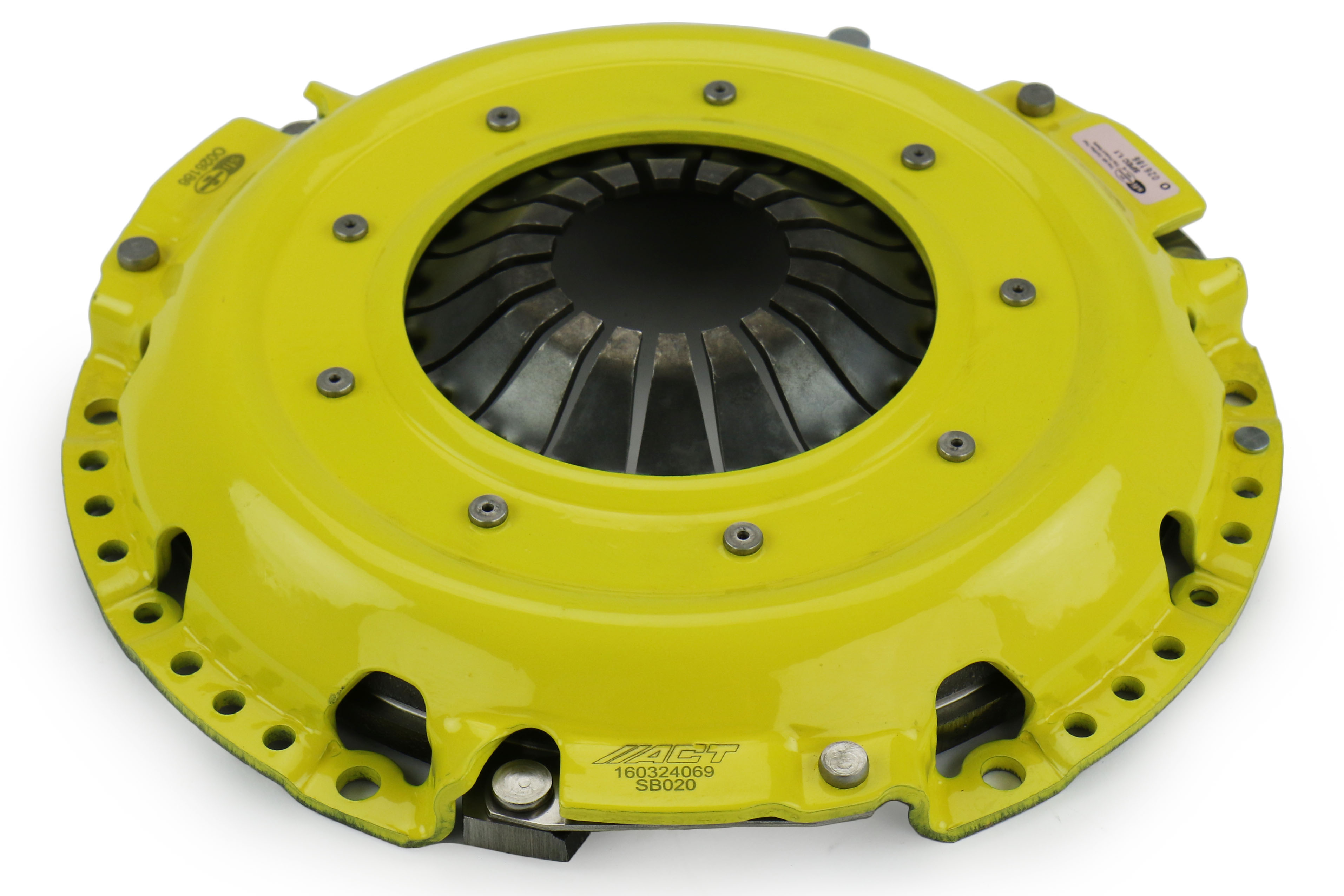

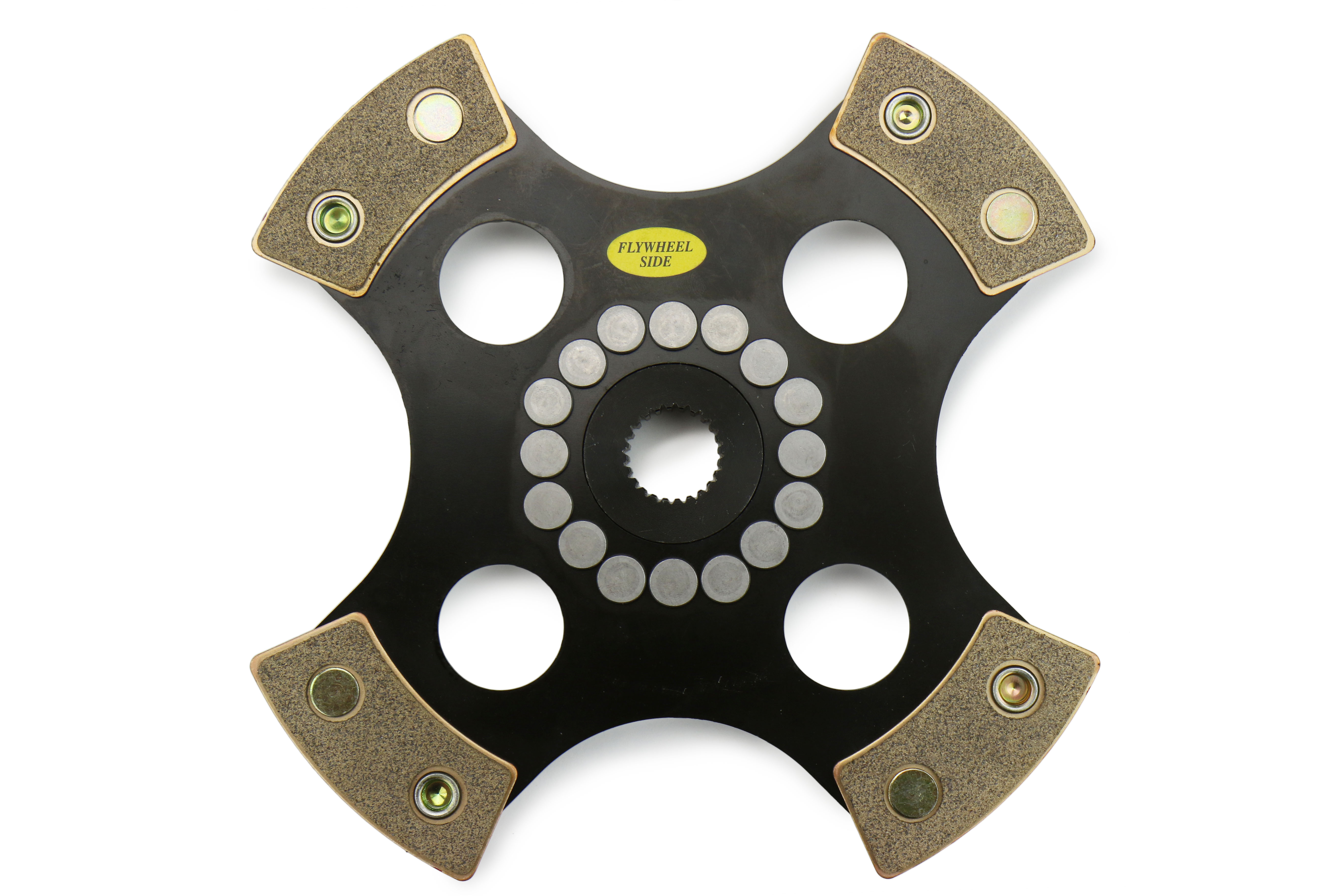

SB11-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

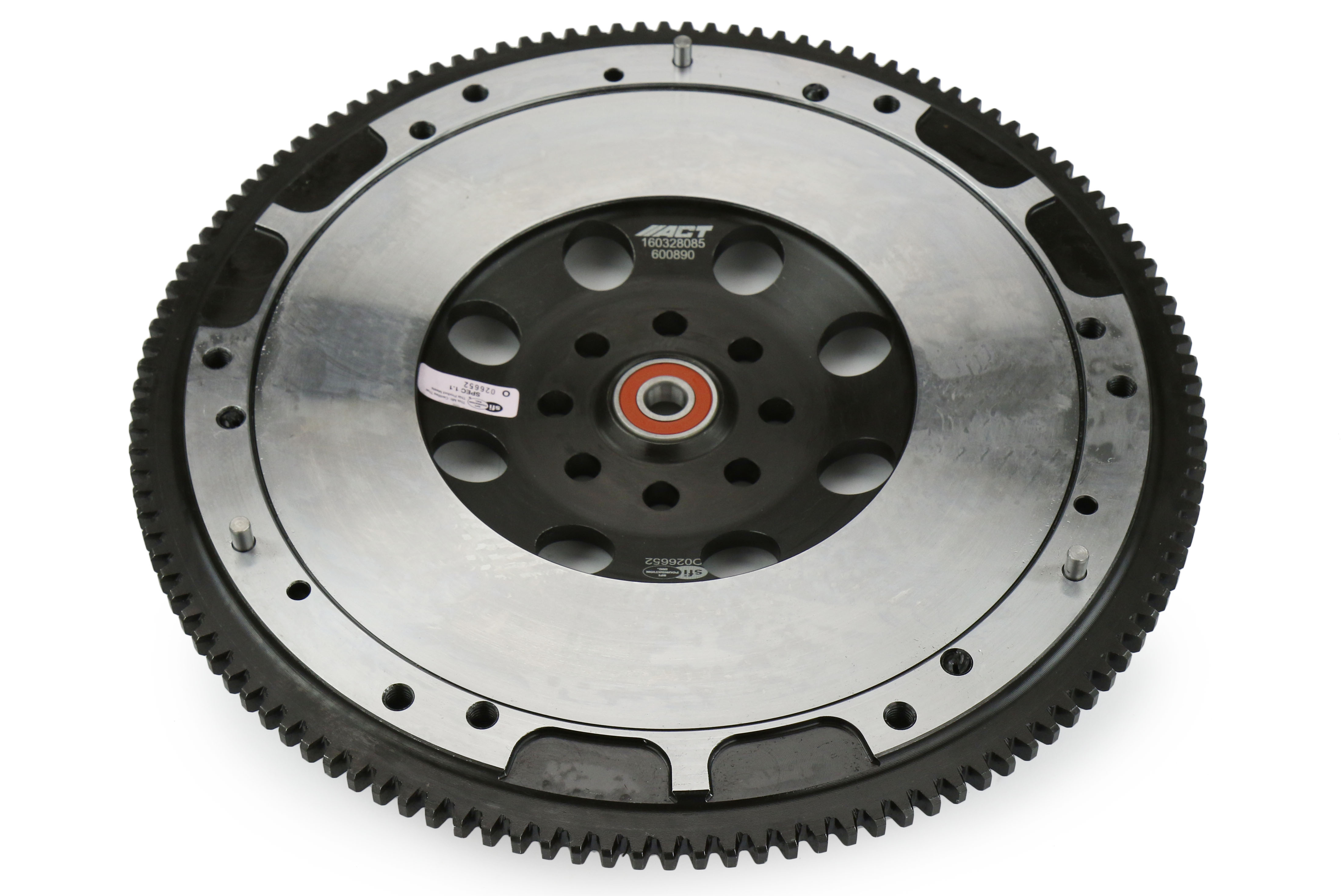

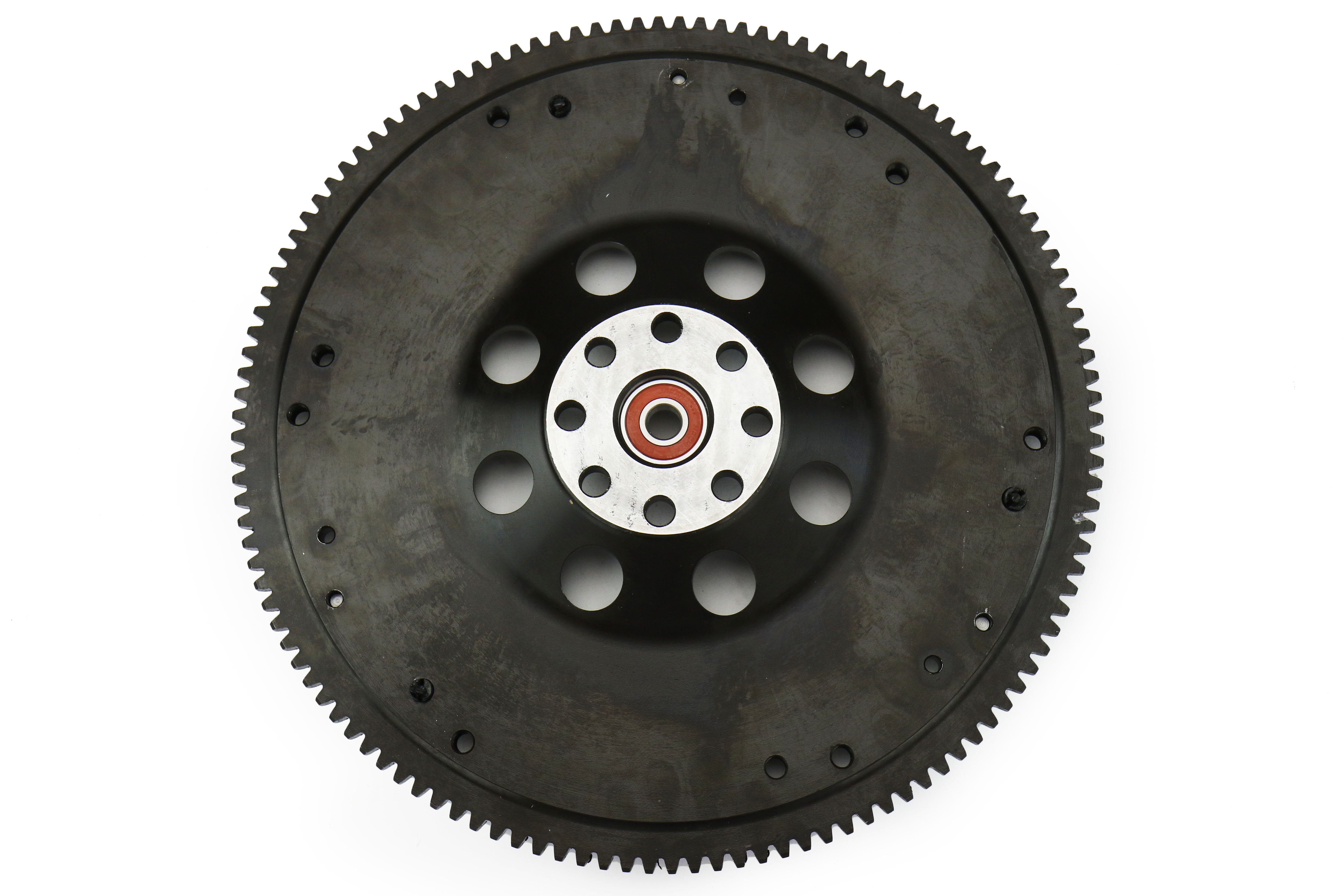

NOTE: Subaru has increased the clutch component sizes. Aftermarket clutches that include a flywheel must have the flywheel installed, as designed by the manufacturer.
The included flywheel must be installed due to a larger clutch components on the OEM clutches.
Application Note: 240mm upgrade. Must use ACT flywheel (included in kit).
- Feel - Light to moderate pedal effort, aggressive engagement, increased gear rattle
- Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
- Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended Use - Recommended for race use only
- ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Part Number: SB11-HDR4
Description: HD/Race Rigid 4 Pad
Torque Capacity (ft/lbs.): 565
Torque Capacity Over OE: 69%
Flywheel Tooth Count: 124
Disc Type: Race Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 9.4
Disc Diameter (mm.): 240
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 27.1

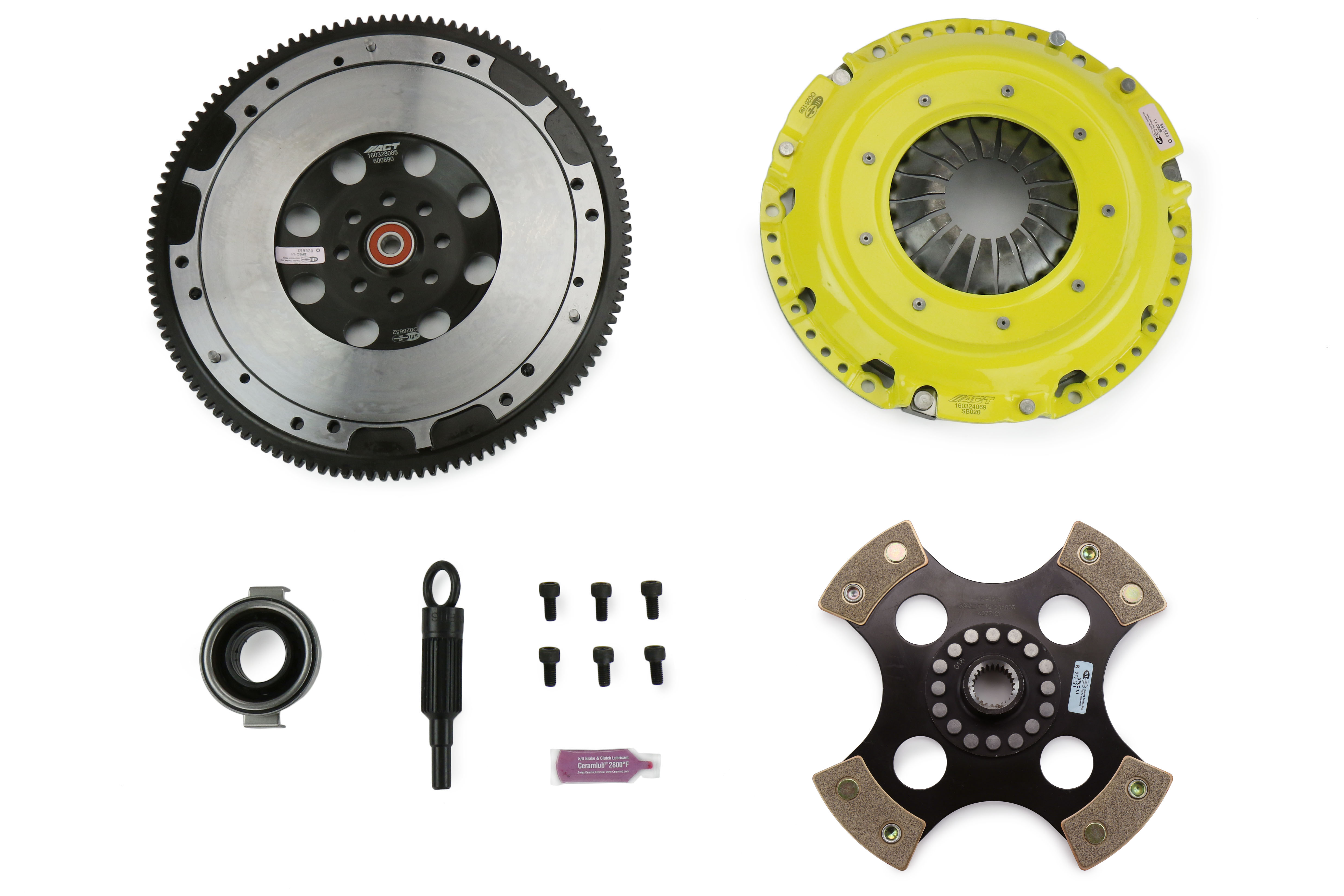

Kit Contents: SB020, 4240018, 600890, RB844, PB1004, AT90
Warranty (Product Warranty):One (1) Year from Retail Purchase
|Additional Warranty Information||None|
