Tial QR Recirculating Blow Off Valve 10psi Spring Black 1.34in Outlet
Universal
Details

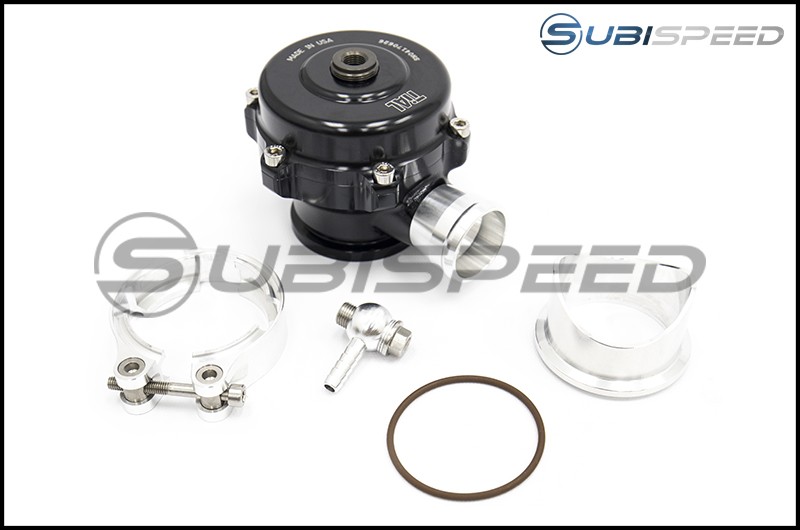

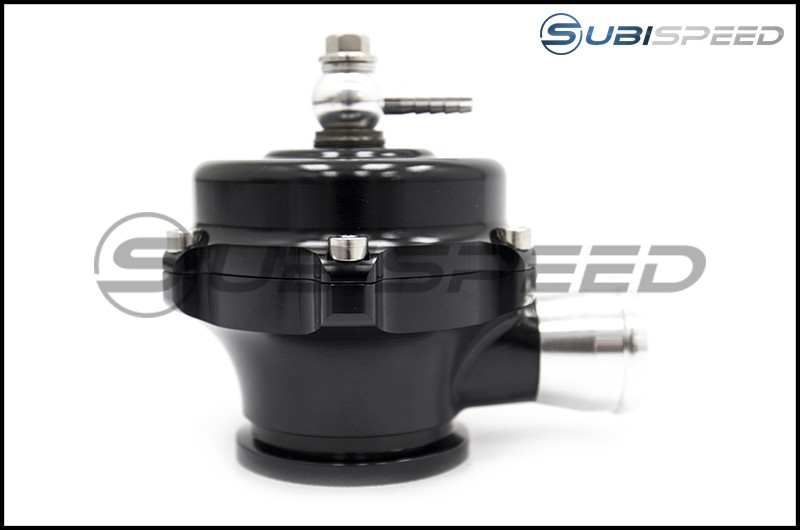

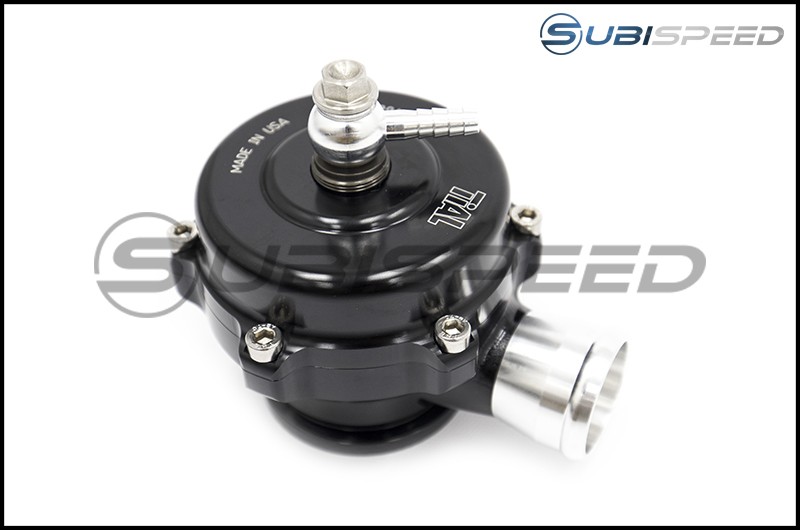

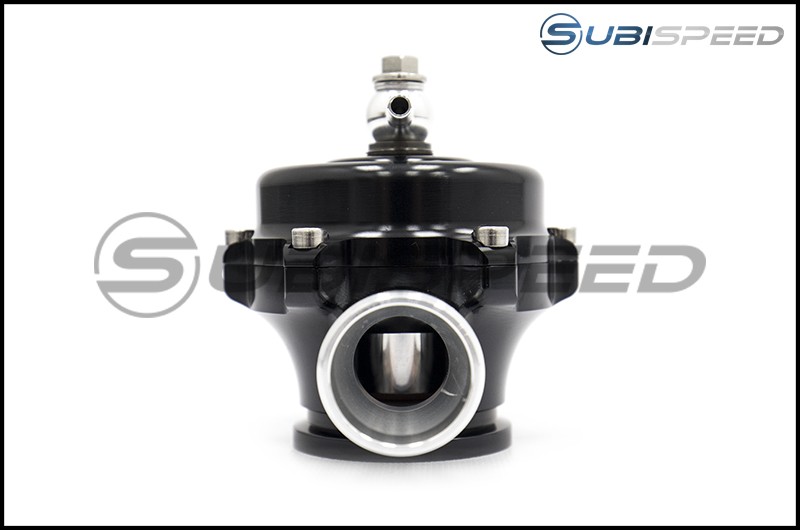

Tial QR Recirculating Blow Off Valve 10psi Spring Black 1.34in Outlet
The Tial QR Recirculating Blow-Off Valve is the recirculated version of the newer Q version of the popular Tial 50mm valve. Uses the same weld flanges as the original.
The QR's are set up to accept two different types of return fittings - 1" for Bosch style BPV's and 1.34" for DSM and Evo type valves. This is the 1.34" variant.
The spring pressure in the valve does not correlate with the amount of boost pressure you want to run. The size spring you need is determined by your engine vacuum at idle. Please refer to the charge below to select the right pressure for you.
ENGINE VACUUM READING SPRING COLOR SPRING RATE -22 and -23 in/Hg Brown -12 PSI (-24 in/Hg) -20 and -21 in/Hg Yellow -11 PSI (-22 in/Hg) -16 and -19 in/Hg Un-painted -10 PSI (-20 in/Hg) -12 and -15 in/Hg White -8 PSI (-16 in/Hg) -8 and -11 in/Hg Black -6 PSI (-12 in/Hg)
