Hella
Hella Sharptone Kit with Bracket and Wiring
2015-2020 Subaru WRX & STI
Hella horns can increase situational awareness for drivers in your vicinity. To simplify installation, we've made a vehicle specific bracket and wiring for these popular horns.
This is a kit we assemble. Usually all components are in stock. Sometimes popular colors can have delays but we do our best to keep every color on hand at all times.
Details

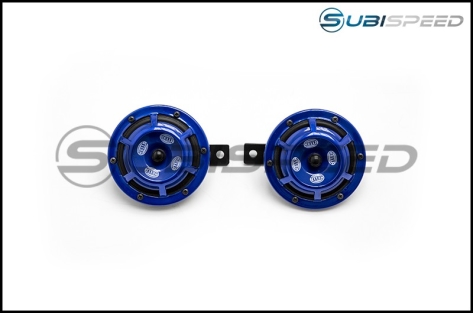

SubiSpeed Hella Sharptone Horn Kit with Bracket and Wiring
Hella horns can increase situational awareness for drivers in your vicinity. To simplify installation, we've made a vehicle specific bracket and wiring for these popular horns.

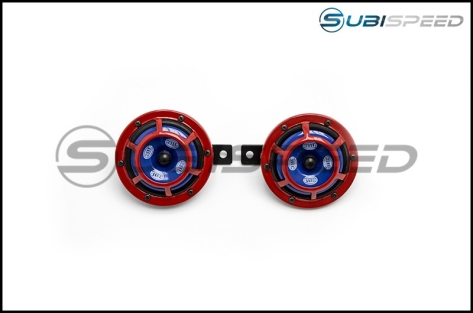

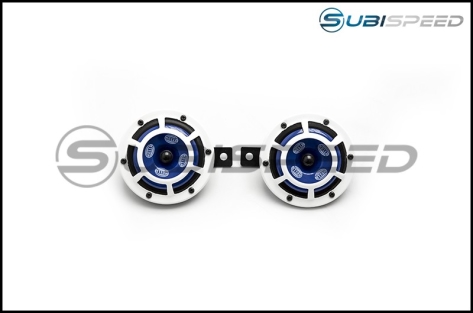

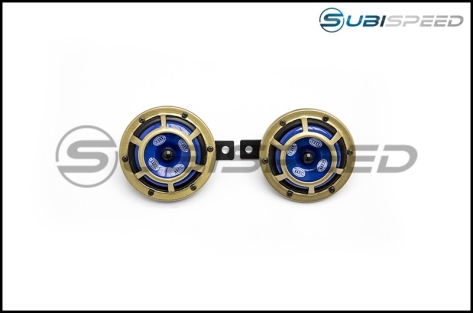

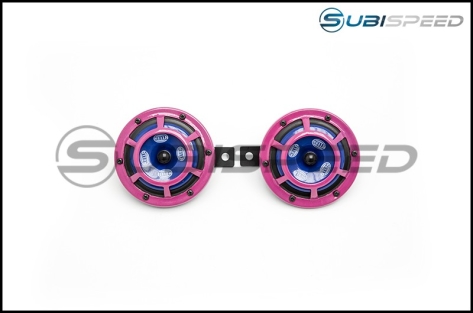

The center of the Supertone horns are black from the factory and the center of the Sharptones are blue. This will not change even if a custom grille color is chosen.
SubiSpeed Installation Video

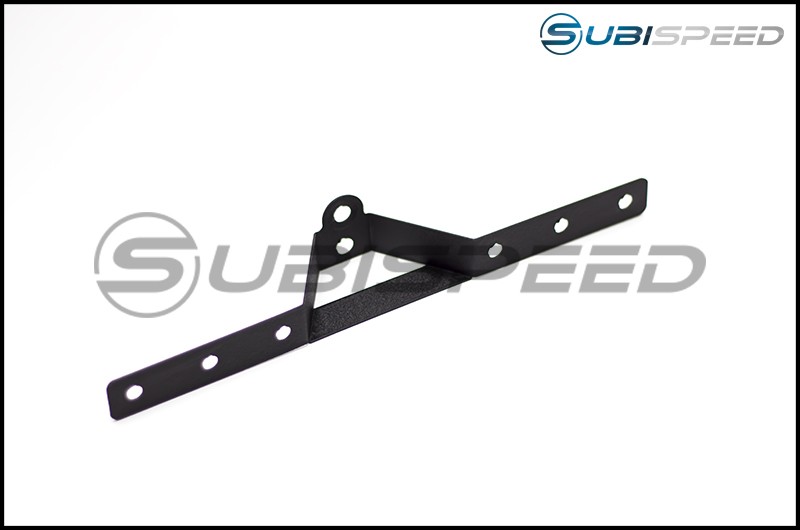

Bracket
It was important for us to make a vehicle specific bracket for the 2015 WRX / WRX STI. We wanted customers to be able to place their horns exactly where they wanted to without interfering with the front grille or radiator. The mounting bracket uses two points to secure itself firmly to the vehicle.

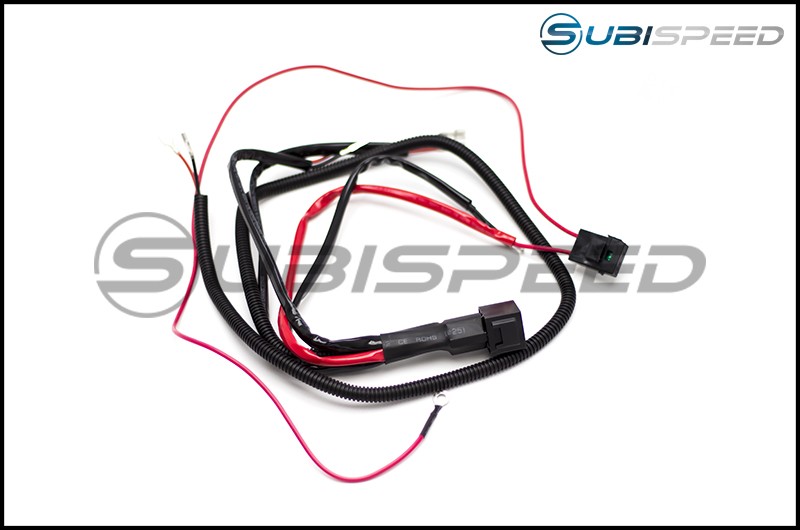

SubiSpeed Wiring Harness V1

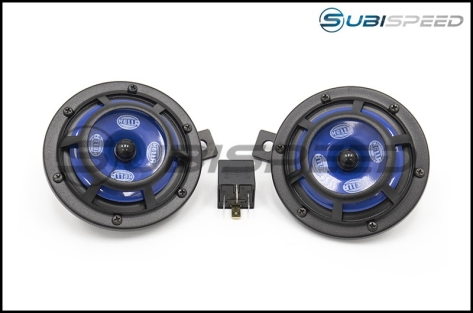

With the mounting location and factory plug design in mind, we made a harness to simplify the installation. It includes a 12V relay and inline fuse.

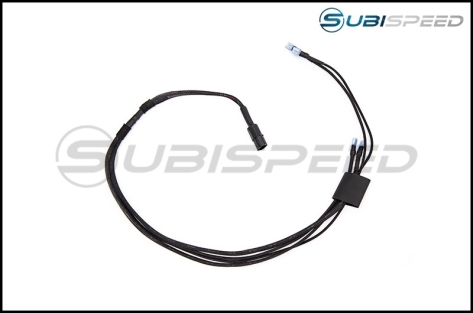

Hella Horn Plug and Play Harness V2
This newer harness is plug and play. For 2015-2017 vehicles, just connect it to the old driver's side horn plug (disconnect from original driver's side horn). Then use the heat shrink to cover this connection. Connect 1 pair of wires to each horn (1 red, 1 black wire). For 2018+ models, you must trace the passenger side horn harness up to where it connects to the main headlight harness AND choose the EXTENDED version. Use this connection for the plug and play harness.
NOTE: You MUST use the heatshrink over the V2 harness connector and the OEM connector.

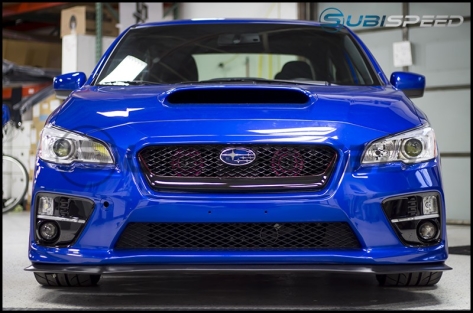

Also Shown In Subispeed's 2016 Grille Showcase
Hella Super Tone Information
With over 100 years of expertise working with leading German luxury brands, we know what defines performance. Be assured of satisfaction as each HELLA horn is individually tuned to deliver optimal sound performance.
Compare Sounds
Listen to the sounds of the Super Tone and Sharp Tone horns on your smartphone or listen to our Youtube video.
Android Phones - Google Play
iTunes for iPhones - iTunes
iTunes for iPads - iTunes
Hella Super Tones Technical Specifications
- Sound Level: 118 Db (A)
- Frequency: 500 Hz High-tone/300 Hz Low-tone
- Power: 2 x 66W
Hella Sharp Tones Technical Specifications
- Sound Level: 115 Db (A)
- Frequency: 415 Hz High-tone/350 Hz Low-tone
- Power: 2 x 42W
Kit Contents
- Two Hella Super Tone or Sharp Tone Horns
- SubiSpeed Mounting Bracket
- SubiSpeed Wiring Harness
- Zip Ties
- Bolts / nuts for mounting the horns
