- IAG Performance Adjustable Timing Idler Kit
IAG
IAG Performance Adjustable Timing Idler Kit
2002-2014 Subaru WRX / 2004-2021 Subaru STI
The IAG Performance Adjustable Timing Idler kit is specifically intended to properly align the camshafts on Subaru EJ20/EJ25 cylinder heads and/or blocks that were resurfaced (“Reducing” long block length), or utilize thicker head gaskets (“Increasing” long block length). The ability to adjust and properly align the cams is recommended for any performance built Subaru.
Details
IAG Performance Adjustable Timing Idler Kit
Highlights
- CNC machined and hand assembled in-house
- Manufactured to strict OEM tolerances
- Specifically intended to properly align the camshafts on Subaru EJ20/EJ25 cylinder heads and/or blocks that were resurfaced
- Developed and extensively tested and proven in the LIC Time-Attack program
- These pulleys are a single roller bearing design
- Street cars should replace every 60k miles
- Race/Track cars should replace yearly and/or each engine teardown

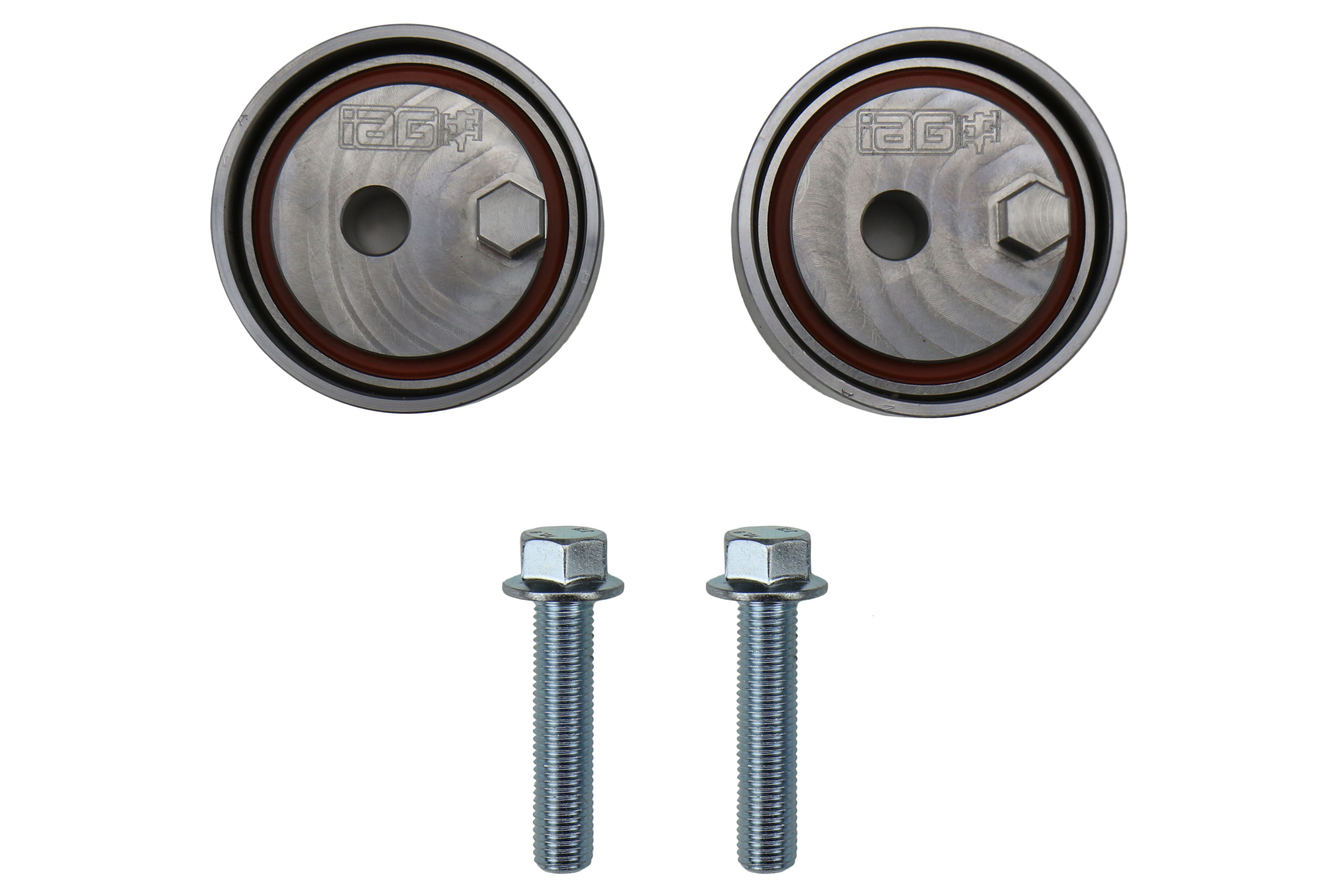

- Includes(x2) OEM Quality Idlers with CNC machined Eccentrics (Single roller bearing design, (x2) M10 Zinc Plated Bolts
Proven on the Track
IAG is excited to announce that we have acquired the rights to LIC Motorsport’s Adjustable Timing Idlers. In an effort to continue offering an extremely popular and proven product to the Subaru community, IAG approached LIC in early 2020 with the intention of expanding their offerings to IAG’s growing network of retail and wholesale clients. Once terms were agreed upon, some very minor design tweaks and adjustments were made to the product.
The timing idlers were developed and extensively tested and proven in the LIC Time-Attack program. Over the past decade the eccentric idlers have become the installer’s standard in both street and motorsports applications, playing a helpful role in bringing cams back into proper alignment with heads or blocks that have been resurfaced or feature thicker head gaskets.
The IAG Performance Adjustable Timing Idler kit is specifically intended to properly align the camshafts on Subaru EJ20/EJ25 cylinder heads and/or blocks that were resurfaced (“Reducing” long block length), or utilize thicker head gaskets (“Increasing” long block length). The ability to adjust and properly align the cams is recommended for any performance built Subaru.

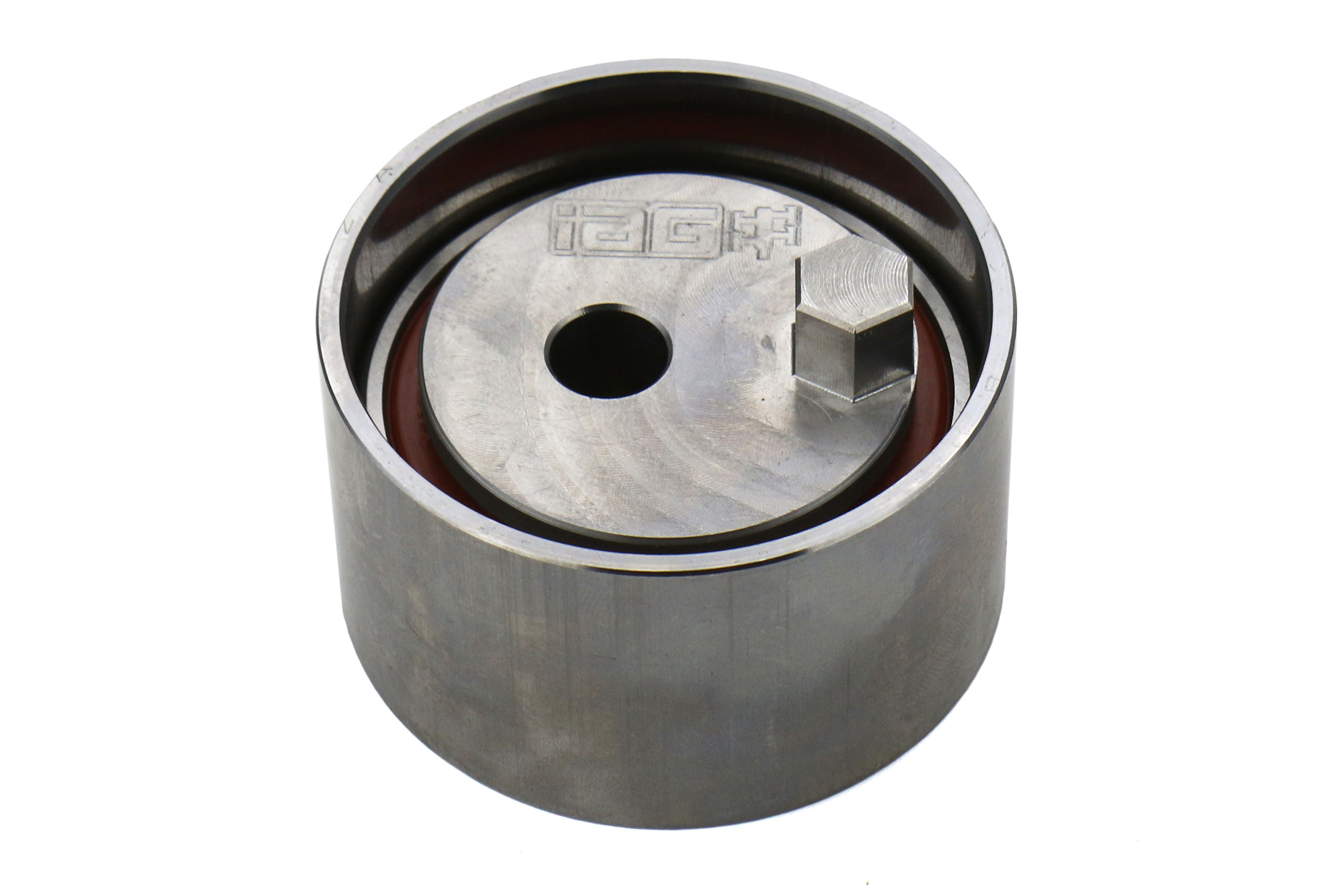

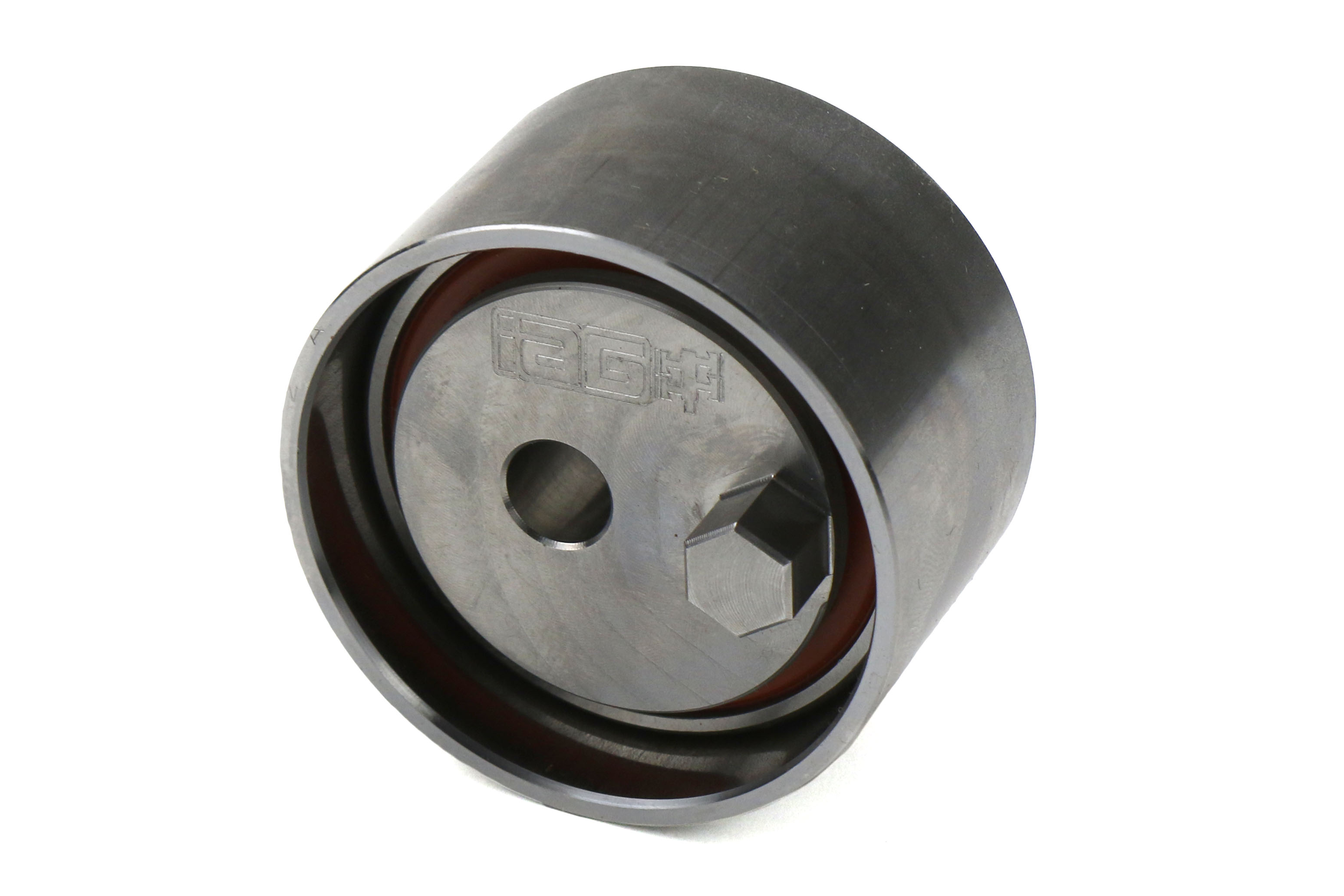

The product is precision CNC machined and hand assembled in-house. Each idler features a machined 10mm hex enabling your socket to hold it in place while you adjust the timing to perfection. The idlers come engraved with the IAG logo on the face and are manufactured to strict OEM tolerances.
How it all works:
Idler #1: This upper idler when adjusted affects the RIGHT (Passenger side) intake/exhaust cams.
Idler #2: This lower idler when adjusted affects the LEFT (Driver side) intake/exhaust cams.
The adjustable idler kit is designed for long blocks that were reduced in overall length due to resurfacing the heads during a rebuild or decking the block and/or both. When that process is done it effectively retards the timing, because the belt has not changed length and something needs to make up that difference in the slack (the tensioner can only do so much). Likewise if you utilize thicker head gaskets, the same issue is present (just vice versa, which is increasing the overall long block length).
Install Warning & Maintenance:
- A professional install by facilities well versed with Subaru engine builds is highly recommended.
- At no point in time should these idlers ever be maxed out and used as a means to suffice a poor quality block/heads that have been machined down too far. The idlers should never be used for timing components that are more than 1 tooth out of alignment. A motor that is off by more than 1 tooth has other underlying issues.
- Inspection of threaded areas that the old idlers came off from is essential. Catastrophic failure can result from performing this job improperly.
- Street cars should replace every 60k miles!
- Race/Track cars should replace yearly and/or each engine teardown
Additional Information
Installation Instructions None Additional Warranty Information None
IAG Performance Adjustable Timing Idler Kit / IAG-ENG-5120 Fits
Subaru Impreza WRX2002 Subaru Impreza WRX2003 Subaru Impreza WRX2004 Subaru Impreza WRX2005 Subaru Impreza WRX2006 Subaru Impreza WRX2007 Subaru Impreza WRXWRX Hatchback2008 Subaru Impreza WRX Hatchback2009 Subaru Impreza WRX Hatchback2010 Subaru Impreza WRX Hatchback2011 Subaru Impreza WRX Hatchback2012 Subaru Impreza WRX Hatchback2013 Subaru Impreza WRX Hatchback2014 Subaru Impreza WRX HatchbackWRX Limited2006 Subaru Impreza WRX Limited2007 Subaru Impreza WRX LimitedWRX Limited Hatchback2010 Subaru Impreza WRX Limited Hatchback2011 Subaru Impreza WRX Limited Hatchback2012 Subaru Impreza WRX Limited Hatchback2013 Subaru Impreza WRX Limited Hatchback2014 Subaru Impreza WRX Limited HatchbackWRX Limited Sedan2010 Subaru Impreza WRX Limited Sedan2011 Subaru Impreza WRX Limited Sedan2012 Subaru Impreza WRX Limited Sedan2013 Subaru Impreza WRX Limited Sedan2014 Subaru Impreza WRX Limited SedanWRX Premium Hatchback2010 Subaru Impreza WRX Premium Hatchback2011 Subaru Impreza WRX Premium Hatchback2012 Subaru Impreza WRX Premium Hatchback2013 Subaru Impreza WRX Premium Hatchback2014 Subaru Impreza WRX Premium HatchbackWRX Premium Sedan2010 Subaru Impreza WRX Premium Sedan2011 Subaru Impreza WRX Premium Sedan2012 Subaru Impreza WRX Premium Sedan2013 Subaru Impreza WRX Premium Sedan2014 Subaru Impreza WRX Premium SedanWRX STI2004 Subaru Impreza WRX STI2005 Subaru Impreza WRX STI2006 Subaru Impreza WRX STI2007 Subaru Impreza WRX STIWRX STI Hatchback2008 Subaru Impreza WRX STI Hatchback2009 Subaru Impreza WRX STI Hatchback2010 Subaru Impreza WRX STI Hatchback2011 Subaru Impreza WRX STI Hatchback2012 Subaru Impreza WRX STI Hatchback2013 Subaru Impreza WRX STI Hatchback2014 Subaru Impreza WRX STI HatchbackWRX STI Limited2007 Subaru Impreza WRX STI LimitedWRX STI Limited Hatchback2011 Subaru Impreza WRX STI Limited Hatchback2012 Subaru Impreza WRX STI Limited Hatchback2013 Subaru Impreza WRX STI Limited Hatchback2014 Subaru Impreza WRX STI Limited HatchbackWRX STI Limited Sedan2011 Subaru Impreza WRX STI Limited Sedan2012 Subaru Impreza WRX STI Limited Sedan2013 Subaru Impreza WRX STI Limited Sedan2014 Subaru Impreza WRX STI Limited SedanWRX STI Sedan2011 Subaru Impreza WRX STI Sedan2012 Subaru Impreza WRX STI Sedan2013 Subaru Impreza WRX STI Sedan2014 Subaru Impreza WRX STI SedanWRX STI Special Edition Hatchback2010 Subaru Impreza WRX STI Special Edition HatchbackWRX Sedan2008 Subaru Impreza WRX Sedan2009 Subaru Impreza WRX Sedan2010 Subaru Impreza WRX Sedan2011 Subaru Impreza WRX Sedan2012 Subaru Impreza WRX Sedan2013 Subaru Impreza WRX Sedan2014 Subaru Impreza WRX SedanWRX TR2006 Subaru Impreza WRX TR2007 Subaru Impreza WRX TRSubaru WRX STI Base2015 Subaru WRX STI Base2016 Subaru WRX STI Base2017 Subaru WRX STI Base2018 Subaru WRX STI Base2019 Subaru WRX STI Base2020 Subaru WRX STI BaseLaunch Edition2015 Subaru WRX STI Launch EditionLimited2015 Subaru WRX STI Limited2016 Subaru WRX STI Limited2017 Subaru WRX STI Limited2018 Subaru WRX STI Limited2019 Subaru WRX STI Limited2020 Subaru WRX STI LimitedS2092020 Subaru WRX STI S209Series.HyperBlue2016 Subaru WRX STI Series.HyperBlueType RA2018 Subaru WRX STI Type RA0 customer reviews
