IAG

IAG Oil Control Baffle & Windage Tray + V2 SS Oil Pickup for EJ

2015-2021 Subaru STI

$299.99
Ships for free in the 48 states

SKU: IAG-ENG-2101

In Stock

The Oil Pickup. Control Baffle and Windage Tray will prevent oil starvation issues in the Subaru STI.

Details

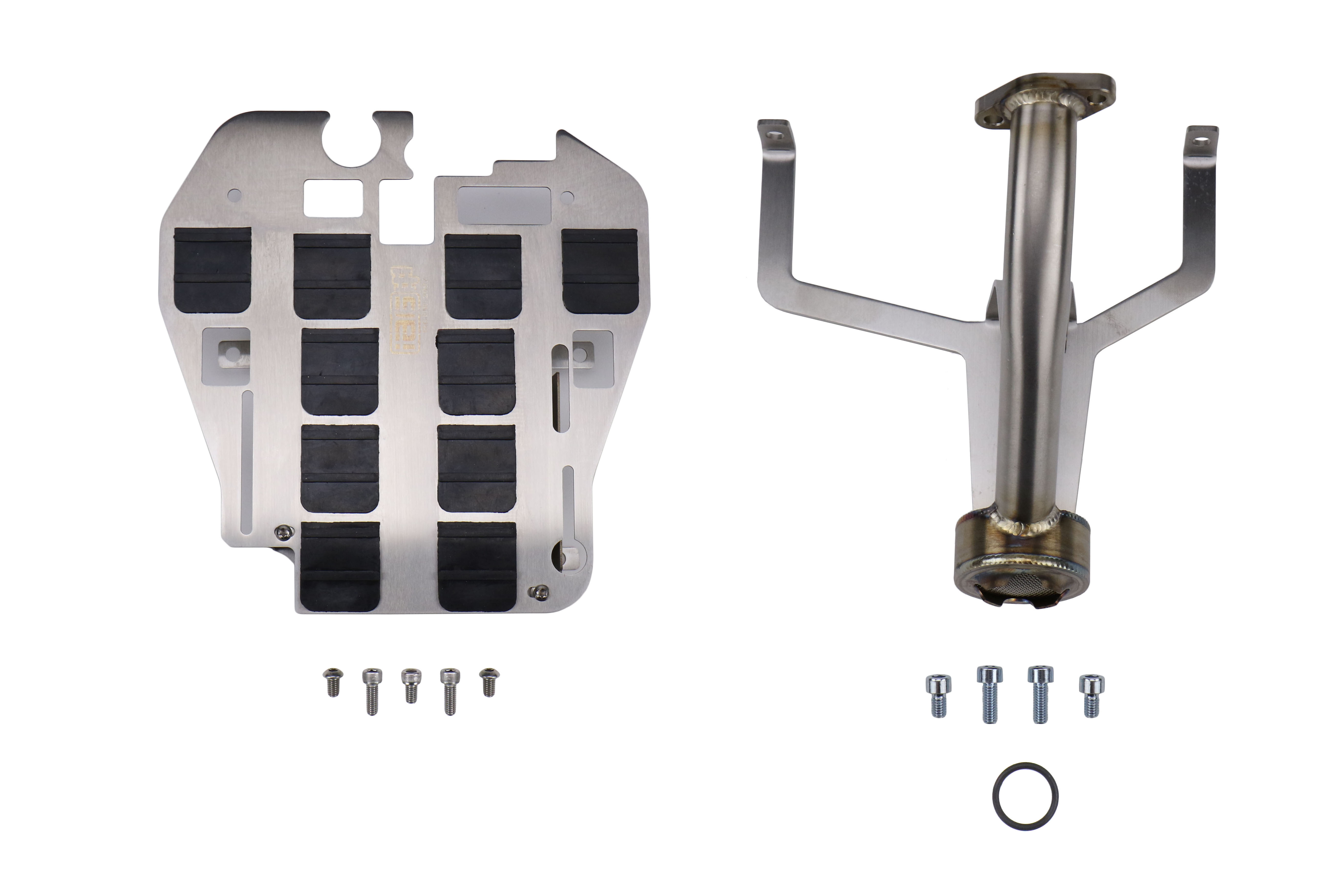

IAG Oil Control Baffle & Windage Tray w/ V2 SS Oil Pickup

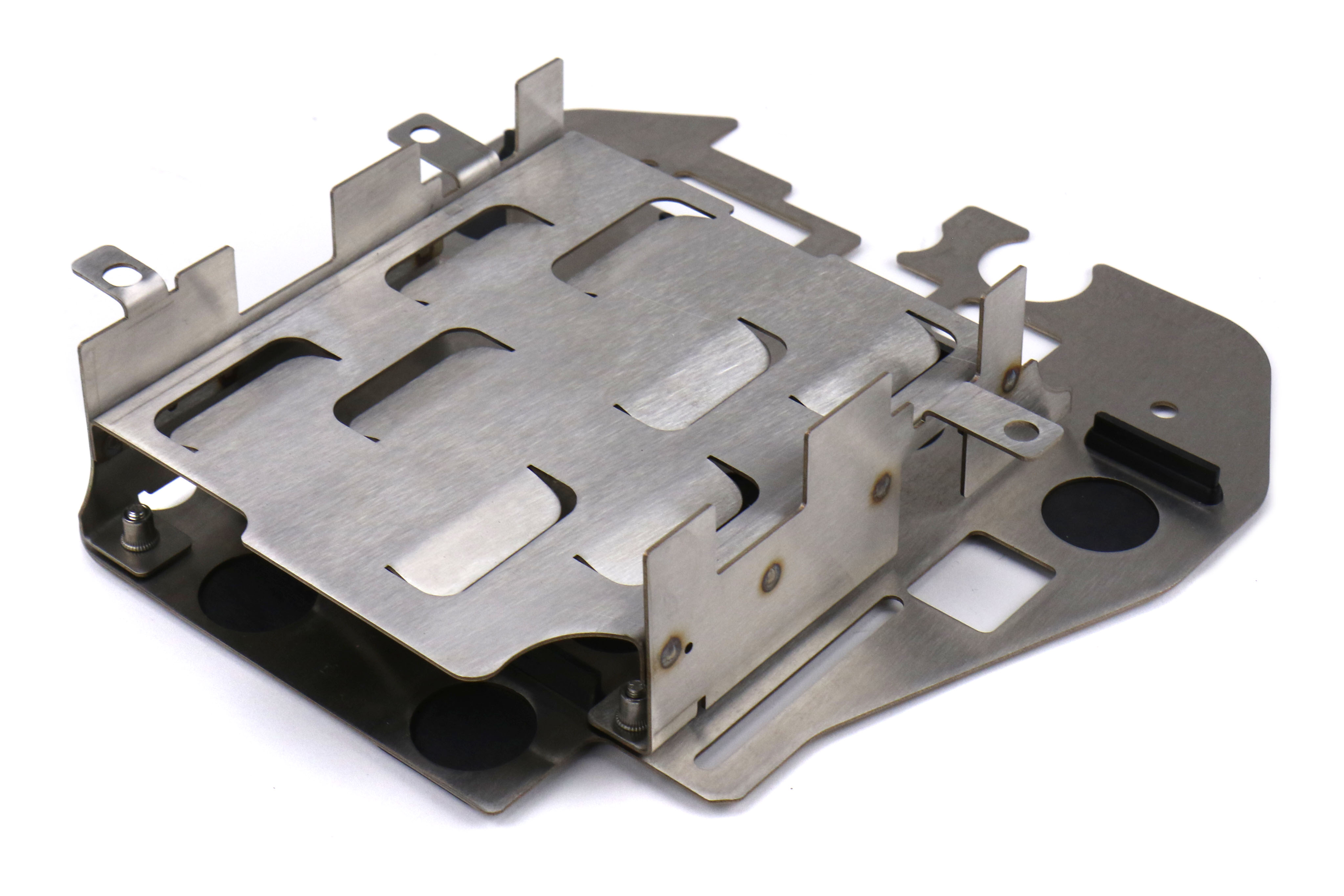

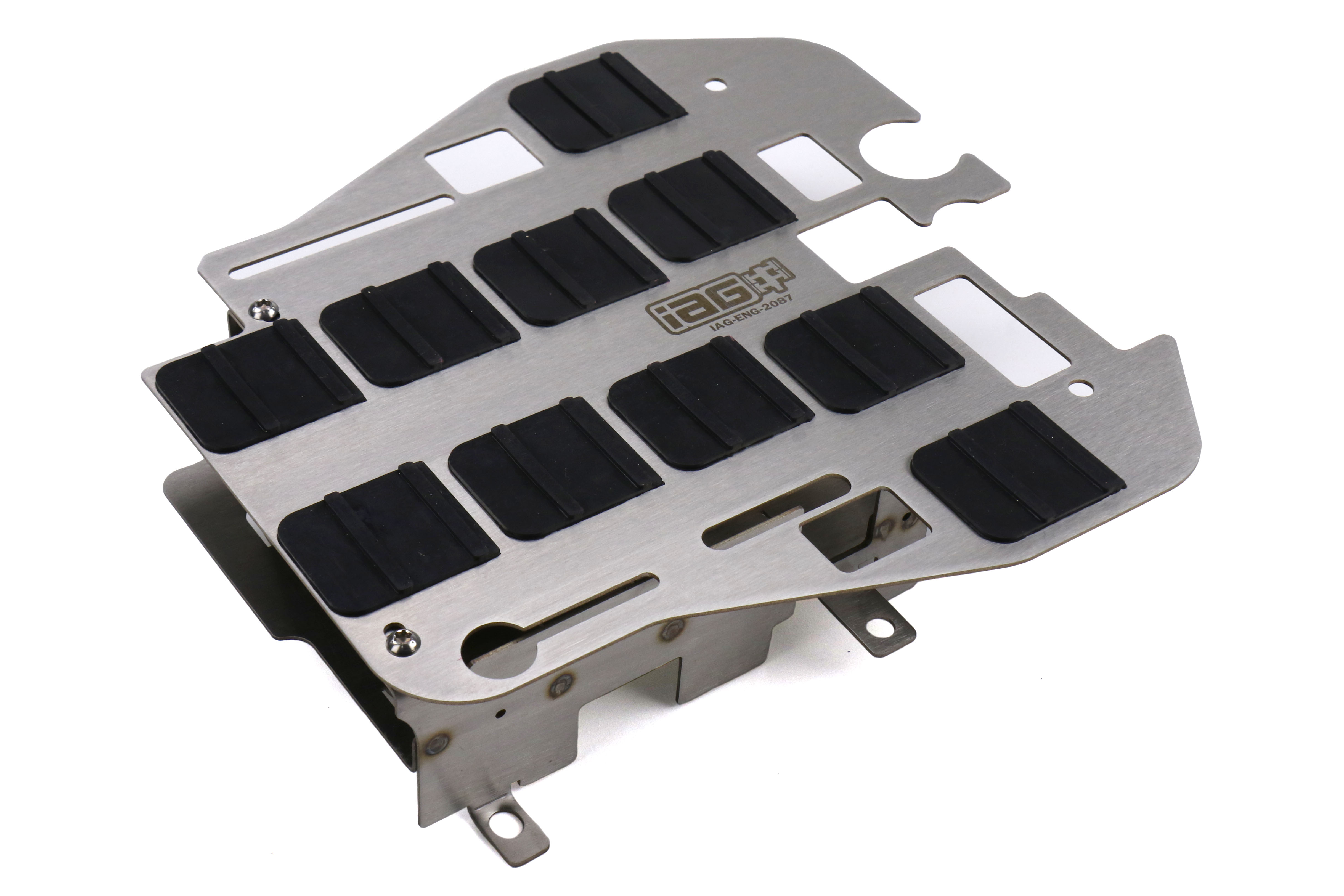

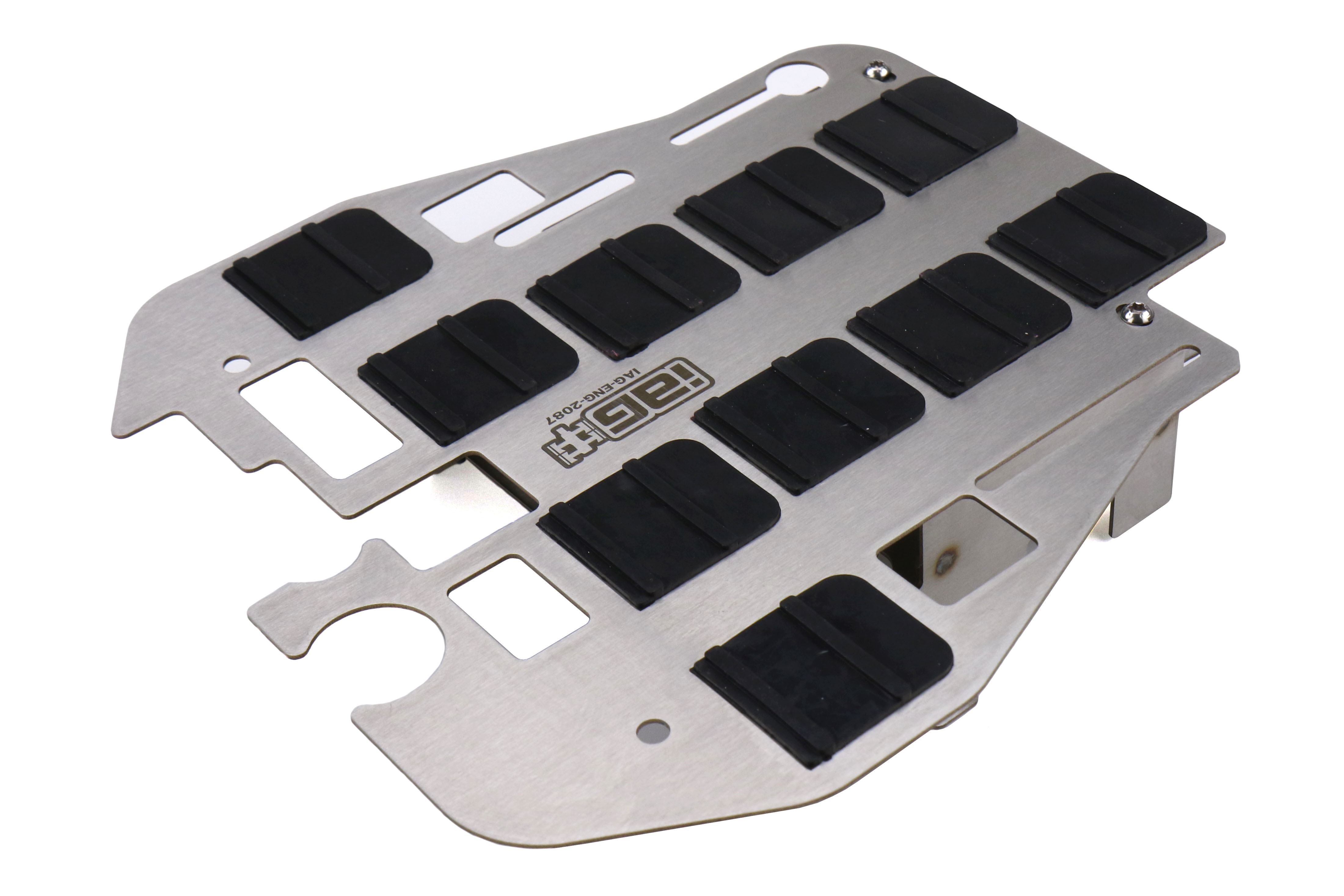

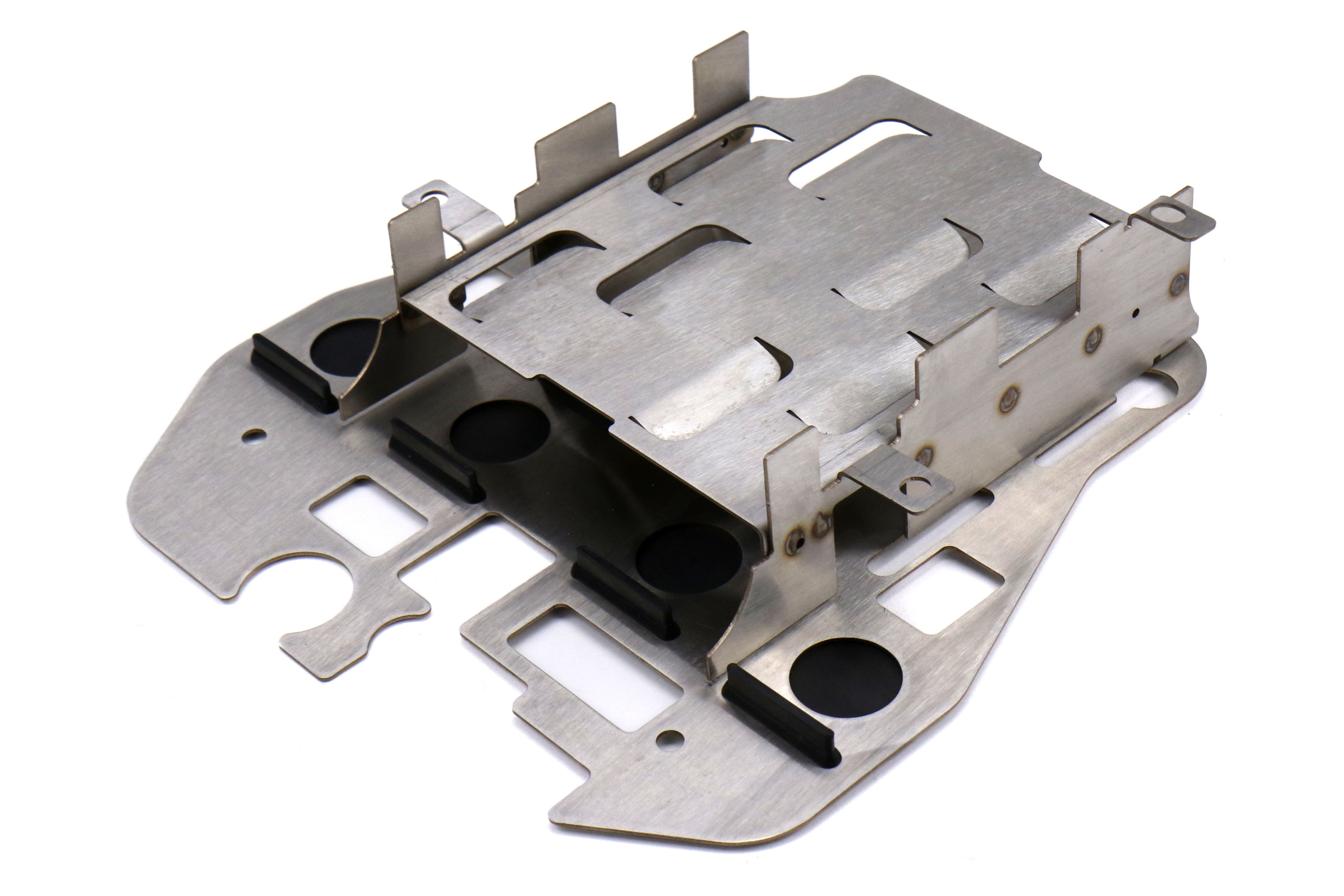

IAG OIL CONTROL BAFFLE AND WINDAGE TRAY:

  • Designed to limit potential blow-by and to prevent oil starvation
  • Ideal for high RPM and high G-force driving conditions
  • Baffle designed with Viton one-way flapper valves
  • Windage tray designed with louvers
  • Prevents oil from re-entering the upper crankcase area
  • Directs oil down into the oil pan to ensure plentiful supply to the oil pickup
  • Precise fitment does not require sandwiching between the block and the pan
  • oil baffle features stainless steel construction with precision clearance around the outside edge of the baffle

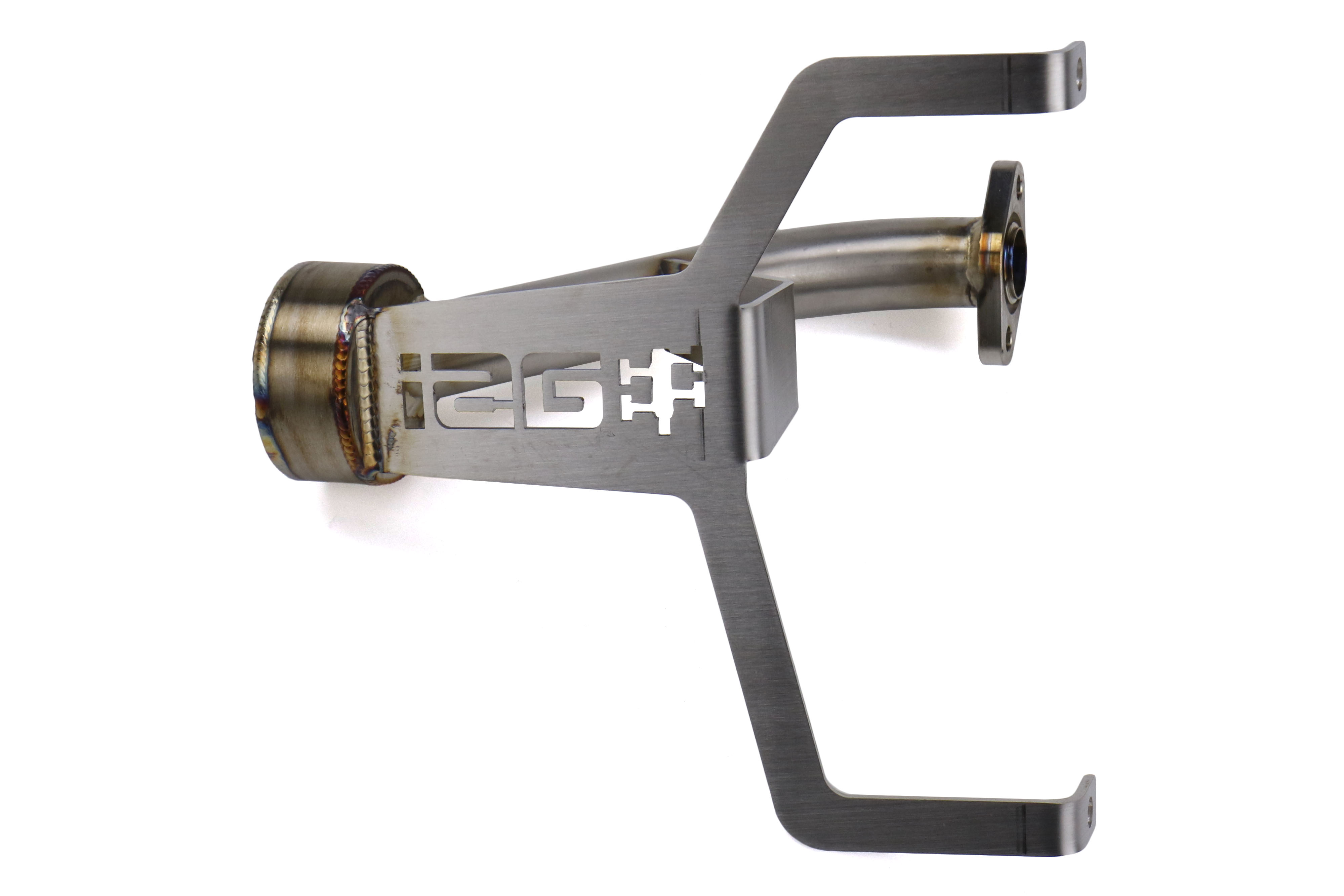

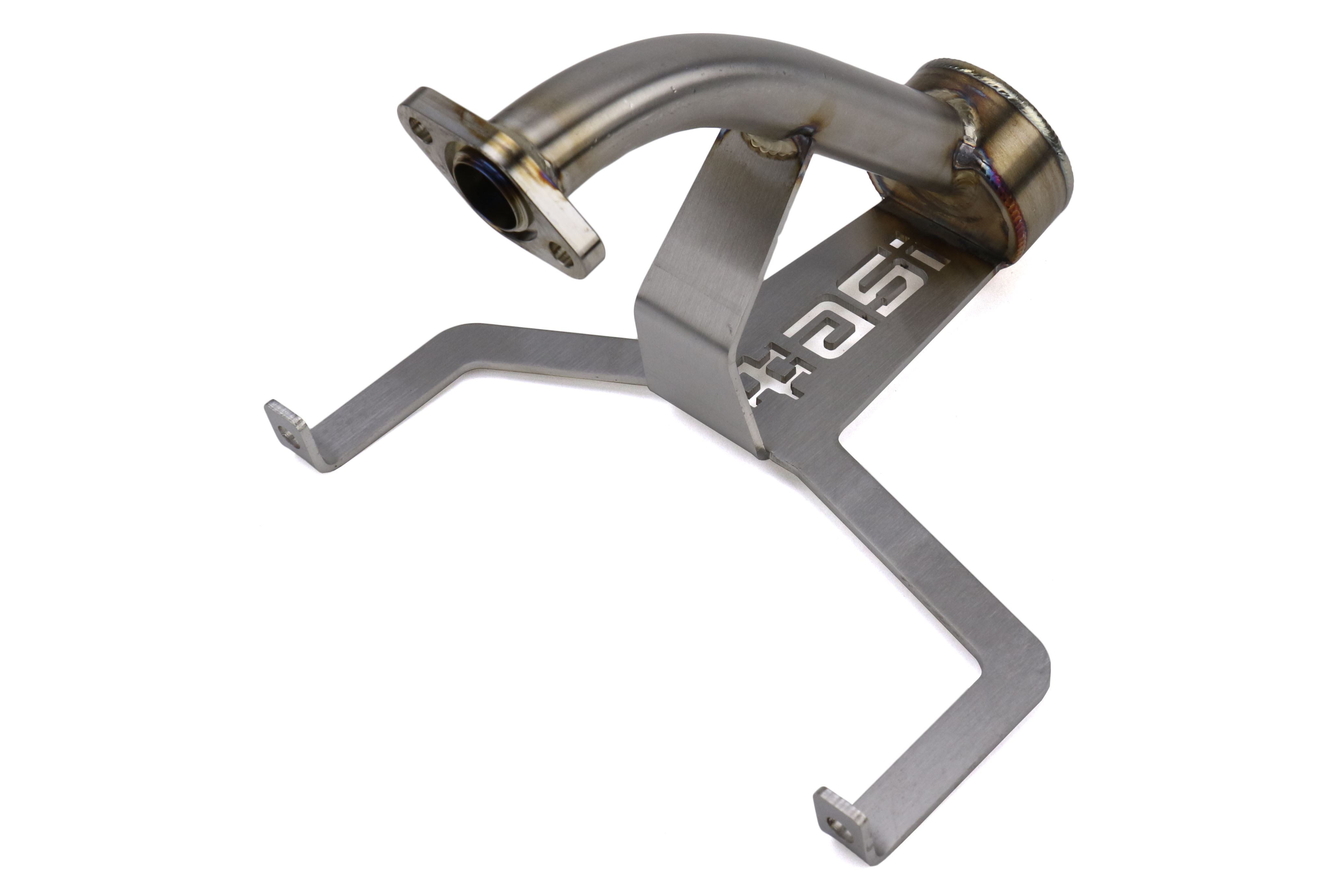

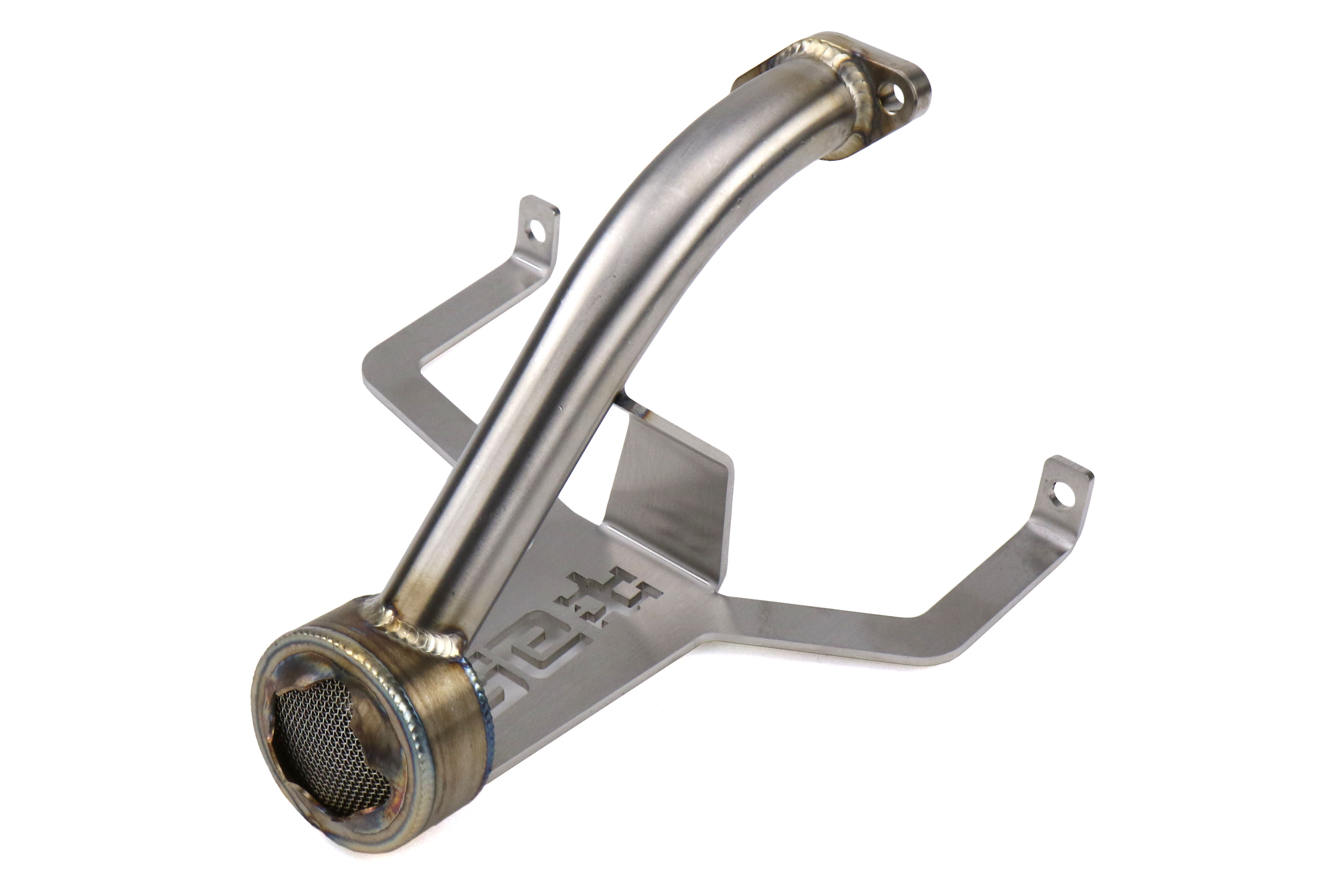

IAG V2 OIL PICKUP:

  • Heavy gauge steel tubing that is 3 times thicker than OEM
  • 3/8" Stainless steel flange
  • Stainless steel bracket
  • OEM style steel mesh screen filter
  • Completely TIG welded
  • Includes (1) oil pickup
  • Includes (1) Viton O-ring
  • Includes (2) M6 x 16mm hex socket head screws
  • Includes (2) M6 x 10mm hex socket head screws



FITMENT NOTES:

  • This product is not currently compatible with the Killer B Oil Pickup Spacer which is used with the Killer B Oil Pans. Please use the IAG Oil Pickup Spacer
  • Compatible with EJ20 engines equipped with the 2.5L oil pan
  • Compatible with all Subaru EJ25 STI engines
  • The IAG Oil Baffle does not work with the Moroso oil pans or pickups



DON'T STARVE YOUR EJ

The IAG Performance V2 Subaru WRX/STI Oil Pickup will replace the OEM unit that is failure-prone, which could lead to a catastrophic engine failure. What happens is that the OEM pickup will crack, and it will end up sucking in air instead of oil, which will lower the oil pressure. The IAG Performance replacement is stronger and thicker. This is due to the 100% stainless steel construction with a flange that is machined from 3/8" stainless steel to mate with the block and is sealed with a Viton O-ring.

The IAG Oil Control Baffle and Windage Tray System have been designed to limit the potential blow-by and this prevents oil starvation in the Subaru WRX/STI EJ engine under high-RPM and high G-force driving conditions. Through the use of Viton one-way flapper valves on the baffle and louvers on the windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plenty of supply to the oil pickup. IAG's integrated two-piece oil control baffle and windage tray system works seamlessly with the IAG oil pickup but will work with other oil pickups as well.

With these components installed, oil control is optimized greatly for the EJ's horizontally opposed engine which is critical for normal operation, but especially necessary when engines are modified for higher performance. Keeping the oil in the pan area so that the pickup has a constant supply of fresh oil to feed the oil pump is imperative for a healthy engine. Make a wise investment for your Subaru with the IAG Performance Oil Pickup. Control Baffle and Windage Tray.
