FactionFab Brake Upgrade Kit

2015+ WRX

$360.00

$0.00
Ships for free in the 48 states
Introducing FactionFab Swept Slot Bi-Directional Rotors. The Bi-Directional design provides leading edges for bite and a path for the fire band of gases and incadescent friction material to be dissipated through with symmetric vane castings to increase heat dissipation efficiency.
BUNDLE ASSEMBLY OPTIONS
  • Details
    Details
You will earn Reward Points with this Purchase.

Details

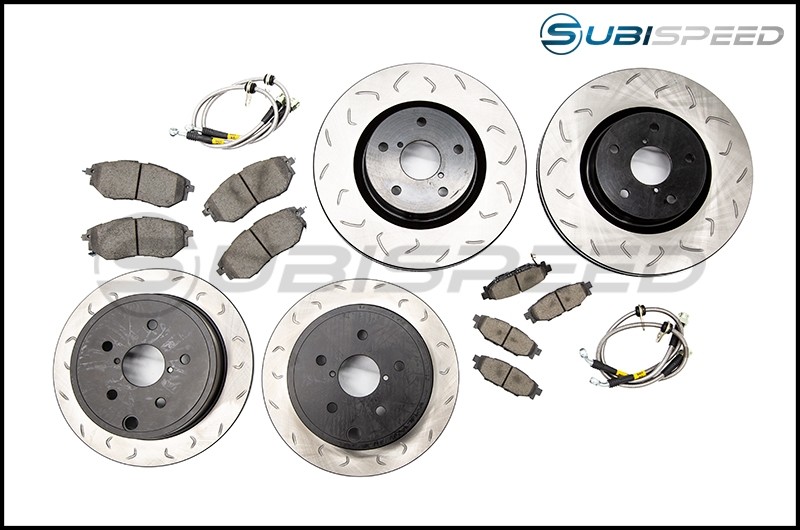

FactionFab Brake Upgrade Kit


Introducing FactionFab Swept Slot Bi-Directional Rotors. The Bi-Directional design provides leading edges for bite and a path for the fire band of gases and incadescent friction material to be dissipated through with symmetric vane castings to increase heat dissipation efficiency.

FEATURES:

  • Bi-Directional Design
  • Mill balanced for reduced vibration
  • Fully machined non-friction surface for perfect fitment.

Featured in Subispeed's New Products February

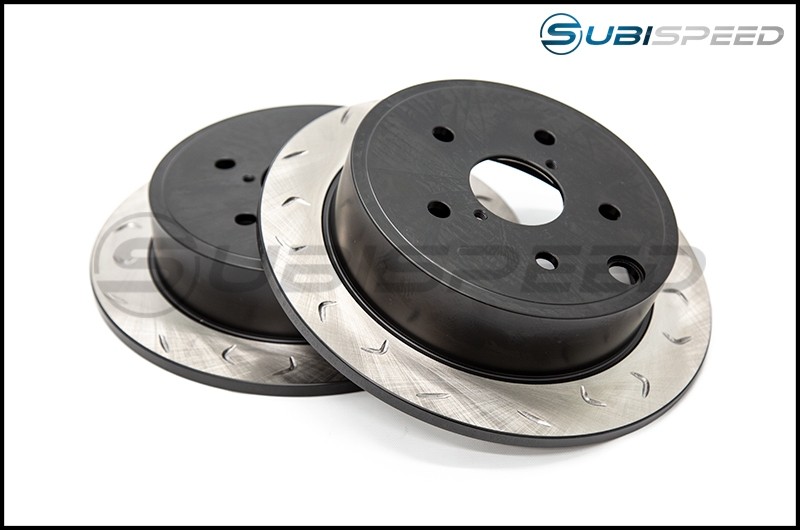

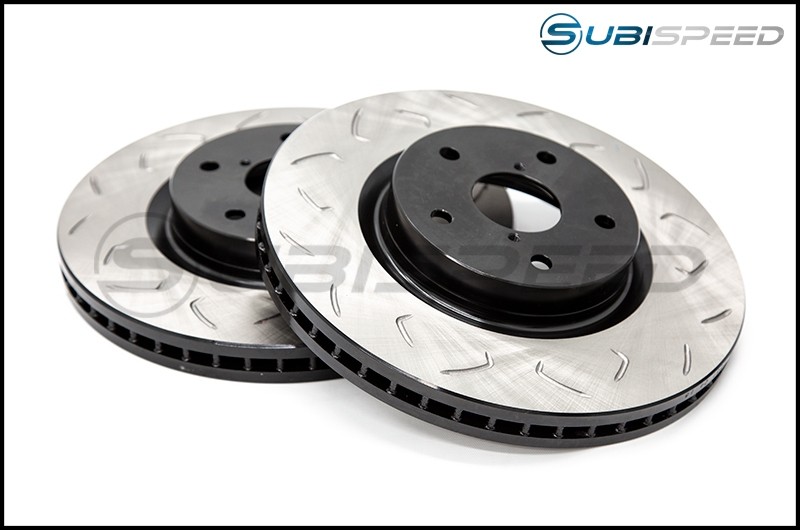

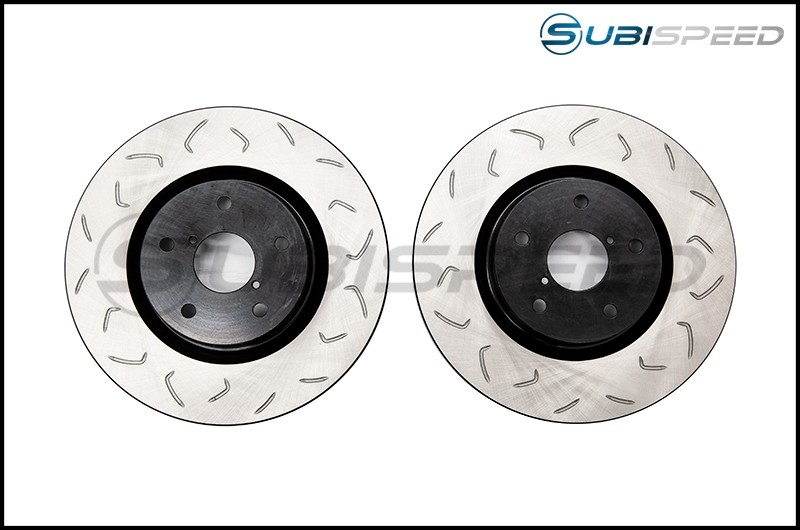

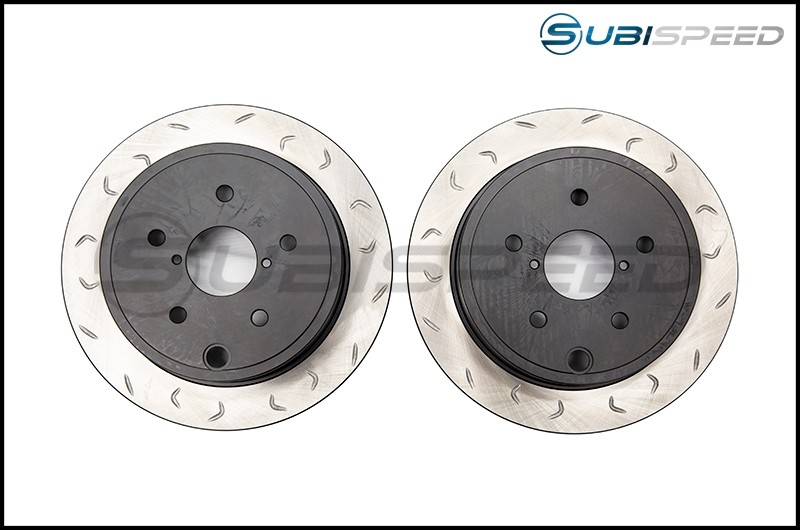

Rotors
  • Shallow Sharp-edged groves are milled into a high carbon cast iron disc to provide consistent pad contact and maximum friction over repetitive use
  • High-carbon content for wear resistance, thermal stability, and cracking resistance
  • Bi-directional design, meaning rotors are not side specific
  • Symmetric vane castings to increase heat dissipation efficiency and thermal stability
  • Double-disc ground, non-directional finish
  • Mill balanced for reduced vibration
  • Precision machined with run-out spec of no more than .002", Disc Thickness Variation (DTV) of .0005"
  • Fully machined non-friction surfaces for perfect fitment
  • Sold as a pair
  • Electronically applied E-coating for corrosion resistance
  • 400-hour salt spray tested
  • Fully coated inside and out

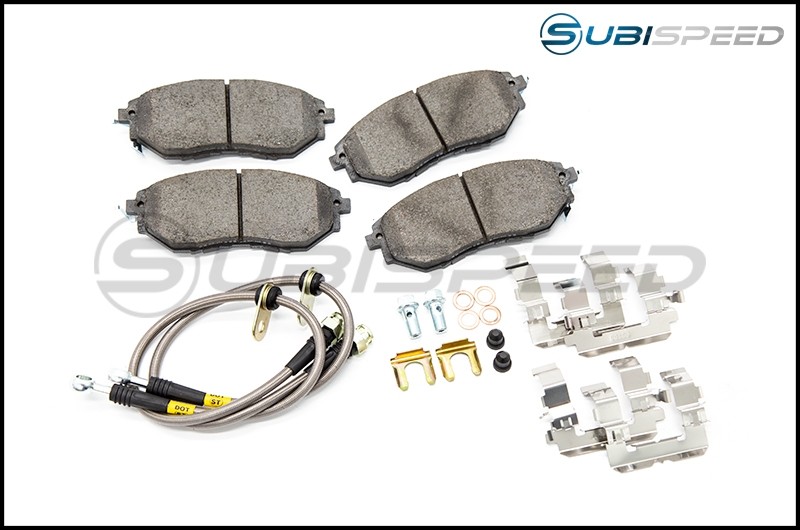

Brake Pads
  • Para-Aramid Composition
  • Ideal for auto-x, light track days, or aggressive street driving
  • 1300ºF maximum operating temperature to aid in fade resistance
  • Excellent modulation and initial bite
  • Pre-scorched compound to aid in cold weather modulation
  • O.E. gas slots and chamfers ensuring for safe efficient stopping while reducing noise associated with vibration
  • Positive molded technology provides safe and reliable stopping performance for the entire service life of the brake pad
  • Positive molded technology manufacturing process uses extreme pressure to compress the friction material and drives out any impurities or excess resins found in the brake pad.
  • Precision cut backing plates ensure correct pad fitment in the caliper body eliminating vibrations and noise under braking
  • Mechanically attached application specific pad shims are designed to eliminate noise associated with brake pad vibrations
Stainless Steel Brake Lines
  • PTFE Teflon inner liner to carry the fluid
  • Stainless steel woven middle layer for support of the inner liner
  • Abrasion-resistant, impact-resistant
  • Outer PCV clear abrasion resistant coating to aid in chaffing and protects the inner layers and stress relief at fitting locations
  • Each line is 4500psi burst pressure tested
  • Stainless steel precision machined fittings for perfect fit and corrosion resistance
  • Increased pedal feedback as a result of elimination of soft rubber lines which are prone to swelling and deforming
  • 100% model specific for perfect fitment
  • Includes hardware

4 customer reviews

Average rating
(based on 4 reviews)
Ease of Installation
Fit / Quality
Overall Satisfaction
  1. Ok kit

    By Anonymous September 17, 2022

    I did both the front and rear on my daily driver. They perform great. The braided hoses are nice, but I don’t think with the effort. The pads started squeaking during light braking after about 4000 miles, way past warranty. I’ll be replacing the pads with something better. Wouldn’t but this kit again

  2. Very pleased

    By Tim April 23, 2022

    I installed this kit and have about ~150 miles on the car so far. Installation took about 8 hours for everything in the kit and a full brake fluid flush. Overall, fitment is spot on and I had no issues with any of the included items. No rubbing or strange sounds coming from the kit so far. The quality of parts seems very good compared to other kits I've installed in the past. Braking definitely feels more responsive over stock. I also installed the Torque Solutions master cylinder brace to help firm things up a little.

  3. Horrible

    By Joe September 28, 2021

    I bought these 6 months ago, my car sat outside for 1 month due to travel, and its like the surface face of the rotors corroded off. Its mid summer with barely any rain, they didnt even rust more the face of the rotor just disintegrated. I do not recommend by any means buying these, youre better off just getting stock rotors. Im very disappointed, subispeed you should stop selling this product because theyre just awful.

  4. Front Brakes Kit

    By Pimpm1x1 March 10, 2021

    Installation was a breeze. The only issue I have is that these make a weird grindy noise under hard braking. I have never heard, or dealt with such an issue while breaking. Also the initial bite is lacking. Other than that, they work just fine. In fact under normal braking conditions, these are some of the smoothest brakes I have felt. Anyways, good product. Still need more time on them, but so far, pretty good.
