Verus Forged 4130 Clutch Fork
Ships for free in the 48 states

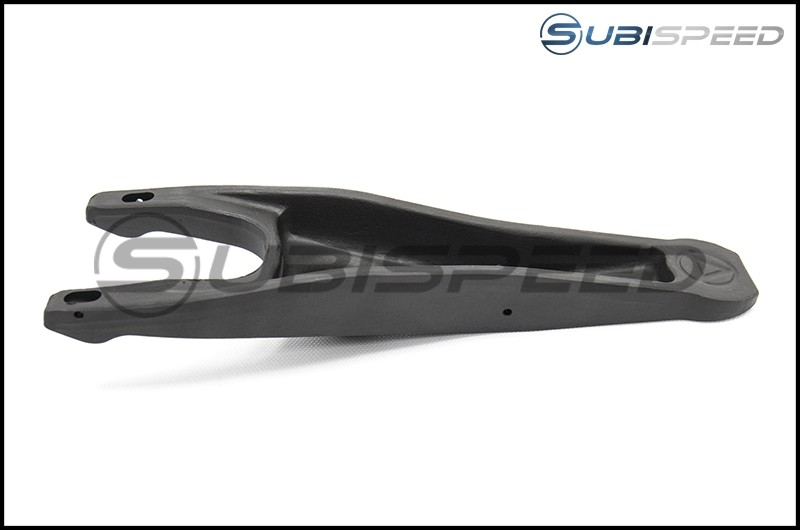

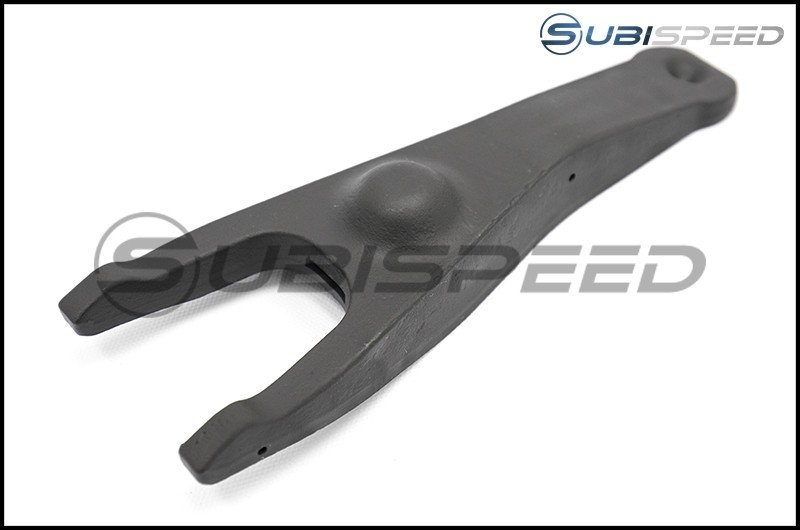

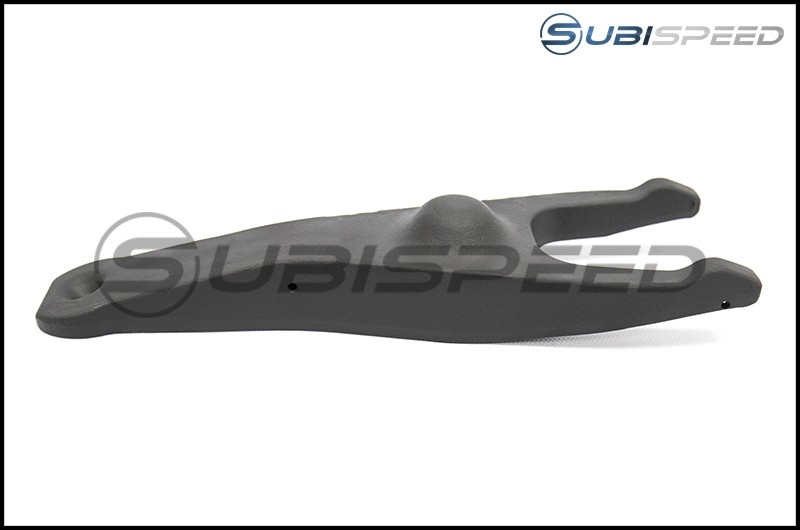

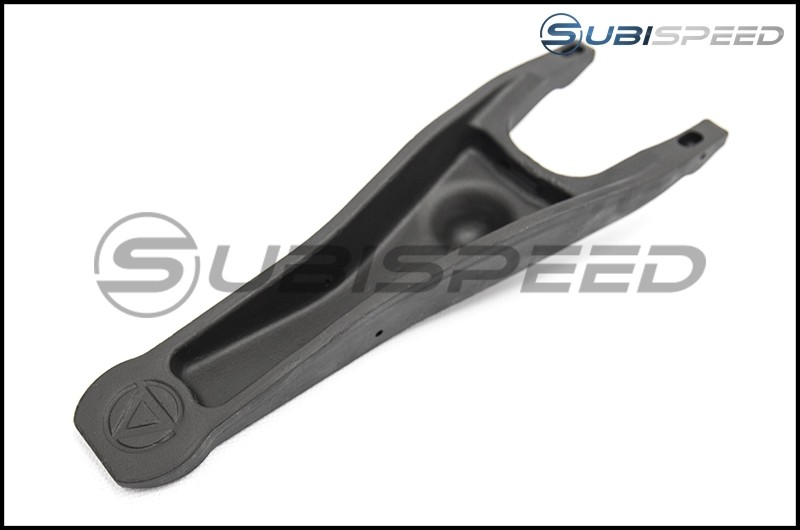

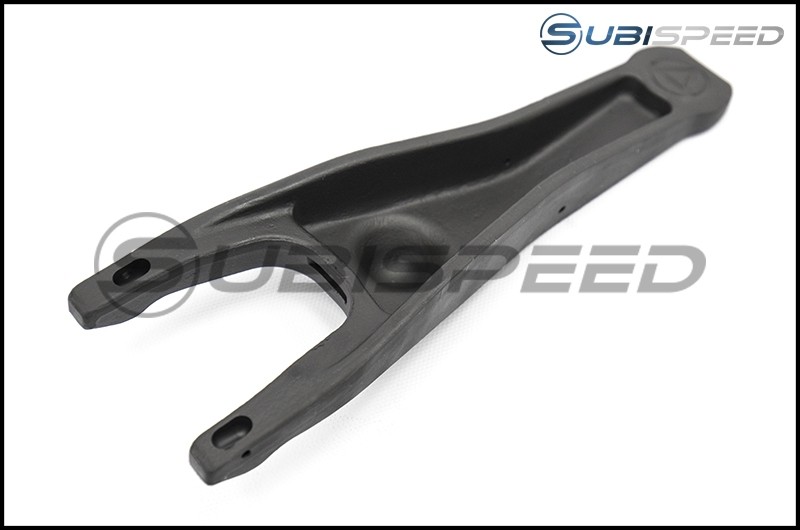

Verus Forged 4130 Clutch Fork
Increase strength and longevity of the clutch fork by using our forged 4130 clutch fork for the FR-S, BRZ, and GT86. The ZN6/ZC6 chassis has a weak clutch fork that tends to break or bend when used with heavier pressure plates. This fork fixes those issues and can be used with extremely heavily sprung pressure plates. These are heat treated to a hardness of 26-32 HRC and then cyro treated for improved physical properties. The unit is black oxide coated for rust resistance.
Note:Does not include pivot or throw out bearing, this is for the clutch fork only. Check out our strengthened pivot as well!
- Forged from 4130 chromoly steel for improved grain structure and strength
- Heat treated to a hardness of 26-32 HRC
- Cryotreated for improved physical properties
- Black oxide coated for rust resistance
Featured In FT86SF's New Products December Video
- Significantly increase strength over the OEM *and* our machined unit
- OEM like fit and finish
- Rated for use in applications exceed 1000 lbs of pressure plate use (good for all known clutch combinations for the ZN6/ZC6
What is Occuring and Why?
Like most components original equipment manufacturers design, they are designed for certain loads and service life. When enthusiasts, like all of us, install a stronger clutch and heavier sprung pressure plate to deal with more horsepower and torque, that clutch fork is being worked extremely hard. As engineers, we would say the fork is being worked near or even past the materials’ yield strength and is being plastically deformed. Continued operation creates micro stress fractures that will continue to propagate until ultimate failure and fracture occurs.
Material Properties, Yield Strength, and Deformation
In the below section, we’re going to do our best to give a small crash course into material properties, yield strength, deformation and stress. The content is a bit dry but is important to fully understand what is occurring to the clutch fork. Our focus will be metal material properties as that is what is used here.
As a force is applied to a material, a stress is produced. The applied force causes the material to change shape as well, which in engineering jargon is called deformation. There are two forms of deformation a material exhibits when a force is subjected on it. Plastic deformation and elastic deformation. Elastic deformation is perfectly normal, as the force is taken off the material, the material goes back to its original shape and form. Perfect! Plastic deformation, not so much. Plastic deformation is a permanent change to the materials shape. At an atomic layer, atom bonds are breaking. The material is degrading and repetitive loading will cause a failure.

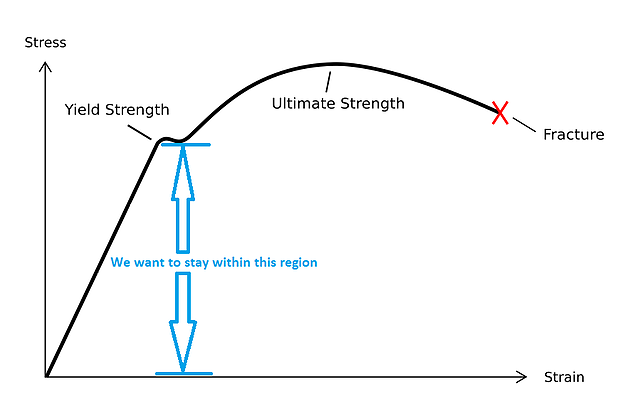

Yield strength is an indication of the maximum stress that a material can see without causing plastic deformation. So yield strength, typically given in PSI or kPa/mPa, is the numerical cross-over point from elastic (good) to plastic (bad) deformation.
To conclude our crash course, the factory clutch forks are being stressed over yield strength and are being plastically deformed. We must create a clutch fork that keeps maximum stress under yield strength with minimal deformation.
What the fork Subaru?
In Subaru’s defense, they did not plan or intend the clutch fork to be used with pressure plates 2, 3, and 4x’s the strength of OEM. To keep costs as low as possible, they used what was necessary and nothing more. But as enthusiasts, we want more!
To move forward, we need a baseline to start from. This allows us a starting point to compare to, as well as give us visuals on where the clutch fork needs improvements. With a pair of calipers, we set out to recreate the OEM units in CAD for analysis purposes.
Let's Look at What We Are Dealing With
For complex situations like this, Velox practices Computer Aided Engineering (CAE). In this case, that would be using Finite Element Analysis (FEA). Our analysis software of choice is ANSYS. ANSYS is at the top tier of analysis softwares and is used in over 90% of the top 100 fortune 500 companies, F1, NASCAR, etc. It’s very powerful software.

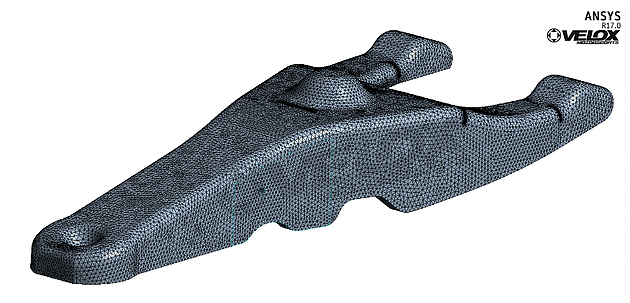

So with all the inputs plugged in like material properties, loading, and fixturing, after running mesh sensitivity studies, and setting up the legend correctly, below are some photos of the of the von-mises stress analysis on the OEM clutch forks. The color red is set to yield strength, anything in pink is above yield strength, cooler colors (green/blue) are lower stresses.

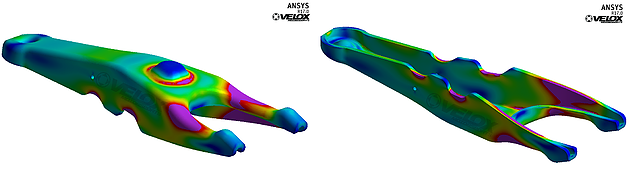

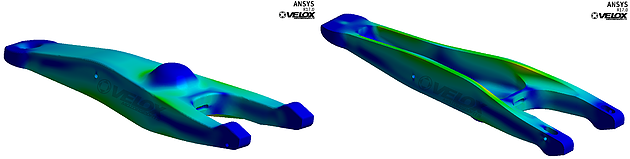

FRS/BRZ/GT86 Clutch Fork in ANSYS Mechanical. Lots of areas over yield stress, this is why they are failing with upgraded pressure plates.
Subaru WRX Clutch Fork in ANSYS Mechanical. Significantly stronger than the FRS/BRZ/GT86 clutch fork but still will cause trouble with upgraded pressure plates.
What Are We Looking At and Why Did We Do This
First things first, what we are looking at are graphical representations of the stress the clutch fork sees in a highly loaded pressure plate situation. What is of most importance to us, is viewing the areas near, at, and above yield strength. Typical analysis set the legend from minimum to maximum stress the unit sees; but this doesn’t give us an easy to read indication of problematic areas. Simple solution, change the legend so that the max legend value is yield strength and we can quickly and easily view what is happening.
We did this initial analysis to visualize trouble areas and give us a starting point to compare our upgraded design to. Without this visualized data, we would be guessing where and how to make the design stronger. Ultimately, this allows us to quantifiably improve the design faster as well as design a better product at the end of the day.
Time to Fix This Issue!
Using the information gathered from the OEM FEA analysis, we are able to methodically improve the design. First, we wanted to machine this from a stronger material than stamped sheet steel, so we chose 4140 Chromoly steel. In the annealed state, 4140 is 12% stronger in yield strength than typical sheet steels. We then increased the wall thickness by 25% minimum throughout. Finally, we removed the major stress rising locations found in the initial analysis.
Results From Improvements

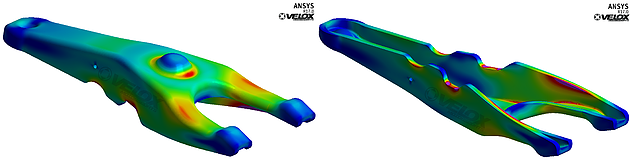

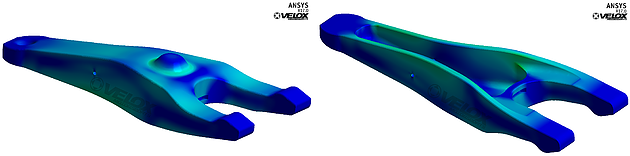

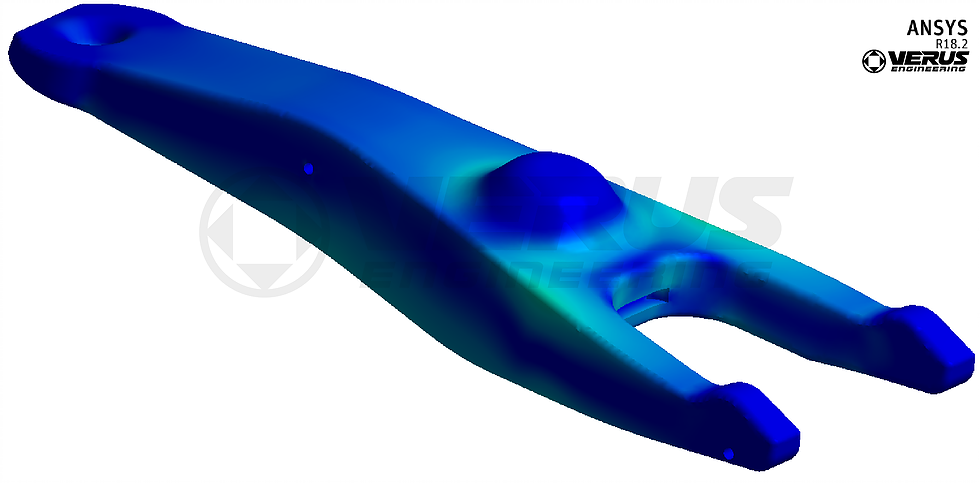

Velox Motorsports FRS/BRZ/GT86 Clutch Fork in ANSYS Mechanical
Velox Motorsports WRX Clutch Fork In ANSYS Mechanical
We have effectively reduced maximum stress by 53% on the FRS/BRZ/GT86 fork, and 53% on the WRX unit. Looking at the deformation (amount of deflection), we have reduced deformation by 65% on the FRS/BRZ/GT86 fork, and 71% on the WRX unit.

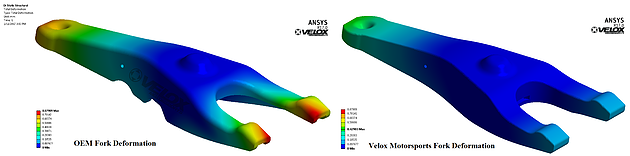

FRS/BRZ/GT86 Clutch Fork Deformation Comparison

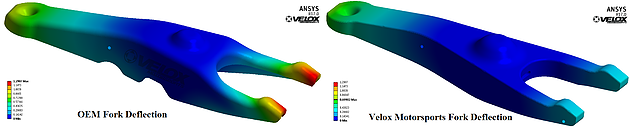

WRX Clutch Fork Deformation Comparison
The clutch fork no longer exhibits areas of stress over the material’s yield strength. This is great news! The clutch fork should withstand even the strongest clutches on the market and last significantly longer than the OEM unit. The reduced clutch fork flex translates to a more consistent clutch pedal feel as well, which is great as driver feedback is improved.
Time to Up-Shift into Prototypes
Knowing what we can expect from a machined part using CAE, we can build a rapid prototype from plastic to test fitment knowing full well our improved design will withstand the loads. Rapid prototypes save time, reduce costs, and improve part fitment before ever cutting into a piece of metal. This technology is absolutely game changing for manufacturing!
Production Ready, Clutch Out, and Back on the Gas

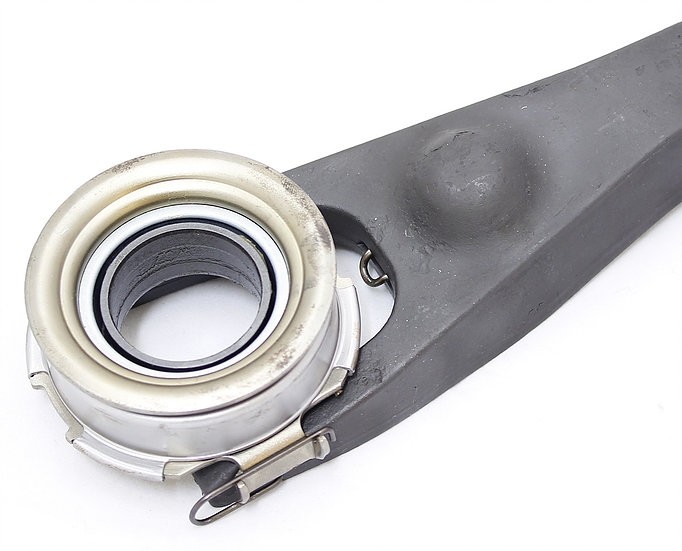

Production pieces are below. We have heard nothing but glowing reviews from this modification; from clutches that operate again to a much more consistent clutch feel. If you own a Subaru and are upgrading your clutch, we highly recommend looking into our clutch fork as well. The FRS/BRZ/GT86 clutch fork shares the same clutch fork as 278 vehicle variants in the Subaru line up and the 2015+ WRX clutch fork shares its clutch fork with 72 other vehicle variants. We were also asked to accompany the clutch fork with an improved pivot, which is also available.
