OLM
OLM Facelift JDM Style DRL / Sequential Turn Signal Bezel (No Fog Hole)
2018-2021 Subaru WRX & STI
JDM styling is now available in the US without the high price tag. These bezels are finished in a high gloss metallic black paint.
These feature a DRL bar like the JDM version but also have a sequential turn feature.
NOTE: This model was made for vehicles without fog lights (ie STI / WRX Base).
Details

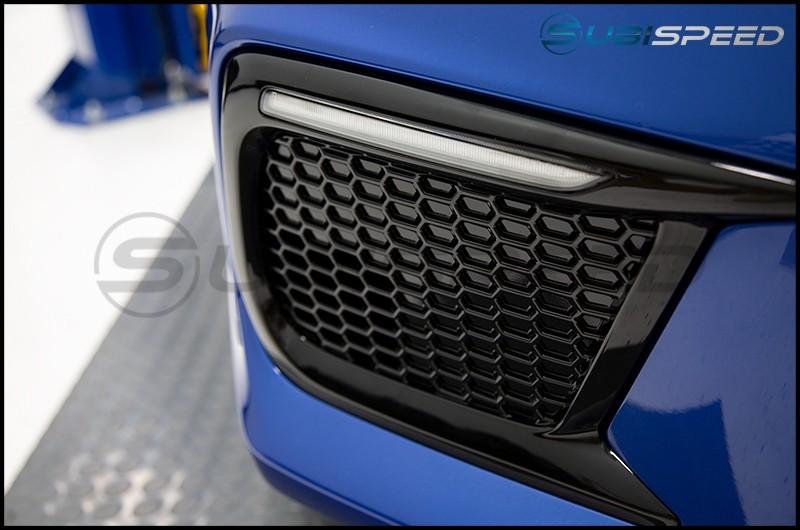

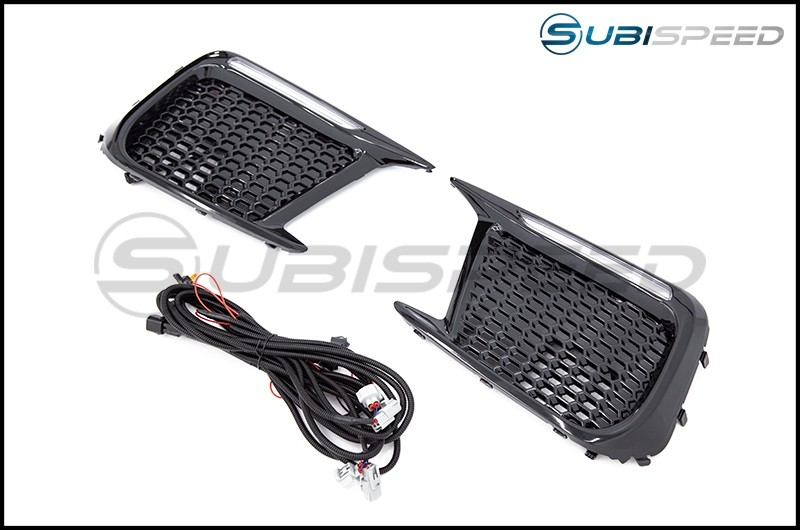

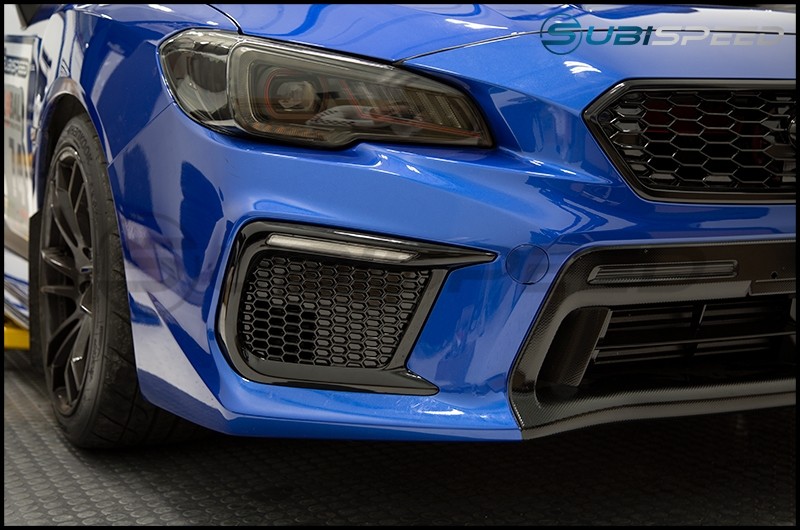

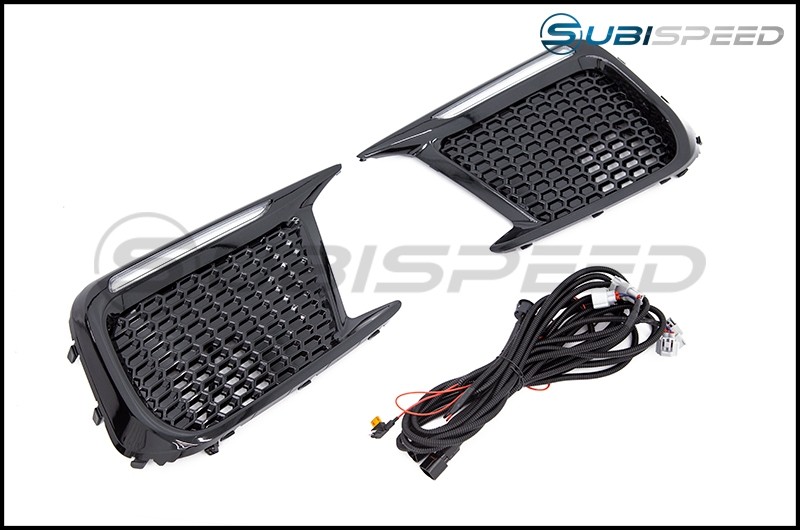

OLM Facelift JDM Style DRL / Sequential Turn Signal Bezel
Subaru didn't bring these awesome fog light bezels to the states. They can be imported but at a cost. A similar look can be replicated using these SubiSpeed bezels however. They feature metallic gloss black bezels and an ultra bright DRL strip.
We're not trying to break the mold. Trying to replicate it though. Just making it a little more affordable and readily available in the states.

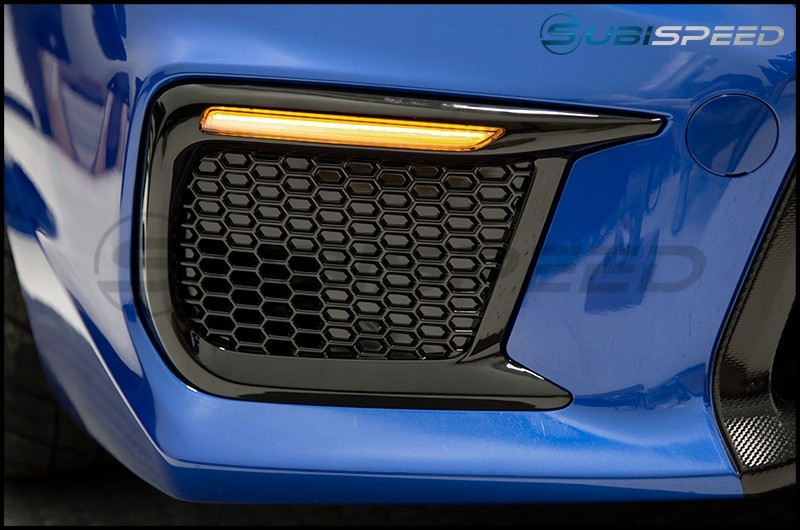

This version also adds a little more functionality over the JDM bezel. They have full sequential turn signals built in. You can change the function from sequential to standard blink with the flick of a switch on each side.
Utilizing replica JDM Bezels and OLM DRL / Sequential turn lamps we're able to offer a better than OEM setup for the US market.
NOTE: This model was made for vehicles without fog lights (ie STI / WRX Base).
Subispeed's How To Install Video
This video for the original DRL bezels is a great start for your installation. The only added item for these are the pass through turn signal plugs which were designed for vehicles with the turn signals mounted in the lower fog light area. If you vehicle is equipped with headlights which house your original turn signals, you will need to tap those wires into the bezels.
NOTE: These bezels DO NOT have separate LED driver boxes. The electronics are all integrated into the light housing.
Wiring
- Red - Positive
- White - DRL Override (positive, connect to power wire IF you want it to turn off under certain conditions)
- Black - Negative / Ground
- Turn signal pass through harness
You can wire these up a few different ways. If you own a 15-17 WRX / STI with bumper conversion or 18+ WRX Premium / Base owner, we recommend the SubiSpeed Quick Connect wire that goes in your low beam and high beam fuse spots. 18+ WRX Limited and STI owners we recommend modifying an add a fuse plug. More details on the "additional" tab.
NOTE: While most of the connectors are sealed, DO NOT allow connectors or the driver boxes to rest in areas where water pools up (ie the plastic tray at the bottom of the car). Encouraging them to be submerged in water for periods of time is not recommended for long life. Mount them in an area that will minimize exposure to water and vibration.Optional Items

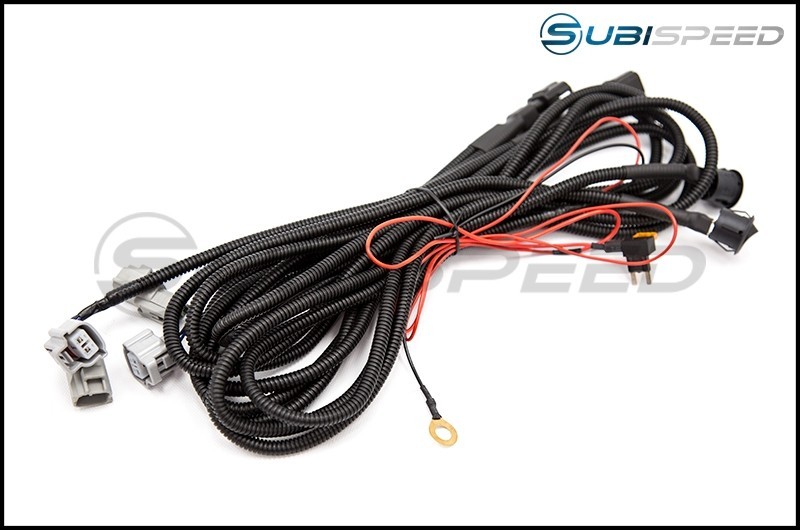

DRL Turn Signal Quick Connect Harness
This product comes with a single add a fuse which can be placed in the high beam fuse position in the fuse box. However, it will go off when the headlights are turned on. There is also another location to get accessory power, but it will always be on. If you want the DRL on this bezel to act like a real DRL (ie turns off when the parking brake is up), choose this harness. It will use both the low and high fuse positions in the fuse box.
OLM Turn Signal Quick Connect Harness for Factory LED Headlights (2018+)
The wiring for 18+ LED headlight equipped vehicles is different from their halogen counterparts and even the 15-17 models equipped with LED headlights. The turn signals were moved up into the headlight casing. This poses a small issue for the standard wiring. This turn signal quick connect harness comes with a factory style plug on one end with insulated male terminals on the other. Just crimp the female T-taps over there two wires going to the factory turn signal bulb in you stock housing and connect these wires to it.

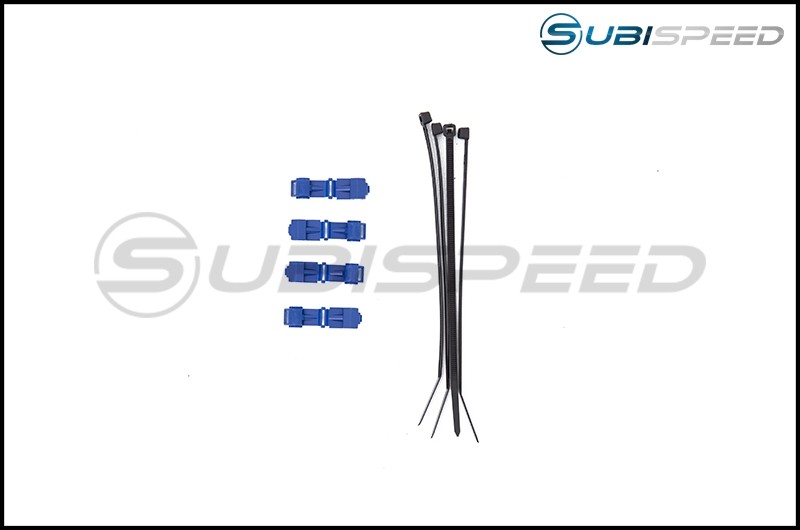

Also supplied is a factory style block off plug to prevent anything from getting inside the rest of the wire. Comes with a pair of harnesses, plugs, and 4 female t-taps. These are all the items required for one vehicle.
Installation Notes
Please see additional tab for more details.
People who viewed this item also viewed
6 customer reviews
-
Nice look, decent fitment
By Alyks March 28, 2022They look really good overall. LEDs are nice and bright, and the finish is great. Installation is pretty easy. The only qualm I have with them is that I had to use a heat gun to make the plastic pliable enough to fit right on the passenger side.
-
OLM products are junk
By Mike March 28, 2021Bezels started peeling within months of being on the car
-
Good fit and function
By Grafton February 8, 2021OEM bezels were as quality as expected, sequential lights look fantastic. Only issue I had was the turn signal connectors didn't have the seals crimped correctly So i had to disassemble the connectors and fit the seals down the the crimp area so they would stay sealed.
-
Better then stock
By Tim R November 13, 2020The LED lights looks great, but the fitment is terrible. The corners tabs of the plastic keeps popping out. And I wasn't aware a Hyper Flash Fix Decoder was needed. Overall I really do regret making my purchase.
-
Looks good
By Jared April 5, 2020Overall I’m happy with these but the fit was off for the passenger side. The clips on the top and upper right weren’t able to hold perfectly. I ended up having to use a zip tie to go around the tow hook plastic and the inside top right of the bezel where it has a hook. This is keeping it in place so far but before I did this, it kept popping off from the top right. The lights do look great and now that I’m sequential all around, it looks even better. I did delete the stock turn signals in my headlights so I’ll need to get the hyper flash module. The drl light is a shade brighter than the stock c-light but that doesn’t matter to me. Overall, looks and functions great but I wish Subaru could have designed a better fastening setup for the bezels.
-
Perfect JDM style upgrade for Base models
By Eric November 4, 2019Having a base model WRX, the lower turn signal area without the fog lights is an area that was less appealing to me. These DRL/Turn signals give me the JDM styling I wanted with a functional replacement for the turn signal. The grille pattern on these bezels ties in very well with the front grille of the vehicle. There are some good installation videos here at Subispeed and on YouTube that greatly assist in deciphering the wiring. A lot of people aren't sure where to place the switches that allow you to switch between a strobe or standard blinking turn signal. I discovered on the back of each headlight a clip like feature that has done well to secure them thus far. I have included pictures of the location which are in front of the air box on the passenger side and in front of the battery on the driver side but the actual clip is part of the headlight housing.
