AEM

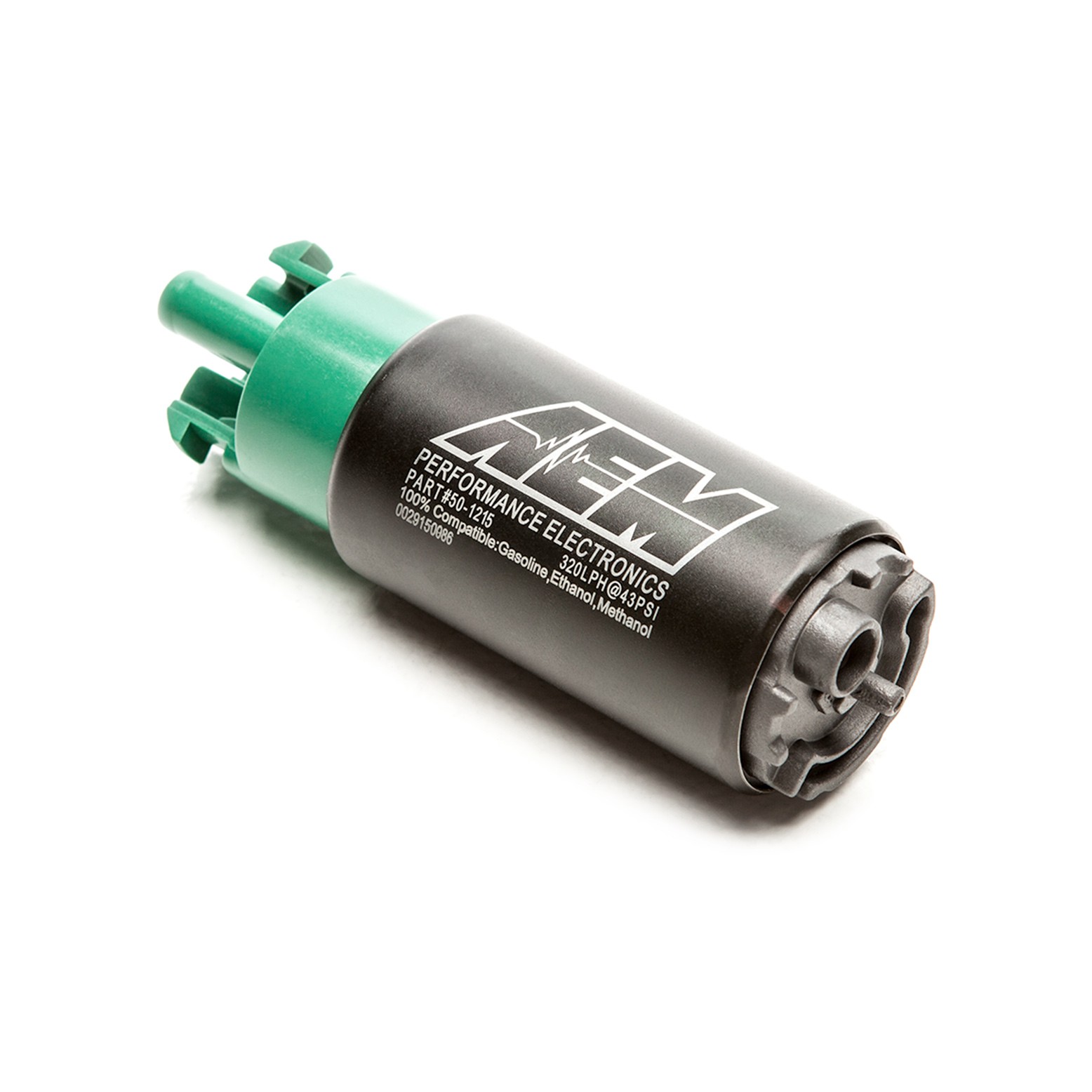

AEM High Flow Fuel Pump (E85 Compatible)
Details
DESCRIPTION
AEM’s 320lph E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline. Its compact, short body design (65mm length) with mounting hooks also makes it ideal in universal applications that have fuel tanks with tight tolerances. The 320lph E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter and O-rings. Every AEM 320lph E85-Compatible Fuel Pump is tested to flow 320 lph at 43 PSI before it is packaged for sale.
WHY?
When looking for a drop-in fuel pump that was suitable for the demands of Subaru Flex Fuel setups, AEM's 320lph E85 Compatible In-Tank pump checked all of the boxes. It's compact design allows it to be a direct replacement of the factory fuel pump. This pump is a vital component of COBB's Stage 3 + Flex Fuel Power Package.
FEATURES
Subaru AEM High Flow Fuel Pump 05-09 LGT, 08-14 WRX, 08-15 STI
- Tested 320lph @ 43psi
- Compact Size (65mm length x 39mm diameter)
- Includes pre filter, hose, clamps, flying lead, end cap and rubber buffer sleeve
- Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
TECHNICAL SPECS:
Weight: 12.4oz (351grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching, green end caps
Inlet Fitting: 16mm ID, 22mm OD. Large Center
Outlet Fitting: 8 mm hose clamp. Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX * Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
1 customer review
-
Delivers Fuel Effectively
By Alex September 21, 2017Bought this fuel pump for my Cobb Stage3 OTS setup with the plans of going to an E85 setup someday. The Stage 3 OTS tune did not work to well with some of the components I had (AEM Intake, GS Downpipe) but all that was hashed out with a ProTune. Install was a bit of a pain since the directions were pretty generic but I was able to figure it out and car is running great.
