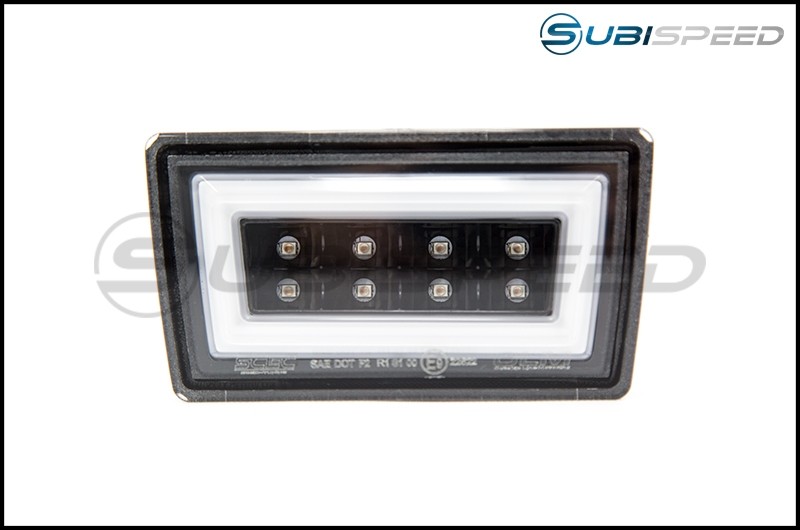

OLM Night Bar F1 Style Rear Brake Light
2015-2020 Subaru WRX & STI
OLM now has an F1 style lamp for the 2015+ WRX / STI / 2013+ Crosstrek. Available in 4 different finishes and includes plug and play harness.
Plug and Play Harness - Included
This item will allow you to wire your new light without tapping the factory wires. This speeds up the install and allows you to return your vehicle to a completely stock setup. For more details on this product, click here
NOTE: Model indicates which wiring harness is compatible with your vehicle.
- Clear Lens / Gloss Black Base / Red Bar
- Clear Lens / Gloss Black Base / White Bar

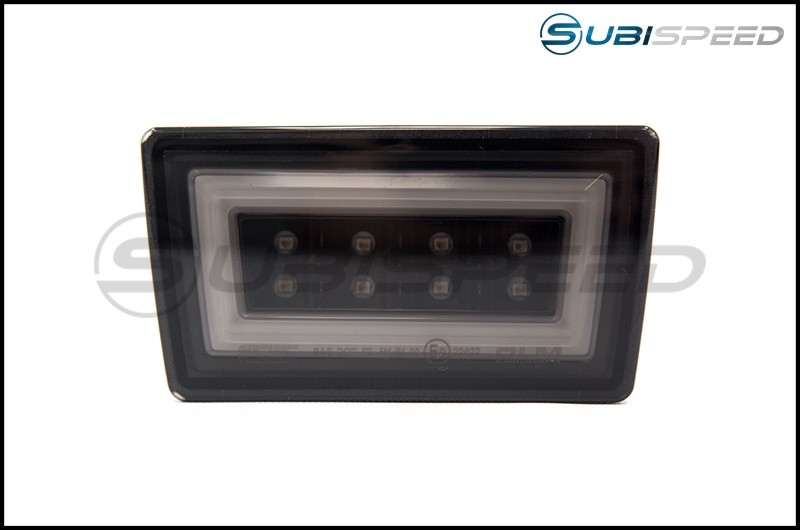

- Smoked Lens / Gloss Black Base / Red Bar
- Smoked Lens / Gloss Black Base / White Bar
- Plug and Play Harness Included
- Includes rear fog assembly, mounting hardware, wiring harness with connectors
- This item will allow you to wire your new light without tapping the factory wires. This speeds up the install and allows you to return your vehicle to a completely stock setup.
Improve your Visibility in the Rear
USDM vehicles were not equipped with a rear fog light from the factory. They only have a plastic cap covering up the center of the rear bumper. No lamp, mounting bracket, mounting hardware, or wiring.This OLM lamp includes the required parts to mount it to your USDM vehicle.2 Modes easily switched from driver seat. 15 blinks each time the brake pedal is pressed, and then you have your traditional style brake light.
NOTE: To turn off the blinking, step on the brake and then switch the lights (parking) on and off three times.
Add a Unique, Custom Look with Easy Installation
Here's another unique rear fog lamp from OLM for the 2015+ WRX / STI. Available in 4 different colors. The brake light functions as the parking light in this model. It gets bright when the brake is depressed. The added reverse lights can blink to warn people you are in reverse before going solid to provide more light.
The square brake light operates as the parking light and gets bright when the brake is depressed. It does not feature a blinking pattern. The reverse light does feature a blinking light. As soon as you switch into reverse, it will blink for a couple of seconds and then go solid to provide more light. You can also make it blink continuously through a series of easy steps performed from the driver's seat (no wiring required to perform this change). Details are included in the supplied instructions. This OLM lamp includes the required parts to mount it to your USDM vehicle. Plug and play harness is not compatible with the Crosstrek. Modifications will have to be made to the wiring (snipping, stripping, and tapping) to work with the 13-17 Crosstrek.
- 2015-2020 Subaru WRX
- 2015-2020 Subaru STI
- 2013-2017 Subaru Crosstrek

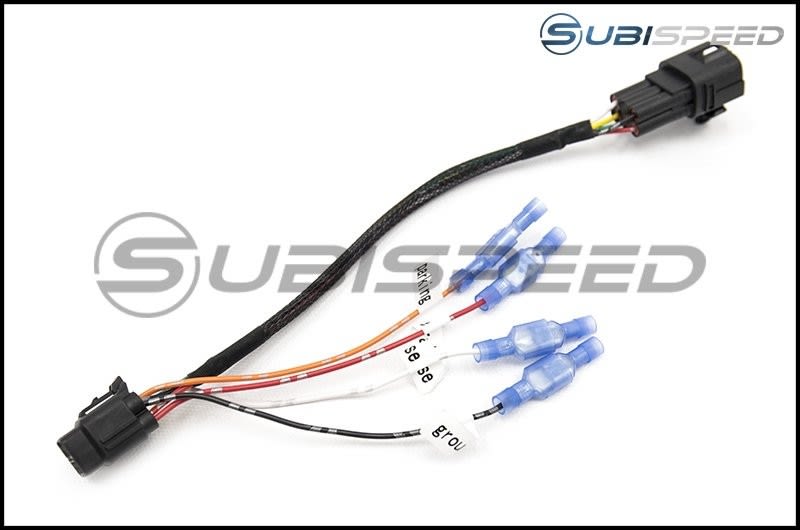

Crosstrek QC Harness
This harness speeds up the install process for the JDM OEM rear fog lamp, SubiSpeed F1 Fog Light, GCS Rear Multifunction Light, and GCS CS Style Rear Fog / F1 Brake Light. The stock wiring harness in the Crosstrek can be hard to crimp as the area is tight. Also owners who wish to return their setup to stock at any point and time can do so easily with this harness.The harness has OEM style connectors on both ends which allows you to install this in-line with the factory wiring. 3 or 4 extensions (depending on model) allow you to connect the aftermarket fog / F1 lights.
Includes 1 harness (only 1 required per vehicle).

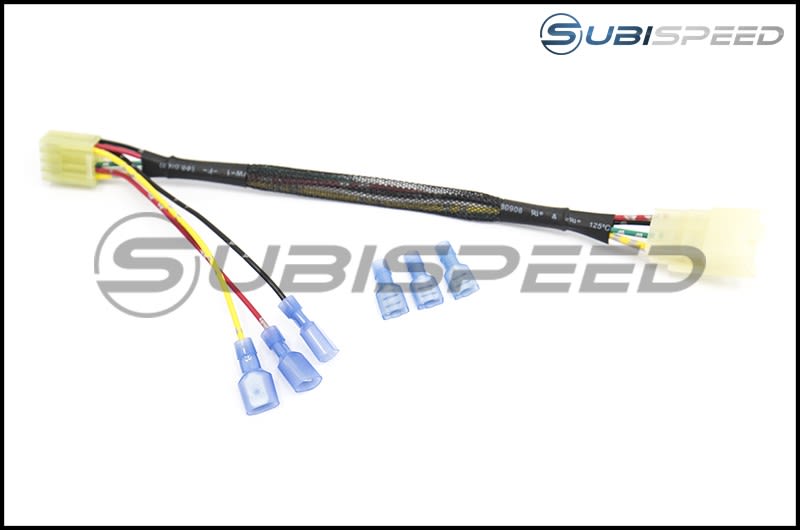

Plug and Play Harness WRX / STI
This harness speeds up the install process. The stock wiring harness in the WRX / STI can be hard to crimp as the area is tight. Also owners who wish to return their setup to stock at any point and time can do so easily with this harness.
Plug and Play Harness Is Included.
The harness has OEM style connectors on both ends which allows you to install this in-line with the factory wiring. 3 extensions allow you to connect the aftermarket fog / F1 lights.
- Black - Ground (-) [connect to black wire on the F1 lamp]
- Red - Parking / Running Light (+) [connect to blue wire on the F1 style lamp]
- Yellow - Brake Light (+) [connect to red wire on F1 style lamp]
For Additional Information, click here.

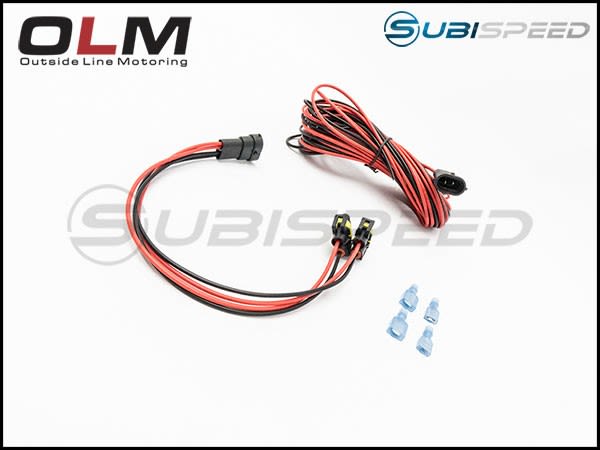

OPTIONAL Fog Light Wiring Splitter / Extension
If you want to wire this so that it only comes on with the fog lights you'll find yourself using a pretty long run of wire.
We've made a quick connect kit which will split the wires to the passenger side fog light. Just run the wire under the driver's side fender liner, into the vehicle, and along the door sills back to the trunk of the vehicle. The insulated connectors will be placed on the F1 light harness and extension. Just connect them together and you'll have a functioning rear fog light.
Includes splitter and extension with two pairs of connectors. The plug for the female end is not pre-attached so that the wires can easily be run through grommets in the firewall area. To purchase this addition, click here.
|Additional Warranty Information||None|
OLM Night Bar F1 Style Rear Brake Light / A.70023-PARENT Fits
