OLM S207 Style Paint Matched Rear Bumper Vent Inserts
2015-2021 Subaru WRX & STI
SKU: 15WRX-S207RVENT-X-PARENTWe price match!
Details

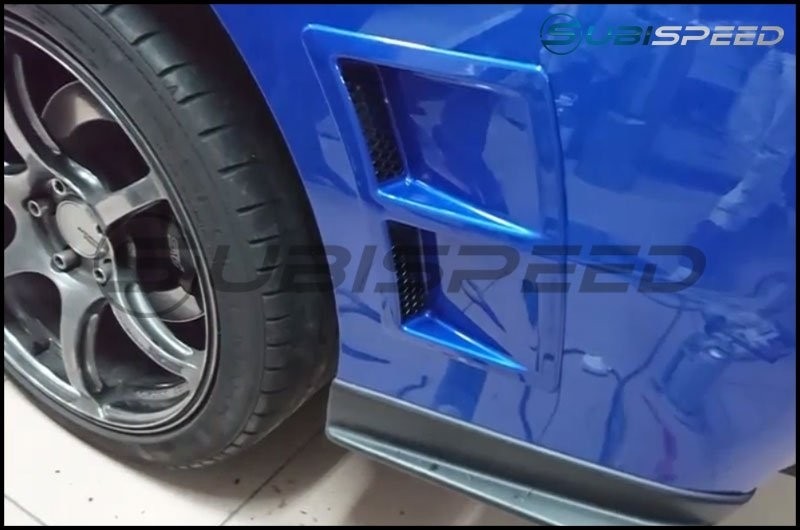

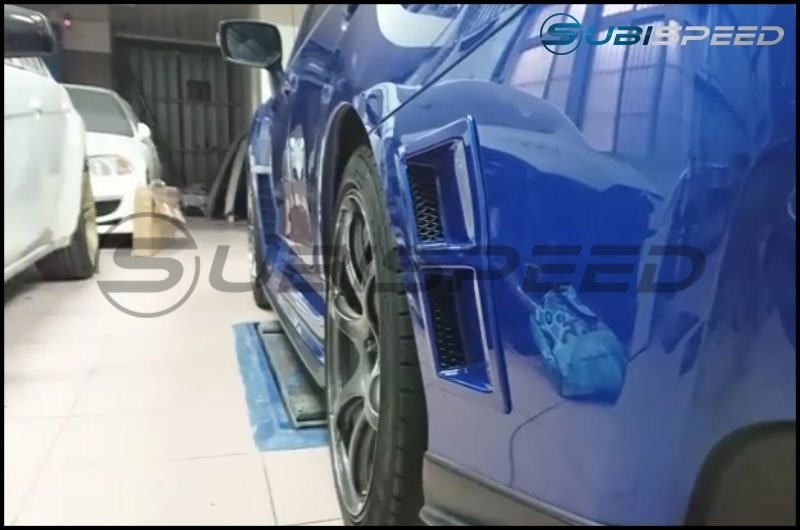

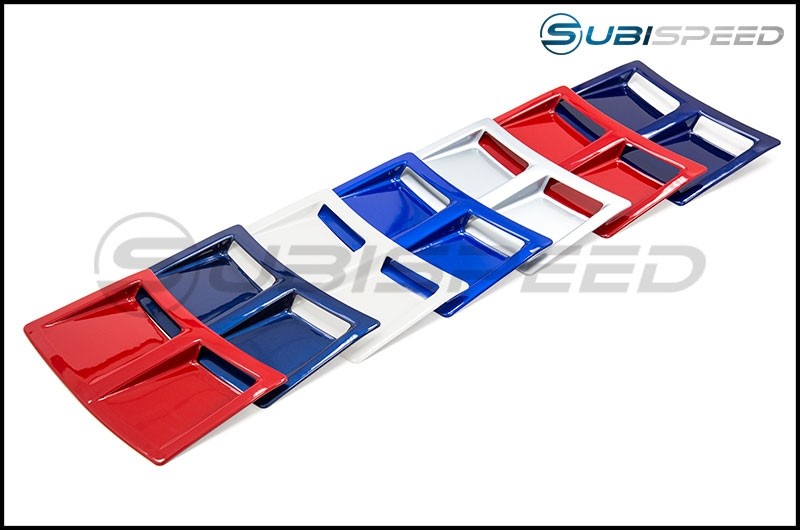

OLM S207 Rear Bumper Vent

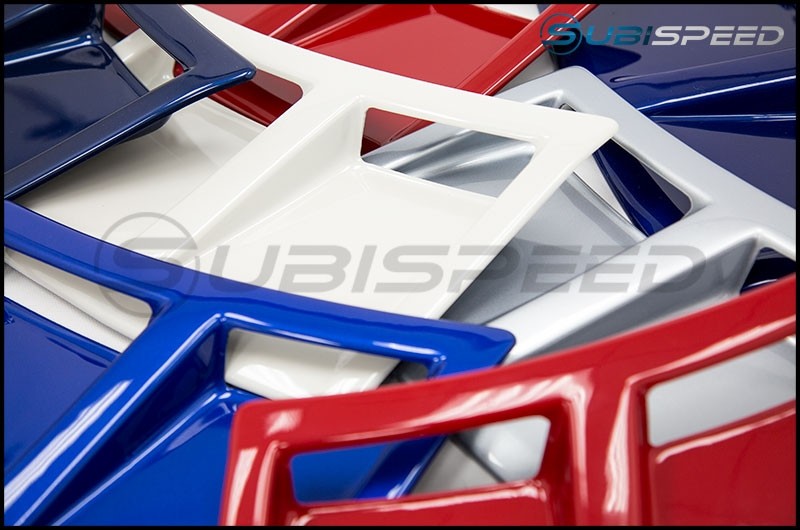

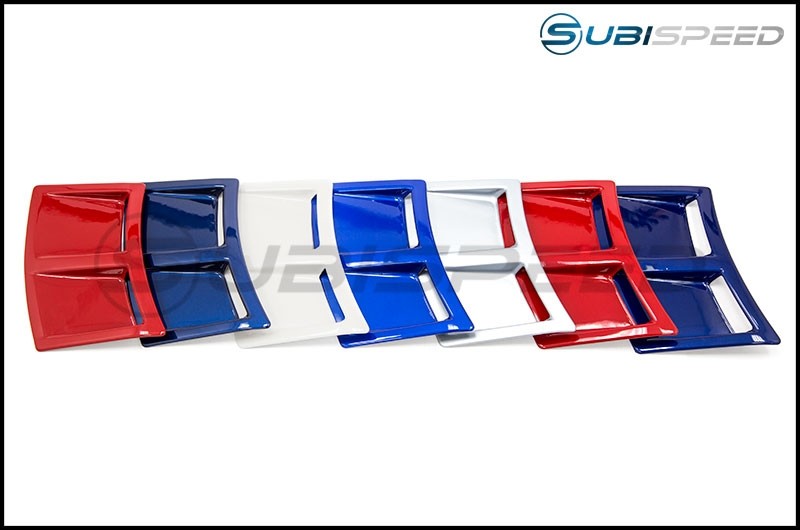

Since the S207 never made it over to US shores, here is your chance to give your vehicle the S207 treatment. These inserts can easily be painted and installed. Includes a template for mounting. The overhang conceals any rough edges left during cutting.
Instructions

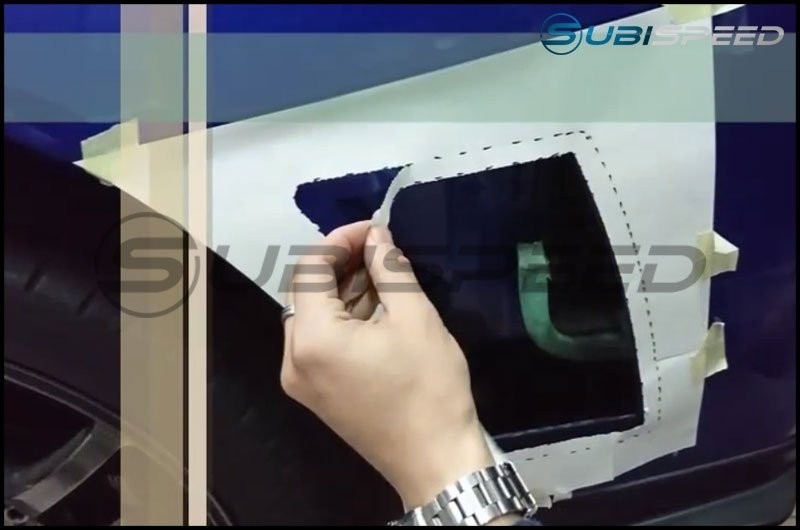

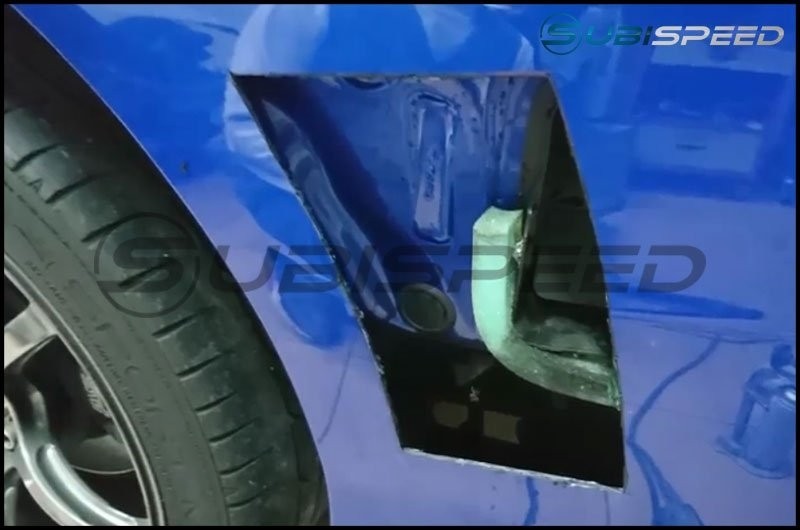

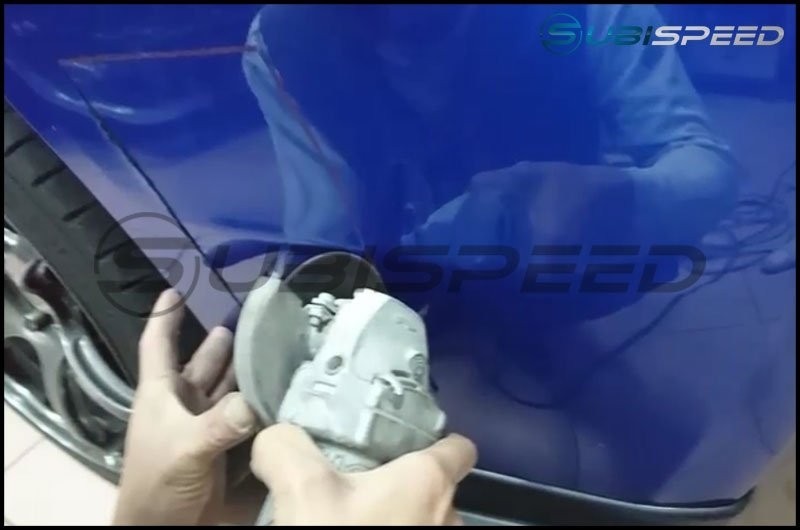

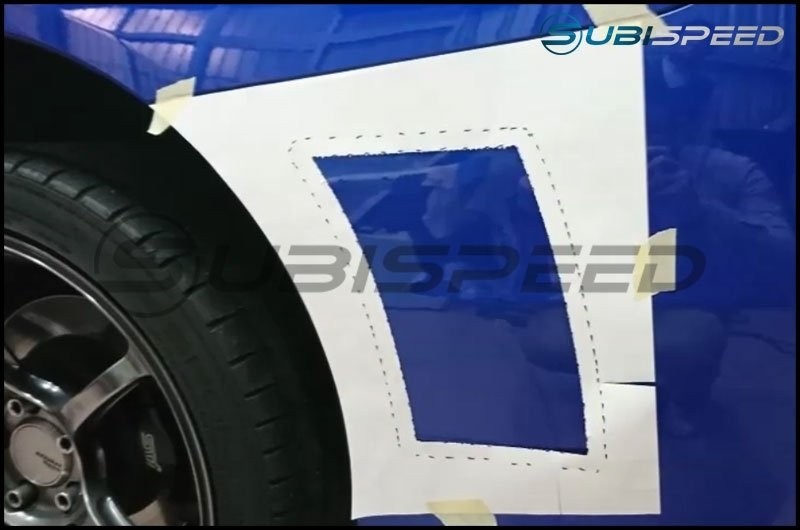

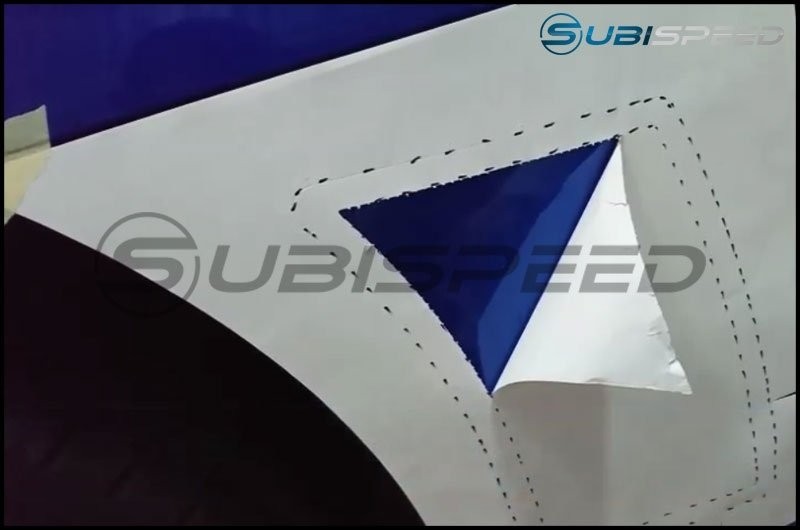

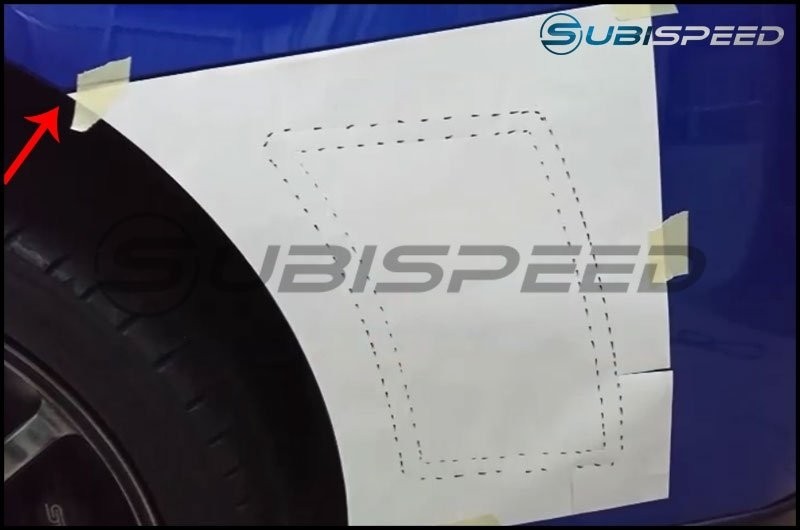

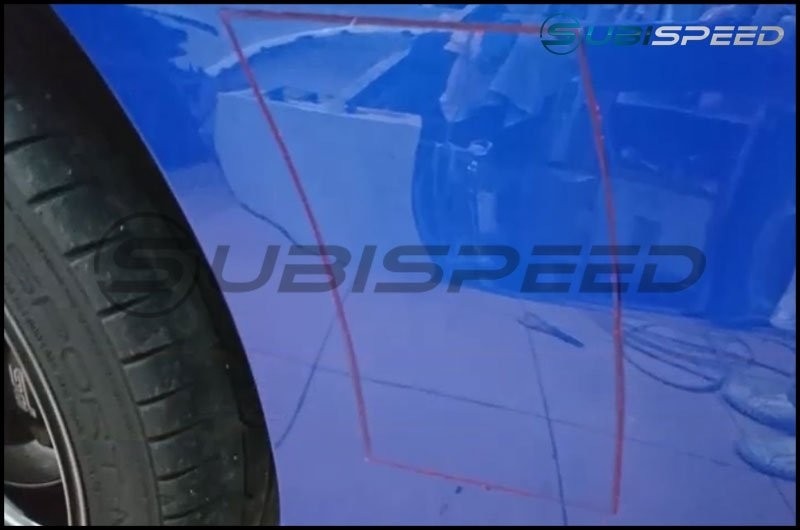

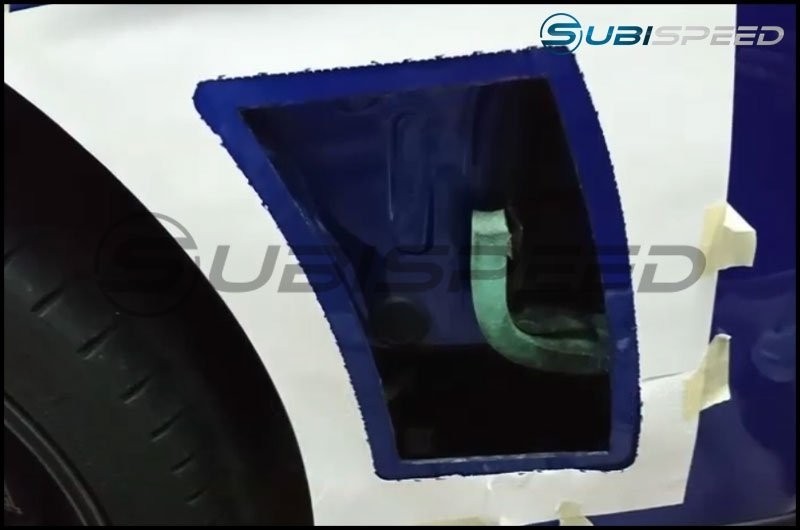

Tape the included template to your rear bumper. Cut out the inner outline. This is the area you will cut along. The outer line represents how much the duct will cover up. It overlaps the cut area to provide a clean edge. The inner cut does not have to be perfect as the vent will hide much of this area. Outline this cut area with a marker. Remove the template and cut the hole. Place the template back on, but cut the paper back to the outside line. This will allow you align and install the vent. Use panel bonder or 3M to attach the vent to your bumper. Repeat on the other side.
NOTE 1: There is a brace behind the bumper so you may choose to take the bumper off or pull the side away from the vehicle slightly if you plan to cut on vehicle.
People who viewed this item also viewed
3 customer reviews
-
Would recommend
The paint quality and fitment are amazing! The mesh you have to install yourself I used jb weld and the supplied double sided tape is trash so make sure you have some on hand before you cut your bumper (had to go get some with a hole in my rear bumper). Fitment was great, have a prybar or remove your bumper so you can hold pressure on both sides.
-
They’re ok.
Paint chipped off the corner of one of my vents. The included tape is horrible. I had to uninstall everything and put 3M VHB tape on. The metal vent grills were way to big. You have to trim them down in order for them to not be in the way. The template is cardboard so that helps since you get one template period! So don’t undo the second part of the template until the first side is cut. Once one side is cut do the other side. Once both are cut then you can remove the second part and line up the vents. Fitment is so so. They don’t Contour to the bumper lines very well. They seem warped a little. The color is spot on which is a positive. After some adjusting and stuff, they look decent enough.
-
S207 Bumper Vents
All and all very pleased with the purchased. Install is not overly hard, you just have to get over the fact that you have to cut your bumper. Down falls to this item are; only comes with one template, the provided double sided tape is hit or miss ( I recommend having some around just in case).
