GrimmSpeed CHASE JB400 Turbocharger Kit
2004-2021 Subaru STI / 2002-2007 WRX
The Chase JB400 Turbo is the smaller of our two offerings, however packs a big punch. This journal bearing unit is a perfect bolt-on to any stage 3 car, with which you are able to maximize the engine's power potential with instant results through installation/tuning.
Details
GrimmSpeed CHASE JB400 Turbocharger Kit
Highlights
- Compressor Wheel Size (Inducer/Exducer): 51.2mm / 73.8mm Extended tip, 48 Trim
- Turbine Wheel Size (Inducer/Exducer): 53.8mm / 47mm, 76 Trim
- Compressor Flow: 49 lb-min
- Compressor Wheel Type Material/Alloy: Billet 2618
- Compressor Housing Alloy: A356
- Turbine Housing Alloy: D5S
- Bearing Type: Journal
- Severe duty 360-degree thrust bearing and twin hydrodynamic bearings –very robust for this size of the turbocharger, to ensure reliability at high boost levels and in race applications
- Dual-piston rings and advanced oil flinger design to combat oil leakage and CHRA pressurization
- Compressor A/R: 0.65
- Turbine A/R: 0.88
- Adjustable Wastegate: Pre-set at 15Psi base pressure

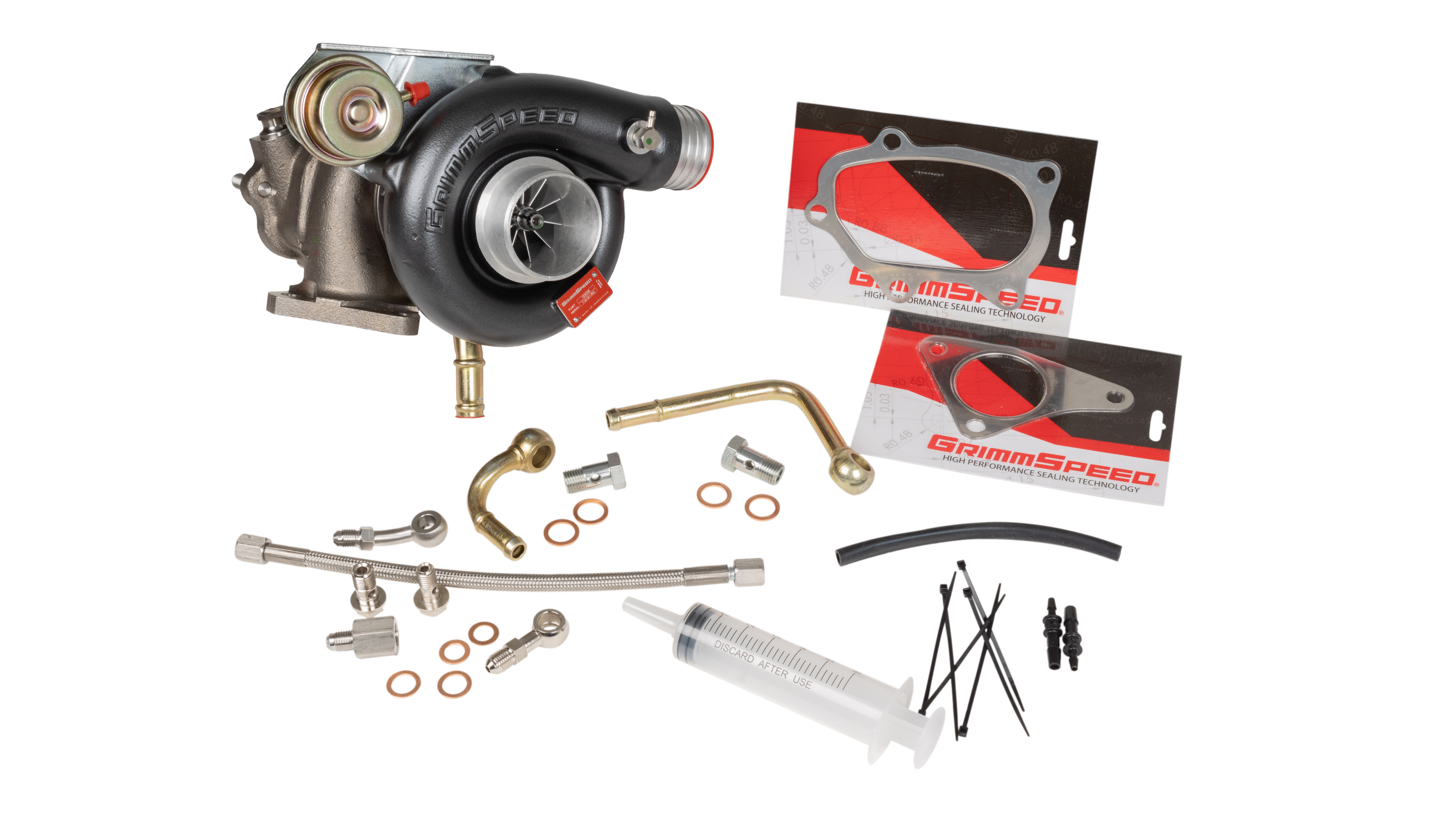

- Kit includes gaskets, oil/coolant lines, and fittings
STI Gets a Big Turbo
Get The Most Performance out of Your Subaru
The Chase JB400 Turbo is the smaller version of GrimmSpeed's two offerings, however packs a big punch. This journal bearing unit is a perfect bolt-on to any stage 3 car, with which you are able to maximize the engine's power potential with instant results through installation/tuning.
The Chase JB400 features a robust 49lb compressor wheel, with a 53mm turbine wheel to offer quick response and power in the mid-range where you need it. The Chase Version was able to hit 440WHP and 460WTQ on GrimmSpeed's Stage 3-equipped 2020 STI with the addition of only tuning and fuel mods. The impressive bit is that the vehicle was able to hold over 400WTQ from 4150RPM, an RPM range where the stock turbo begins to lose power. Compared to a tuned stock turbo STI, the Chase 400 was able to produce 70 more horsepower and 66 more ft/lbs of torque [with room for more with additional mods!
