FactionFab

FactionFab FR-Spec Coilovers V2

2013-2022 Scion FR-S / Subaru BRZ / Toyota GR86

$1,190.00
Ships for free in the 48 states

SKU: 1.10286.2We price match!

In Stock

HIGHLIGHTS:

  • Will come pre-assembled for the installation
  • Front top hats are camber adjustable
  • Get the desired stance
  • Improves the handling and suspension balance
  • For 2013+ BRZ, 2013-2016 FR-S, and 2017+ Toyota 86 models
You will earn Reward Points with this Purchase.

Details

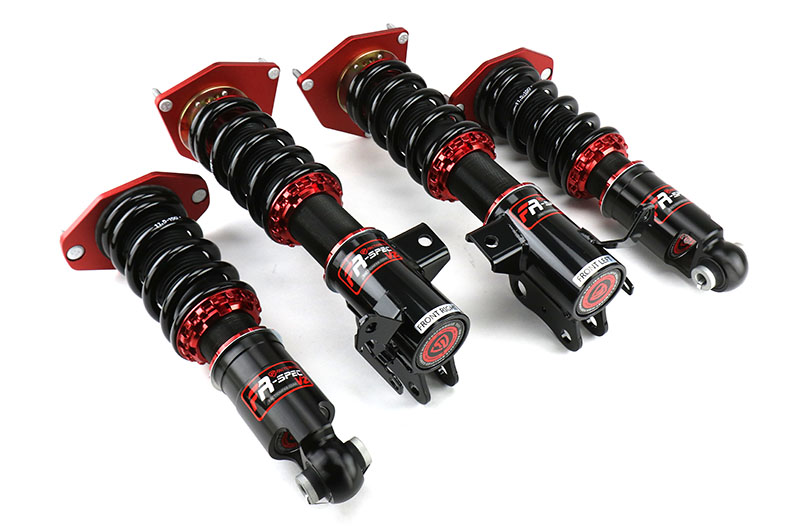

FactionFab V2 FR-Spec Coilovers


TECHNICAL:

  • 12-month warranty covering manufacturing defects
  • Available in the FL-Spec Street/Track and FR-Spec Track
  • 30-click dampening adjustable shocks
  • Track-proven adjustability
  • 0.12G increase in corners on firm settings when compared to soft
  • Allows customers to fine-tune the ride quality from soft to stiff to meet their road surface and driving environment needs
  • Each model has a specific valving and shim stack chosen to suit vehicle and spring rates
  • Re-examined and finely-tuned spring rates specific to each model
  • Monotube shock design front and rear
  • High-performance mono-tube shock construction allows for better control, fluid life, and thermal fluid stability
  • Independent ride height adjustability separate from spring pre-load allows the customer to set the ride height without excessive shock travel

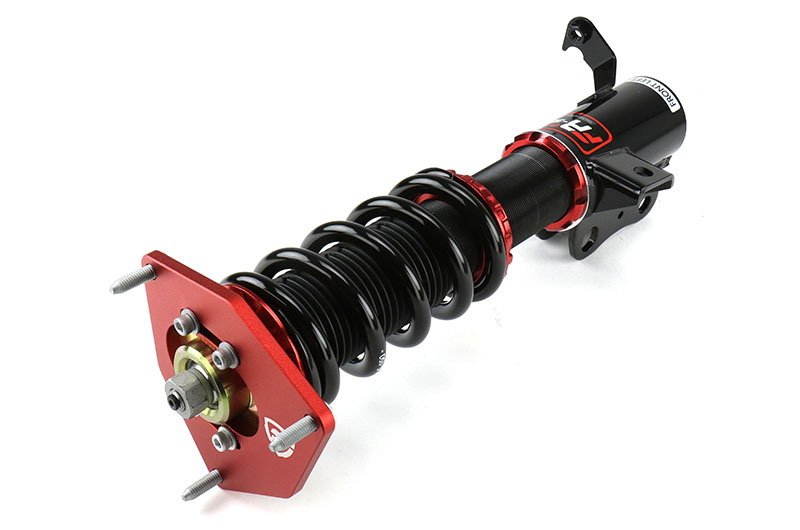

  • Camber plates included in the fronts
  • Offset machining location to maximize the negative camber adjustability
  • Included rear camber plates for 02-07 models
  • Included rear damping extenders for 02-07 models
  • Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
  • Perfect fitment mounts retain all OEM locations and methods for brake lines and ABS wire

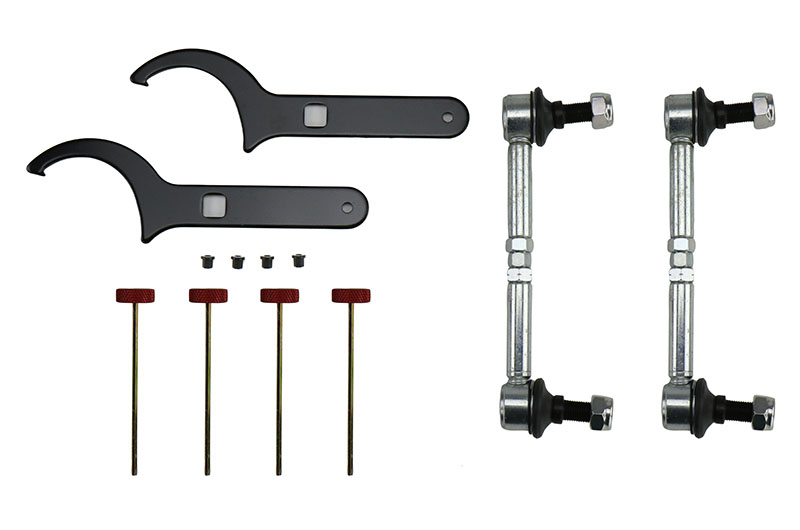

  • Includes length-adjustable end-links
  • Spring Rates Front: 10.5 KG/mm
  • Spring Rates Rear: 10.5 KG/mm



V2 FR-SPEC HIGHLIGHTS:

  • Designed specifically for performance driving
  • Increased spring rate and increased damping coefficient in the shocks to provide ultimate in handling and control under high-performance driving conditions
  • Pillowball, camber-adjustable, solid aluminum front top hats to reduce suspension deflection under aggressive driving conditions while allowing for fine alignment adjustments
  • Heavyweight shock oil for heat resistance and consistent damping
  • Longer shock body for increased stroke and to hold more oil for heat resistance and long-lasting performance



NOTABLE V1 TO V2 IMPROVEMENTS:

  • All new components from top to bottom
  • Revised spring rates - small adjustments for a perfect application
  • More dynamic damping adjustment range -  30 clicks
  • Offset camber plate to enable a more negative camber adjustment after lowering



A PERFORMANCE COILOVER SUITABLE FOR ENTHUSIASTS WHO ENJOY THE TRACK OR THE CANYONS

The Faction Fab V2 FR-Spec Coilovers are a pre-assembled coilover set that is ready to install right out of the box. These coilovers are the result of expert engineering, and these have gone through rigorous research and development practices to ensure a quality coilover that aims to deliver. These are effective enough for those with a purpose-built race car that needs the adjustment range needed to provide the suspension performance needed to lower those lap times. These coilovers are also suitable for enthusiasts with a daily driver or weekend show car who wants the stance and the adjustment needed to tailor to their driving styles.















1 customer review

Average rating
(based on 1 review)
Ease of Installation
Fit / Quality
Overall Satisfaction
  1. Great for budget, but has problems.

    By TB September 6, 2022

    Well, the package came in, the coilovers weren't wrapped properly in bubble wrap so the part of the front coilover that holds the breakline in place got bent. Wouldn't have been an issue if UPS would've been more gentle, but whatever. However, the nut that holds the breakline in place, is too small or had way too much paint, making the first installation go bad because when I tried taking the screw out to readjust to hopefully get the breakline to fit properly, broke the nut off. Ended up using a zip tie for the front break lines. Oh, and the adjustable front endlinks, those won't let you go to absolute low, so you can't try and slam the car, I didn't plan on it, but I went ahead and just bought whiteline ones instead. Good for a budget build, but spending a few extra hundred, may save you a headache.
