- FactionFab F-Spec Coilovers
FactionFab
FactionFab F-Spec Coilovers
2015+ WRX / 2015+ STI
Introducing the FactionFab F-Spec Coilovers for Subaru WRX and STI.Details

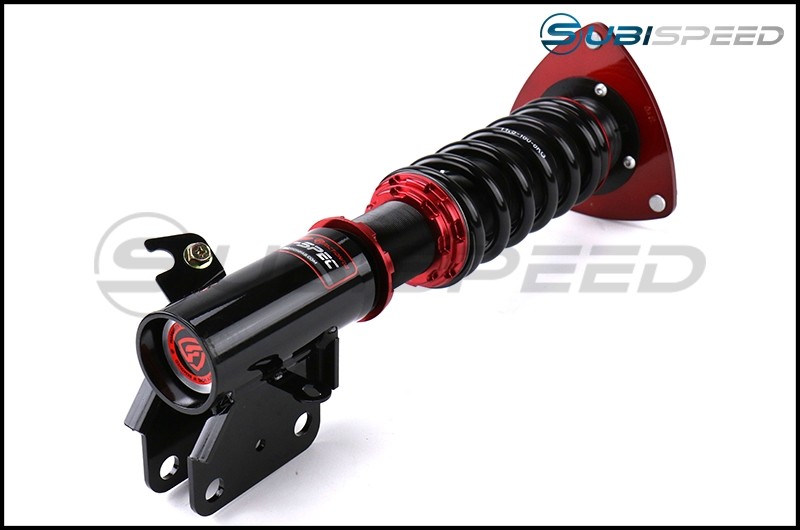

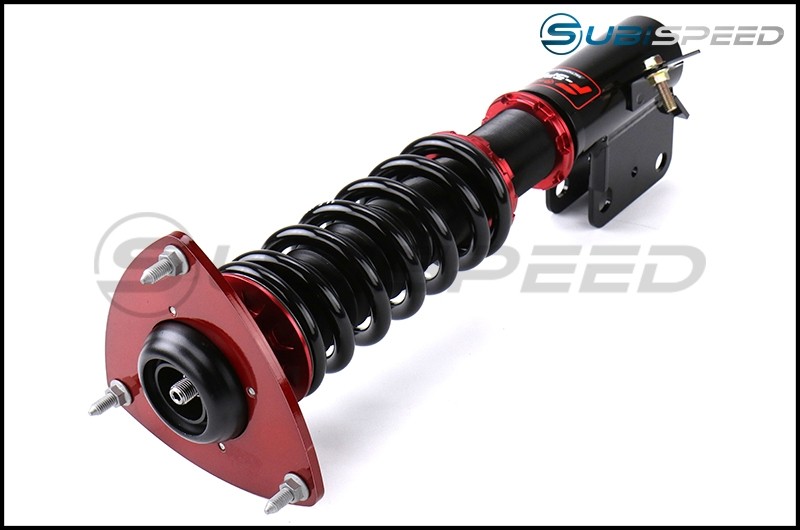

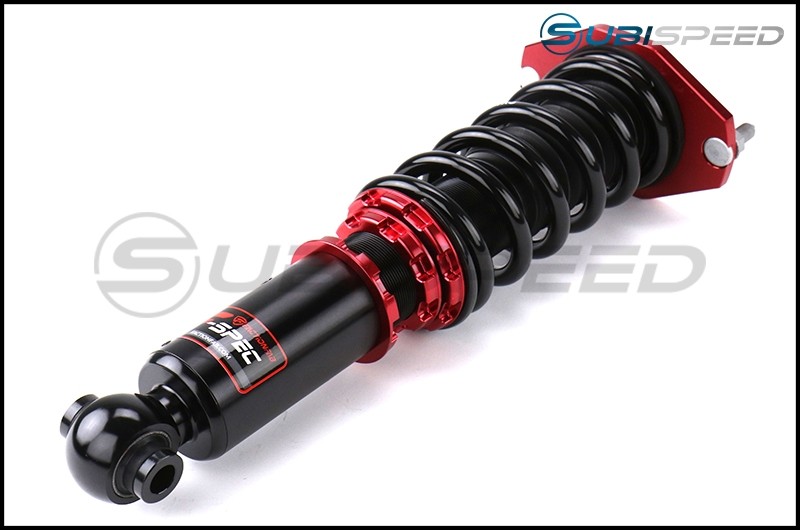

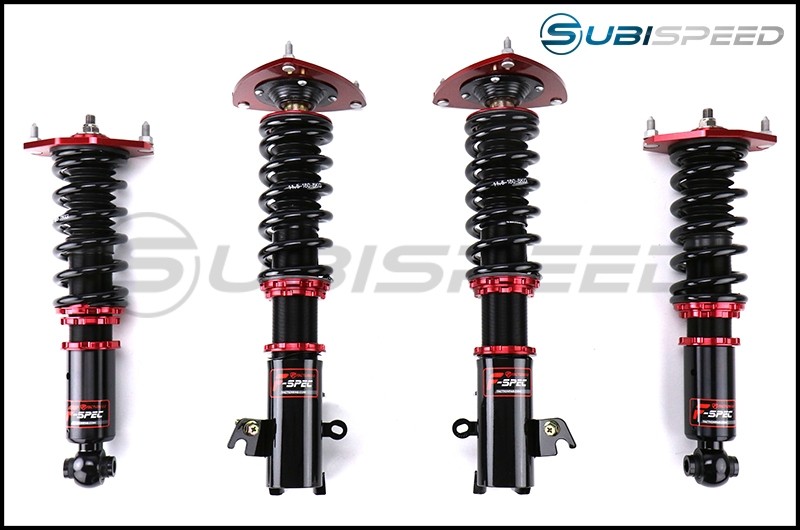

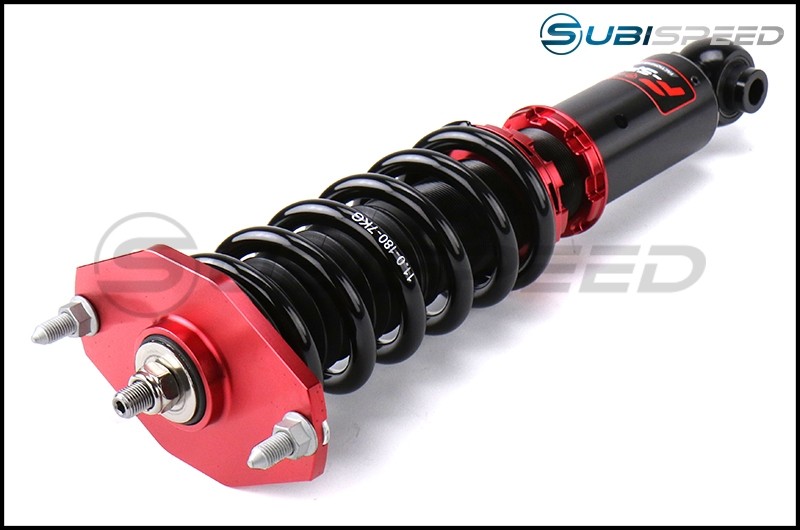

FactionFab F-Spec Coilovers
Introducing the FactionFab F-Spec Coilovers for Subaru WRX and STI.
These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your vehicle. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.
Details
- Increased spring rates and shock valving over stock suspension with emphasis on street performance while not jeopardizing ride quality and comfort
- 32-way adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
- The adjustment allows customers to fine-tune ride quality from soft to stiff in order to meet their road surface and driving environmental needs
- Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections

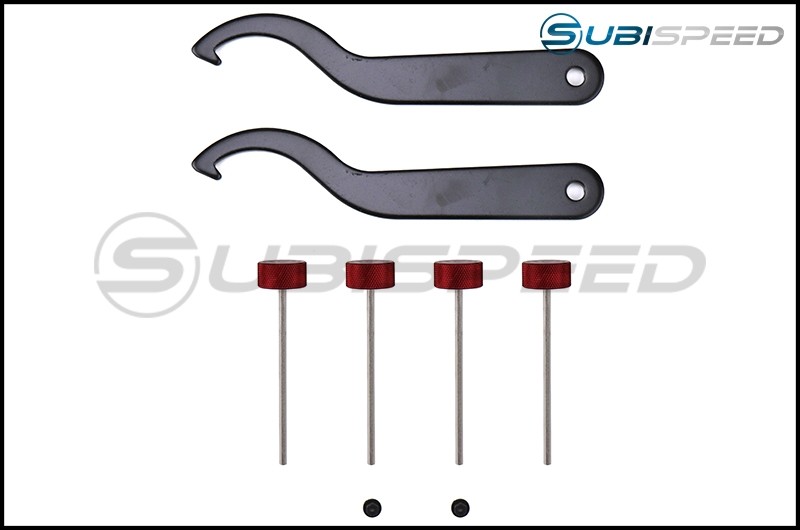

- Includes height adjustment tools
- Includes damping adjustment tools
General
- Japanese steel tube construction using SAE1010 STKM13c
- Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
- Synthetic high-performance oil
- Independent ride-height adjustability separate from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
- Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
- Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
- Robotic welded and electroplated lower shock mounts for consistent fit and finish
- Dust boots and bump stops for shock protection and longevity
- Individually sold components allowing for replacement or upgrade of components as desired or needed
- Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise
Specs
- Brand: FactionFab
- Adjustable: Yes
- Camber Adjustable: No
- Caster Adjustable: No
- Dampening Adjust Type: 32 Way
- Damper Type: Monotube
- Drop Height Front: 0.3-3.0in
- Drop Height Front Metric: 6-76mm
- Drop Height Rear: 0.4-2.3in
- Drop Height Rear Metric: 10-57mm
- Height Adjustable: Yes
- Independent Height Adjustable: Yes
- Spring Rate Front: 448lbs/in
- Spring Rate Front Metric: 8Kg/mm
- Spring Rate Rear: 392lbs/in
- Spring Rate Rear Metric: 7Kg/mm
- Top Hats Included: Yes
- Mfgr. Warranty: 1 Year
- Condition: New Product
- Rear Lower Coilover Bolt Torque Spec: 60ft-lbs
Additional Information
Installation Instructions Link Additional Warranty Information None
FactionFab F-Spec Coilovers / 1.10177.1 Fits
Subaru WRX Base2015 Subaru WRX Base2016 Subaru WRX Base2017 Subaru WRX Base2018 Subaru WRX Base2019 Subaru WRX Base2020 Subaru WRX BaseLimited2015 Subaru WRX Limited2016 Subaru WRX Limited2017 Subaru WRX Limited2018 Subaru WRX Limited2019 Subaru WRX Limited2020 Subaru WRX LimitedPremium2015 Subaru WRX Premium2016 Subaru WRX Premium2017 Subaru WRX Premium2018 Subaru WRX Premium2019 Subaru WRX Premium2020 Subaru WRX PremiumSubaru WRX STI Base2015 Subaru WRX STI Base2016 Subaru WRX STI Base2017 Subaru WRX STI Base2018 Subaru WRX STI Base2019 Subaru WRX STI Base2020 Subaru WRX STI BaseLaunch Edition2015 Subaru WRX STI Launch EditionLimited2015 Subaru WRX STI Limited2016 Subaru WRX STI Limited2017 Subaru WRX STI Limited2018 Subaru WRX STI Limited2019 Subaru WRX STI Limited2020 Subaru WRX STI LimitedS2092020 Subaru WRX STI S209Series.HyperBlue2016 Subaru WRX STI Series.HyperBlueType RA2018 Subaru WRX STI Type RA0 customer reviews
